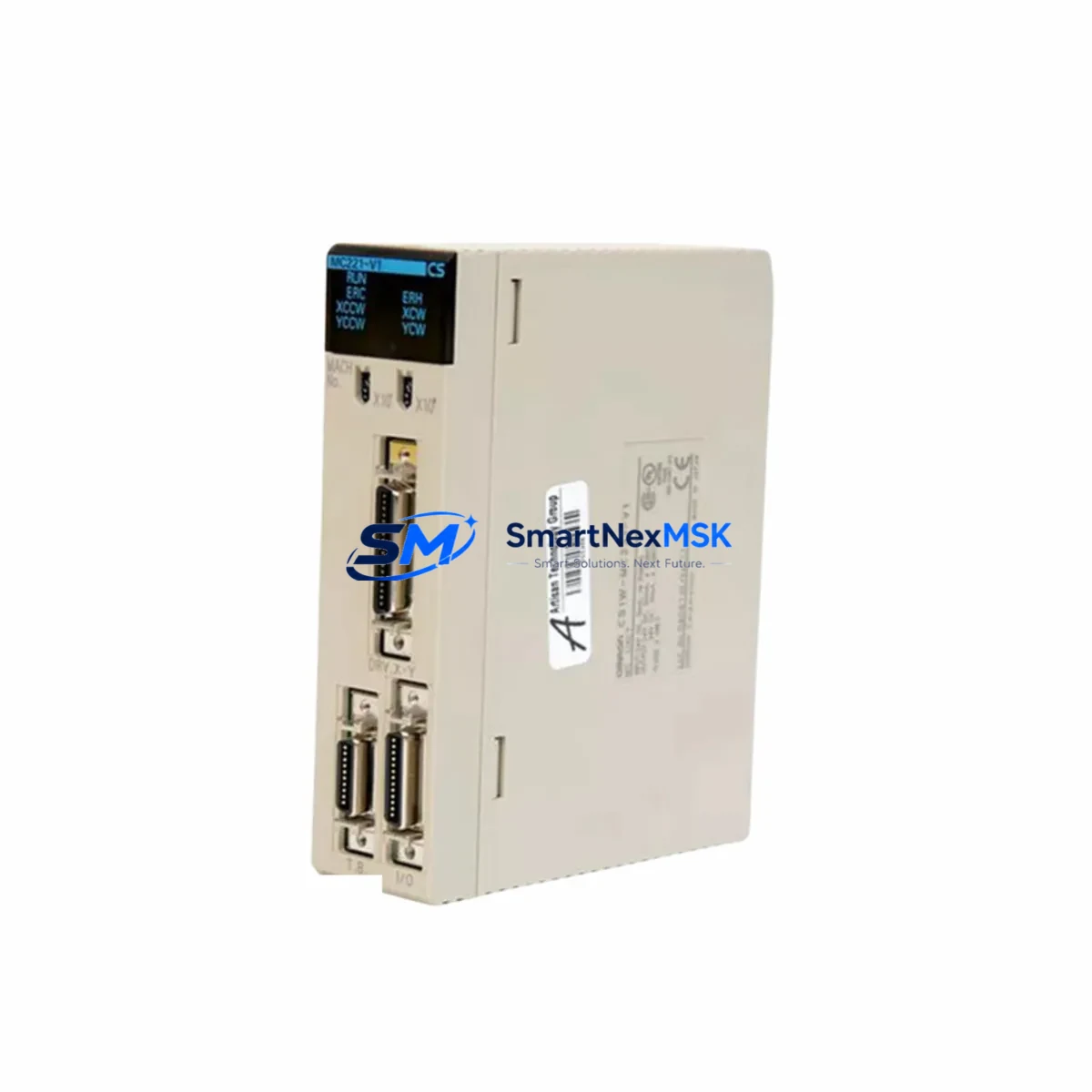

OMRON CS1W-ADO41-V1 Retrofit-Ready Analog Output for CS1 Series Control Systems
The OMRON CS1W-ADO41-V1 is a 4-channel analog output module engineered for the OMRON CS1 Series programmable logic controller platform. As legacy CS1-based control systems approach end-of-life or require capacity expansion, the CS1W-ADO41-V1 remains one of the most sought-after retrofit and replacement components in industrial automation. Whether you are restoring a discontinued spare, upgrading an aging control cabinet, or migrating I/O capacity from an older SYSMAC C200H or CQM1 platform, this module delivers the signal resolution, backplane compatibility, and software transparency that retrofit engineers demand.
Each CS1W-ADO41-V1 unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification covering channel output accuracy, backplane communication handshake, and terminal block integrity. All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
Upgrade Compatibility Table
| Parameter | CS1W-ADO41-V1 | Retrofit Notes |
|---|---|---|
| Output Channels | 4 channels | Verify channel count matches legacy wiring schedule |
| Output Signal Range | 1–5 V / 0–10 V / 4–20 mA (selectable) | Match range to field instrument specification; reconfigure DIP switches if replacing older -V0 variant |
| Resolution | 1/6000 (12-bit equivalent) | Confirm HMI scaling tags match new resolution if upgrading from C200H analog modules |
| Backplane Interface | CS1 CPU/Expansion Backplane (CS1W-BC□□□ series) | Compatible with CS1W-BC023, CS1W-BC053, CS1W-BC083, CS1W-BC103; not compatible with CJ-series backplanes |
| Module Address / Unit No. | Set via rotary switch (0–F) | Record existing unit number before removal; set identical value on replacement module |
| Power Consumption (5 VDC) | 170 mA (typical) | Verify CS1W-PA204 or CS1W-PD025 power supply has sufficient remaining capacity across all installed modules |
| Terminal Block Wiring | Removable screw terminal block (18-point) | Terminal block is field-removable; existing wiring harness can be transferred directly — no re-termination required in most cases |
| Program Compatibility | Fully compatible with CX-Programmer ladder logic using IORF / MOV instructions to CIO area | No program modification required when replacing a same-model unit; verify I/O table registration in CX-Programmer if slot position changes |
| Communication Protocol | CS1 internal backplane bus (proprietary OMRON) | No protocol migration required; if integrating with upper SCADA via CS1W-ETN21 Ethernet unit, existing tag mapping remains valid |
| Replacement Scope | Direct drop-in for CS1W-ADO41 (V0) and compatible upgrade path from C200H-DA004 | C200H-DA004 replacement requires I/O table update and minor CIO address remapping in CX-Programmer |
| Warranty | 12-Month Warranty — covers functional failure and manufacturing defects under normal industrial operating conditions | |
Retrofit Planning for Existing Automation Systems
Successful integration of the CS1W-ADO41-V1 into an existing control system begins well before the module arrives on site. Retrofit engineers should start by auditing the current CS1 rack configuration: document every module installed in the CS1W-BC□□□ backplane, record each unit number set on the rotary switch, and export the current I/O table from CX-Programmer as a reference baseline. This step is critical when the CS1W-ADO41-V1 is being installed alongside other expansion modules such as a CS1W-ID211 digital input module or a CS1W-OD211 digital output module, where slot sequence directly affects CIO memory mapping.
Power budget verification is a non-negotiable pre-installation step. The CS1W-PA204 power supply unit provides 5 A at 5 VDC to the backplane. Each module draws from this shared bus — the CS1W-ADO41-V1 consumes approximately 170 mA, while a CS1W-SCU21-V1 serial communications unit may draw an additional 150 mA. If the existing rack is near capacity, consider redistributing modules across an expansion backplane connected via the CS1W-IC101 I/O control unit and a corresponding CS1W-II101 I/O interface unit. This approach avoids power supply replacement and keeps the existing CPU — typically a CS1G-CPU45H or CS1H-CPU67H — undisturbed.
Terminal wiring for the CS1W-ADO41-V1 uses a removable 18-point screw terminal block. In most retrofit scenarios where the original CS1W-ADO41 (V0 variant) is being replaced, the existing wiring harness can be unplugged from the old module and plugged directly into the new unit without re-termination. Engineers replacing a legacy C200H-DA004 analog output module from an older SYSMAC C200H rack will need to re-terminate field wiring to match the CS1 terminal layout and update the I/O table in CX-Programmer to reflect the new CIO address range. HMI screens built in CX-Designer or on a NS-series HMI panel that reference analog output tag addresses must be updated to reflect any CIO remapping before the system is returned to automatic mode.
For systems that include a CS1W-ETN21 Ethernet/IP communications unit connecting the CS1 PLC to a SCADA or MES layer, verify that the analog output data block addresses referenced in the SCADA tag database still align with the post-retrofit CIO layout. In most same-slot replacements, no SCADA reconfiguration is needed. Where slot position changes, a brief tag address update in the SCADA historian is sufficient to restore full data continuity.
Downtime Control During System Migration
Minimizing production downtime during a CS1W-ADO41-V1 swap requires a structured hot-swap preparation protocol, even though the CS1 backplane does not support live module replacement. The recommended approach is to schedule the swap during a planned maintenance window and follow a four-step sequence: force all analog output channels to a safe state (typically 4 mA or 0 V) using CX-Programmer’s force-set function before powering down; photograph or document the terminal wiring before disconnecting the terminal block; record the unit number on the rotary switch of the outgoing module; and power down the CS1 rack in the correct sequence — field power first, then backplane power via the CS1W-PA204.
After installing the CS1W-ADO41-V1 replacement, set the rotary switch to the identical unit number, reconnect the terminal block, and restore power. CX-Programmer will automatically recognize the module during the next PLC scan cycle if the I/O table was registered for that slot. No program download is required in a same-model, same-slot replacement. Verify each analog output channel against the field instrument — use a calibrated loop calibrator to confirm 4 mA, 12 mA, and 20 mA setpoints before releasing the system to automatic control. Total planned downtime for an experienced engineer performing a same-model swap is typically under 30 minutes, preserving existing ladder logic, HMI screens, SCADA tags, and communication link configurations intact.
For migrations from a C200H platform to CS1, a parallel-run strategy is recommended: install the CS1 rack alongside the existing C200H rack, commission the CS1W-ADO41-V1 outputs in manual mode, verify field instrument response, then cut over control authority from the C200H to the CS1 CPU during a brief coordinated shutdown. This approach limits exposure to a single cutover event and allows full functional verification before decommissioning the legacy hardware.
Retrofit Support FAQ
Q1: Is the CS1W-ADO41-V1 a direct replacement for the CS1W-ADO41 (without the -V1 suffix)?
Yes. The V1 revision is backward compatible with the original CS1W-ADO41. The terminal block layout, unit number switch, backplane connector, and CIO memory mapping are identical. No program changes are required for a same-slot replacement. The V1 revision introduced improved output stability and extended the operating temperature range — both are transparent improvements that require no configuration adjustment.
Q2: Can the CS1W-ADO41-V1 replace a C200H-DA004 analog output module?
Not as a direct drop-in — the C200H and CS1 platforms use different backplane architectures. However, the CS1W-ADO41-V1 is the correct functional replacement when migrating a C200H control system to a CS1 platform. The migration requires installing a CS1 rack, updating the I/O table in CX-Programmer, remapping CIO addresses in the ladder program, and updating any HMI or SCADA tag references. SMARTNEXMSK can supply both the CS1W-ADO41-V1 and associated CS1 rack components to support a complete platform migration.
Q3: What pre-shipment testing is performed on each CS1W-ADO41-V1 unit?
Every unit undergoes functional verification prior to shipment: all four analog output channels are tested across the full 4–20 mA and 0–10 V output ranges, backplane communication is verified via a CS1 test rack, and the terminal block is inspected for contact integrity. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q4: What information should I provide when ordering to ensure compatibility?
Please provide: (1) the existing module model number being replaced, (2) the CS1 CPU model in use (e.g., CS1G-CPU45H), (3) the backplane model and current slot configuration, (4) the required output signal range (current or voltage), and (5) any communication units installed in the rack (e.g., CS1W-ETN21, CS1W-SCU21-V1). This allows SMARTNEXMSK to confirm compatibility and advise on any wiring or configuration adjustments before shipment.
