OMRON TPM1A-40CDT-D-V1 Retrofit-Ready CPU for CPM1A Control Systems

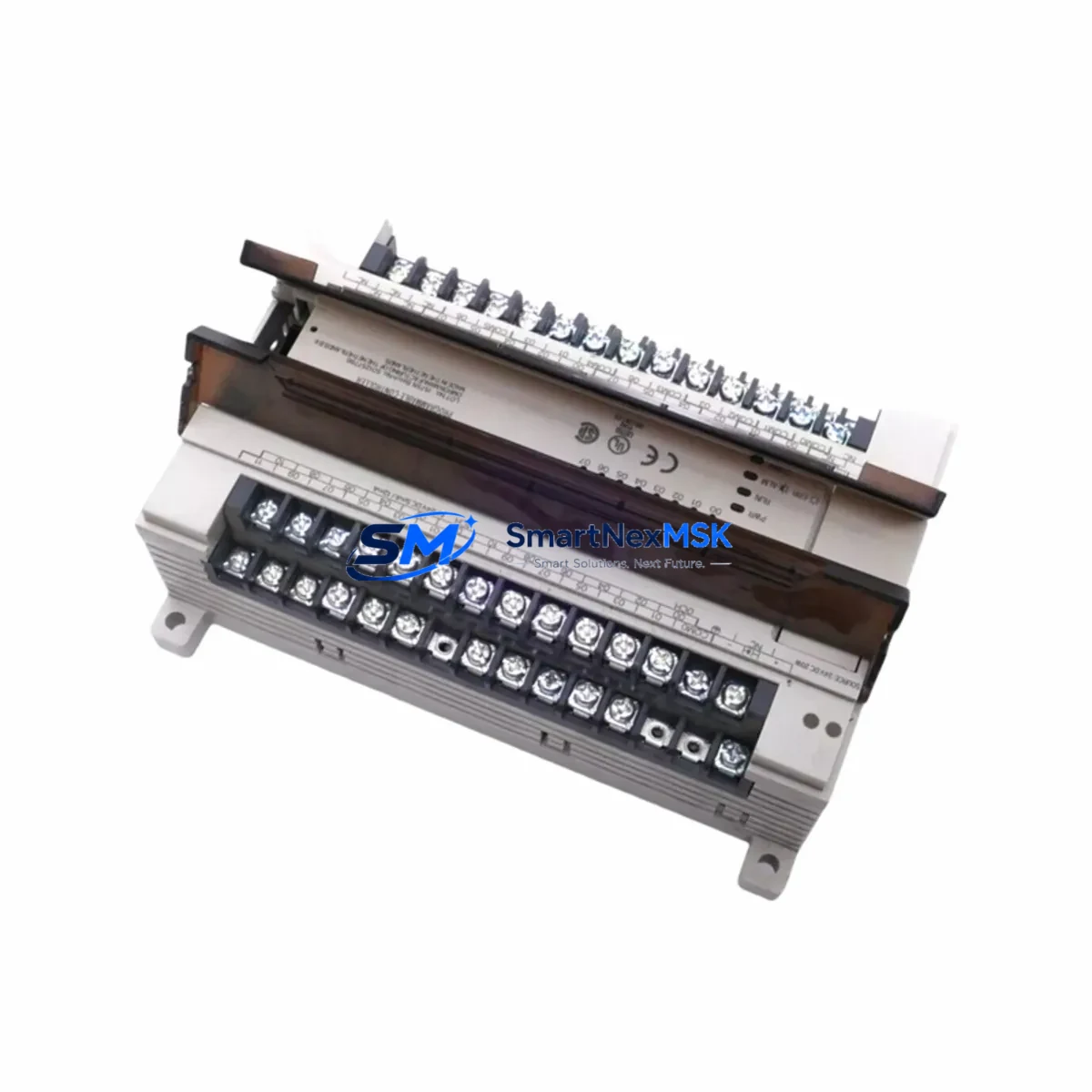

The OMRON TPM1A-40CDT-D-V1 is a high-compatibility, retrofit-ready programmable logic controller CPU unit engineered to serve as a direct functional replacement for legacy CPM1A Series controllers in existing automation infrastructure. With 40 I/O points, DC transistor sink output, and a compact DIN-rail form factor, this unit is purpose-built for engineers managing aging control cabinets, discontinued spare part shortages, and production-line modernization projects where minimizing downtime is non-negotiable.

Whether you are replacing a failed CPM1A-40CDT-D on a packaging line, upgrading a legacy injection molding cell, or consolidating a multi-rack control panel, the TPM1A-40CDT-D-V1 delivers a smooth migration path without requiring a full system redesign. Its instruction set, memory structure, and I/O addressing are aligned with the CPM1A platform, enabling engineers to reuse existing ladder logic programs with minimal modification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the replacement unit arrives on-site. Engineers should start by auditing the existing control cabinet layout, documenting the terminal wiring of the CPM1A-40CDT-D and any connected expansion modules such as the CPM1A-8ET digital output expansion or the CPM1A-MAD01 analog I/O unit. Photograph all terminal blocks and label each wire before disconnection.

Power supply verification is a critical first step. Confirm that the existing 24 VDC power supply — often a dedicated unit such as the S8VS-06024 or equivalent DIN-rail PSU — can deliver sufficient current for the TPM1A-40CDT-D-V1 plus all connected I/O expansion modules. Undersized power supplies are a common cause of intermittent faults after retrofit.

For systems using Host Link (SYSMAC WAY) communication to an upstream SCADA or HMI — such as an NS5-SQ10B-V2 or NB7W-TW01B touchscreen panel — verify that the baud rate, station number, and data format settings in the HMI project match the TPM1A configuration. Most CPM1A-era HMI screens can be reused without modification if the communication parameters are preserved.

If the legacy system includes a CIF01 RS-232C communication adapter or a CS1W-SCU21-V1 serial communications unit on a shared network, confirm that the TPM1A-40CDT-D-V1 is assigned the correct node address to avoid bus conflicts. For systems migrating from RS-232C to RS-485 multi-drop topologies, termination resistors and cable shielding must be reviewed.

I/O module address mapping deserves particular attention. If the original CPM1A program uses fixed I/O addresses for expansion units — for example, a CPM1A-16ET transistor output expansion assigned to a specific word — verify that the TPM1A preserves the same addressing scheme. Upload the original program from the CPM1A using CX-Programmer or a compatible programming cable such as the CS1W-CN226, and perform a full compile and syntax check before downloading to the new unit.

For control cabinets that also house a CPM2C or CQM1H as a secondary controller on the same backplane or communication bus, ensure that the retrofit of the primary CPU does not disrupt the inter-controller messaging or shared data link tables. Test all PLC-to-PLC data exchange routines in simulation mode before live commissioning.

Downtime Control During System Migration

Minimizing production downtime during a CPM1A-to-TPM1A migration requires a structured, pre-tested approach. Begin by creating a full backup of the existing CPM1A program, including all data memory (DM) values, timer presets, and counter settings. Store this backup on at least two separate media — a laptop running CX-Programmer and a USB drive — before any hardware is disturbed.

Where possible, pre-configure the TPM1A-40CDT-D-V1 on a bench test rig that mirrors the field wiring. Use a spare 24 VDC bench power supply and a set of test terminals to simulate field inputs and verify output behavior against the original program logic. This bench validation step can reduce on-site commissioning time from several hours to under 30 minutes.

During the physical swap, work systematically from the power supply terminals inward: disconnect the PSU first, then the communication cables, then the I/O wiring. Use the pre-labeled wire photographs as a reference. Mount the TPM1A-40CDT-D-V1 on the DIN rail, reconnect all terminals in reverse order, and restore power only after a final visual inspection of all connections.

After power-up, perform a forced I/O test to verify each input and output channel before enabling automatic program execution. Check the communication link to the HMI or SCADA system and confirm that all screen tags are reading correctly. Log the commissioning results and retain them as part of the site maintenance record. With proper preparation, total planned downtime for a single-CPU retrofit can be held to under two hours.

Retrofit Support FAQ

Q1: Is the TPM1A-40CDT-D-V1 a direct drop-in replacement for the CPM1A-40CDT-D?
A: Yes, in terms of I/O count, output type, power requirements, and DIN-rail mounting dimensions, the TPM1A-40CDT-D-V1 is functionally compatible with the CPM1A-40CDT-D. Existing ladder programs written for the CPM1A can be downloaded to the TPM1A with minimal or no modification. Engineers should verify I/O address mapping and communication port settings before going live.

Q2: Can I reuse my existing CPM1A expansion modules and terminal wiring?
A: In most cases, yes. CPM1A-series expansion I/O modules connect via the standard expansion bus connector, and the TPM1A-40CDT-D-V1 supports the same expansion architecture. Terminal wiring is identical in pinout. Always verify expansion module compatibility against the TPM1A technical datasheet before installation.

Q3: What communication protocols does the TPM1A-40CDT-D-V1 support, and will my existing HMI still work?
A: The TPM1A-40CDT-D-V1 supports SYSMAC WAY (Host Link) over RS-232C, which is the same protocol used by the CPM1A. HMI panels such as the NS5, NB7W, or third-party panels configured for Host Link communication will continue to operate without reprogramming, provided the station number and baud rate settings are matched.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
A: Every TPM1A-40CDT-D-V1 unit is function-tested prior to shipment, covering power-on self-test, I/O channel verification, and communication port integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with full documentation and are traceable to batch test records. Contact our team for warranty claims or technical support.
