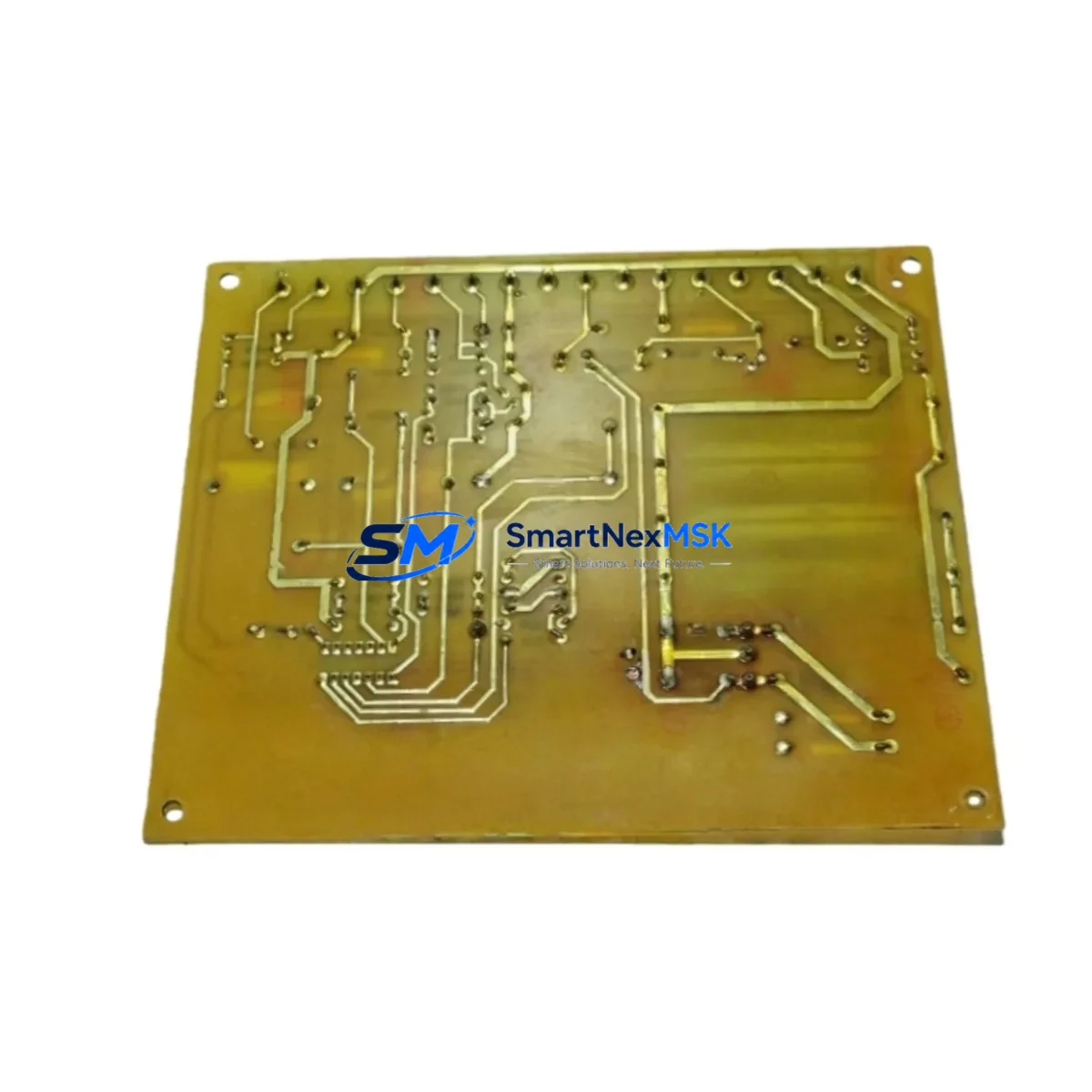

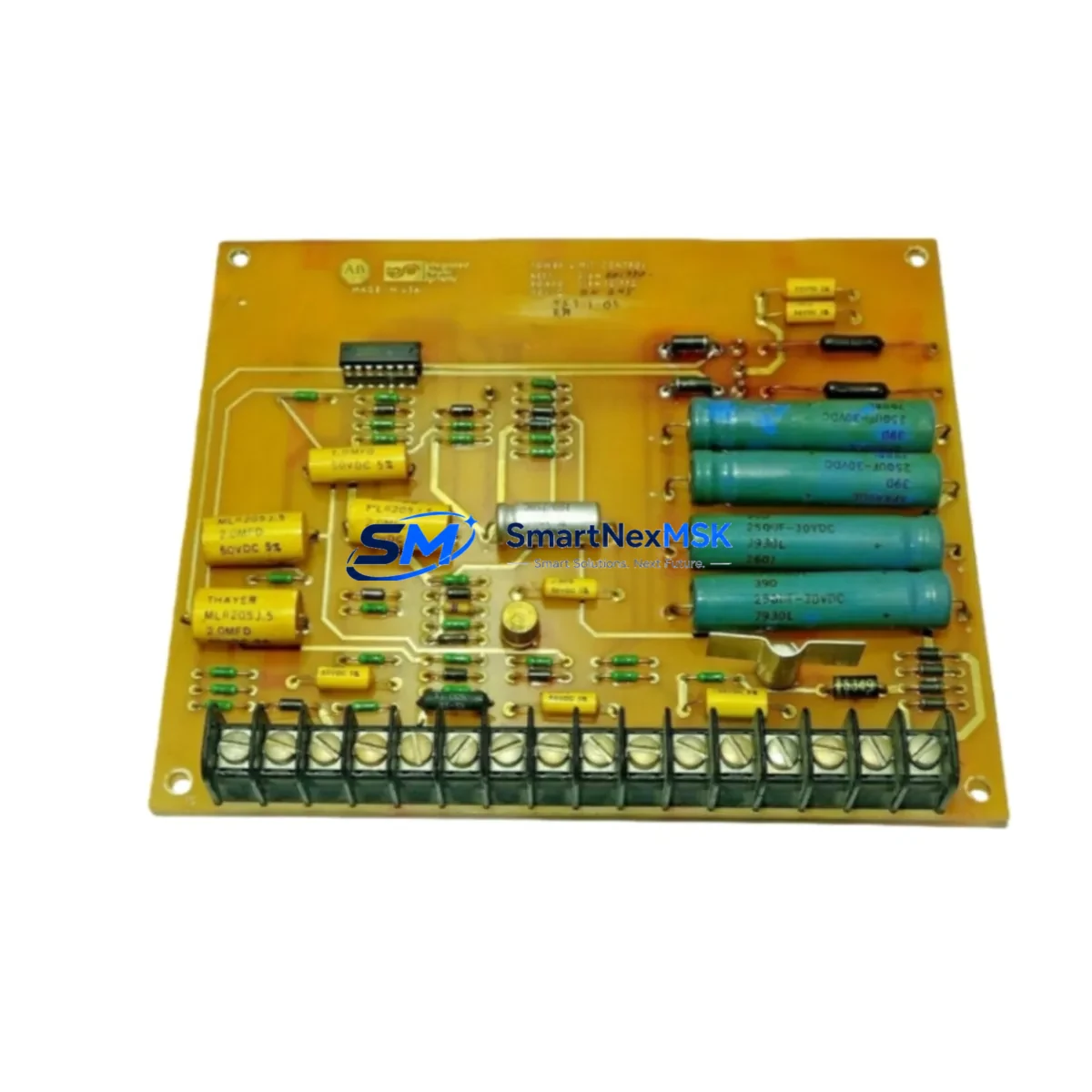

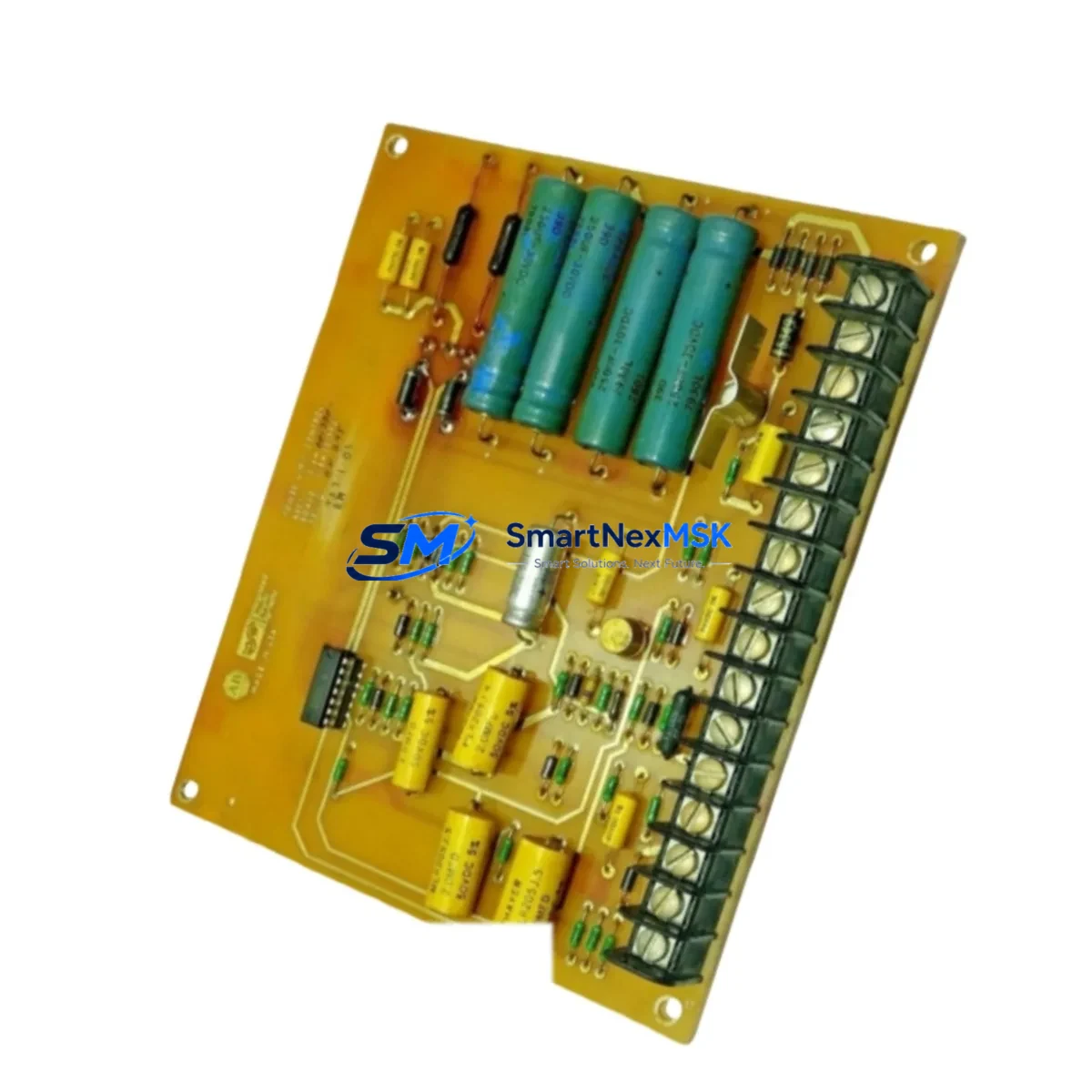

PLC 018-001770 Safety-Enhanced Power Limit Control Module

PLC 018-001770 Safety-Enhanced Power Limit Control Module: Reliable Control in Harsh Industrial Sites

The PLC 018-001770 is a ruggedized power limit control board engineered for continuous, safety-critical operation in demanding industrial environments. Designed to integrate seamlessly into servo drive control cabinets, this module provides precise power threshold management, protecting downstream drive components from overload conditions, voltage transients, and surge events that are common in heavy-industry installations. Whether deployed in petrochemical processing lines, metallurgical furnace control systems, port crane drive cabinets, or continuous mineral processing facilities, the 018-001770 delivers the signal integrity and power stability that modern industrial safety architectures demand.

In high-load servo drive systems, uncontrolled power excursions are a leading cause of unplanned downtime, drive module failure, and — in worst-case scenarios — safety interlock activation. The PLC 018-001770 addresses this risk at the source by enforcing configurable power limits within the drive’s control loop, preventing the motor and drive electronics from operating outside safe boundaries. This is especially critical in applications where a single axis failure can cascade into a full production line shutdown or trigger a safety instrumented system (SIS) response.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust servo drive control cabinet is only as reliable as its weakest protection layer. The PLC 018-001770 power limit control board is typically installed alongside a coordinated set of protective and monitoring components to form a complete cabinet-level safety architecture. In practice, this module works in concert with the drive’s main power supply board — such as the PLC 018-001500 rectifier and DC bus regulation board — to ensure that power delivered to the motor output stage never exceeds the programmed safety threshold. Upstream, a properly rated line filter module (e.g., PLC EMC line filter for servo drive input) suppresses conducted interference from the plant power grid before it reaches the control electronics.

On the feedback and signal side, the 018-001770 interfaces with the drive’s encoder feedback processing board and the current measurement module to receive real-time load data. If the measured power approaches the configured limit, the board issues a controlled derating command to the PWM generation module, smoothly reducing motor torque rather than triggering an abrupt fault trip. This soft-limiting behavior is essential in applications such as continuous casting lines or paper mill winders, where a sudden drive trip would cause product defects or mechanical shock to the drivetrain.

For cabinet-level surge protection, the 018-001770 is best paired with a dedicated surge protection device (SPD) on the incoming AC supply and a DC bus capacitor bank module to absorb regenerative energy spikes from rapid deceleration cycles. In safety-critical interlock circuits, the board’s fault output signal can be wired directly into the safety relay module or the plant’s safety PLC input card, ensuring that any power limit violation is immediately visible to the site’s safety instrumented system. Communication between the drive and the plant DCS is typically handled via a PROFIBUS-DP or PROFINET communication option board, which relays power limit status and alarm data to the control room in real time.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area drive rooms adjacent to process units, power excursions in servo-driven pump and compressor drives can trigger emergency shutdown systems. The PLC 018-001770 provides a first line of electronic defense, limiting power draw before mechanical overload protection devices are activated, reducing wear on safety valves and emergency trip mechanisms.

Electric Power Generation & Transmission: Servo drives controlling cooling fan arrays, valve actuators, and auxiliary equipment in power stations operate under strict reliability mandates. The 018-001770 ensures that auxiliary drive systems remain within their rated power envelope during grid disturbances and load-shedding events, preventing cascading failures in plant auxiliary systems.

Mining & Mineral Processing: Conveyor drives, crusher drives, and hoist systems in underground and open-pit mining operations are subject to extreme load variations and high ambient dust and vibration. The ruggedized design of the 018-001770 and its power limit enforcement capability prevent drive trips during rock surge events, maintaining continuous ore flow and reducing costly restart procedures.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment facilities must operate continuously with minimal intervention. Power limit control prevents motor overloading during high-viscosity sludge pumping cycles, extending motor and drive service life and reducing maintenance intervals.

Metallurgy & Steel Production: Rolling mill main drives and coiler drives operate at the edge of their power ratings during product changeovers and thickness transitions. The 018-001770 enforces safe power boundaries during these transient conditions, protecting the drive’s IGBT output stage and reducing the risk of thermal shutdown during critical production sequences.

Port & Crane Operations: Container crane hoist and trolley drives require precise power management to prevent overloading during heavy lift cycles. The power limit control board ensures that regenerative braking energy and peak lift currents remain within safe limits, protecting both the drive hardware and the crane’s structural load ratings.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PLC 018-001770?
The 12-month warranty covers all manufacturing defects and functional failures that occur under normal operating conditions within the specified environmental and electrical ratings. If the board fails to perform its power limit control function due to a component or assembly defect within the warranty period, we will provide a replacement unit or full repair at no additional cost. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each 018-001770 unit?
Every PLC 018-001770 board undergoes a multi-stage pre-shipment inspection process, including visual inspection for PCB and component integrity, functional power-on testing to verify control signal outputs, and a burn-in cycle to screen for early-life component failures. Units that do not pass all test stages are quarantined and not dispatched. A test record is maintained for each shipped unit.

Q3: Is the 018-001770 a direct drop-in replacement for the original OEM board?
Yes. The PLC 018-001770 is manufactured to match the original OEM form factor, connector pinout, and electrical specification, making it a direct replacement for the factory-installed board in compatible PLC servo drive platforms. No firmware changes or mechanical modifications are required for standard replacement installations. If your drive model requires confirmation of compatibility, our technical team can verify against your drive’s serial number and hardware revision.

Q4: Can you guarantee long-term supply availability for ongoing maintenance programs?
Yes. We maintain dedicated safety stock of the PLC 018-001770 to support customers with planned maintenance schedules, annual spare parts procurement programs, and emergency breakdown requirements. For customers operating large fleets of PLC servo drives, we offer reserved stock agreements to ensure priority access to critical spare boards. Our supply chain is structured to support long-term industrial maintenance programs with consistent lead times and stable pricing.
