Siemens 383VA21N1F Retrofit Display | 383 Series

Siemens 383VA21N1F Retrofit-Ready Display for 383 Series Control Systems

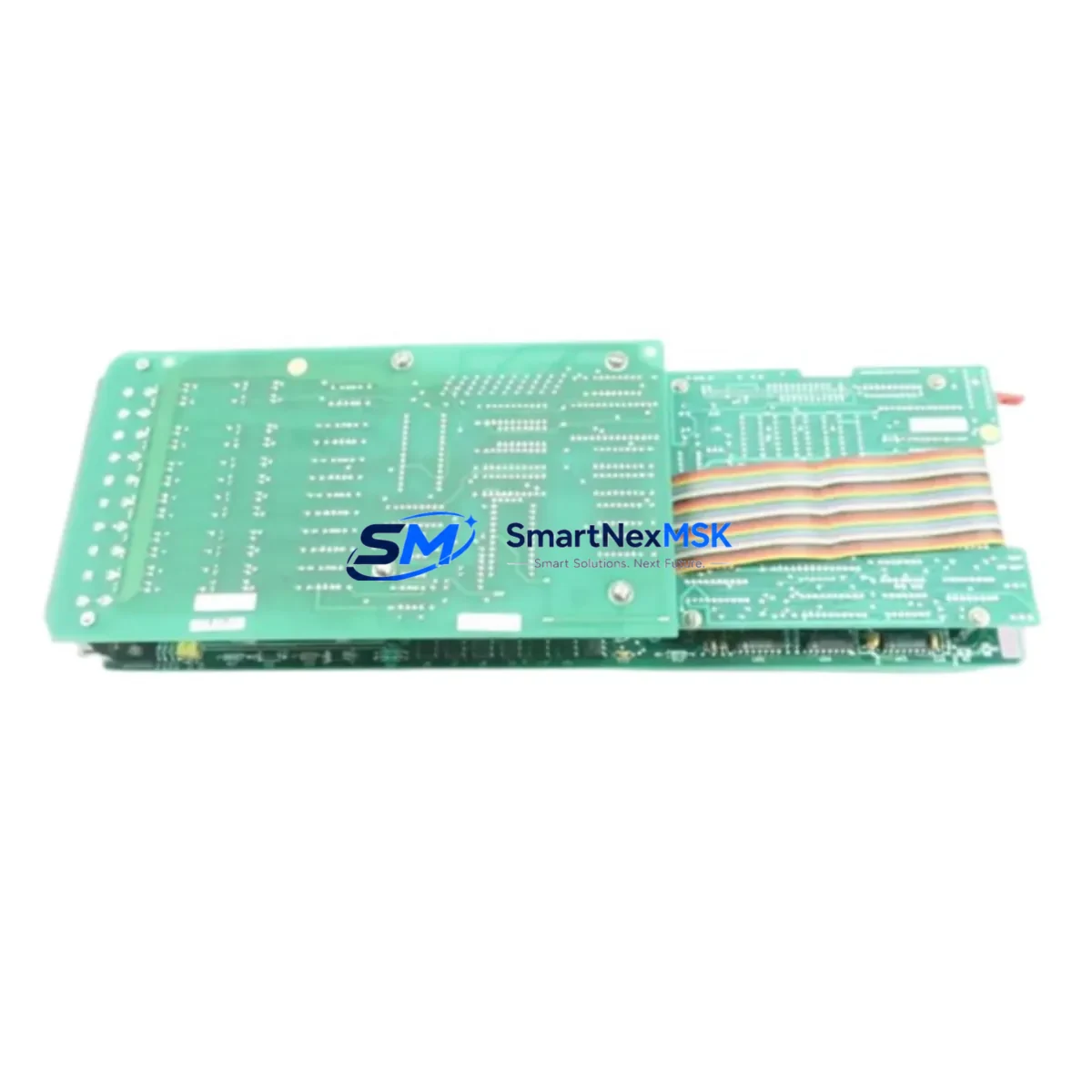

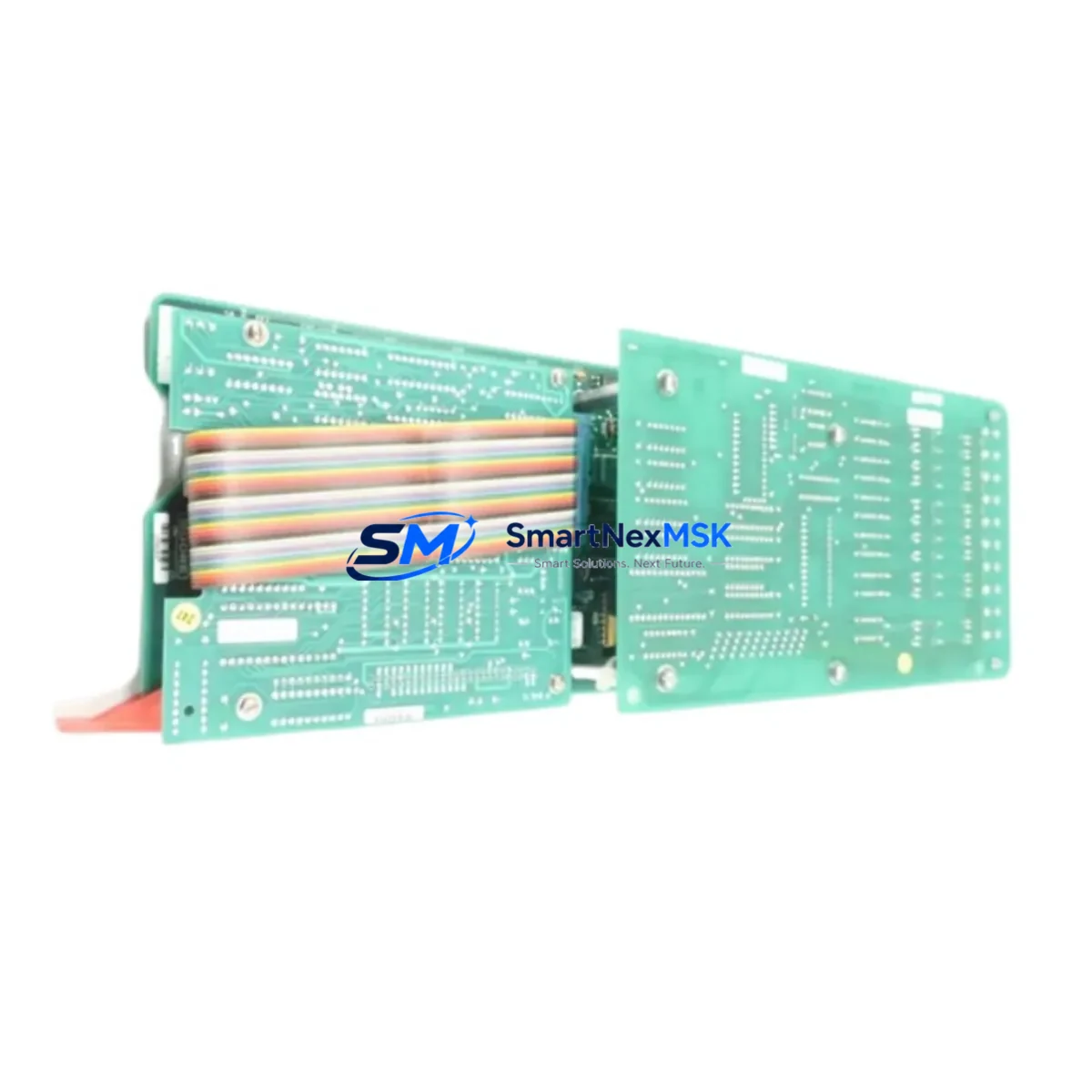

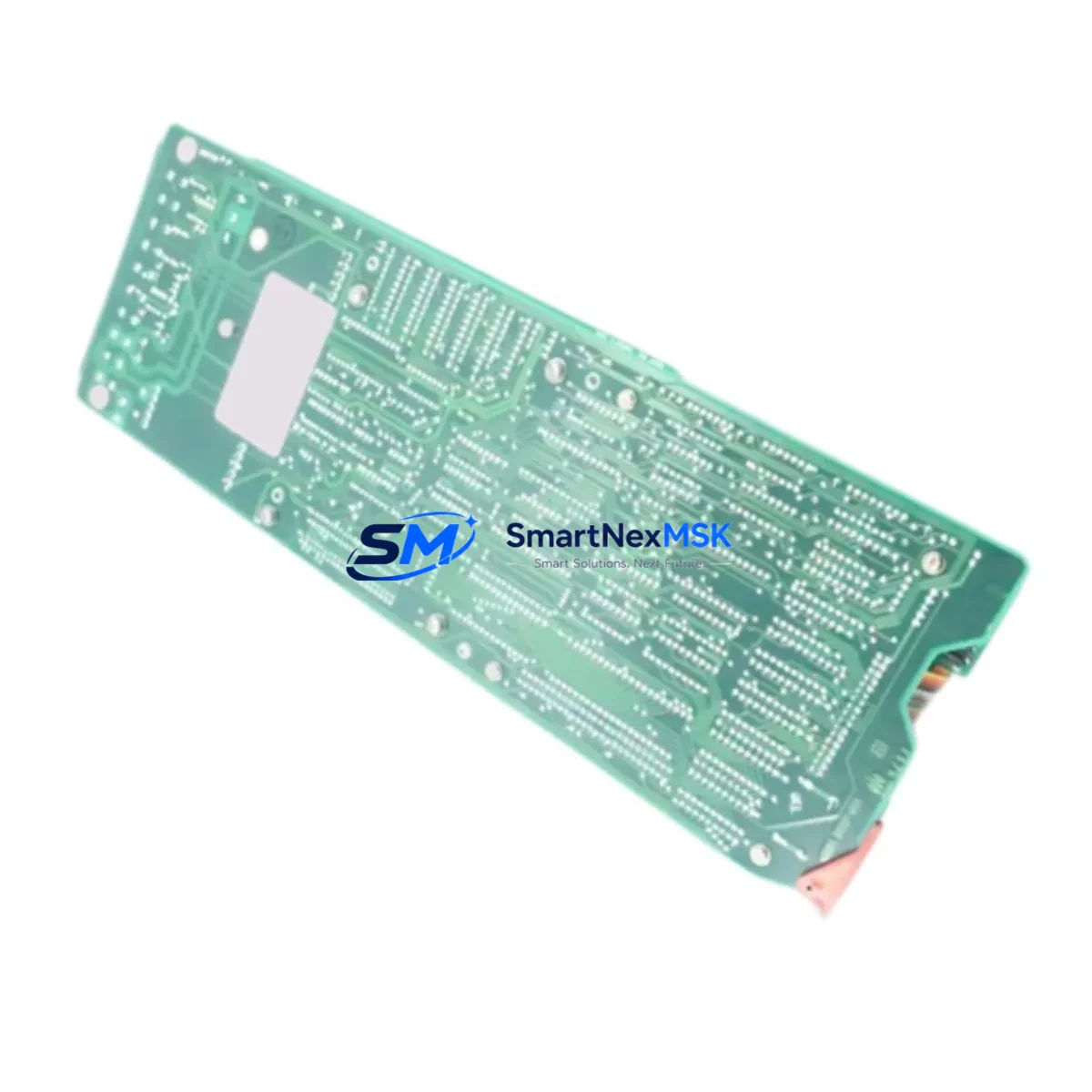

The Siemens 383VA21N1F is a retrofit-ready multi-point display station engineered for seamless integration into legacy 383 Series distributed control and PLC architectures. As industrial facilities face increasing pressure to modernize aging control infrastructure without full system overhauls, the 383VA21N1F delivers a proven, drop-in compatible upgrade path that preserves existing wiring, backplane connections, and operator logic — dramatically reducing both engineering hours and unplanned downtime.

Whether you are replacing a failed unit on an active production line, upgrading a control cabinet as part of a phased modernization program, or sourcing a verified spare to protect against obsolescence risk, the 383VA21N1F is stocked, tested, and ready to ship. Each unit undergoes pre-shipment functional verification and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions.

This module is particularly well-suited for facilities running Siemens 383 Series control platforms where the original display stations have reached end-of-life or where OEM support has been discontinued. The 383VA21N1F maintains full electrical and mechanical compatibility with the original backplane interface, allowing technicians to complete a swap without modifying existing terminal wiring or reconfiguring the host controller’s I/O address map.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 383VA21N1F into an existing control system requires careful pre-installation planning across several interdependent subsystems. Before removing the legacy display station, engineers should document the current module address assignments within the 383 Series rack to ensure the replacement unit is configured identically. Mismatched node addresses are among the most common causes of communication faults following a display module swap.

Power budget verification is equally critical. The 383 Series power supply module — typically a dedicated 24 VDC rail unit installed in the same control cabinet — must have sufficient headroom to support the 383VA21N1F alongside other active modules in the rack, including any analog input modules such as the Siemens 6ES5 series analog I/O cards, digital input/output cards, and communication interface modules sharing the same backplane. If the existing power supply is already operating near capacity, a power supply upgrade or load redistribution should be completed before the display module is installed.

Terminal wiring compatibility should be confirmed against the original wiring diagram. In most 383 Series installations, field signal cables are landed on dedicated terminal blocks — commonly Siemens SIMATIC S5 terminal assemblies or equivalent DIN-rail mounted terminal strips — mounted adjacent to the control rack. These terminal connections are typically unaffected by a display module replacement, but technicians should verify that cable lengths and routing remain adequate after the new module is seated.

For facilities where the 383 Series controller communicates with upstream SCADA systems or historian platforms via a serial or fieldbus link, the communication link integrity should be verified post-installation. The 383VA21N1F maintains protocol compatibility with the 383 Series native communication bus, but baud rate, parity, and stop bit settings should be confirmed against the host controller’s configuration. In installations where a CP 5431 or similar PROFIBUS communication processor is present in the rack, the communication module’s configuration should be reviewed to ensure the new display station is correctly enumerated on the network.

HMI screen compatibility is another area that requires attention during retrofit planning. In most cases, existing operator interface screens — whether running on a Siemens OP7, OP17, or TP270 panel, a standalone HMI terminal, or a WinCC SCADA workstation — reference display tags by address rather than by physical module identity. Because the 383VA21N1F preserves the original address structure, HMI tag references typically remain valid without modification. However, facilities that have customized their HMI graphics to include module-specific diagnostic overlays should verify that all display elements resolve correctly after the swap.

Where the retrofit scope extends beyond a single display module replacement — for example, when upgrading an entire control cabinet as part of a broader modernization initiative — the 383VA21N1F is commonly deployed alongside complementary components such as Siemens S5-115U or S5-135U rack backplane assemblies, 6ES5 series digital output modules, 6ES5 series analog input modules, SIMATIC S5 programming cables (e.g., 6ES5 734-1BD20) for offline program backup, and dedicated 24 VDC power supply units. In multi-rack installations, the IM 308-C or equivalent interface module connecting the display rack to the main controller rack should also be inspected and replaced if it shows signs of wear or intermittent faults.

Downtime Control During System Migration

Minimizing production downtime during a display module replacement requires a structured, pre-planned approach. The most effective strategy is to complete all pre-installation steps — address documentation, power budget verification, wiring confirmation, and program backup — during scheduled maintenance windows or planned shutdowns, so that the physical swap can be executed as quickly as possible when the line is taken offline.

Before powering down the control system, a full backup of the PLC program should be uploaded from the controller to a programming terminal using the appropriate SIMATIC S5 programming cable. This backup protects against data loss in the event that the controller’s memory is affected during the power cycle. For 383 Series systems, the program backup should include all data blocks, function blocks, organization blocks, and system configuration parameters stored in the CPU module.

Once the 383VA21N1F is installed and the system is powered up, a structured commissioning sequence should be followed: confirm module recognition by the host controller, verify communication link status on the CP module, perform a display calibration check, and execute a loop test on all connected field signals before returning the system to automatic control mode. This sequence typically takes 30 to 90 minutes depending on the complexity of the installation and the number of I/O points connected to the display station.

For facilities where continuous process control is required and a cold shutdown is not feasible, a hot-swap strategy using a pre-configured spare module can reduce the active outage window to under 15 minutes. In this approach, the replacement 383VA21N1F is pre-configured with the correct address settings and verified against a test rack — ideally using a spare 383 Series rack backplane and a bench power supply — before being brought to the installation site, allowing the swap to proceed without any on-site configuration steps.

Inventory availability is a key factor in downtime control. Sourcing a verified, pre-tested 383VA21N1F from stock — rather than waiting on OEM lead times that can extend to 16–26 weeks for discontinued components — allows maintenance teams to execute repairs on their own schedule. Our stock is continuously replenished and each unit is functionally tested and shipped within 24–48 hours of order confirmation.

Retrofit Support FAQ

Q: Is the 383VA21N1F a direct drop-in replacement for the original 383 Series display station?
A: Yes. The 383VA21N1F is designed as a direct mechanical and electrical replacement for the original 383 Series multi-point display station. It fits the standard 383 Series rack slot without modification and is compatible with the existing backplane interface and terminal wiring in the vast majority of installations. Minor configuration steps — such as confirming the module address via DIP switch — are required before commissioning.

Q: What commissioning steps are required after installation?
A: After seating the module and restoring power, technicians should confirm that the host controller recognizes the new display station, verify the communication link status on the CP module, perform a display calibration, and execute a loop check on all connected field signals. The full commissioning sequence typically takes 30 to 90 minutes. Detailed commissioning guidance is available upon request from our technical support team.

Q: Does the 383VA21N1F require any wiring changes to the existing terminal blocks?
A: In most cases, no wiring changes are required. The 383VA21N1F is compatible with the existing field wiring and terminal block layout used in standard 383 Series installations. Technicians should verify terminal pitch and cable routing before installation to confirm compatibility with site-specific wiring configurations.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and operational failures occurring under normal industrial operating conditions. Each unit is functionally tested prior to shipment. Warranty claims are processed promptly, with replacement units dispatched to minimize impact on production operations. Contact our technical support team to initiate a warranty claim.
