Siemens 39RTMCAN 16207-61/13 Safety-Enhanced RTM for Harsh Sites

Siemens 39RTMCAN 16207-61/13 Safety-Enhanced RTM for Harsh Industrial Sites

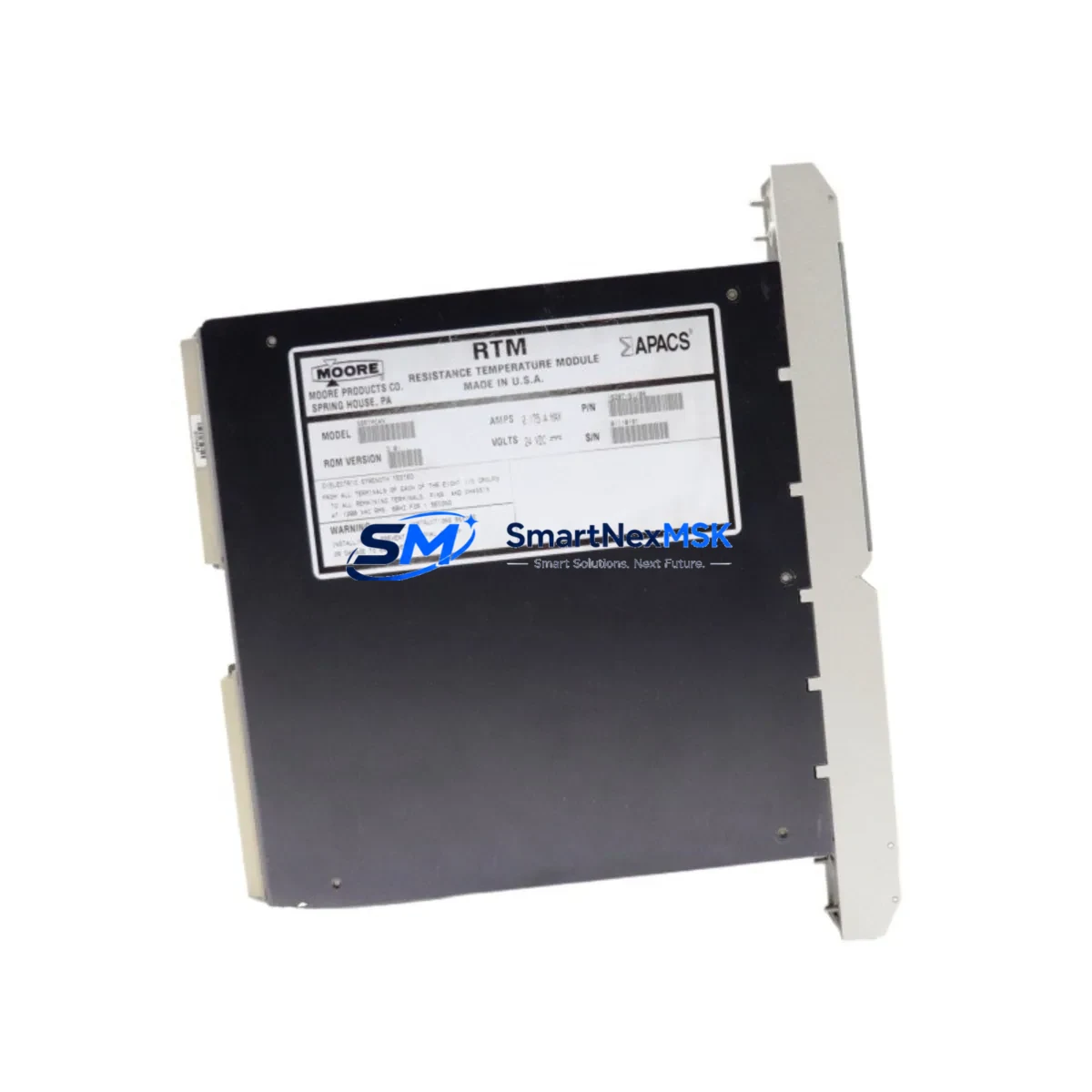

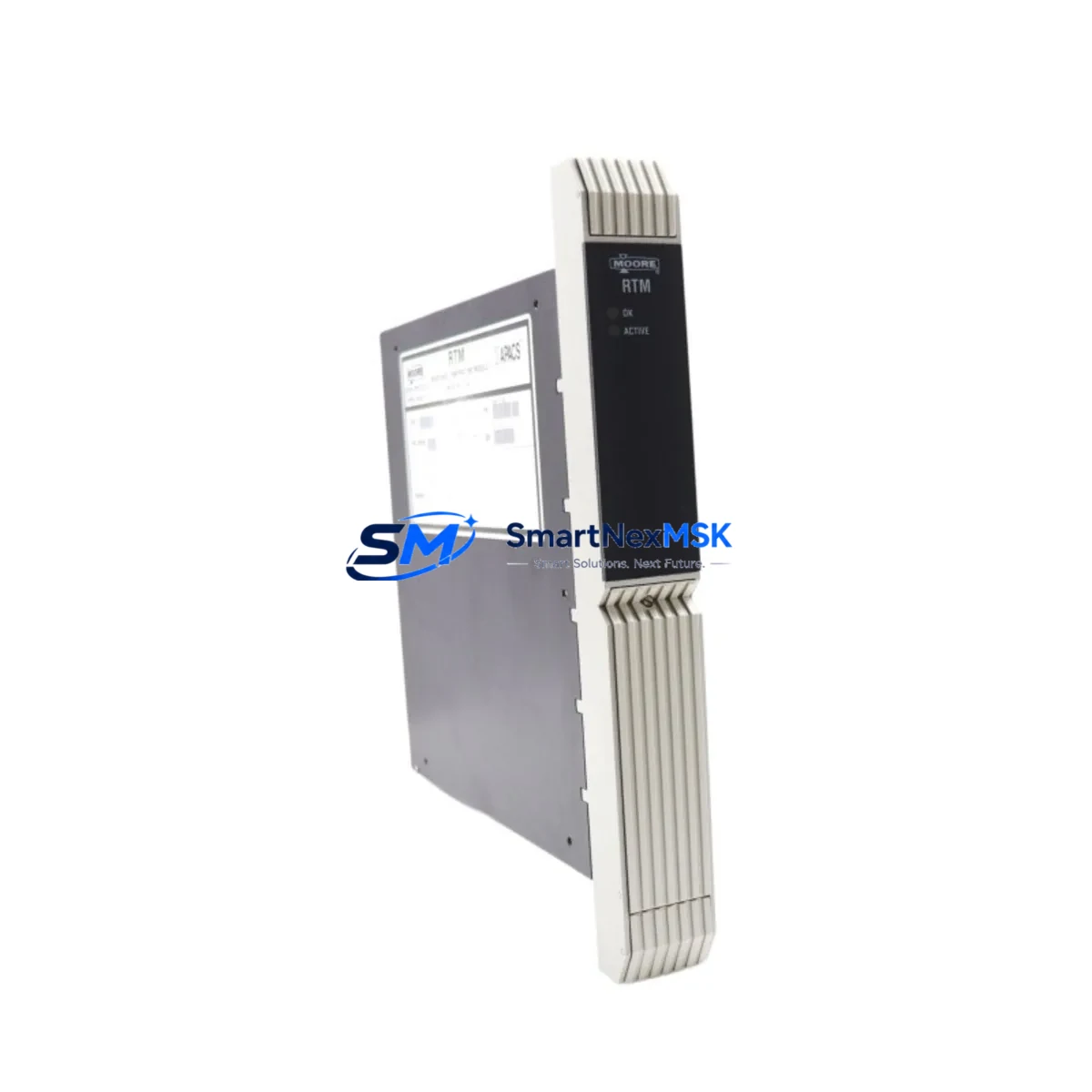

The Siemens 39RTMCAN 16207-61/13 is a ruggedized Resistance Temperature Module (RTM) engineered for deployment within the TELEPERM XS and TELEPERM XP Distributed Control Systems — Siemens’ proven platform for safety-critical process automation in continuous and hazardous industrial environments. Designed to operate reliably under high electromagnetic interference, wide thermal cycling, and the demanding electrical conditions found in heavy industrial control cabinets, this module delivers the signal integrity and measurement stability that safety-critical loops cannot compromise.

In high-load production environments — petrochemical reactors, power generation turbine halls, metallurgical furnaces, and water treatment facilities — temperature measurement accuracy is not merely a performance metric; it is a safety imperative. Signal drift, sensor open-circuit faults, or module misoperation in a critical interlock loop can trigger unplanned shutdowns, process upsets, or, in worst-case scenarios, hazardous releases. The 39RTMCAN 16207-61/13 addresses these risks through its multi-channel RTD acquisition architecture, galvanic isolation between field and system buses, and hardware-level fault detection that flags sensor failures before they propagate into the control logic.

Within a TELEPERM XS/XP control cabinet, this RTM module operates alongside companion components including the Siemens AS 235 automation station, CS 275 communication substation, and IM 308 interface modules, forming a tightly integrated measurement and control chain. The module’s CAN-bus interface ensures deterministic, low-latency data transfer to the process controller, maintaining loop cycle times even under high bus load conditions. When paired with Siemens SIMATIC S7-400H redundant controllers or ET 200M distributed I/O stations in hybrid architectures, the 39RTMCAN sustains measurement continuity across controller switchovers — a critical requirement for SIL-rated interlock systems.

Surge and transient protection is a key reliability factor for field-connected temperature modules. The 39RTMCAN’s input circuitry is designed to withstand the surge voltages and ground potential differences common in large industrial plants, reducing the risk of input stage damage from lightning-induced transients or switching surges from nearby high-voltage equipment. This robustness is complemented by the module’s wide operating temperature range, making it suitable for installation in outdoor marshalling cabinets or poorly climate-controlled plant rooms where ambient conditions fluctuate significantly.

For facilities operating under IEC 61511 functional safety requirements or equivalent national standards, maintaining a qualified spare parts inventory for critical measurement modules is a documented obligation. The 39RTMCAN 16207-61/13 is available from verified stock, pre-tested against Siemens factory acceptance criteria, and supplied with full traceability documentation. Each unit undergoes outgoing inspection covering channel accuracy, isolation resistance, CAN communication integrity, and power consumption verification before dispatch. This ensures that replacement modules can be installed and commissioned rapidly during planned maintenance windows or emergency corrective actions, minimizing mean time to repair (MTTR) for critical control loops.

Compatibility with the broader TELEPERM XS/XP ecosystem means the module integrates without firmware conflicts with existing Siemens SINEC H1 network infrastructure, OM 650 operator stations, and ES 680 engineering stations. For plants executing a phased migration from legacy TELEPERM ME or XS systems to modern SIMATIC PCS 7 architectures, maintaining availability of proven RTM modules like the 39RTMCAN is essential to sustaining operational continuity during the transition period.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust TELEPERM XS/XP control cabinet integrating the 39RTMCAN 16207-61/13 typically incorporates multiple layers of protection to ensure uninterrupted process control. The Siemens AS 235 automation station serves as the central processing unit, executing control logic and managing module communication via the internal CAN bus. Redundant power supply modules — such as the Siemens PS 405 10A power supply — provide regulated 24 VDC to the RTM and adjacent I/O modules, eliminating single-point power failure as a risk factor for measurement loss.

Communication integrity between the control cabinet and the plant network is maintained through the CS 275 communication substation and SINEC H1 Ethernet backbone, ensuring that temperature data acquired by the 39RTMCAN reaches the operator station without latency spikes or packet loss. For cabinets installed in areas with high electromagnetic interference — motor drive rooms, transformer bays, or arc furnace control buildings — the Siemens IM 308-C PROFIBUS interface module provides additional bus isolation and noise immunity for connected field devices.

Surge protection at the cabinet entry point, using Siemens DEHN or OBO Bettermann SPD modules on incoming signal cables, prevents transient energy from reaching the sensitive RTM input circuitry. Thermal management within the cabinet is supported by monitored fan units and temperature sensors feeding back to the AS 235, creating a self-protective enclosure environment. The combination of the 39RTMCAN’s internal fault detection, redundant power architecture, and network-level communication monitoring creates a multi-layer protection strategy aligned with IEC 61511 and IEC 62061 safety system design principles.

Critical Industrial Safety Applications

The Siemens 39RTMCAN 16207-61/13 is deployed across a wide range of safety-critical industrial sectors where temperature measurement reliability directly impacts process safety and regulatory compliance.

In petrochemical and refinery environments, the module monitors reactor bed temperatures, heat exchanger outlet conditions, and distillation column profiles — measurements that feed directly into emergency shutdown (ESD) interlock logic. A measurement failure or signal drift in these loops can trigger spurious trips or, more critically, fail to detect a runaway condition. The 39RTMCAN’s hardware fault detection and galvanic isolation ensure that field wiring faults are immediately flagged to the operator rather than silently corrupting the control loop.

In power generation facilities — gas turbines, steam boilers, and combined-cycle plants — the module provides turbine exhaust temperature monitoring and boiler drum temperature measurement, supporting both performance optimization and safety interlock functions. The module’s deterministic CAN bus communication ensures that temperature exceedance alarms reach the control system within the required response time for safety-rated loops.

In metallurgical and steel production plants, where furnace temperatures exceed 1,000 °C and electromagnetic interference from induction heating equipment is severe, the 39RTMCAN’s robust input protection and isolation architecture maintain measurement accuracy without requiring additional external signal conditioning. Mining and mineral processing operations rely on the module for conveyor drive motor temperature monitoring and crusher bearing temperature surveillance — applications where undetected overheating leads to catastrophic mechanical failure and extended production outages.

In water and wastewater treatment facilities operating under continuous 24/7 production schedules, the module supports pump motor temperature monitoring and chemical dosing process temperature control, contributing to both operational efficiency and environmental compliance. Port and bulk material handling terminals use the module within TELEPERM-based control systems for ship-to-shore crane drive temperature monitoring and conveyor system thermal protection.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 39RTMCAN 16207-61/13?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform within its specified parameters during the warranty period, we provide replacement or repair at no additional cost. Warranty claims are supported by the outgoing inspection records issued with each unit.

Q2: What outgoing tests are performed before shipment?
Each unit undergoes a structured outgoing inspection covering: multi-channel RTD input accuracy verification, galvanic isolation resistance measurement, CAN bus communication integrity test, power consumption check against Siemens factory specifications, and visual inspection for physical damage. Test records are available upon request and accompany the shipment documentation.

Q3: Is the 39RTMCAN 16207-61/13 compatible with both TELEPERM XS and TELEPERM XP systems?
Yes. The 39RTMCAN 16207-61/13 is designed for the TELEPERM XS/XP platform and is compatible with the AS 235 automation station, CS 275 communication substation, and associated I/O subrack infrastructure. For hybrid or migration architectures involving SIMATIC PCS 7, compatibility should be verified against the specific system configuration and firmware revision in use.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
We maintain verified stock of the 39RTMCAN 16207-61/13 and actively source from qualified supply channels to support long-term spare parts programs. For facilities with documented critical spare requirements under IEC 61511 or plant maintenance standards, we can discuss framework supply agreements to ensure module availability across planned maintenance cycles and emergency corrective actions.
