Siemens 39SDM024DCCBN Retrofit-Ready Discrete Output Module

Siemens 39SDM024DCCBN Retrofit-Ready Discrete Output Module: Compatible Modernization for APACS+ Control Systems

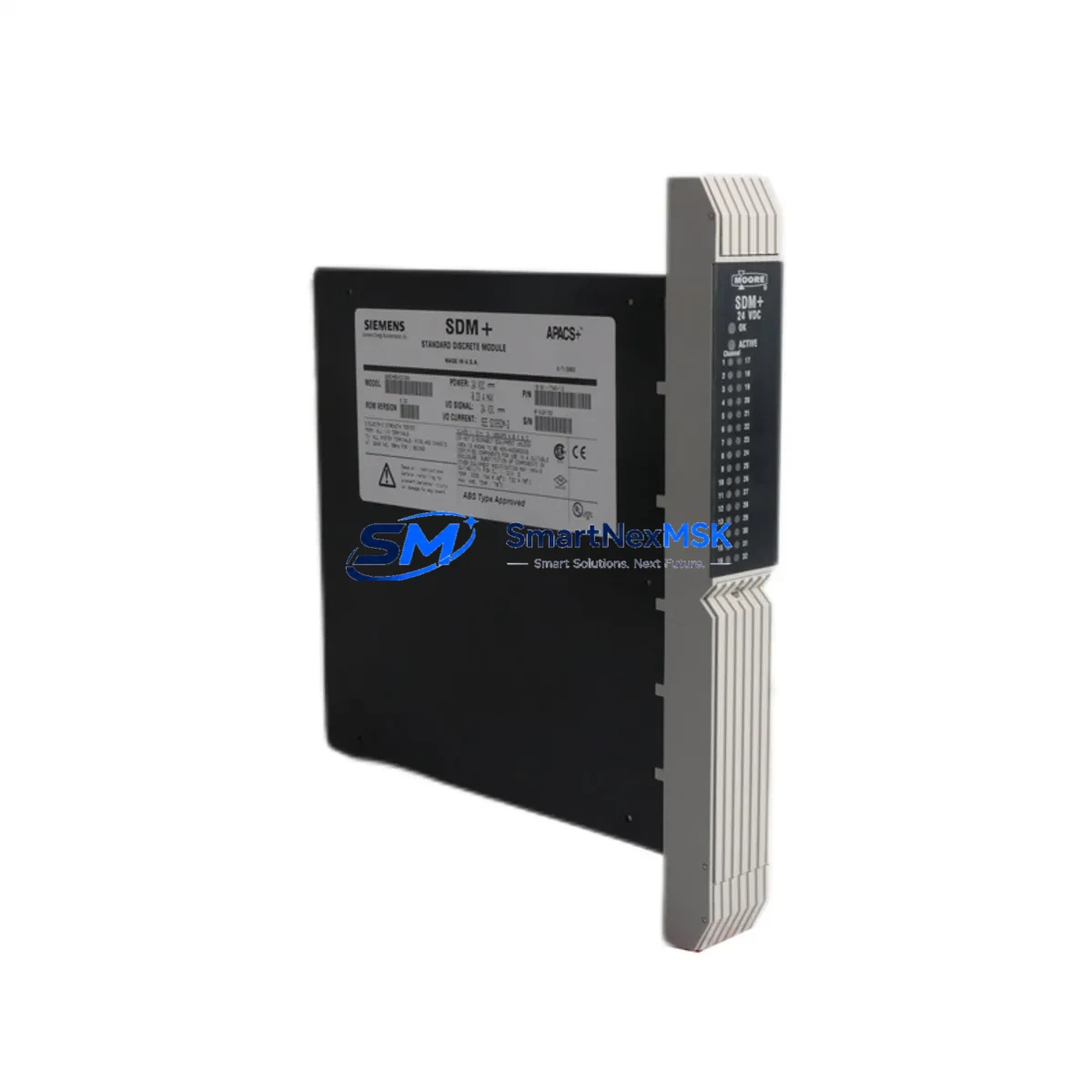

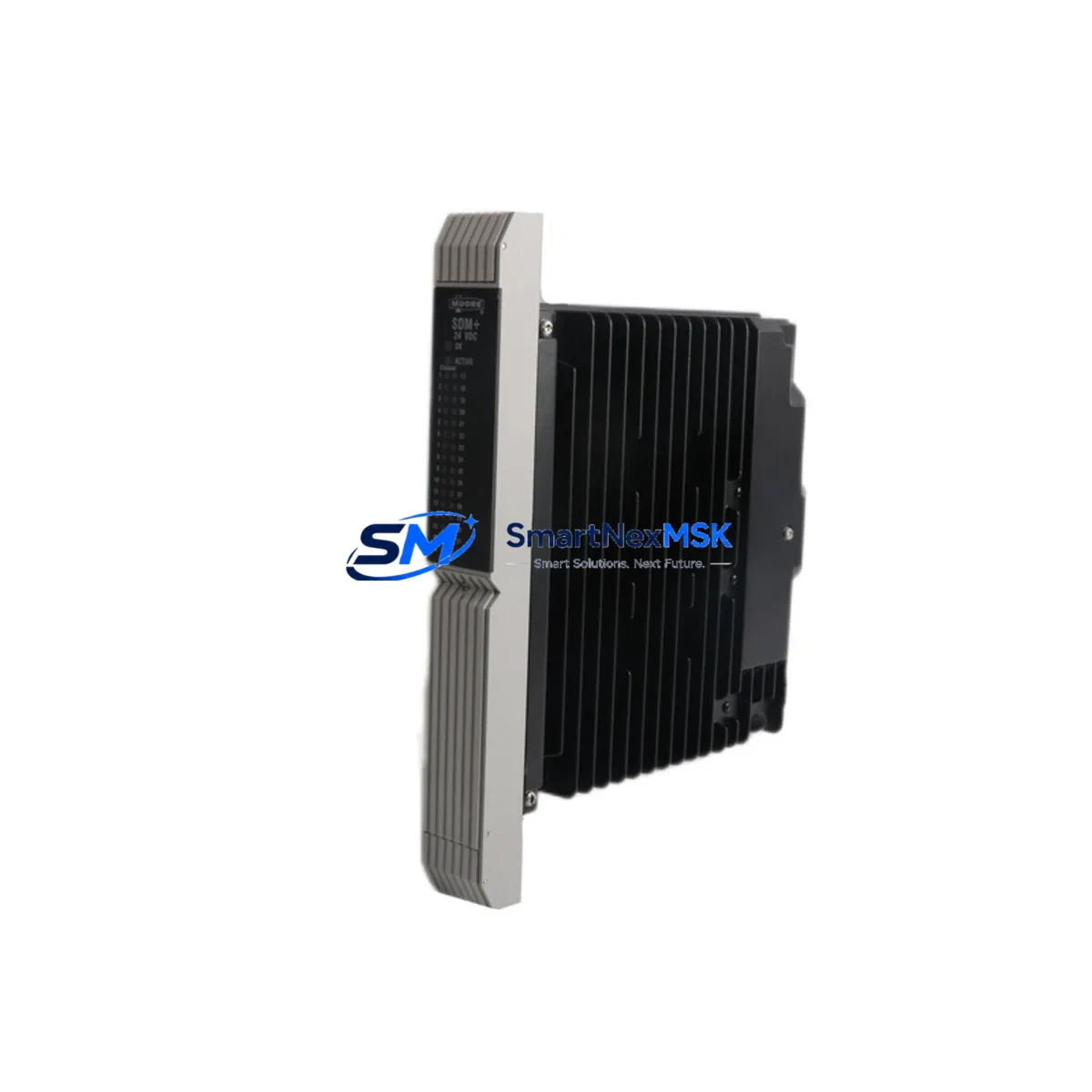

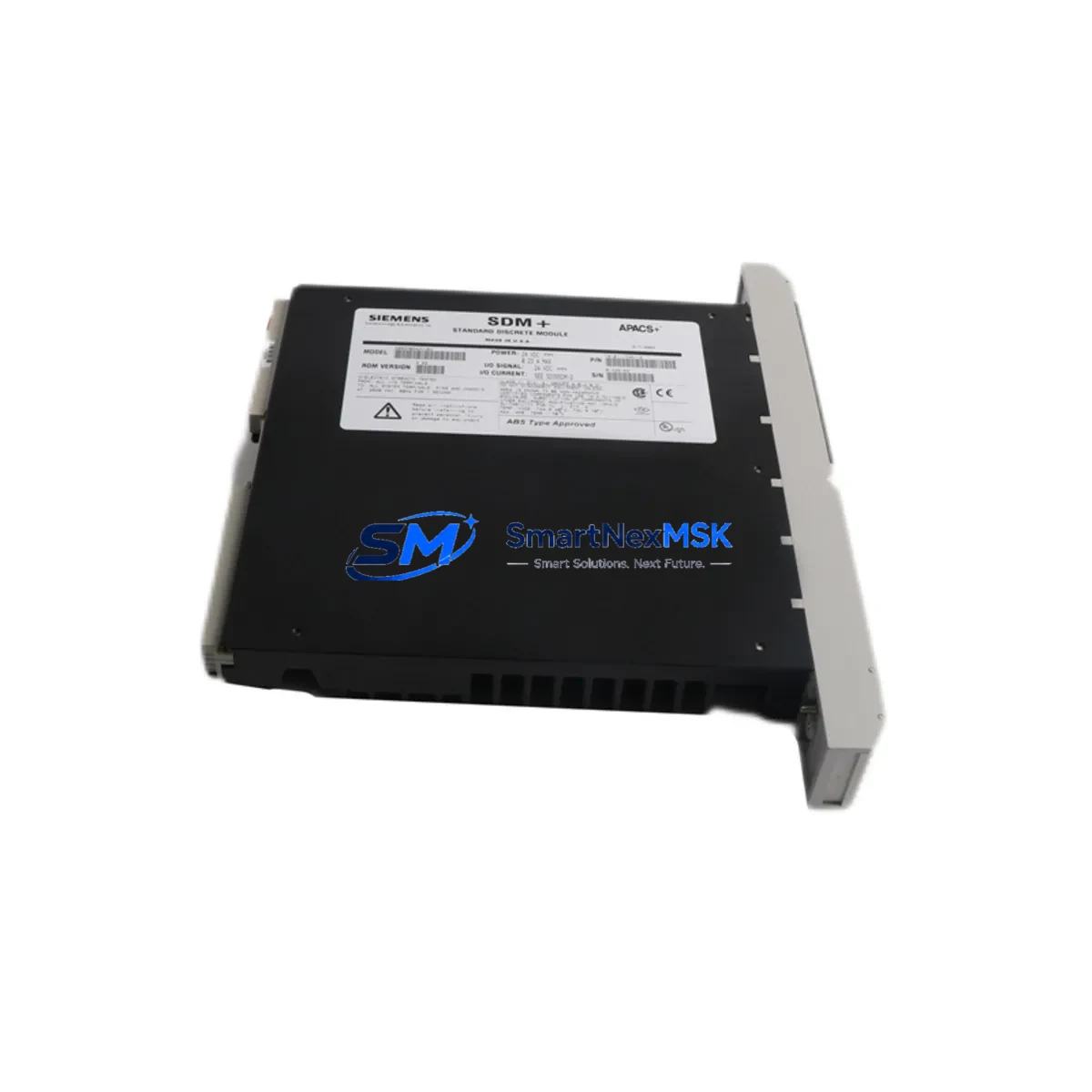

The Siemens 39SDM024DCCBN (part number 16101-174/8) is a 24VDC discrete output module engineered for the APACS+ Distributed Control System platform. As legacy APACS+ installations approach end-of-support milestones, this module remains a critical retrofit and replacement component for facilities seeking to extend operational life, stabilize aging control cabinets, and defer full-platform migration. Whether you are replacing a failed unit on a running line, upgrading a control cabinet during a planned shutdown, or building a spare-parts inventory for a multi-year maintenance contract, the 39SDM024DCCBN delivers verified drop-in compatibility with the APACS+ backplane architecture.

This module supports 16 discrete output channels at 24VDC, with solid-state switching suitable for solenoid valves, motor starters, indicator lamps, and relay coils commonly found in process automation environments. The output circuitry is designed to interface directly with field wiring termination assemblies already installed in APACS+ marshalling cabinets, eliminating the need for rewiring or terminal block replacement during a like-for-like swap. Engineers performing the replacement should verify the existing field termination assembly model — typically a 39FTA024DC or equivalent — to confirm pin-for-pin compatibility before powering the new module.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an APACS+ control system requires a structured approach that accounts for the interdependencies between hardware, firmware, field wiring, and supervisory software. The 39SDM024DCCBN sits within a broader ecosystem of modules that must be evaluated together during any cabinet upgrade or partial migration project.

A typical APACS+ control node consists of a controller module — such as the ACM (Advanced Controller Module) — mounted on a multi-slot backplane chassis. Alongside the 39SDM024DCCBN discrete output module, the same chassis may house a 39SDM024DCAN discrete input module for digital field signals, a 39SAM010AAAN analog input module for 4–20 mA process measurements, and a 39SAM010AACN analog output module driving control valves. Power to the backplane is supplied through a dedicated APACS+ power supply module; when replacing any I/O module, it is good practice to measure the available power budget on the backplane bus to confirm the replacement module’s current draw does not exceed the supply’s rated capacity — particularly in densely populated chassis configurations.

Communication between the APACS+ controller and the plant’s supervisory layer typically runs over a PROVOX-compatible data highway or an OPC-DA server bridge. If the retrofit scope includes migrating from the legacy data highway to a modern OPC-UA or Ethernet-based communication link, a communication interface module or gateway device will need to be introduced into the control cabinet alongside the I/O replacement work. This communication migration should be planned and tested offline before any live cutover to avoid disrupting the supervisory SCADA or DCS historian connections.

For facilities running Siemens SIMATIC PCS 7 or planning a phased migration toward that platform, the 39SDM024DCCBN can serve as a bridge component — maintaining field I/O continuity while the controller layer is upgraded incrementally. In such hybrid architectures, the existing APACS+ field termination assemblies and marshalling wiring can often be retained, with only the backplane modules and controller hardware being replaced in stages. This approach significantly reduces the scope of field re-wiring and minimizes the risk of introducing wiring errors during the migration.

Before finalizing the retrofit bill of materials, engineers should also account for programming cable requirements. Connecting a laptop to the APACS+ controller for configuration backup and module address verification typically requires a dedicated APACS+ programming cable and the APACS+ Workbench software environment. Backing up the existing controller configuration before any hardware change is a non-negotiable step — this backup serves as the recovery baseline if the replacement module triggers unexpected behavior during initial power-up.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live-system retrofit. For a like-for-like replacement of the 39SDM024DCCBN, the recommended procedure begins with a controlled I/O force of all 16 output channels to their safe states — typically de-energized — using the APACS+ Workbench or the operator station’s manual override function. This step ensures that field devices connected to the module’s output channels (solenoid valves, motor starters, or indicator circuits) are placed in a known safe condition before the module is physically removed from the backplane.

Once the output channels are forced and confirmed safe, the module can be extracted from the backplane slot without powering down the entire controller chassis, provided the APACS+ system is configured for hot-swap operation on that slot. Engineers should verify the hot-swap capability of the specific chassis generation in use before attempting a live extraction — older APACS+ chassis revisions may require a full controller shutdown for safe module removal.

After inserting the replacement 39SDM024DCCBN, the APACS+ controller will perform an automatic module recognition sequence. The module address assigned in the APACS+ configurator must match the physical slot position; a mismatch will result in a module fault alarm and the outputs remaining in a forced-safe state until the address conflict is resolved. Once the controller confirms module recognition, I/O forces should be released channel by channel, with field device response verified at each step before proceeding to the next channel. This staged release procedure protects the process from simultaneous unexpected actuations and allows the commissioning engineer to confirm that field wiring continuity has been maintained through the replacement.

For facilities where even a brief output interruption is unacceptable, a pre-tested spare module — pre-configured with the correct module address and verified against the existing field termination assembly — should be staged in the control room before the maintenance window begins. This preparation reduces the physical swap time to under five minutes and limits the window of output interruption to the minimum achievable duration. All replacement modules supplied by SMARTNEXMSK are function-tested prior to dispatch and covered by a 12-month warranty, providing confidence that the replacement unit will perform correctly from first power-up.

Retrofit Support FAQ

Q1: Is the 39SDM024DCCBN a direct drop-in replacement for the original APACS+ discrete output module?
Yes. The 39SDM024DCCBN (16101-174/8) is a direct like-for-like replacement for the original APACS+ 16-channel 24VDC discrete output module. It uses the same backplane connector, the same module address scheme, and is compatible with the existing 39FTA024DC field termination assembly. No changes to field wiring, HMI graphics, or controller logic are required for a standard like-for-like swap.

Q2: Do I need to reconfigure the APACS+ controller after installing the replacement module?
In most cases, no reconfiguration is required. The APACS+ controller will automatically recognize the replacement module in the same backplane slot and restore normal I/O operation. However, engineers should verify that the module address in the APACS+ Workbench configuration matches the physical slot position, and should confirm that no I/O forces remain active after the replacement is complete. A configuration backup taken before the swap is strongly recommended as a recovery baseline.

Q3: What commissioning checks should be performed after installing the 39SDM024DCCBN?
Post-installation commissioning should include: (1) confirmation of module recognition in the APACS+ Workbench diagnostic view; (2) channel-by-channel output verification using I/O forcing to confirm field device response; (3) review of the controller event log for any module fault or address conflict alarms; and (4) confirmation that all I/O forces have been released and the module is operating in normal automatic mode. For critical output channels driving safety-related field devices, a functional test of the complete output-to-actuator signal path is recommended before returning the system to automatic control.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If the module fails to perform as specified within the warranty period, SMARTNEXMSK will arrange a replacement dispatch after receiving the failed unit for inspection. All modules are function-tested before shipment to minimize the risk of DOA (dead-on-arrival) failures. To initiate a warranty claim, contact the sales team with the order reference number, a description of the fault symptom, and the installation date.
