Siemens 440R-N23126 Retrofit-Ready EGA Video Module for AVUS 4 Control Systems

Siemens 440R-N23126 Retrofit-Ready EGA Video Module for AVUS 4 Control Systems

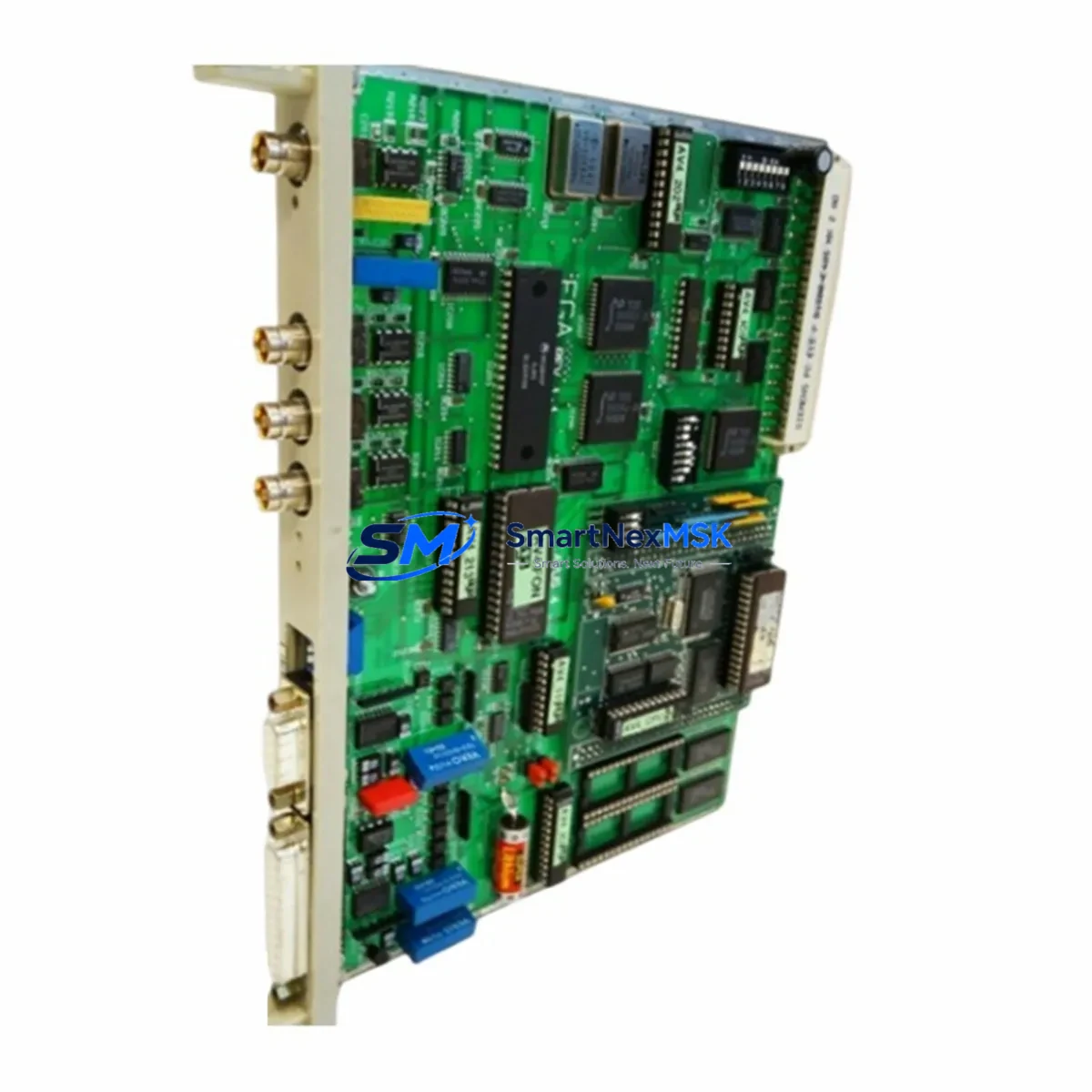

The Siemens 440R-N23126 is an EGA Video Interface Module originally designed for the AVUS 4 and UTV 4.0 CNC control platforms. As these systems age and original spare parts become increasingly scarce, the 440R-N23126 has become a critical retrofit component for machine tool operators, system integrators, and maintenance engineers managing legacy CNC installations. Whether you are replacing a failed video board in a grinding machine, a turning center, or a machining cell, this module provides a verified, compatible upgrade path that preserves your existing control architecture and minimizes unplanned downtime.

The 440R-N23126 interfaces directly with the AVUS 4 backplane, restoring EGA-standard video output to the operator panel or external monitor. Before installation, engineers should confirm the backplane slot assignment, verify the video signal routing to the Siemens OP031 or compatible operator panel, and check that the control cabinet power supply delivers stable 5 VDC and 12 VDC rails. Incorrect power sequencing during module swap can corrupt the video BIOS settings stored on the board, so it is recommended to power down the entire control system before removal and re-insertion.

When planning a retrofit around the 440R-N23126, the surrounding module ecosystem must be assessed carefully. The AVUS 4 rack typically houses a CPU module such as the 6FC5110-0DA01-0AA0 alongside I/O interface boards, and the video module communicates over the internal ISA-compatible bus. If the rack also contains a Siemens 6FC5111-0CA01-0AA0 interface module or a 440R-N23125 analog output board, these must remain seated and addressed correctly to avoid bus conflicts after the video module is replaced. In systems where the UTV 4.0 software version is below 4.2, a firmware compatibility check against the replacement board revision is strongly advised before commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 440R-N23126 requires a structured assessment of the entire control cabinet before any hardware is disturbed. Begin by documenting the current rack layout: note the positions of the CPU board, the I/O expansion modules, the power supply module, and any communication cards such as a Profibus DP interface or an MPI adapter. In many AVUS 4 installations, the rack also contains a 440R-N23127 spindle control board or a 440R-N23124 axis interface module — these boards share the backplane bus and their addresses must not be disturbed during the video module replacement.

Terminal wiring to the operator panel should be photographed and labeled before disconnection. The video cable harness connecting the 440R-N23126 to the OP031 operator panel uses a proprietary Siemens connector; confirm the cable condition and replace it if insulation is cracked or connectors are corroded. In older installations, the HMI screen may display a Siemens SINUMERIK-style interface driven by the UTV 4.0 software — after the video module swap, the HMI picture database should be reloaded from the NC memory card or the programming unit to confirm that all operator screens render correctly.

For sites where the control system also manages a Siemens 611 drive series or a SIMODRIVE 611 analog servo amplifier, verify that the drive enable signals routed through the I/O board are not interrupted during the module exchange. If the machine uses a Siemens S5-115U or an early S7-300 PLC for auxiliary functions such as coolant, lubrication, or tool changer control, confirm that the PLC program logic does not depend on a video-ready signal from the CNC before releasing machine axes. A programming cable such as the PC Adapter USB A2 or the MPI/Profibus adapter should be on hand during commissioning to allow direct NC parameter backup and restore via SINUMERIK HMI or Step 7 if needed.

Downtime Control During System Migration

Minimizing production downtime during a 440R-N23126 replacement requires preparation before the machine is taken offline. The original NC program archive, tool offset tables, zero-point offsets, and machine data backup should be extracted from the control and stored on an external programming unit or USB memory card before the rack is powered down. If the AVUS 4 system uses a battery-backed SRAM module to retain NC data, verify the battery voltage before shutdown — a depleted battery can cause data loss during the power cycle that follows the module swap.

The physical swap itself typically takes under 30 minutes for a prepared technician: power down, extract the failed video module, seat the replacement 440R-N23126, reconnect the video harness, and restore power. The critical time investment lies in the post-installation verification: confirm EGA video output on the operator panel, reload the HMI picture set if required, verify axis readiness, run a dry-cycle of the NC program without cutting, and confirm that all I/O signals — including those routed through any 6ES7 series expansion modules if a hybrid S7 architecture is present — respond correctly before returning the machine to production.

For sites managing multiple AVUS 4 or UTV 4.0 machines, maintaining a small buffer stock of the 440R-N23126 alongside related consumable boards significantly reduces mean time to repair. Coordinating the retrofit schedule with planned maintenance windows, rather than reacting to unplanned failures, is the most effective strategy for controlling cumulative downtime across a machine fleet.

Retrofit Support FAQ

Q1: Is the 440R-N23126 a direct drop-in replacement for the original Siemens video module in AVUS 4 systems?
Yes. The 440R-N23126 is designed for the AVUS 4 and UTV 4.0 backplane and uses the same slot footprint and bus interface as the original video board. No mechanical modification to the rack is required. Confirm the UTV software version is 4.0 or later and that the operator panel accepts EGA-standard input before installation.

Q2: What wiring or terminal changes are needed during installation?
The video cable harness between the module and the operator panel uses the original Siemens connector standard — no rewiring is required if the existing harness is intact. Inspect the cable for wear before reuse. No changes to I/O terminal strips or fieldbus wiring are needed for the video module replacement alone.

Q3: How do I verify compatibility before the module arrives on site?
Confirm the rack model (AVUS 4), the UTV software version, and the operator panel model (typically OP031 or equivalent EGA-input panel). Cross-reference the existing module part number against 440R-N23126. If the existing board carries a different revision suffix, contact our technical team with the full nameplate data for confirmation before ordering.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers functional defects in the module under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing before dispatch. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed directly through SMARTNEXMSK with a target response time of 2 business days.
