SIEMENS 500-033260 Maintenance-Ready Spare for SIMATIC S5

SIEMENS 500-033260 Maintenance-Ready Spare for SIMATIC S5 Automation

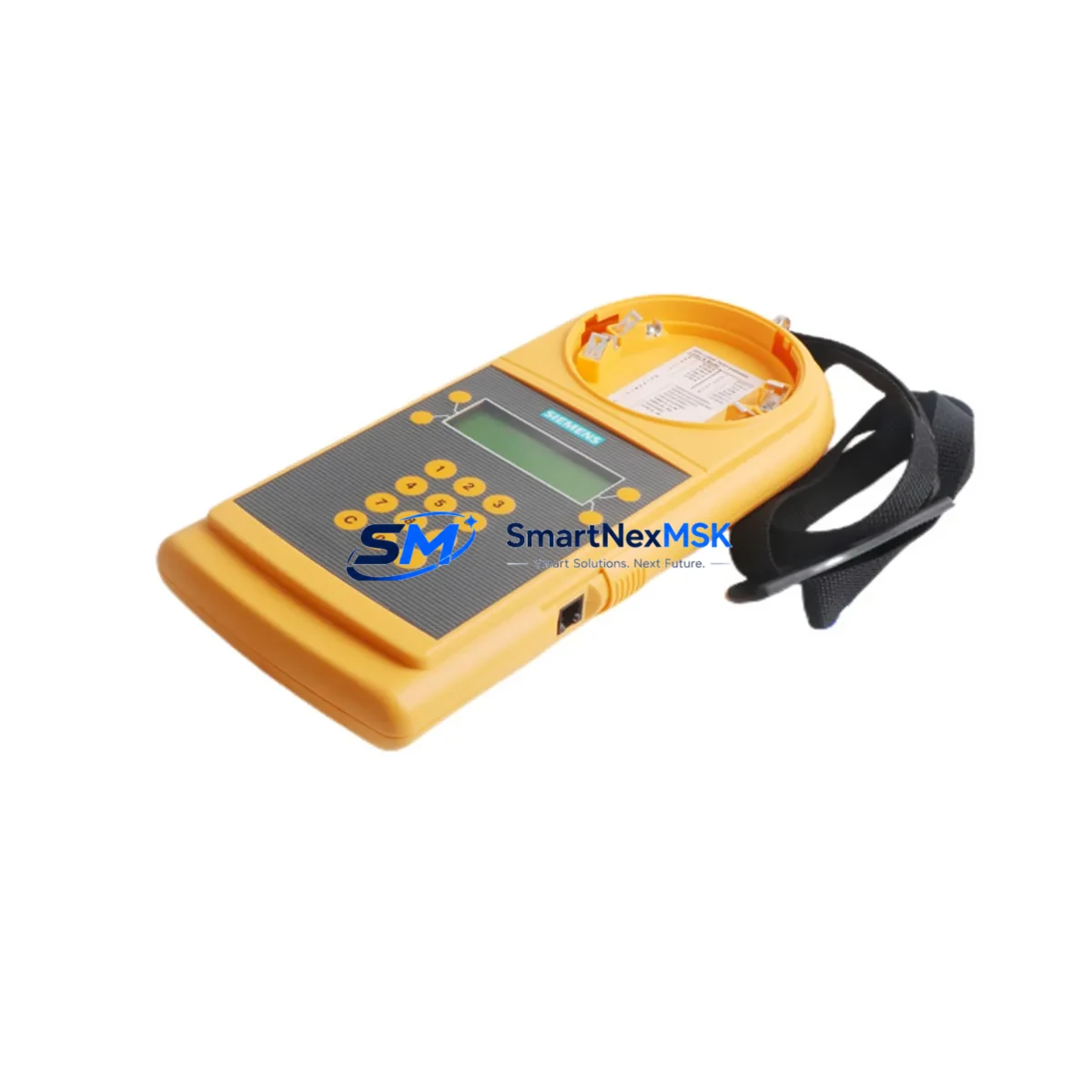

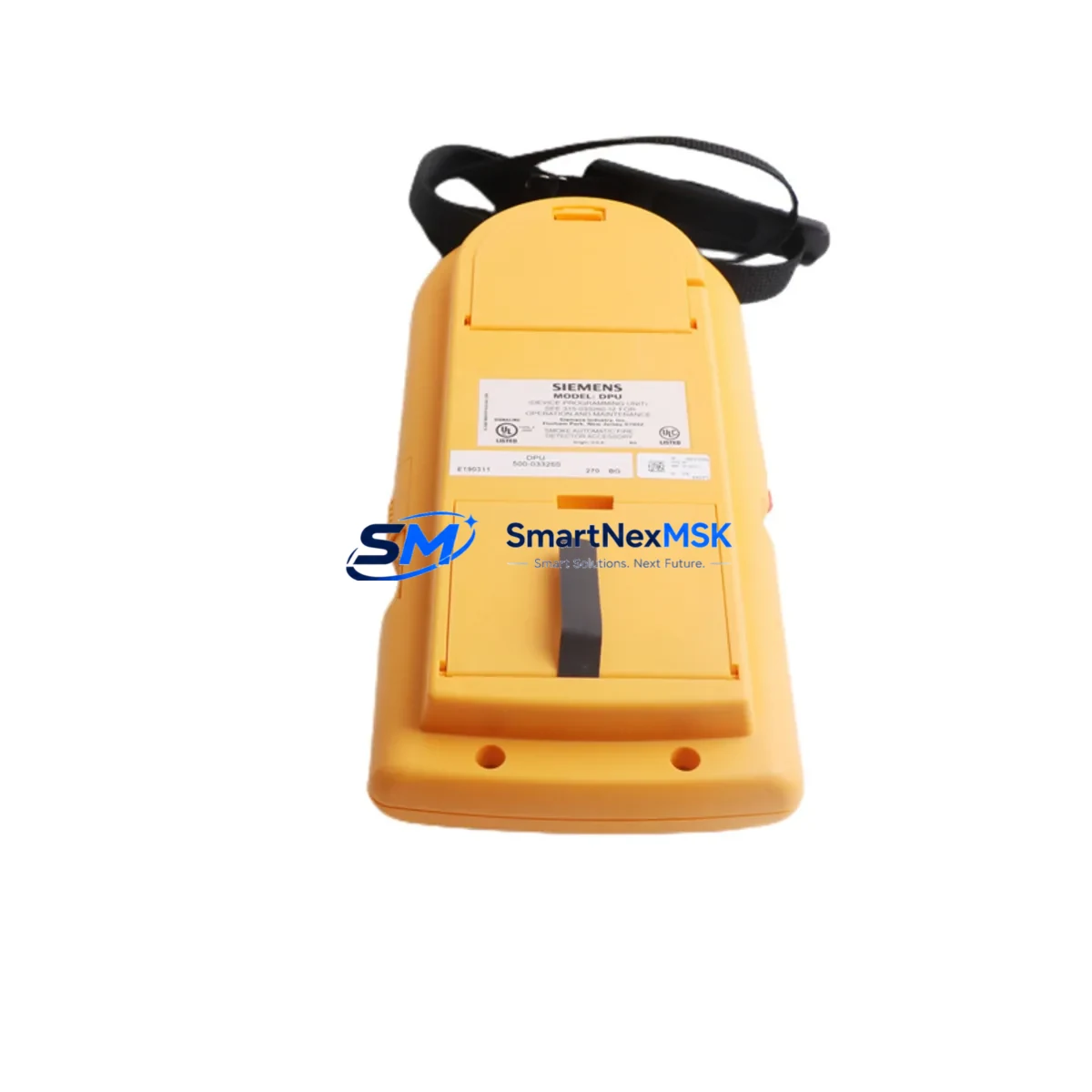

The SIEMENS 500-033260 is an original programming device designed for the SIMATIC S5 series of programmable logic controllers — one of the most widely deployed PLC platforms in global industrial automation history. Despite the S5 series reaching end-of-life status, tens of thousands of production lines, process plants, and utility facilities continue to operate on SIMATIC S5 hardware. For maintenance engineers responsible for these legacy systems, securing a verified, functional 500-033260 programmer is not a convenience — it is a critical risk-mitigation measure that directly determines how quickly a line can be restored after an unplanned shutdown.

When a SIMATIC S5 CPU — such as the CPU 944, CPU 945, or CPU 948 — develops a fault or requires program modification, the 500-033260 programmer is the primary interface tool. Without it, engineers cannot upload or download ladder logic, modify data blocks, force I/O states for fault isolation, or perform online diagnostics. A missing or failed programmer can extend a planned 2-hour maintenance window into a multi-day production halt. Stocking the 500-033260 as a ready spare eliminates this single point of failure in your maintenance toolkit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance of a SIMATIC S5 installation extends well beyond the programmer itself. When the 500-033260 is deployed for a scheduled inspection or emergency fault response, experienced maintenance engineers treat it as the starting point of a broader system health check. During the same maintenance window, it is standard practice to verify the condition of the S5 CPU module — particularly the CPU 944B or CPU 945 — since program corruption or unexpected resets often originate from aging CPU battery backup circuits rather than the programmer.

The S5 power supply module (PS 951 or PS 955) should be checked for output voltage stability, as voltage sag under load is a common root cause of intermittent CPU faults that appear to be software-related. While the programmer is connected and online, engineers can simultaneously monitor the status of digital input modules (DI 421, DI 422) and digital output modules (DO 451, DO 452) for stuck bits or blown output drivers — conditions that are invisible without an active programming connection.

For systems using analog signal chains, the AI 461 or AI 464 analog input modules should be verified for signal drift, particularly in temperature-sensitive environments. If the S5 system communicates over SINEC L1 or SINEC H1 networks, the CP 521 SI or CP 523 communication processor modules should be inspected for firmware integrity and cable termination. Terminal blocks and wiring harnesses within the S5 rack should be torque-checked, as loose connections on the backplane bus connector are a frequent cause of intermittent faults in aging installations. Finally, if the facility uses a SIMATIC OP (Operator Panel) or TD (Text Display) for HMI, verifying the MPI or TTY cable connection between the HMI and the CPU during the same maintenance visit prevents a separate unplanned outage from an overlooked interface fault.

Site Replacement Workflow

Replacing or reactivating a SIEMENS 500-033260 in a live S5 environment follows a structured sequence to minimize downtime and avoid program loss. Before connecting the programmer, confirm that the target CPU is in STOP mode and that a current program backup exists — either on a memory card (EPROM/EEPROM module) or a previously archived project file. Connect the 500-033260 via the appropriate TTY or RS-232 cable to the CPU’s programming port, then power on the device and launch the STEP 5 software environment.

Perform an online connection test to confirm communication with the CPU before attempting any upload or download. If the CPU is unresponsive, use the programmer’s diagnostic functions to check the CPU operating mode register and identify any active fault codes. Once communication is confirmed, upload the existing program from the CPU to the programmer as a backup verification step before making any modifications. For facilities transitioning from older PG 685 or PG 750 programmers to the 500-033260, the STEP 5 project files are fully compatible, and no re-compilation is required — reducing migration time to under 30 minutes in most cases. After completing program changes or diagnostics, return the CPU to RUN mode and monitor the first 10–15 scan cycles via the programmer’s online status display to confirm stable operation before closing the maintenance record.

Spare Parts Support FAQ

Q: Is the 500-033260 compatible with all SIMATIC S5 CPU variants?
A: The 500-033260 is compatible with the full SIMATIC S5 range including S5-90U, S5-95U, S5-100U, S5-115U, S5-135U, and S5-155U CPUs. Compatibility is established through the standard S5 TTY/RS-232 programming interface. Always verify the STEP 5 software version installed on the programmer matches the firmware generation of your target CPU before initiating a connection.

Q: What does the 12-month warranty cover, and how is it validated?
A: The 12-month warranty covers all hardware defects arising under normal industrial operating conditions, including internal component failures, connector faults, and display malfunctions. Each unit is function-tested prior to shipment — including a live communication test with an S5 CPU — and ships with a test report. Warranty claims are processed via sales@smartnexmsk.com with the original order reference and a fault description.

Q: How should the 500-033260 be stored as a long-term spare?
A: Store the unit in its original anti-static packaging in a dry, temperature-controlled environment (5–40°C, <85% RH non-condensing). Power the unit on and perform a self-test every 6 months to verify battery backup integrity and display function. If the internal clock battery is depleted, replace it before returning the unit to spare stock to avoid data loss during the next deployment.

Q: Can this programmer be used to replace a PG 685 or PG 750 in an existing maintenance workflow?
A: Yes. The 500-033260 is a direct functional replacement for earlier SIEMENS PG-series programmers used with SIMATIC S5 systems. STEP 5 project files created on PG 685 or PG 750 units are fully portable to the 500-033260 without conversion. The physical cable interface and communication protocol are identical, ensuring a seamless transition with no changes required to the existing PLC wiring or configuration.
