Siemens 505-4332 Safety-Enhanced Digital Input Module

Siemens 505-4332 Safety-Enhanced Digital Input Module: Reliable Control for Harsh Industrial Sites

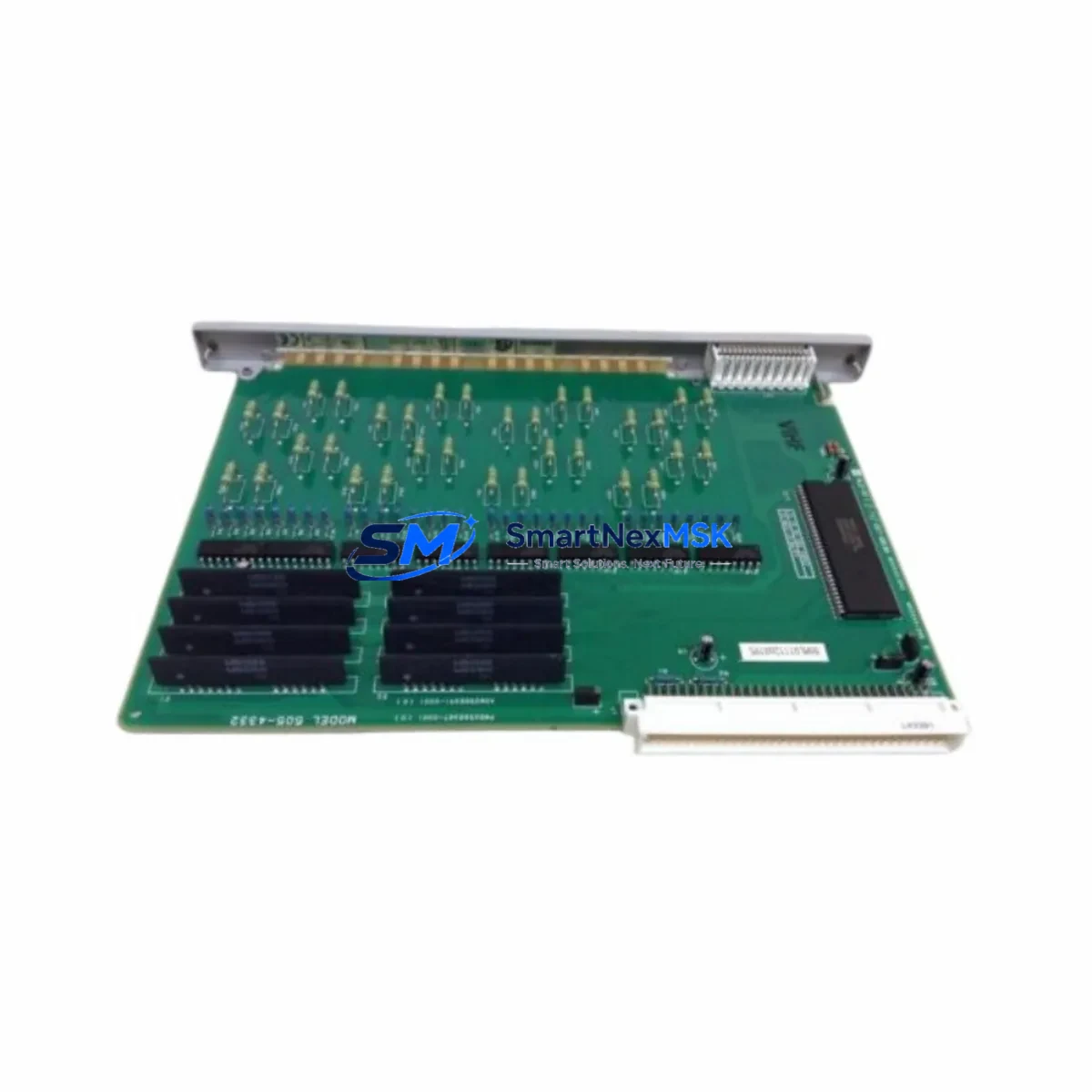

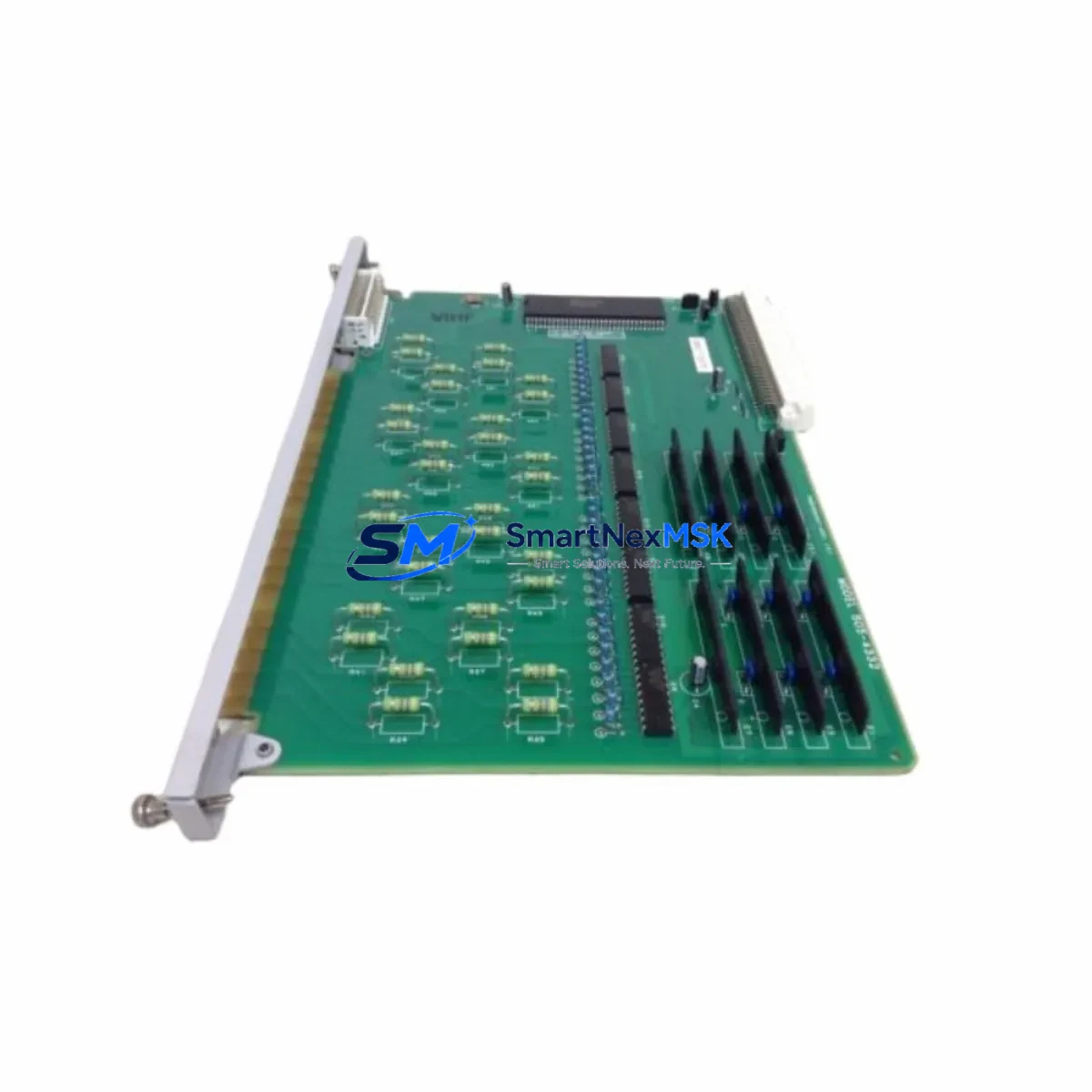

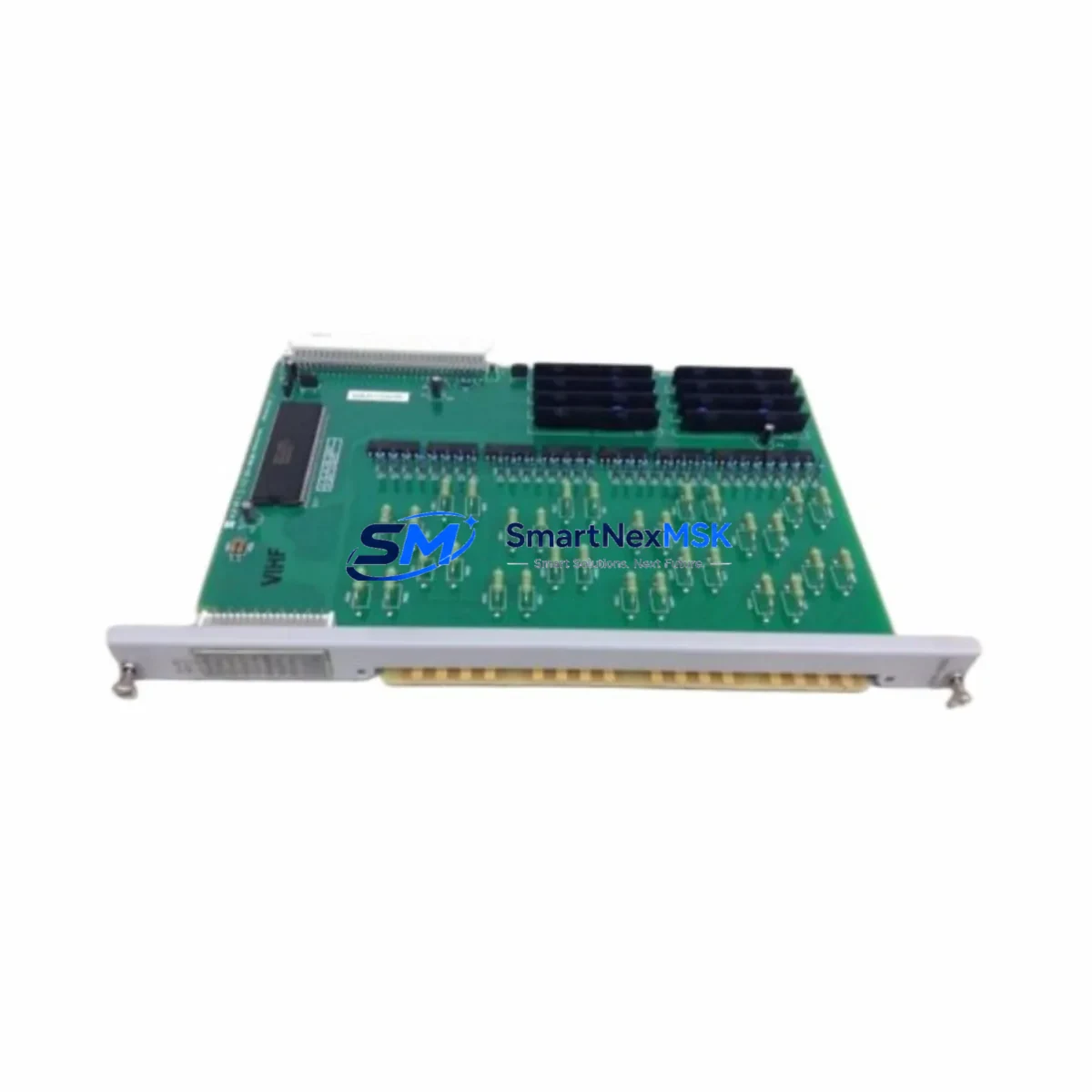

The Siemens 505-4332 is a 32-channel, 24VDC digital input module engineered for the SIMATIC 505 programmable logic controller platform. Designed to operate reliably in high-load, high-interference industrial environments, this module serves as a critical front-end sensing component in safety-critical control loops, emergency shutdown (ESD) systems, and continuous process automation. Whether deployed in a heavy-duty control cabinet on a petrochemical plant floor, a power generation substation, or a mineral processing facility, the 505-4332 delivers consistent, noise-immune signal acquisition that underpins safe and uninterrupted plant operation.

In demanding industrial sites — where electromagnetic interference (EMI), voltage transients, mechanical vibration, and thermal cycling are constant threats — the integrity of digital input signals is non-negotiable. A single misread input in a safety interlock circuit can trigger unplanned shutdowns, equipment damage, or personnel hazards. The 505-4332 addresses these risks through robust hardware design, IEC 60068-2-6 vibration compliance, and optical isolation that decouples field-side signals from the controller backplane, preventing surge propagation and ground loop interference from corrupting control logic.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest component. When integrating the Siemens 505-4332 into a SIMATIC 505 rack, system integrators and maintenance engineers should consider the full protection architecture surrounding it. The 505-4332 typically operates alongside the Siemens 505-6860 CPU module, which executes the control program and manages I/O scanning. Stable, clean power delivery to the rack is essential — the Siemens 505-1101 power supply module provides regulated 5VDC backplane power with built-in overvoltage protection, ensuring the 505-4332 and co-installed modules receive consistent operating voltage even during upstream power fluctuations.

On the field wiring side, surge and transient events from long cable runs — common in mining conveyors, port crane systems, and outdoor pump stations — can inject destructive energy into input circuits. Installing Phoenix Contact TRABTECH surge protection terminal blocks or equivalent DIN-rail-mounted transient voltage suppressors (TVS) at the cabinet entry point significantly reduces the risk of input channel damage on the 505-4332. For applications involving inductive field devices such as solenoid valves or relay coils, freewheeling diode modules or RC snubber assemblies should be wired in parallel with the load to suppress back-EMF spikes.

Communication integrity between the SIMATIC 505 rack and supervisory systems is maintained through the Siemens 505-6870 TIWAY network interface module or compatible Modbus RTU / TCP gateway modules, which isolate the controller network from plant-floor noise. In safety-critical applications, a Siemens 505-4116 analog input module may be co-installed to monitor process variables — temperature, pressure, or flow — that trigger protective actions based on digital status signals read by the 505-4332. Pairing the digital input module with a Siemens 505-4422 digital output module completes the I/O loop, enabling the controller to both sense field conditions and actuate protective responses such as motor trips, valve closures, or alarm annunciation.

For facilities operating under IEC 61511 functional safety requirements, the 505-4332 is commonly deployed within a Safety Instrumented System (SIS) architecture, where its input channels feed into logic solvers that evaluate safety integrity level (SIL) conditions. Proper channel segregation, periodic proof testing, and documented bypass procedures are recommended to maintain SIL compliance over the system lifecycle.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 505-4332 monitors critical process interlocks — high-pressure switches, flame detectors, gas detection relays, and emergency stop pushbuttons. Its optical isolation prevents ground potential differences between field instruments and the control room from causing spurious trips or missed shutdowns. The module’s 32-channel density reduces cabinet footprint in space-constrained marshalling panels while maintaining full signal integrity across all channels simultaneously.

Power Generation and Substation Control: Thermal power plants and hydroelectric facilities rely on the SIMATIC 505 platform for turbine protection, generator excitation control, and auxiliary system monitoring. The 505-4332 reads status signals from circuit breakers, transformer tap changers, and cooling system flow switches. Its EMI resistance is particularly valuable in high-voltage switchgear environments where strong magnetic fields from bus bars and transformers can induce noise on unshielded signal cables.

Mining and Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The 505-4332’s IEC 60068-2-6 vibration rating makes it suitable for installation in mobile crushing plant control panels and conveyor drive cabinets. It monitors belt misalignment switches, chute blockage detectors, and emergency pull-cord circuits — all of which are life-safety devices in mining environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 505-4332 to monitor pump run/fail status, valve position feedback, level switch inputs, and chemical dosing system interlocks. Continuous 24/7 operation demands that input modules maintain signal accuracy without drift or false triggering — a requirement the 505-4332 meets through its stable 24VDC input threshold design and noise-immune optical isolation.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference from high-current switching. The 505-4332 is deployed in these environments to read position sensors, cooling water flow switches, and hydraulic pressure interlocks. Its robust input filtering prevents EMI-induced false signals from triggering unintended equipment stops or bypassing safety interlocks.

Safety and Quality FAQ

Q1: What warranty coverage does the Siemens 505-4332 carry?
Every 505-4332 unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide replacement or repair support with priority processing to minimize your downtime.

Q2: How is each unit tested before shipment?
All 505-4332 modules undergo a full functional test prior to dispatch. This includes verification of all 32 input channels, backplane connector integrity check, and visual inspection for physical damage. Units that do not pass testing are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 505-4332 compatible with all SIMATIC 505 racks and CPUs?
The 505-4332 is designed for the SIMATIC 505 I/O rack system and is compatible with standard 505-series racks and CPU modules including the 505-6860 and related variants. It occupies a standard single-slot position. We recommend verifying your rack’s I/O map and CPU firmware revision with your system documentation before installation. Our technical team can assist with compatibility confirmation if needed.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 505-4332?
Yes. We maintain dedicated inventory of the Siemens 505-4332 and related SIMATIC 505 components to support ongoing maintenance, spare parts programs, and emergency replacement requirements. For facilities running legacy SIMATIC 505 systems, we offer structured supply agreements to ensure continuity of spare parts availability over multi-year maintenance cycles. Contact our sales team to discuss volume pricing and reserved stock arrangements.
