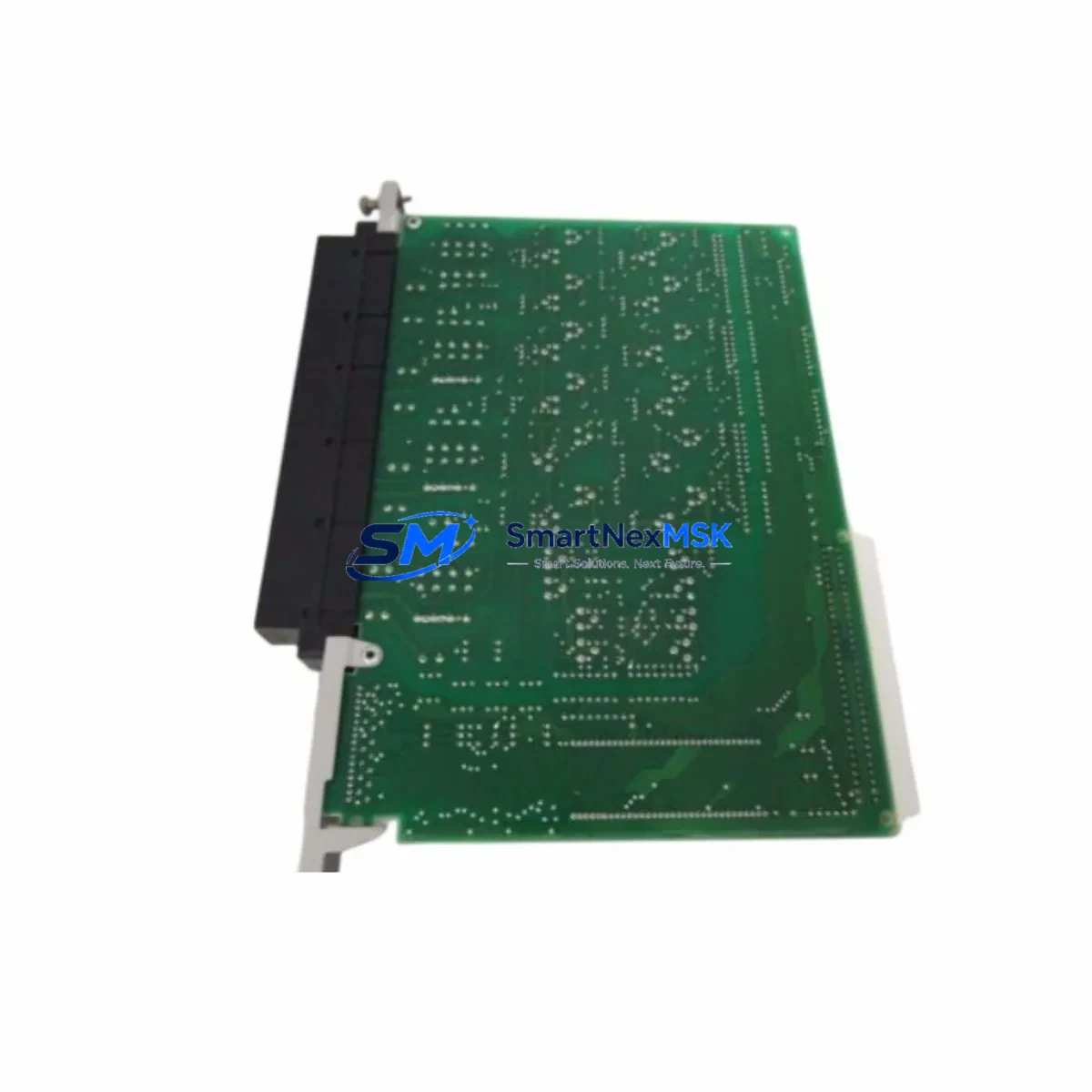

Siemens 505-4532 Retrofit-Ready DC Output Module for SIMATIC TI505 Control Systems
The Siemens 505-4532 is a 16-point, 0.5 A per point sourcing DC output module engineered for the SIMATIC TI505 programmable controller platform. As legacy TI505 systems approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified, tested surplus stock of the 505-4532 to extend operational life, execute controlled retrofits, and avoid costly full-system replacements. SMARTNEXMSK maintains ready inventory of the 505-4532, fully function-tested prior to shipment, backed by a 12-month warranty.
Whether you are replacing a failed output card in a running production line, upgrading a control cabinet that still uses the TI505 rack architecture, or migrating I/O capacity as part of a phased modernization program, the 505-4532 provides a direct, wiring-compatible solution that eliminates the need to re-engineer terminal blocks, field wiring, or PLC program logic during the initial swap.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Module SKU | 505-4532 |
| Brand / Manufacturer | Siemens (formerly Texas Instruments / Simatic) |
| Compatible Platform | SIMATIC TI505 Series PLC |
| Output Type | 16-Point Sourcing DC Output, 0.5 A per point |
| Backplane Interface | TI505 standard I/O rack bus — compatible with 505-6860, 505-6870 racks |
| Installation Requirement | Slot into any standard TI505 I/O rack; no hardware modification required |
| Wiring Compatibility | Direct terminal-for-terminal replacement; existing field wiring retained |
| Communication Compatibility | Native TI505 backplane protocol; no additional communication configuration |
| Replacement Recommendation | Direct drop-in for failed or end-of-life 505-4532 units |
| Commissioning Focus | Verify module address assignment, output force inhibit status, and program scan mapping |
| Warranty | 12-Month Warranty — function-tested before shipment |
Retrofit Planning for Existing Automation Systems
A successful 505-4532 retrofit begins well before the module arrives on site. Engineers should audit the existing TI505 rack configuration — typically a 505-6860 or 505-6870 I/O chassis — to confirm available slot positions, power budget, and backplane integrity. The TI505 power supply module, such as the 505-6920 or 505-6930, must be verified to support the additional load introduced by the replacement output card, particularly in high-density cabinets where multiple I/O modules share a single supply rail.
Terminal block wiring should be documented before removal of the failed module. The 505-4532 uses a standard 40-pin connector that mates directly with the existing field wiring harness, preserving the original I/O address mapping without requiring changes to the TI505 CPU — typically a 505-6600 or 505-6610 controller — or the associated TISOFT or STEP 7 program logic. If the control system communicates over a TIWAY I network or a CTI 2500 Series compatible backplane, the replacement module integrates transparently without protocol reconfiguration.
For plants running HMI panels — such as legacy Siemens OP series or third-party SCADA systems connected via serial RS-232 or RS-485 links — no HMI screen modifications are required when performing a like-for-like 505-4532 swap, since the output addresses remain unchanged. However, if the retrofit is part of a broader I/O expansion using additional 505-4532 units or complementary 505-4522 DC input modules, HMI tag databases should be updated to reflect the new I/O map before going live.
In multi-rack configurations, engineers should also confirm the rack interconnect cables — such as the 505-6890 I/O expansion cable — are intact and that the module slot address switches on the 505-4532 are set to match the original failed unit’s address configuration. Incorrect address settings are the most common commissioning error during like-for-like replacements and can cause output conflicts or CPU fault conditions that halt production.
Where the retrofit scope extends beyond a single card swap — for example, when upgrading an entire control cabinet from TI505 to a CTI 2500 Series or Siemens S7-300 platform — the 505-4532 can serve as a bridge module during phased migration, maintaining field output continuity while the new controller is commissioned in parallel. This approach is particularly effective in continuous-process environments where a full cutover shutdown is not operationally feasible.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing output modules in a live TI505 system. The recommended approach is to perform the 505-4532 swap during a scheduled maintenance window, with the affected output group forced to a safe state — typically all outputs de-energized — before the module is removed from the rack. The TI505 CPU supports output force inhibit functions that allow the program to continue scanning while the physical outputs are held in a known state, protecting field devices such as solenoid valves, motor starters, and indicator circuits from uncontrolled state changes during the swap.
Before reinserting the replacement 505-4532, verify that the module’s LED indicators are functional and that the backplane connector pins are clean and undamaged. After insertion, restore the CPU to RUN mode and monitor the output status display on the programming terminal — connected via a 505-6890 programming cable or a CTI-compatible USB adapter — to confirm that all 16 output points respond correctly to program commands. A brief functional test of each output channel against the field device it controls should be completed before releasing the system to production.
For systems where even a brief maintenance window is difficult to schedule, SMARTNEXMSK can pre-configure and bench-test the 505-4532 to your address settings prior to shipment, reducing on-site commissioning time to under 30 minutes in most standard rack configurations. All units ship with a function test report and are covered by a 12-month warranty from the date of delivery.
Retrofit Support FAQ
Q: Is the 505-4532 a direct replacement for all TI505 DC output modules?
A: The 505-4532 is specifically a 16-point, 0.5 A sourcing DC output module. It is a direct replacement for other 505-4532 units. It is not interchangeable with sinking output variants or with the 505-4522 DC input module. Always verify the original module’s part number and output type before ordering.
Q: Do I need to modify my PLC program after installing the replacement 505-4532?
A: No program modification is required for a like-for-like replacement, provided the module slot address switches are set identically to the original unit. The TI505 CPU maps I/O by rack slot address, so as long as the address configuration matches, the existing ladder logic and output assignments remain valid without any edits in TISOFT or the equivalent programming environment.
Q: What commissioning checks should I perform after installation?
A: After seating the module and powering the rack, confirm the module’s ACTIVE and FAULT LEDs indicate normal status. Use the programming terminal to force each of the 16 output points individually and verify the corresponding field device responds. Check that no CPU I/O fault codes are generated. Finally, return all forced outputs to program control and run a full scan cycle before releasing the system.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each 505-4532 unit is function-tested prior to shipment. If a unit fails within the warranty period under normal use, SMARTNEXMSK will provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.
