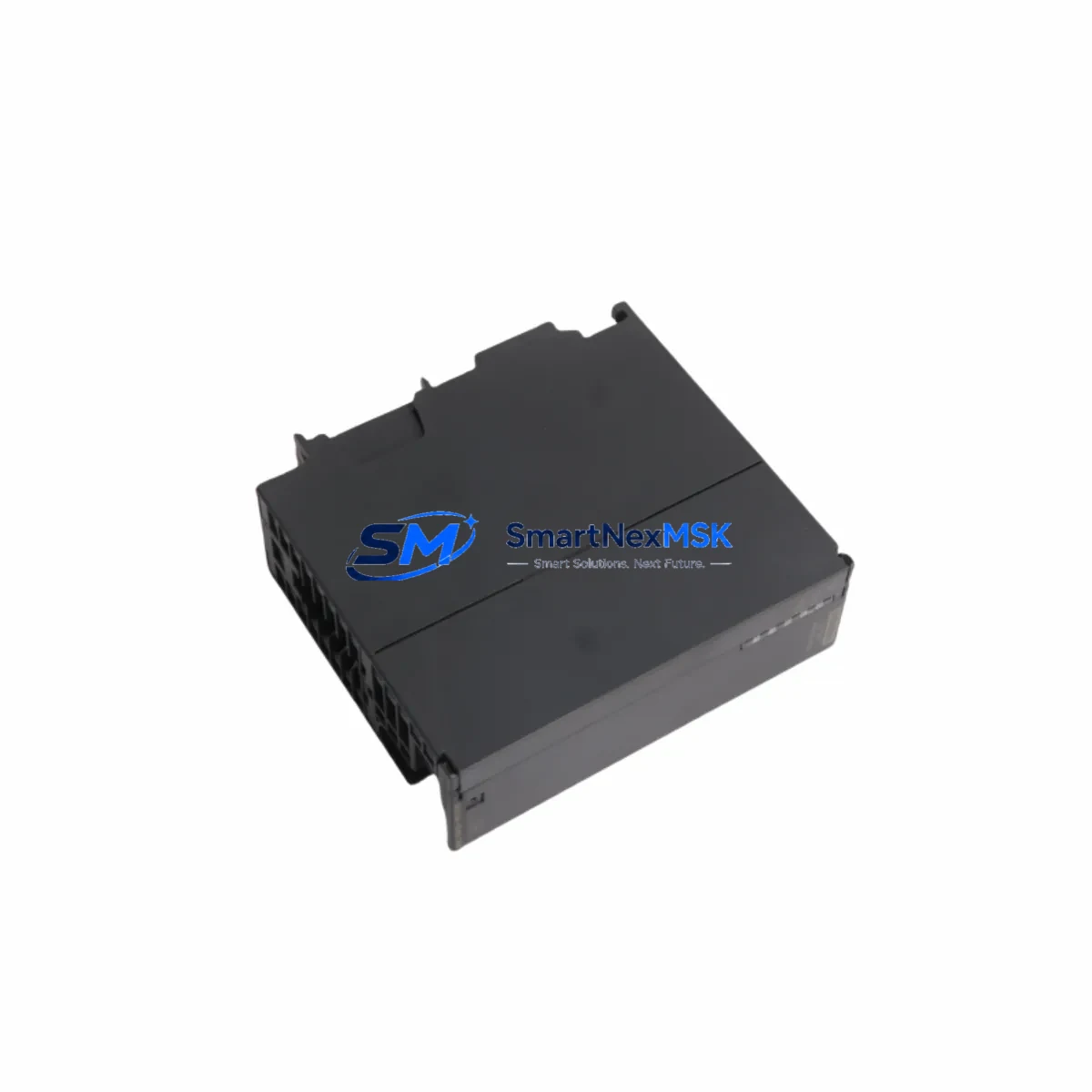

Siemens 6AG1341-1CH02-7AE0 Safety-Enhanced Serial CP for Harsh Sites

Siemens 6AG1341-1CH02-7AE0 Safety-Enhanced Serial CP for Harsh Industrial Sites

The Siemens 6AG1341-1CH02-7AE0 is a SIPLUS-series ruggedized Communications Processor (CP 341) engineered for the SIMATIC S7-300 platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous-process manufacturing lines — this module delivers uncompromising serial communication integrity where standard hardware would fail. Its extended temperature tolerance, enhanced conformal coating, and reinforced EMC shielding make it the preferred choice for control engineers who cannot afford communication dropouts in safety-critical or high-availability loops.

In high-load production environments, communication interruptions between the S7-300 CPU and field devices can cascade into dangerous process deviations. The 6AG1341-1CH02-7AE0 addresses this risk by maintaining stable RS-232, RS-422, and RS-485 serial links even under severe electrical noise, voltage fluctuations, and thermal stress. Its hardware-level signal isolation and robust protocol stack — supporting ASCII, 3964(R), and RK 512 — ensure that data frames are transmitted and received without corruption, protecting the integrity of interlocking signals, setpoint commands, and status feedback in critical control loops.

When integrated into a properly designed S7-300 control cabinet, the CP 341 works in concert with a range of protective and power-conditioning components. A SITOP PSU100S 24 V DC power supply provides the stable, low-ripple voltage rail that the module requires for consistent operation; any power fluctuation beyond tolerance can cause spurious resets or communication timeouts. Upstream surge protection devices — such as the DEHN or Phoenix Contact surge arresters commonly installed on 24 V DC bus bars — guard the CP 341’s communication ports against transient overvoltages from nearby motor starters or switching equipment. The S7-300 CPU 315-2 DP or CPU 317-2 PN/DP paired with this CP 341 handles the main program logic, while the CP 341 offloads serial protocol processing, preventing CPU cycle overload during high-frequency polling of remote RTUs or weighing terminals.

In distributed architectures, the 6AG1341-1CH02-7AE0 frequently operates alongside ET 200M remote I/O stations connected via PROFIBUS DP, where it handles point-to-point serial links to legacy field instruments — flow computers, gas analyzers, or barcode readers — that do not support fieldbus protocols. The SM 321 digital input modules and SM 322 digital output modules in the same rack provide the discrete I/O for safety interlocks, while the CP 341 manages the serial data exchange that feeds process values into the PLC’s safety evaluation logic. In installations where functional safety is formalized, the CP 341 is often deployed alongside a SIMATIC S7-300F CPU and F-SM fail-safe I/O modules, forming a layered safety architecture where communication reliability is as critical as the safety logic itself.

For applications in hazardous areas or environments with high electromagnetic interference — such as arc furnace control rooms, variable-frequency drive (VFD) panels, or offshore platform control cabinets — the SIPLUS ruggedization of the 6AG1341-1CH02-7AE0 provides the margin of reliability that standard CP 341 variants cannot guarantee. The module’s conformal coating protects against condensation, corrosive atmospheres, and conductive dust ingress, while its extended operating temperature range accommodates the thermal cycling common in outdoor enclosures or poorly climate-controlled substations. Engineers specifying spare parts for long-term plant maintenance programs consistently include this module in their critical spares inventory, recognizing that a communication failure at the wrong moment can trigger an emergency shutdown with significant production and safety consequences.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including communication port verification, firmware version confirmation, and visual inspection for physical integrity. Stock is maintained to support both planned maintenance replacements and emergency breakdown scenarios, with fast dispatch to minimize plant downtime. All units are covered by a 12-month warranty against manufacturing defects and functional failure.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust S7-300 control cabinet built around the 6AG1341-1CH02-7AE0 requires a coordinated approach to power quality, signal integrity, and module protection. The foundation is a reliable 24 V DC power supply — the SITOP PSU100S or SITOP smart series is the standard choice for S7-300 installations, providing regulated output with built-in overload and short-circuit protection. On the same DIN rail, a SIMATIC S7-300 CPU 315-2 DP handles the main control program, while the CP 341 manages all serial protocol communication independently, preventing any serial I/O bottleneck from affecting scan cycle performance.

Signal cables connected to the CP 341’s RS-485 port should be routed through cable ducts separated from power wiring, and terminated with proper shielding clamps on the cabinet’s grounding bar. In environments with heavy motor loads or frequent switching transients, Phoenix Contact TRABTECH or DEHN DEHNguard surge protection modules installed on the 24 V DC supply rail and on the serial communication lines provide an additional layer of protection against voltage spikes that could damage the CP 341’s communication circuitry or corrupt data frames in transit.

For installations requiring high availability, a redundant power feed using a SITOP UPS module with battery backup ensures that the CP 341 and its associated CPU continue operating through brief mains interruptions — critical in processes where a communication timeout would trigger a safety shutdown. The SM 321 DI 32×DC 24V input modules and SM 322 DO 32×DC 24V/0.5A output modules in the same S7-300 rack handle the discrete safety interlock signals, while the CP 341 maintains the serial data link to remote instruments. In larger installations, an S7-300 IM 360/361 interface module pair extends the rack configuration, allowing the CP 341 to be positioned optimally relative to the field cable entry points.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6AG1341-1CH02-7AE0 is deployed to maintain serial communication links between S7-300 PLCs and flow computers, gas chromatographs, or flame and gas detection controllers. The SIPLUS ruggedization ensures reliable operation in the high-humidity, corrosive-atmosphere conditions typical of these facilities, where a communication failure in a safety interlock loop could delay emergency shutdown response.

In power generation and substation automation, the CP 341 handles serial protocol communication with protection relays, energy meters, and RTUs that use legacy RS-485 Modbus or proprietary protocols. Its EMC-hardened design withstands the strong electromagnetic fields generated by high-voltage switching equipment and busbar currents, maintaining data integrity in environments where standard modules experience frequent communication errors.

In mining and mineral processing applications, the module operates in control cabinets subject to vibration, dust, and wide temperature swings. It manages serial links to conveyor drive controllers, crusher monitoring systems, and weighbridge terminals, providing the process data that the S7-300 CPU uses to enforce load limits and prevent mechanical overload conditions.

In water and wastewater treatment facilities, the 6AG1341-1CH02-7AE0 connects S7-300 controllers to chemical dosing pumps, flow analyzers, and SCADA RTUs via serial links, supporting continuous monitoring of treatment parameters. Its conformal coating provides reliable operation in the high-humidity pump rooms and outdoor kiosks common in these installations.

In metallurgical and steel plant environments, the module withstands the intense electromagnetic interference generated by arc furnaces and induction heating equipment, maintaining stable serial communication to pyrometers, thickness gauges, and rolling mill drive systems — applications where data accuracy directly affects product quality and process safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6AG1341-1CH02-7AE0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified serial communication functions within the warranty period, SMARTNEXMSK will provide a replacement unit. The warranty applies from the date of shipment and is supported by our pre-shipment test records for each unit.

Q2: What pre-shipment testing is performed before dispatch?
Each 6AG1341-1CH02-7AE0 unit undergoes communication port functionality verification, firmware version confirmation, visual inspection for physical damage, and connector integrity checks before shipment. This process ensures that the module is fully operational upon arrival and reduces the risk of installation delays caused by DOA (dead-on-arrival) hardware.

Q3: Is this module compatible with all S7-300 CPU variants and rack configurations?
The 6AG1341-1CH02-7AE0 is compatible with the full range of SIMATIC S7-300 CPUs and standard S7-300 rack configurations. It occupies one slot in the S7-300 rack and is configured using STEP 7 or TIA Portal with the CP 341 hardware catalog entry. It is the SIPLUS ruggedized variant of the standard 6ES7341-1CH02-0AE0 and is functionally equivalent, with enhanced environmental ratings.

Q4: Can long-term supply and replacement support be guaranteed for this module?
SMARTNEXMSK maintains stock of the 6AG1341-1CH02-7AE0 to support both planned maintenance programs and emergency breakdown replacements. For customers with critical infrastructure requiring guaranteed spare parts availability, we recommend contacting our sales team to discuss reserved stock arrangements. Our sourcing network ensures continued supply even for modules that have reached end-of-standard-production status with the OEM.
