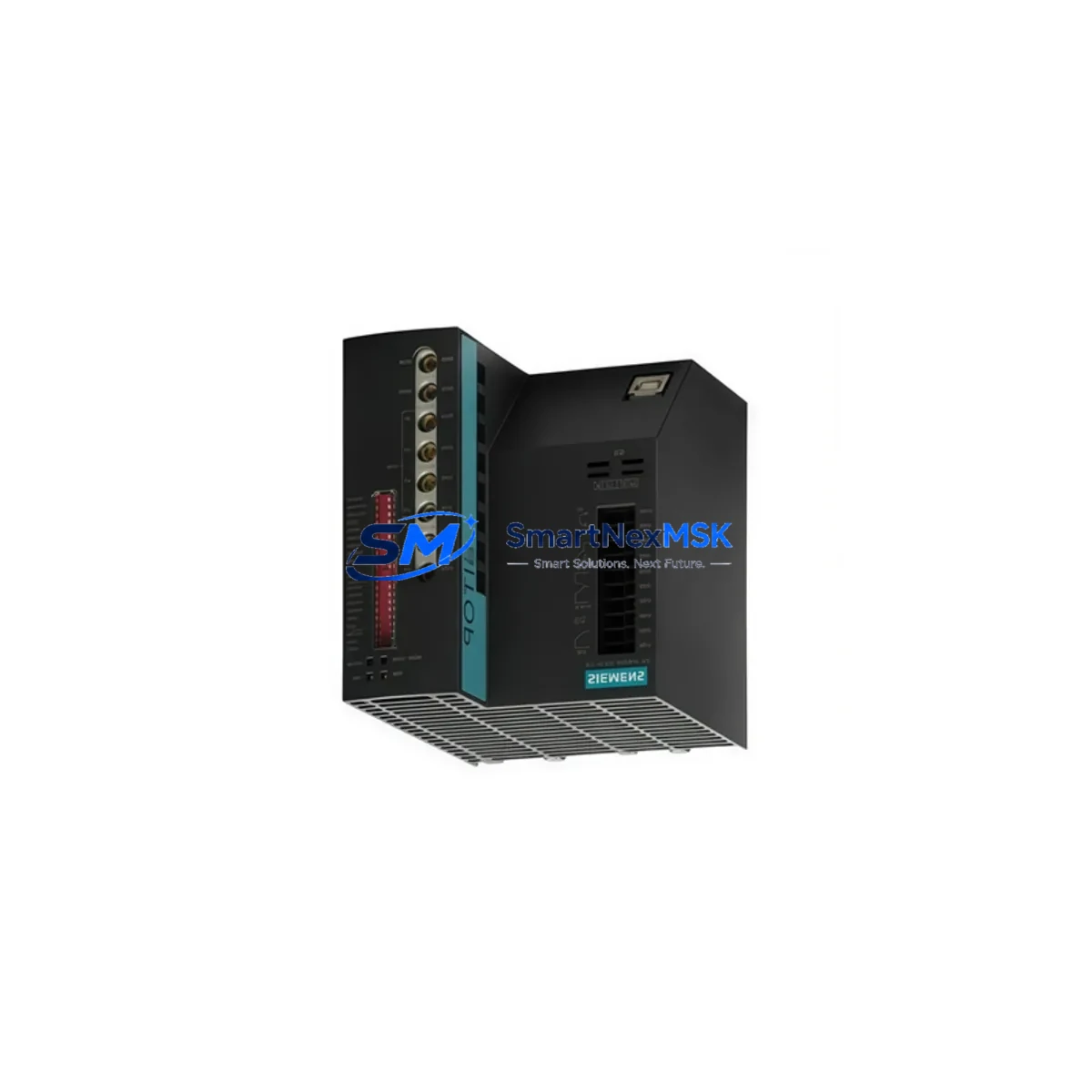

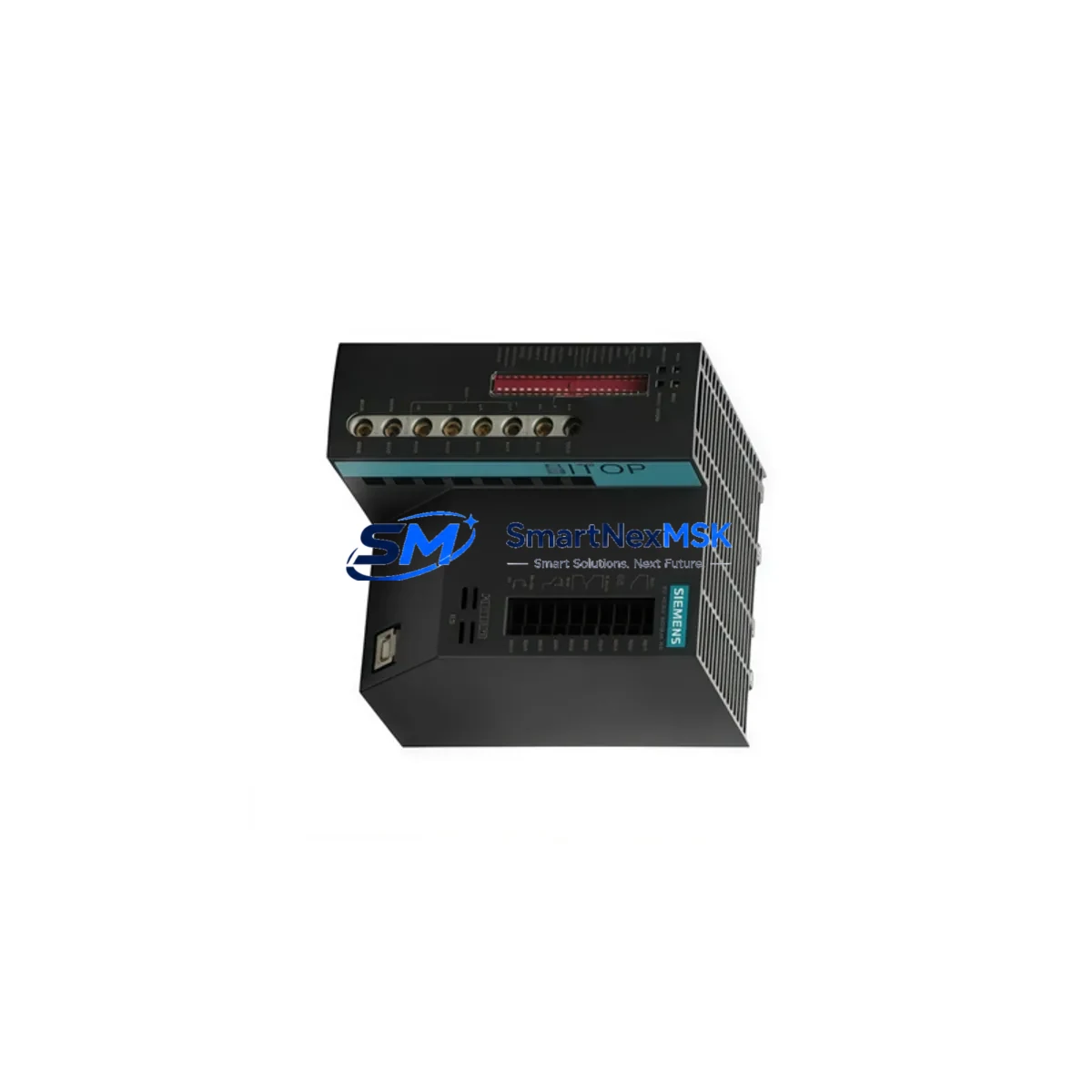

Siemens 6AG1931-2FC21-7AA0 DC UPS Module for SIPLUS Systems

Siemens 6AG1931-2FC21-7AA0 DC UPS Module for SIPLUS Systems: Compatible Retrofit & Smooth Upgrade

The Siemens 6AG1931-2FC21-7AA0 is a SIPLUS-series DC UPS Buffer Module engineered for extended-range and harsh-environment applications. Designed to bridge power interruptions in 24 VDC control circuits, this module is a direct retrofit replacement for aging or discontinued UPS buffer units found in legacy SITOP power supply systems and S7-300/S7-400 control cabinets. Whether your facility is recovering from an unplanned outage, upgrading an end-of-life power architecture, or migrating from an older SITOP PSU 600 or SITOP modular platform, the 6AG1931-2FC21-7AA0 delivers the buffering capacity and environmental tolerance required for continuous industrial operation.

This module is fully compatible with the SIPLUS extreme product family, which is rated for operation in condensing humidity, elevated ambient temperatures, and corrosive atmospheres — conditions common in chemical processing, offshore platforms, and heavy manufacturing environments. When replacing an older 6EP1931-2FC21 or similar SITOP buffer module, engineers should verify the DC bus voltage (24 VDC nominal), the buffer capacitor rating, and the terminal block wiring layout before installation. The 6AG1931-2FC21-7AA0 uses standard push-in terminal connections compatible with existing cabinet wiring, minimizing rewiring time during retrofit.

In systems where the SITOP UPS1600 or SITOP UPS500S previously provided bridging power to a Siemens S7-315 or S7-317 CPU, this buffer module can be integrated into the same DIN rail slot without structural modification. Engineers should confirm that the load current draw from connected I/O modules — such as SM 321 digital input modules or SM 331 analog input modules — does not exceed the buffer module’s rated output capacity. For larger cabinet configurations using ET 200M distributed I/O with IM 153-2 interface modules, a parallel buffer arrangement may be required to maintain full I/O availability during a power dip.

During the retrofit planning phase, it is essential to document the existing wiring from the SITOP power supply output terminals to the buffer module input, and from the buffer output to the PLC backplane or field device terminal strips. The 6AG1931-2FC21-7AA0 maintains the same terminal pitch as its predecessors, but engineers should cross-reference the wiring diagram against the current cabinet layout to confirm polarity and ground bonding. If the cabinet also houses a CP 343-1 Ethernet communication processor or a CP 341 serial communication module, ensure that these devices remain powered through the buffer output rail to prevent communication link drops during a power event.

For facilities running STEP 7 v5.x or TIA Portal projects targeting S7-300 hardware, no program modifications are required when replacing the buffer module — the CPU and I/O configuration remain unchanged. However, if the system includes a SIMATIC HMI panel such as a TP700 Comfort or MP377, operators should verify that the HMI’s 24 VDC supply is also routed through the buffer rail, so that operator screens remain active and alarm logging continues uninterrupted during a mains failure. This is a common oversight during buffer module replacements that can result in lost production data.

All units supplied by SMARTNEXMSK are pre-tested prior to shipment, with functional verification of buffer charge/discharge cycles and output voltage stability under load. Each 6AG1931-2FC21-7AA0 is covered by a 12-month warranty from the date of delivery, with technical support available for commissioning and compatibility verification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a full audit of the existing power distribution architecture. In a typical S7-300 control cabinet, the SITOP PSU300S 10A power supply feeds 24 VDC to the CPU rack, the buffer module, and downstream field devices. When replacing the buffer module with the 6AG1931-2FC21-7AA0, the engineer should temporarily isolate the buffer output and measure the actual load current drawn by all connected devices — including SM 321 digital input cards, SM 332 analog output cards, and any CP 341 or CP 343-1 communication modules installed in the rack.

If the cabinet also contains an ET 200S distributed I/O station connected via PROFIBUS DP, the IM 151-1 interface module must remain powered throughout the swap to avoid a PROFIBUS network fault that could trigger a CPU STOP condition. In larger installations where a SIMATIC S7-400 with a PS 407 power supply module is used, the buffer module is typically installed on a separate 24 VDC rail feeding the HMI and field instruments, rather than the CPU backplane directly — this architecture should be preserved during the retrofit.

For cabinets that include a SIMATIC TP900 Comfort Panel or a legacy OP 277 operator panel, confirm that the HMI supply is routed through the buffer output so that operator visibility is maintained during a mains interruption. Similarly, if a SITOP UPS1600 is present in the same cabinet, coordinate the buffer module replacement with the UPS module’s charge cycle to avoid a simultaneous power gap. Programming cables such as the PC Adapter USB A2 should be connected and a full project backup taken before any hardware swap begins.

Downtime Control During System Migration

Minimizing downtime during a buffer module replacement requires a structured pre-outage checklist. Before powering down the cabinet, upload the current STEP 7 or TIA Portal project to a laptop and verify the backup against the last known-good version. If the system is running a continuous process, coordinate the swap during a scheduled maintenance window and notify the DCS or SCADA operator to place the affected loop in manual mode.

During the physical swap, label all terminal connections before disconnecting wiring from the old buffer module. The 6AG1931-2FC21-7AA0 uses the same terminal layout as its predecessor, so reconnection is straightforward — but a labeled photograph of the original wiring provides an additional safeguard. After reconnection, power up the SITOP supply first and confirm the buffer module’s charge indicator before enabling the CPU. Monitor the first power cycle carefully: check that all I/O modules come online, that the CP communication modules re-establish their links, and that the HMI panel displays the correct process values before returning the system to automatic mode. Total swap time for an experienced engineer is typically under 30 minutes, keeping production impact minimal.

Retrofit Support FAQ

Q: Is the 6AG1931-2FC21-7AA0 a direct drop-in replacement for the 6EP1931-2FC21?
A: Yes. The 6AG1931-2FC21-7AA0 is the SIPLUS extreme variant of the 6EP1931-2FC21, sharing the same electrical interface and DIN rail footprint. The primary difference is the extended environmental rating. No wiring changes are required for standard cabinet installations.

Q: What commissioning checks are required after installation?
A: After installation, verify the buffer module’s input voltage (24 VDC ±5%), confirm the charge indicator is active, and perform a simulated mains interruption to validate the buffer hold-up time under actual load. Check that all downstream devices — including I/O modules and HMI panels — remain powered throughout the test.

Q: Can this module be used with PROFINET-based S7-1500 systems?
A: The 6AG1931-2FC21-7AA0 is a passive DC buffer and is not protocol-dependent. It can supply 24 VDC to any load within its rated capacity, including S7-1500 I/O stations. However, for new S7-1500 installations, Siemens recommends evaluating the SITOP UPS1600 for integrated UPS management via PROFINET.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested before shipment. Warranty claims are supported by SMARTNEXMSK’s technical team — contact [email protected] for RMA procedures.
