Siemens 6AV2124-0GC01-0AX0 Retrofit-Ready HMI for KTP600 Basic

Siemens 6AV2124-0GC01-0AX0 Retrofit-Ready HMI for KTP600 Basic Control Systems

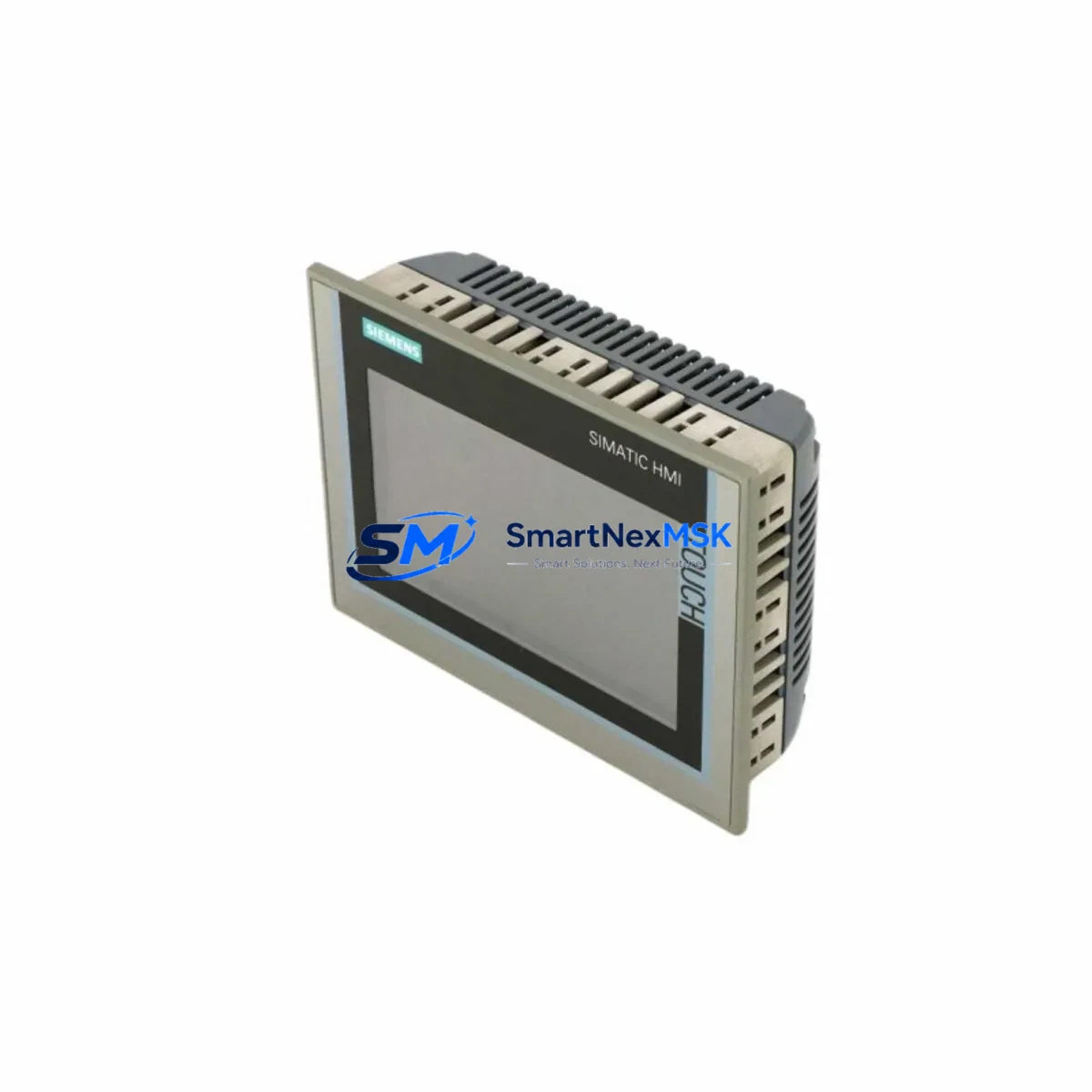

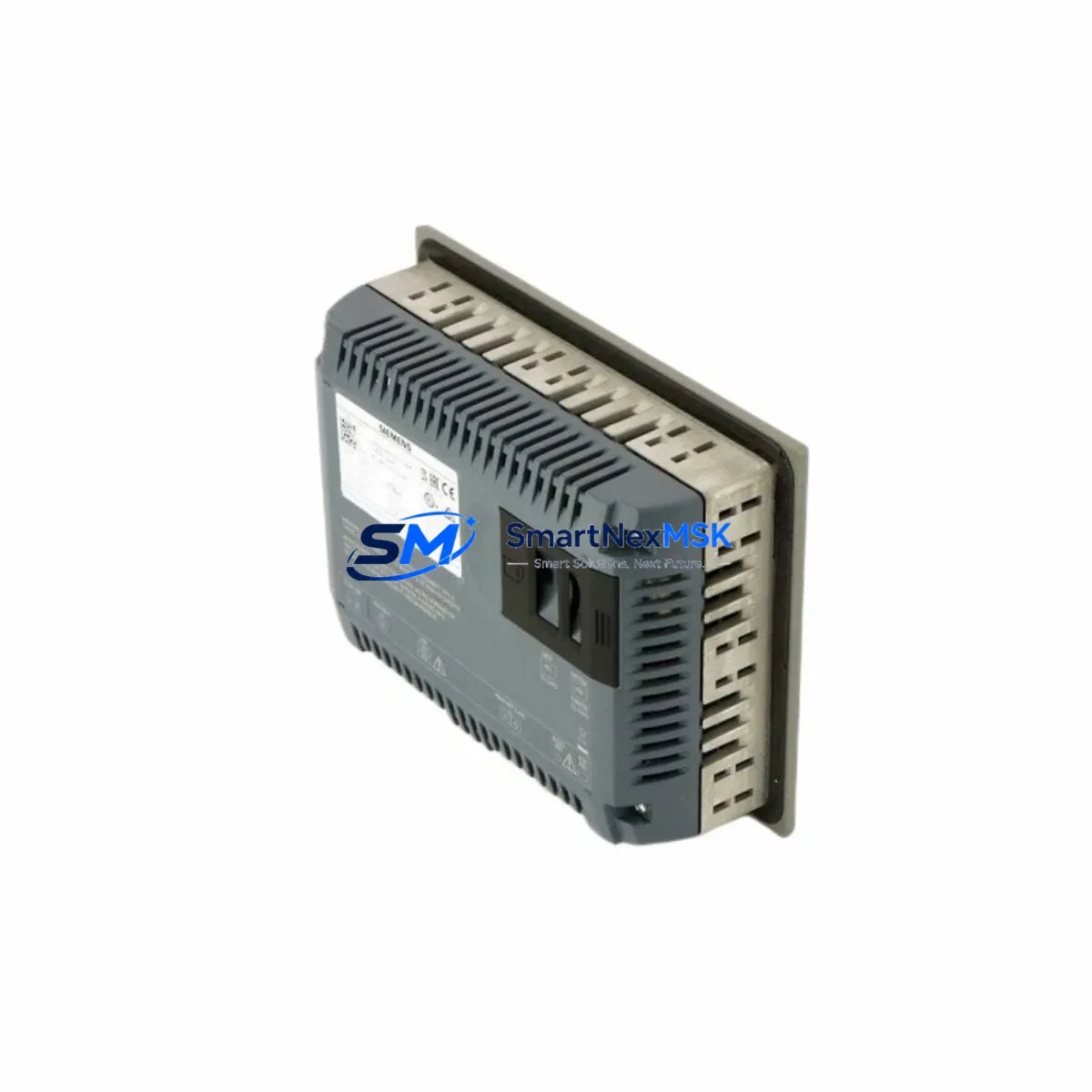

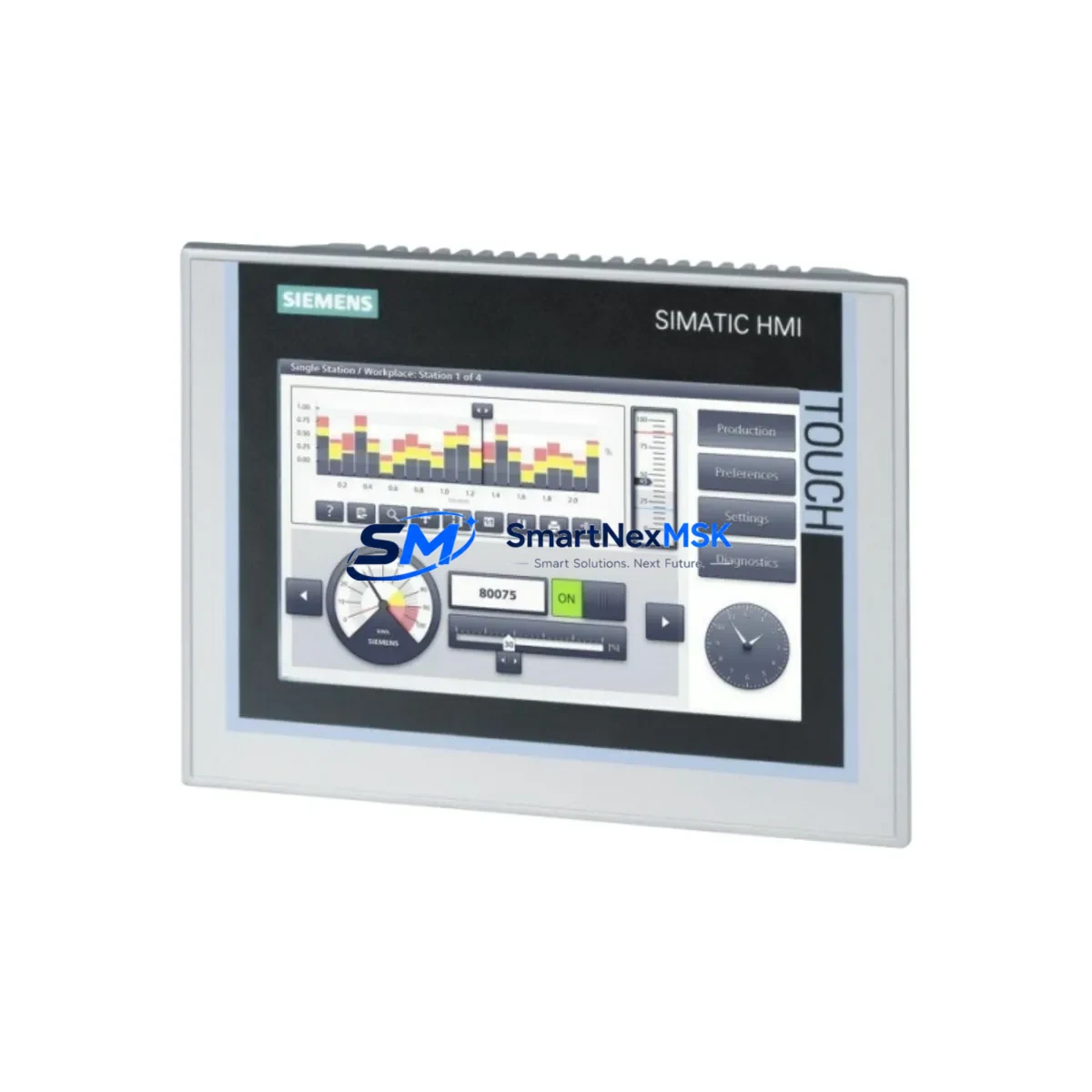

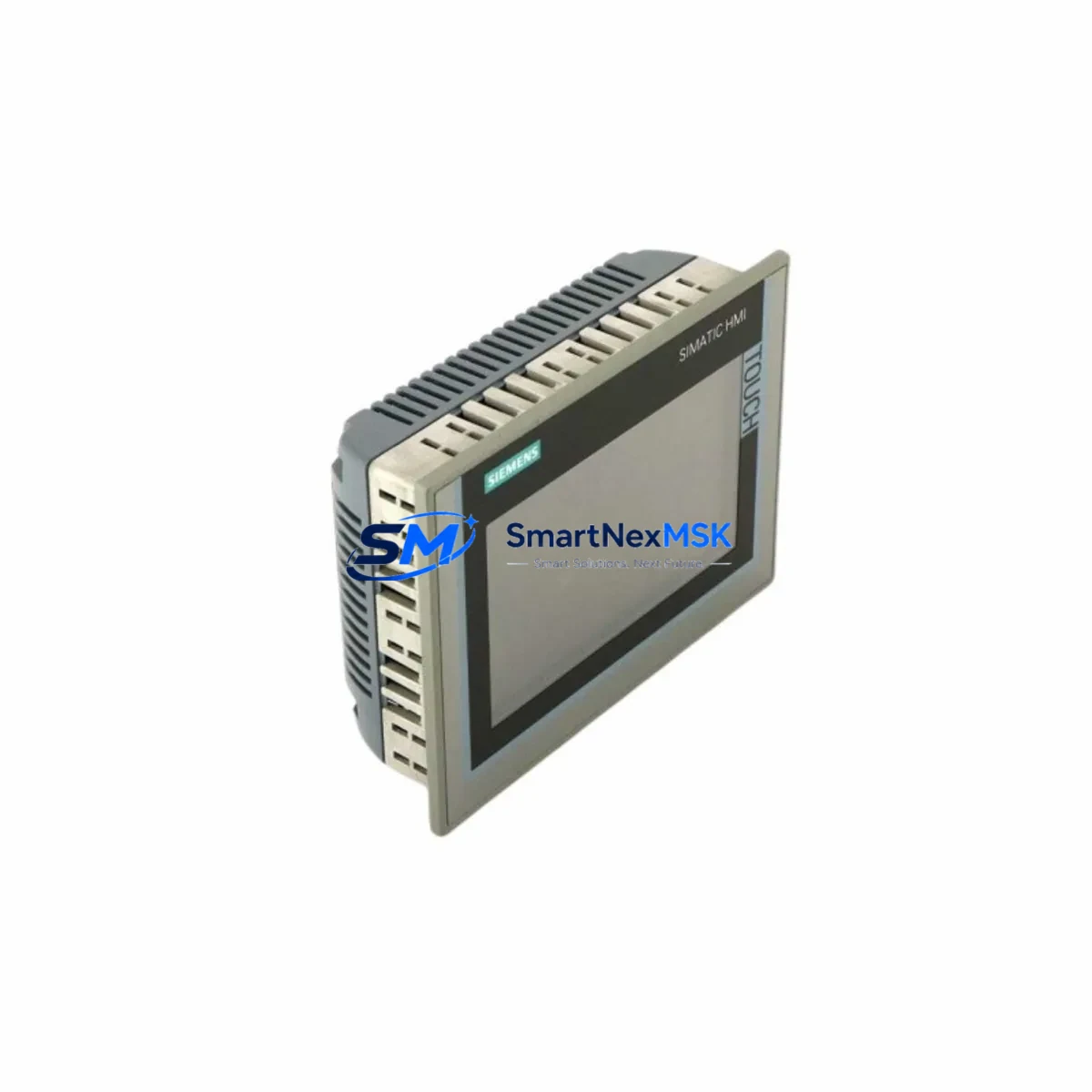

The Siemens 6AV2124-0GC01-0AX0 is a 6-inch Key and Touch Panel (KTP600 Basic) designed for seamless integration into existing SIMATIC-based control architectures. As legacy HMI panels reach end-of-life or become increasingly difficult to source, the 6AV2124-0GC01-0AX0 serves as the definitive retrofit-ready replacement — offering full PROFINET and MPI/PROFIBUS communication compatibility, a compact panel-mount footprint, and TIA Portal engineering support that preserves existing screen logic and tag structures with minimal rework.

Whether you are replacing a failed OP77B, TP177B, or an earlier KTP600 PN variant, the 6AV2124-0GC01-0AX0 delivers a controlled migration path that protects your investment in existing PLC programs, HMI screen designs, and field wiring. Its 800 × 480 pixel widescreen display, integrated function keys, and 24 VDC power input make it a direct candidate for panel-door cutout reuse in most standard control cabinet configurations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6AV2124-0GC01-0AX0 into a legacy control system begins well before the panel is physically installed. The first step is a power budget review of the existing 24 VDC rail — particularly in cabinets where a SITOP PSU8200 or similar power supply is shared across multiple loads including the PLC CPU, I/O modules, and communication components. Confirm that the supply can sustain the additional ~4.5 W draw without tripping under peak load conditions.

Terminal wiring is typically straightforward: the 6AV2124-0GC01-0AX0 uses a standard 2-pin power connector, and the PROFINET port connects directly to the managed switch or CPU PROFINET port — commonly a SCALANCE X208 or the onboard PN port of an S7-1200 CPU 1214C or S7-1500 CPU 1511-1 PN. If the legacy system used MPI communication (as is common with older S7-300 installations), an MPI/PROFIBUS adapter cable or a protocol gateway may be required to bridge the communication gap.

Before removing the old panel, export the existing HMI project from SIMATIC WinCC flexible or the legacy TIA Portal archive. The 6AV2124-0GC01-0AX0 is engineered for TIA Portal WinCC Basic, and most screen objects, tag connections, and alarm definitions can be migrated using the TIA Portal migration wizard. Pay particular attention to tag address mappings — especially if the source project used symbolic addressing with an S7-300 DB structure that differs from the target S7-1200 or S7-1500 data model.

For I/O-intensive retrofit projects, the 6AV2124-0GC01-0AX0 is frequently deployed alongside ET 200SP distributed I/O stations (such as the IM 155-6 PN ST interface module) and SM 1223 digital I/O modules on S7-1200 racks. In larger cabinet upgrades involving S7-300 backplane replacement, engineers often simultaneously swap the IM 360/361 expansion rack interface for a PROFINET-native ET 200M IM 153-4 PN, consolidating the communication backbone and eliminating legacy MPI cabling in a single outage window.

HMI screen validation should be performed in simulation mode within TIA Portal before the panel is powered on in the field. Verify that all process values, setpoint inputs, alarm screens, and navigation buttons respond correctly against the PLC program logic. If the system includes a SINAMICS G120 or G120C variable frequency drive, confirm that the drive parameter screen — typically accessed via a USS or PROFINET connection — displays correctly and that the drive’s fault/warning bits are mapped to the correct HMI alarm tags.

Downtime Control During System Migration

Minimizing unplanned downtime during an HMI retrofit is a primary concern for any production environment. The recommended approach is to pre-configure the 6AV2124-0GC01-0AX0 offline — loading the migrated TIA Portal project, assigning the correct IP address, and verifying communication with a test PLC — before the scheduled maintenance window begins. This offline preparation typically reduces on-site commissioning time to under two hours for a straightforward panel swap.

During the cutover, the existing PLC program should remain running with outputs held in their last known state or placed in a safe manual mode, depending on the process requirements. The S7-1200 or S7-1500 CPU’s integrated web server can provide a temporary monitoring interface via a laptop browser while the HMI panel is disconnected, preserving visibility into critical process variables throughout the swap.

Once the 6AV2124-0GC01-0AX0 is physically installed and powered, the PROFINET connection is established automatically if the device name and IP address have been pre-assigned. The TIA Portal “Download to Device” function transfers the HMI project in a single step, and the panel typically reaches operational status within minutes. Post-installation, verify all interlock screens, recipe screens, and trend displays before releasing the line back to production. Document the as-built configuration — including the panel’s MAC address, IP assignment, and TIA Portal project version — for future maintenance reference.

For sites with strict change-control requirements, the 6AV2124-0GC01-0AX0 ships with a factory acceptance test (FAT) report upon request, and each unit undergoes functional verification prior to dispatch. The 12-month warranty covers hardware defects identified during commissioning or normal operation, with DOA (dead-on-arrival) replacement handled on a priority basis to protect production continuity.

Retrofit Support FAQ

Q1: Can the 6AV2124-0GC01-0AX0 directly replace an OP77B (6AV6647-0AB11-3AX0) without panel cutout modification?
In most cases, the panel cutout dimensions differ slightly. The OP77B uses a 214 × 158 mm cutout, while the KTP600 Basic requires 197 × 141 mm. A stainless steel adapter frame is available to bridge the size difference, allowing the 6AV2124-0GC01-0AX0 to be installed in the existing door opening without sheet metal rework.

Q2: Is the existing WinCC flexible project compatible with TIA Portal for this panel?
TIA Portal includes a migration tool that converts WinCC flexible projects to WinCC Basic format. Most screen objects, tags, and alarm definitions migrate automatically. Manual review is recommended for custom scripts, recipe management screens, and any objects that used features not supported in WinCC Basic. Full migration testing in simulation mode is strongly advised before field deployment.

Q3: What communication wiring is required when replacing an MPI-connected HMI with the 6AV2124-0GC01-0AX0?
The 6AV2124-0GC01-0AX0 communicates exclusively via PROFINET (Ethernet). If the existing PLC (e.g., S7-300 CPU 315-2 DP) does not have a PROFINET interface, a CP 343-1 communication processor or an MPI/PROFINET gateway must be added to the rack. Alternatively, upgrading the CPU to a PROFINET-capable variant (such as the CPU 315-2 PN/DP) during the same maintenance window is a common and cost-effective approach.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all hardware defects arising under normal operating conditions, including display failures, communication port faults, and power supply issues. DOA units are replaced on a priority basis. To initiate a claim, contact our technical support team with the unit serial number, purchase order reference, and a description of the fault. Replacement units are dispatched after fault verification, and defective units are returned for inspection at our cost.
