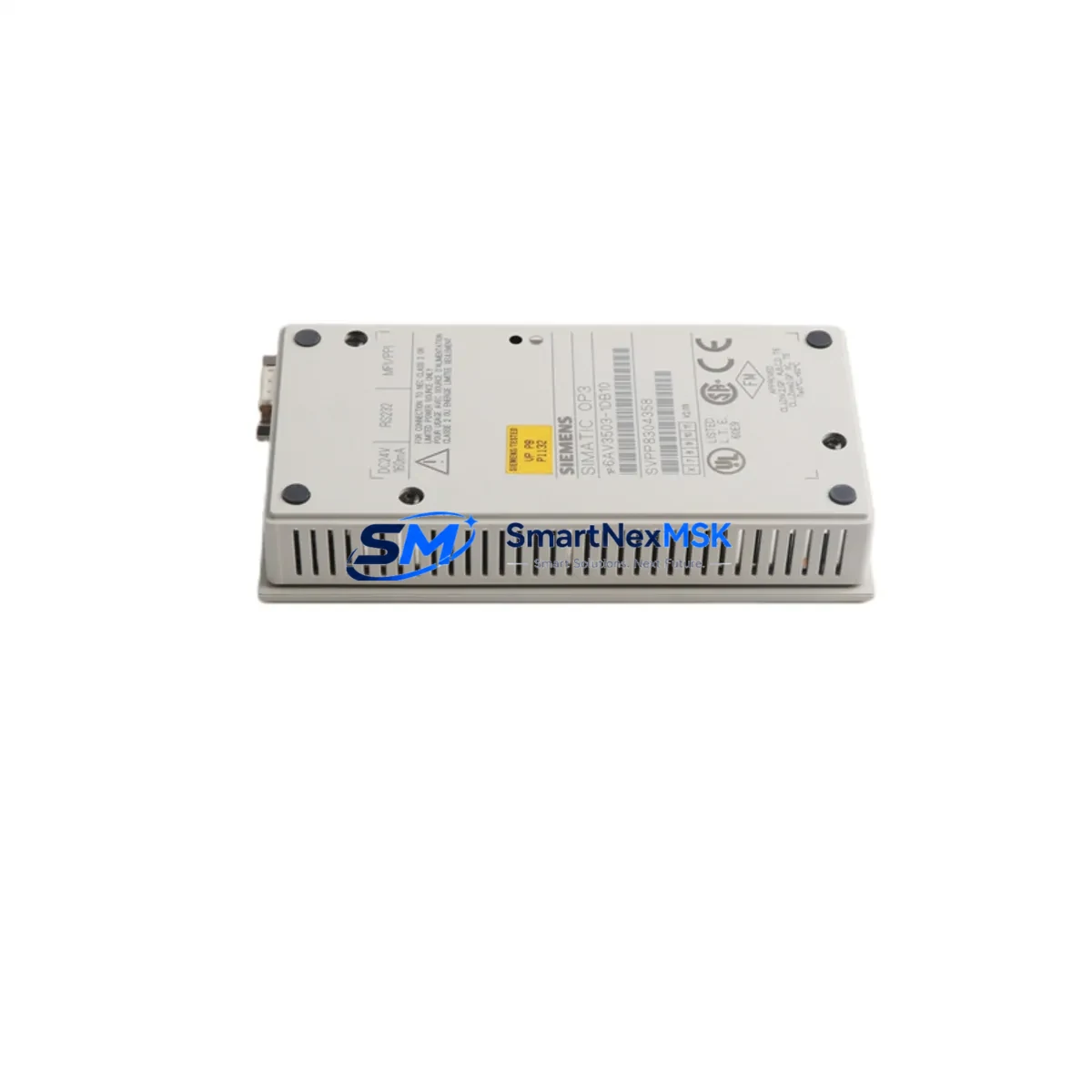

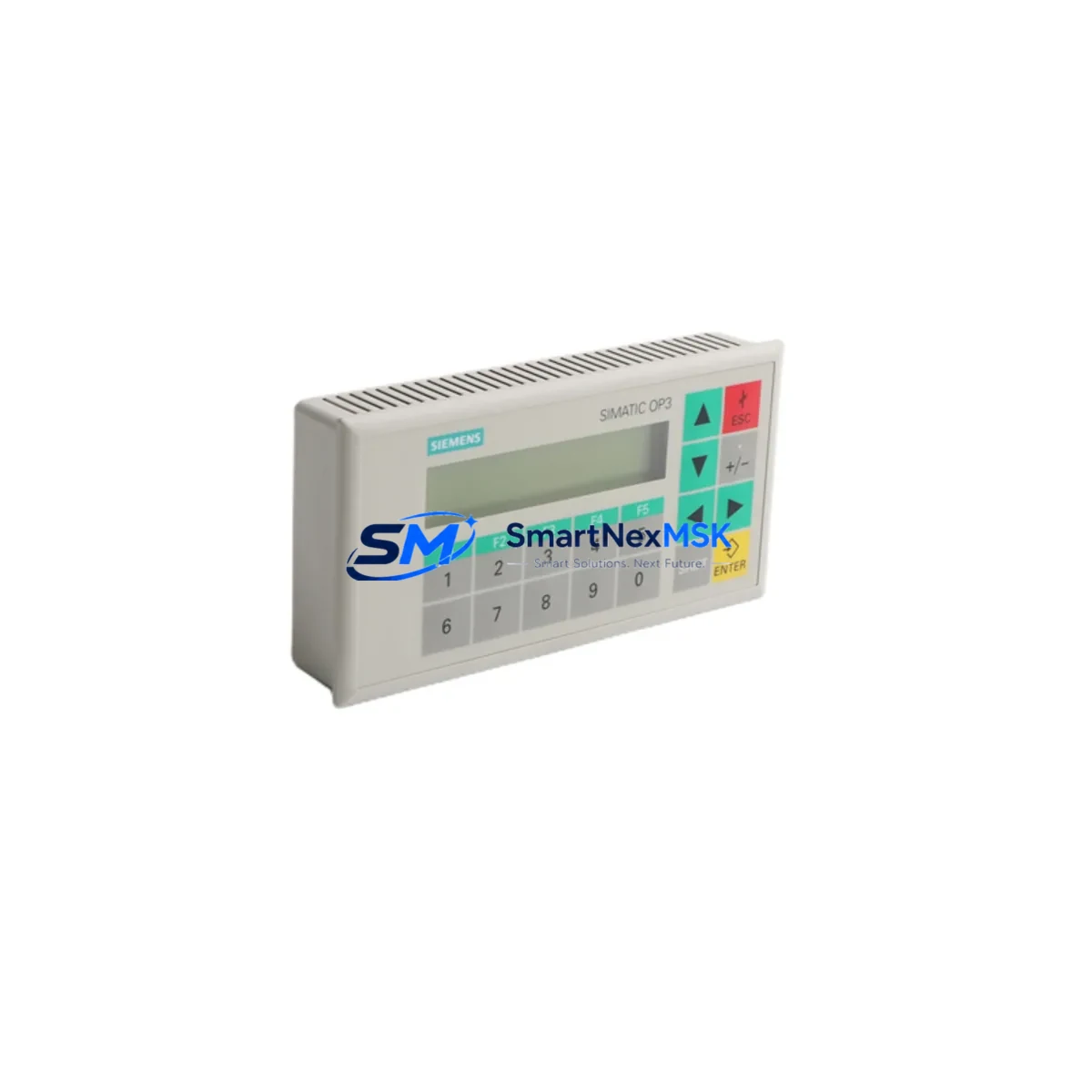

Siemens 6AV3503-1DB10 Safety-Enhanced HMI Panel for Harsh Industrial Sites

Siemens 6AV3503-1DB10 Safety-Enhanced HMI Panel for Harsh Industrial Sites

The Siemens 6AV3503-1DB10 is a SIMATIC OP3 operator panel engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed to serve as the primary human-machine interface in high-load control cabinets, hazardous-area enclosures, and critical interlock loops, this panel delivers unwavering display and input reliability where control interruption is simply not an option. Whether deployed in petrochemical processing units, power generation substations, mining extraction systems, water treatment facilities, metallurgical furnace lines, or port logistics automation, the 6AV3503-1DB10 maintains stable communication and operator visibility under conditions of extreme vibration, electromagnetic interference, temperature fluctuation, and continuous duty cycles.

Powered by a 24 VDC supply and communicating via MPI/PPI protocol, the 6AV3503-1DB10 integrates seamlessly into SIMATIC S7-200 and S7-300 PLC architectures. Its compact, ruggedized housing resists ingress from dust and moisture, making it suitable for front-panel mounting in sealed control cabinets where internal components — including SIMATIC S7-300 CPU modules, SM321 digital input modules, SM322 digital output modules, and CP 342-5 PROFIBUS communication processors — must remain protected from environmental stress. The panel’s MPI interface ensures low-latency, deterministic data exchange with the controller, eliminating the signal drift and communication anomalies that can trigger spurious shutdowns or missed safety interlocks in critical process loops.

In high-interference industrial zones — such as those adjacent to variable-frequency drives, large motor starters, or high-current bus bars — the 6AV3503-1DB10’s shielded communication architecture and stable 24 VDC power input work in concert with upstream surge protection devices and SITOP PSU100S power supply modules to absorb transient voltage spikes and maintain clean, regulated power to the HMI. This layered protection strategy prevents the module malfunctions and unexpected resets that can cascade into unplanned production stoppages. When paired with SIMATIC ET 200S distributed I/O stations and PROFIBUS DP field devices, the operator panel becomes the visible anchor of a fully protected, distributed control architecture capable of sustaining continuous production without compromise.

For safety interlock applications — including emergency stop confirmation, process alarm acknowledgment, and permissive control sequences — the 6AV3503-1DB10 provides a clear, readable interface that operators can act upon decisively, even in low-light or high-ambient-noise environments. Its integration with SIMATIC WinCC flexible runtime environments and S7-200 STEP 7 Micro/WIN programming platforms ensures that alarm states, setpoint deviations, and interlock conditions are communicated to operators with minimal latency. In facilities where a delayed operator response to a process deviation can result in equipment damage, environmental release, or personnel injury, the reliability of the HMI panel is a direct safety asset — not merely a convenience.

Replacement and spare-part continuity are critical considerations for any long-running industrial installation. The 6AV3503-1DB10 is maintained in verified stock, pre-shipment tested against Siemens factory specifications, and supplied with a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes communication interface verification, display function testing, and power input validation before dispatch, ensuring that field replacement can be completed with confidence and without the extended commissioning delays that untested spares can introduce. For facilities operating under planned maintenance schedules or managing aging SIMATIC OP3 installations, reliable spare-part availability is a cornerstone of operational safety and uptime assurance.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet housing the 6AV3503-1DB10 must be designed as a system — not a collection of individual components. The HMI panel operates at the operator interface layer, but its reliable performance depends on the integrity of every upstream and downstream element in the cabinet. A SITOP PSU100S 24 VDC regulated power supply provides the stable, low-ripple power that the OP3 panel requires to maintain display clarity and communication stability during load transients caused by simultaneous actuation of multiple output channels on SM322 digital output modules. Surge protection at the cabinet’s incoming power rail — typically implemented with DEHN or Phoenix Contact surge protective devices — prevents high-energy transients from propagating to sensitive 24 VDC logic circuits.

Within the same cabinet, SIMATIC S7-300 CPU 314 or CPU 315-2 DP modules manage the process logic, while CP 342-5 PROFIBUS DP communication processors extend the control network to remote I/O stations and field instruments. The MPI segment connecting the 6AV3503-1DB10 to the CPU must be properly terminated at both ends using MPI bus connectors with integrated termination resistors — an often-overlooked detail that prevents signal reflections and communication errors in electrically noisy environments. SIMATIC ET 200S distributed I/O stations, connected via PROFIBUS DP, extend digital and analog I/O to field devices without running long signal cables through high-interference zones, further protecting signal integrity. For applications requiring analog process variable monitoring, SM331 analog input modules provide the high-resolution, isolated signal conditioning needed to prevent ground loops and common-mode interference from corrupting process data displayed on the OP3 panel.

Battery-backed SIMATIC memory cards or CPU integrated RAM retention ensure that process parameters, alarm setpoints, and HMI screen configurations survive power interruptions without data loss — a critical requirement in facilities where an unplanned restart with default parameters could create unsafe process conditions. The complete cabinet architecture, from incoming surge protection through regulated power supply, CPU, communication processor, distributed I/O, and HMI panel, forms a layered defense against the electrical and environmental threats that cause unplanned industrial shutdowns.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6AV3503-1DB10 serves as the operator interface for pump control panels, compressor interlock systems, and emergency shutdown (ESD) pre-alarm displays. Its IP65 front-panel protection prevents hydrocarbon vapors and cleaning agents from degrading the display or keypad, while its MPI communication ensures that ESD status and process alarm conditions are relayed to operators without the latency that could delay a critical response.

In power generation and substation control applications, the OP3 panel provides local operator access to generator excitation control panels, transformer protection relay status displays, and auxiliary system monitoring interfaces. The panel’s EMC-compliant design ensures stable operation in environments with high magnetic field intensity from power transformers and bus bars.

In mining and mineral processing facilities, where conveyor systems, crushers, and flotation circuits operate continuously under heavy electrical loads, the 6AV3503-1DB10 provides the local HMI interface for motor control centers and process interlock panels. Its ruggedized construction withstands the vibration and dust ingress common in underground and open-pit mining environments.

In water and wastewater treatment plants, the panel interfaces with SIMATIC S7-300 controllers managing pump sequencing, chemical dosing, and filtration process control. Its reliable MPI communication ensures that operators receive accurate process status information for safe, compliant plant operation.

In metallurgical and steel production environments — including electric arc furnace control, rolling mill automation, and continuous casting process control — the 6AV3503-1DB10 operates in conditions of extreme heat radiation, heavy vibration, and intense electromagnetic interference from high-current furnace electrodes and drive systems. Its proven reliability in these conditions makes it a trusted spare-part choice for facilities maintaining aging SIMATIC OP3 installations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6AV3503-1DB10?
The 12-month warranty covers all manufacturing defects and functional failures identified under normal operating conditions consistent with Siemens SIMATIC OP3 specifications. This includes display failures, communication interface faults, keypad malfunctions, and power input circuit defects. Warranty claims are supported with replacement or repair, and our technical team provides application guidance to assist with field diagnosis before a return is initiated.

Q2: What pre-shipment testing is performed on each unit?
Every 6AV3503-1DB10 unit is tested prior to dispatch. Testing includes 24 VDC power input verification across the full operating voltage range, MPI/PPI communication interface continuity and signal integrity checks, display function verification across all character positions, and keypad input response testing. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for each dispatched unit.

Q3: Is the 6AV3503-1DB10 compatible with both S7-200 and S7-300 PLC systems?
Yes. The 6AV3503-1DB10 supports MPI and PPI communication protocols, making it directly compatible with SIMATIC S7-200 systems via PPI and with S7-300 systems via MPI. Compatibility with S5 systems is achievable via appropriate protocol adapters. The panel is configured using SIMATIC ProTool or WinCC flexible engineering software, and existing project files from installed OP3 panels can typically be reused without modification when replacing a failed unit.

Q4: Can long-term supply continuity be guaranteed for facilities with multiple OP3 installations?
We maintain dedicated stock of the 6AV3503-1DB10 to support facilities with ongoing spare-part requirements. For customers managing large SIMATIC OP3 installations or planning phased replacement programs, we offer reserved stock arrangements and advance procurement support. Our supply chain covers both new and refurbished-to-specification units, ensuring that facilities are not forced into premature system upgrades due to spare-part unavailability. Contact our sales team to discuss volume requirements and lead-time commitments.
