Siemens 6AV3627-1LK00-1AX0 Safety HMI for Harsh Sites

Siemens 6AV3627-1LK00-1AX0 Safety HMI for Harsh Industrial Sites

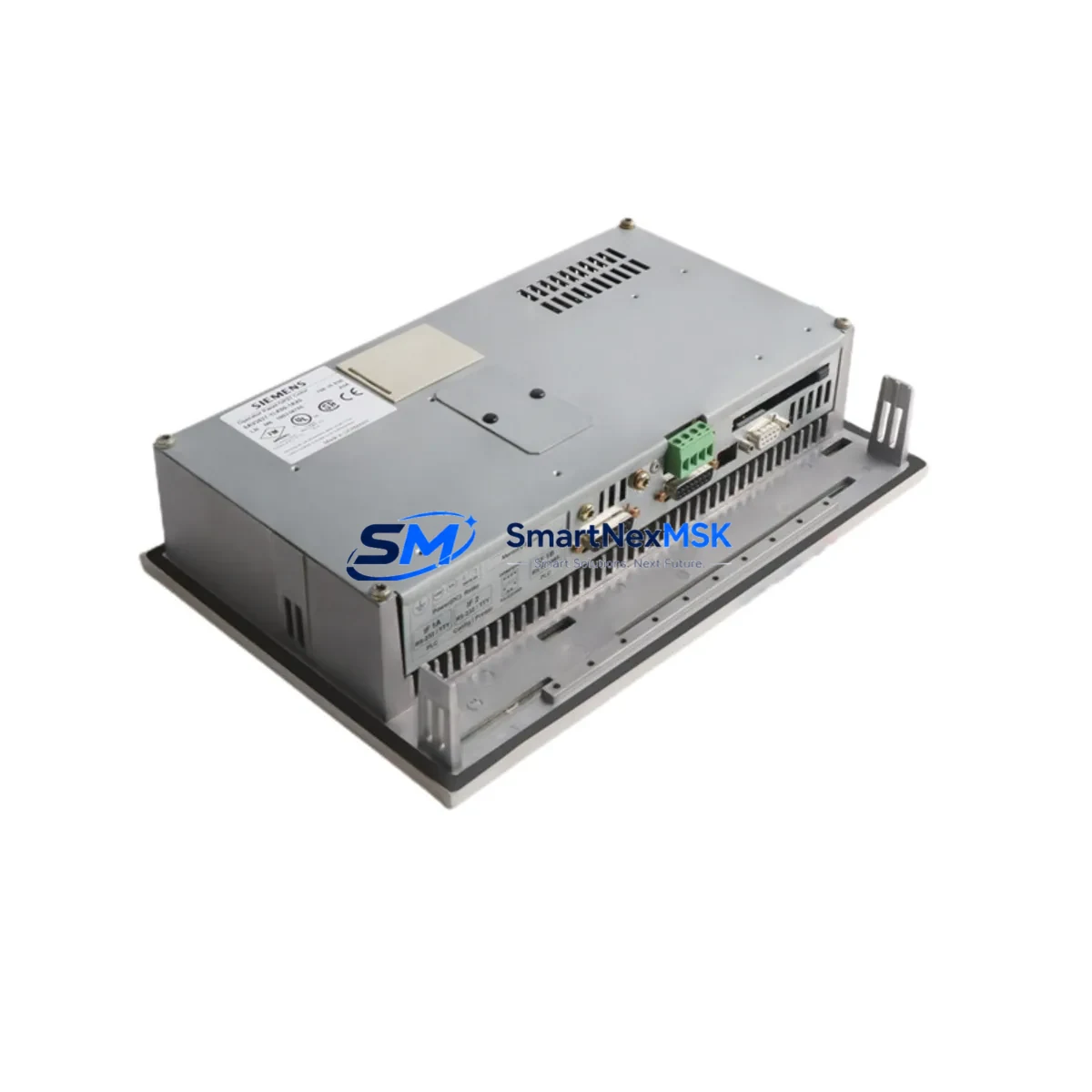

The Siemens 6AV3627-1LK00-1AX0, commercially designated as the OP27 Operator Panel, is a ruggedized human-machine interface engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to meet the rigorous requirements of process control, safety interlock systems, and critical machine supervision, this HMI panel delivers stable, reliable visualization and operator interaction even under conditions of high electromagnetic interference, mechanical vibration, thermal stress, and airborne contamination. For facilities operating in petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port logistics automation, the 6AV3627-1LK00-1AX0 represents a proven, field-hardened solution that minimizes the risk of control interruption and unplanned downtime.

At the core of its industrial safety value is the IP65-rated front panel enclosure, which provides complete protection against dust ingress and low-pressure water jets — a critical requirement in washdown environments, outdoor substations, and dusty mineral processing areas. The panel communicates natively over PROFIBUS-DP and MPI protocols, integrating seamlessly into Siemens S7-300 and S7-400 PLC architectures, as well as legacy SIMATIC S5 systems still operating in brownfield installations. This broad protocol compatibility ensures that the 6AV3627-1LK00-1AX0 can be deployed as a direct replacement or upgrade component without requiring costly control system redesigns.

Signal integrity and communication stability are paramount in safety-critical control loops. The OP27 panel’s PROFIBUS-DP interface supports baud rates up to 12 Mbit/s, enabling fast, deterministic data exchange with PLCs, distributed I/O modules such as the ET 200M and ET 200S, and remote field devices. In high-noise industrial environments where variable frequency drives, large motor starters, and high-current switching equipment generate significant electromagnetic interference, the panel’s shielded communication architecture and robust hardware design maintain reliable data transmission, preventing signal drift and spurious operator alarms that could compromise process safety.

Power supply stability is another dimension where the 6AV3627-1LK00-1AX0 demonstrates its industrial-grade credentials. Operating on a 24 VDC supply, the panel is compatible with standard industrial DIN-rail power supply units and UPS systems commonly deployed in control cabinets. When paired with a Siemens SITOP PSU100S or equivalent regulated power supply, the system is protected against voltage fluctuations, micro-interruptions, and surge events that could otherwise cause HMI resets or data loss during critical process phases. For applications requiring uninterrupted operator visibility during power grid disturbances, integration with a SITOP UPS1600 battery buffer module provides seamless ride-through capability.

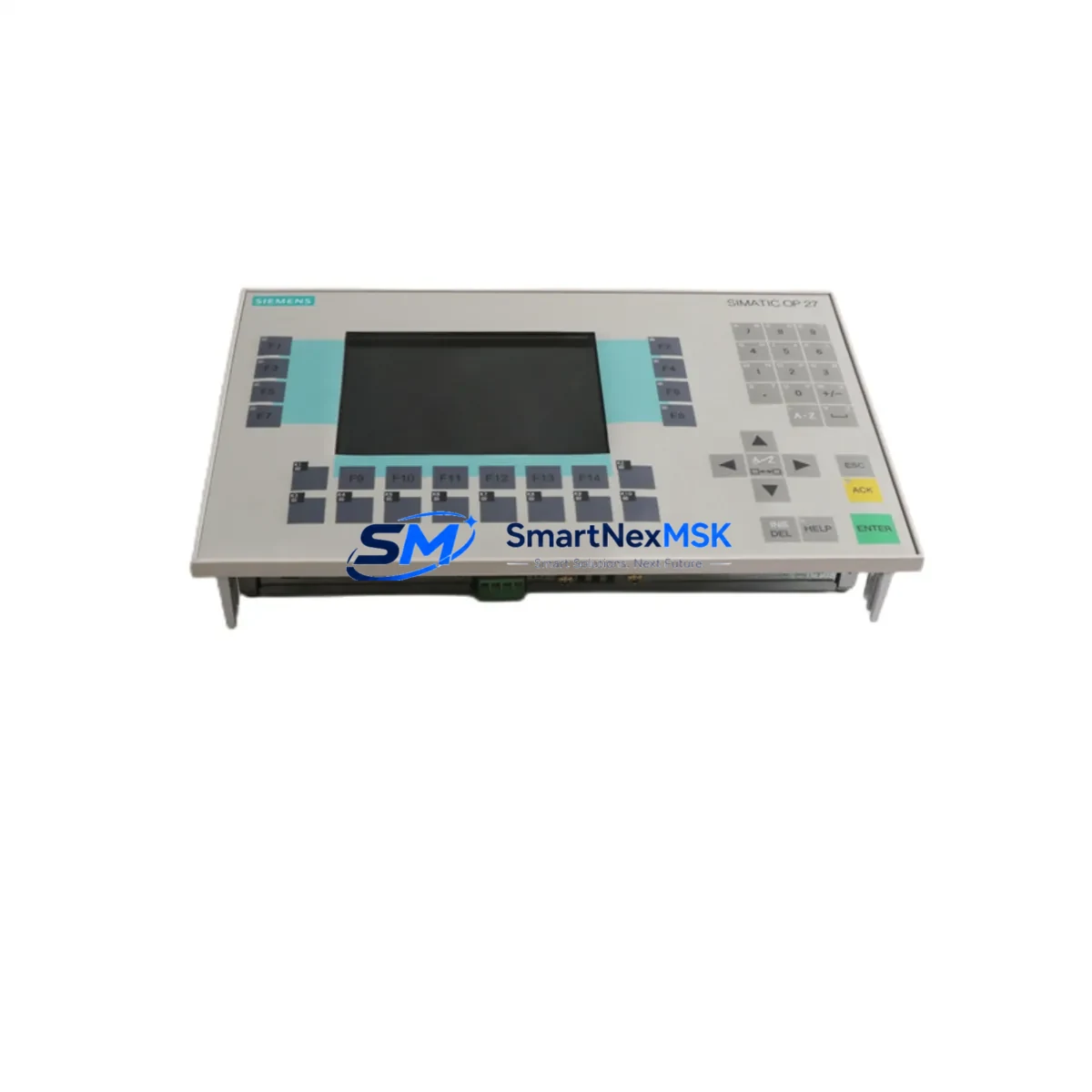

Within the control cabinet, the OP27 panel is typically installed alongside Siemens S7-300 CPU modules, SM321/SM322 digital I/O modules, and CP 342-5 PROFIBUS communication processors. In safety interlock architectures, it serves as the primary operator interface for acknowledging alarms, monitoring safety relay states, and supervising emergency shutdown sequences. Its 5.7-inch STN display with 320×240 pixel resolution provides clear process visualization under varying ambient light conditions, while the membrane keypad with tactile feedback ensures reliable operator input even when personnel are wearing protective gloves — a common requirement in chemical processing and heavy manufacturing environments.

For facilities managing continuous production processes where any control interruption carries significant safety and financial consequences, the availability of tested, warranty-backed spare units is a critical operational requirement. Each 6AV3627-1LK00-1AX0 unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including power-on testing, display integrity checks, communication port validation, and keypad response testing. This outgoing quality inspection process ensures that replacement units can be installed with confidence, minimizing the risk of introducing a faulty component into a live production environment.

The panel’s compatibility extends beyond Siemens SIMATIC systems. In mixed-vendor control architectures, the PROFIBUS-DP interface allows integration with third-party PLCs and DCS platforms that support the PROFIBUS standard, including systems from ABB, Schneider Electric, and Rockwell Automation equipped with appropriate gateway modules. This interoperability makes the 6AV3627-1LK00-1AX0 a versatile visualization solution for plant-wide SCADA integration projects and control system modernization programs.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Siemens 6AV3627-1LK00-1AX0 as part of a comprehensive control cabinet protection strategy requires careful selection of complementary components to ensure system-wide resilience. In a typical S7-300-based control cabinet, the OP27 panel interfaces directly with the CPU 315-2 DP or CPU 317-2 DP via MPI or PROFIBUS-DP backplane connections. Digital and analog signal integrity is maintained through SM321 digital input modules and SM331 analog input modules, which provide the process data displayed on the HMI. For cabinets handling high-current motor control, the integration of Siemens 3RT2 contactor assemblies and 3RV2 motor protection circuit breakers in the power distribution section protects against overload conditions that could propagate faults to the control layer.

Power quality within the cabinet is managed by a SITOP PSU100S 24 VDC regulated power supply, which provides stable, low-ripple DC power to the OP27 panel, PLC CPU, and I/O modules. In facilities where grid power quality is unreliable — common in heavy industrial sites with large rotating machinery — a SITOP UPS1600 uninterruptible power supply module buffers the 24 VDC rail against micro-interruptions and brownouts, ensuring the HMI remains operational during transient power disturbances. Surge protection on incoming AC supply lines, using devices such as the Siemens 5SD7 series surge protective devices, prevents high-energy transients from reaching sensitive control electronics.

For PROFIBUS-DP network integrity, the use of Siemens PROFIBUS bus connectors with integrated termination resistors (such as the 6ES7972-0BA52-0XA0) at network endpoints prevents signal reflections that can cause communication errors and spurious alarms on the OP27 display. In large distributed control architectures, PROFIBUS repeaters maintain signal quality over extended cable runs, ensuring reliable data exchange between the HMI, PLC, and remote ET 200M distributed I/O stations located in field junction boxes. The CP 342-5 PROFIBUS communication processor provides additional network management capability in complex multi-master configurations.

Critical Industrial Safety Applications

The Siemens 6AV3627-1LK00-1AX0 has established a strong operational track record across a broad spectrum of critical industrial applications. In petrochemical and refinery environments, the panel serves as the primary operator interface for monitoring reactor temperature profiles, pressure vessel states, and emergency shutdown valve positions. Its IP65 front protection and robust membrane keypad allow reliable operation in areas where hydrocarbon vapors, cleaning solvents, and high-pressure steam cleaning are routine operational hazards.

In electrical power generation and substation automation, the OP27 panel is deployed for monitoring generator excitation systems, transformer protection relay states, and busbar switching sequences. The panel’s PROFIBUS-DP communication capability integrates with protection relay systems and energy management PLCs, providing operators with real-time visibility of grid connection status and fault conditions. Its wide operating temperature range supports installation in outdoor substation control kiosks and transformer protection panels exposed to seasonal temperature extremes.

Mining and mineral processing operations rely on the 6AV3627-1LK00-1AX0 for conveyor belt control supervision, crusher motor protection monitoring, and slurry pump interlock management. In these environments, the panel’s resistance to dust ingress is particularly critical, as fine mineral particulates can rapidly degrade unprotected electronics. The HMI’s clear alarm display capability allows operators to quickly identify and respond to conveyor jam conditions, motor overtemperature events, and level sensor faults before they escalate to equipment damage or personnel safety incidents.

Water and wastewater treatment facilities use the OP27 panel for pump station control, chemical dosing system supervision, and filtration process monitoring. In these applications, the panel’s compatibility with Siemens S7-300 PLCs running WinCC flexible runtime projects enables comprehensive process visualization, including flow rate trending, chemical inventory levels, and alarm history logging. Port and terminal logistics automation systems deploy the 6AV3627-1LK00-1AX0 for crane control supervision, conveyor routing management, and safety zone monitoring, where reliable operator interface performance directly impacts throughput and personnel safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6AV3627-1LK00-1AX0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its specified functions — including display operation, keypad response, or PROFIBUS-DP/MPI communication — within the warranty period, SMARTNEXMSK will provide repair or replacement at no additional cost. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 6AV3627-1LK00-1AX0 unit undergoes a structured outgoing quality inspection before dispatch. This includes power-on functional verification at 24 VDC, full display pixel integrity check, membrane keypad response testing for all keys, and communication port continuity verification for both PROFIBUS-DP and MPI interfaces. Units that do not pass all inspection criteria are quarantined and not shipped.

Q3: Is the 6AV3627-1LK00-1AX0 compatible with my existing S7-300 or S7-400 system?
Yes. The OP27 panel communicates natively via MPI and PROFIBUS-DP, which are the standard communication interfaces for SIMATIC S7-300 and S7-400 PLCs. Existing WinCC flexible or ProTool project files configured for the OP27 can be transferred directly to the replacement unit without modification. For S5 systems, an appropriate MPI/PROFIBUS adapter is required.

Q4: Can long-term supply continuity be guaranteed for this model?
SMARTNEXMSK maintains dedicated inventory of the 6AV3627-1LK00-1AX0 to support ongoing spare parts programs for facilities operating legacy SIMATIC HMI systems. For customers with planned maintenance schedules or multi-unit replacement programs, advance stock reservation arrangements are available. Contact our sales team to discuss volume availability and lead time commitments for your specific operational requirements.
