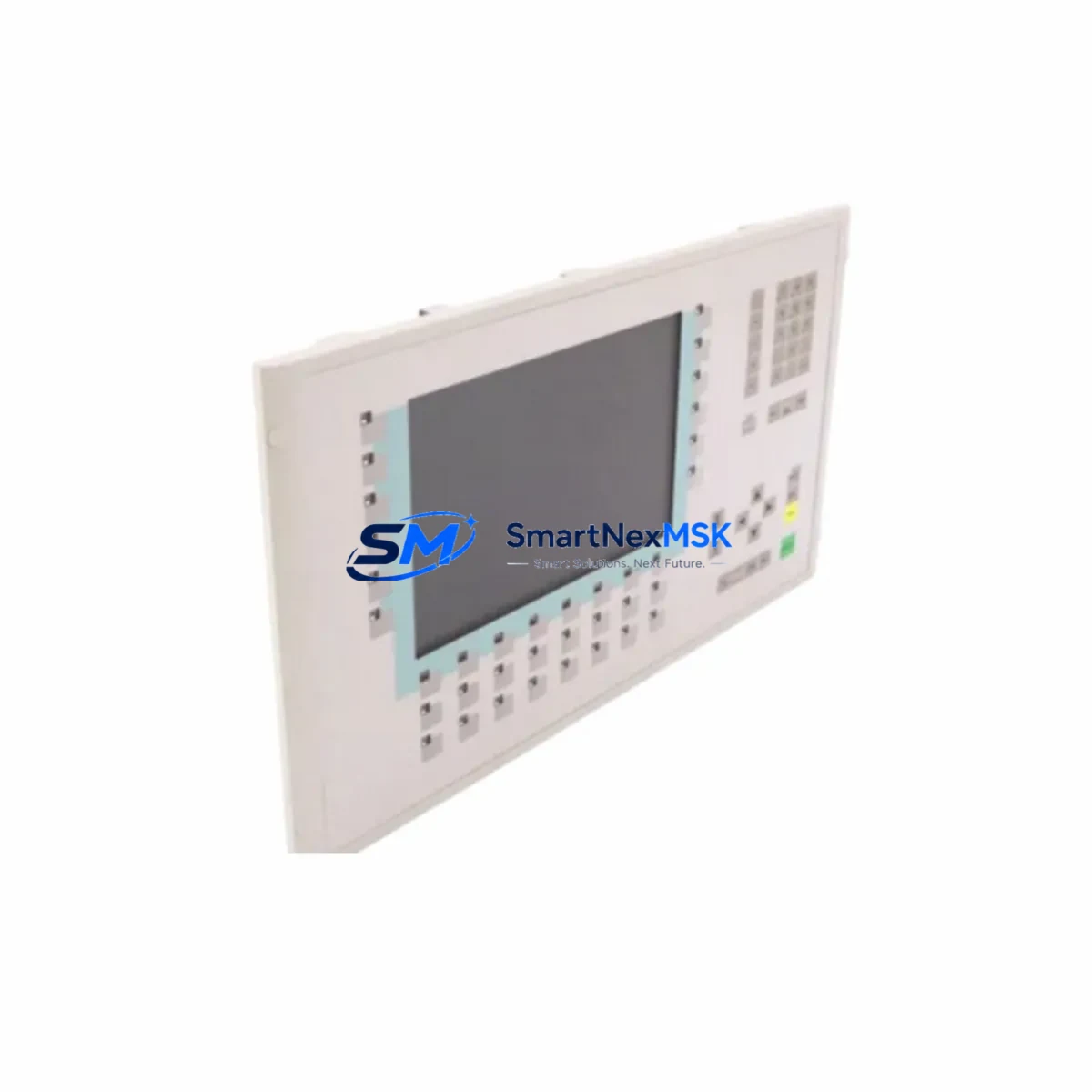

Siemens 6AV6542-0AG10-0AX0 Retrofit-Ready HMI Panel for SIMATIC Control Systems
The Siemens 6AV6542-0AG10-0AX0 is a 10.4-inch Multi Panel (MP270B) designed for demanding industrial HMI applications across SIMATIC S7-300 and S7-400 control platforms. As the MP270B series has reached end-of-life status, procurement teams and system integrators increasingly rely on verified retrofit-grade units to sustain legacy production lines, upgrade aging control cabinets, and avoid costly full-system replacements. This unit is sourced, inspected, and supplied with a 12-month warranty to support your retrofit planning with confidence.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 6AV6542-0AG10-0AX0 |
| Series | SIMATIC MP270B (Multi Panel) |
| Display Size | 10.4-inch TFT Color |
| Communication Interfaces | MPI, PROFIBUS DP, Ethernet (IE) |
| Compatible Controllers | SIMATIC S7-300, S7-400, S7-1200 (via gateway) |
| Mounting Cutout | Standard MP270B panel cutout — direct drop-in |
| Replacement Recommendation | Direct replacement for 6AV6542-0AG10-0AX0; upgrade path to SIMATIC HMI KTP1000 Basic or TP1200 Comfort |
| Commissioning Notes | Verify MPI/PROFIBUS address, WinCC Flexible project compatibility, and screen resolution mapping |
| Warranty | 12 Months — covers hardware defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Replacing the 6AV6542-0AG10-0AX0 in an active production environment requires careful pre-migration planning. Before removing the existing panel, engineers should document the current MPI or PROFIBUS DP station address, confirm the WinCC Flexible runtime version, and back up the project file from the original unit using a ProSave utility or compatible programming cable such as the PC Adapter USB A2.
In most S7-300 rack configurations, the MP270B communicates directly with the CPU — commonly a CPU 315-2 DP or CPU 317-2 PN/DP — via the MPI bus integrated into the backplane. If the existing installation uses a PROFIBUS DP segment shared with distributed I/O such as ET 200S or ET 200M remote I/O stations, the new panel must be assigned a unique station address to avoid bus conflicts. Confirm the PROFIBUS segment topology and termination resistor placement before powering the replacement unit.
Power supply compatibility is another critical checkpoint. The MP270B operates on 24 VDC; verify that the existing SITOP PSU or equivalent 24 VDC rail in the control cabinet can sustain the panel’s rated current draw alongside other connected devices. If the cabinet also houses a CP 343-1 Ethernet communication processor or a CP 342-5 PROFIBUS module, ensure the total load budget remains within the power supply’s rated output.
For sites migrating from WinCC Flexible to TIA Portal with a newer Comfort Panel such as the TP1200 Comfort or KTP1000 Basic, the HMI project must be migrated using the TIA Portal migration wizard. Screen layouts, tag connections, and alarm configurations will require review, particularly if the original project used MP270B-specific VB scripts or custom function keys. Retain the original STEP 7 project and WinCC Flexible archive as reference during the migration process.
Where the control system includes a SIMATIC S7-400 CPU with a UR2 or CR3 rack, confirm that the IM 360/361 interface modules and any FM 355 or FM 458 function modules remain unaffected by the HMI swap. The panel replacement is logically isolated from the PLC rack, but any changes to the MPI network configuration may require a CPU restart and program re-download.
Downtime Control During System Migration
Minimizing unplanned downtime during an HMI retrofit begins with a structured changeover plan. Schedule the panel swap during a planned maintenance window and prepare a pre-tested replacement unit with the correct project file already loaded and verified on a bench setup before bringing it to the production floor.
Before disconnecting the existing 6AV6542-0AG10-0AX0, place the PLC in a safe operating state — either STOP mode or a defined safe-hold condition agreed upon with the process engineer. Export the current runtime data, recipe values, and alarm history if the application requires continuity of these records. Once the replacement panel is mounted and wired — paying close attention to the 24 VDC power terminals and the MPI/PROFIBUS connector pinout — restore the PLC to RUN mode and verify all HMI tag connections, setpoint displays, and alarm acknowledgment functions before releasing the line.
For critical processes where even brief interruptions are unacceptable, consider deploying a temporary operator terminal connected in parallel on the MPI segment during the transition period. This approach preserves operator visibility and control continuity while the primary panel is being exchanged and commissioned.
All units supplied by SMARTNEXMSK undergo pre-shipment functional testing to confirm display integrity, communication port operation, and power-on self-test completion. The 12-month warranty covers hardware defects arising under normal industrial operating conditions, providing procurement teams with a reliable supply assurance for both immediate replacements and strategic spare-parts inventory.
Retrofit Support FAQ
Q1: Is the 6AV6542-0AG10-0AX0 a direct drop-in replacement for my existing MP270B installation?
Yes. The 6AV6542-0AG10-0AX0 shares the same panel cutout dimensions, 24 VDC power input, and MPI/PROFIBUS DP interface as other MP270B variants. Confirm your existing WinCC Flexible project is compatible with this specific firmware version before installation.
Q2: Can this panel communicate with a SIMATIC S7-1200 or S7-1500 controller?
Direct MPI communication with S7-1200/1500 is not supported natively. Integration is possible via an MPI/PROFIBUS-to-Ethernet gateway or by migrating the HMI project to a Comfort Panel such as the TP1200 Comfort, which supports PROFINET natively.
Q3: What pre-shipment testing is performed on this unit?
Each unit undergoes power-on functional testing, display verification, and communication port inspection prior to dispatch. Units are shipped with protective packaging suitable for international freight. A 12-month warranty is included from the date of shipment.
Q4: What information should I prepare before ordering to ensure compatibility?
Please have the following ready: existing panel part number and firmware version, PLC CPU model and MPI/PROFIBUS address assignment, WinCC Flexible project version, and control cabinet power supply rating. Our technical team can assist with compatibility verification prior to order confirmation.
