Siemens 6AV6643-0CD01-1AX1 Safety-Enhanced HMI Panel

Siemens 6AV6643-0CD01-1AX1 Safety-Enhanced HMI Panel: Reliable Control in Harsh Industrial Sites

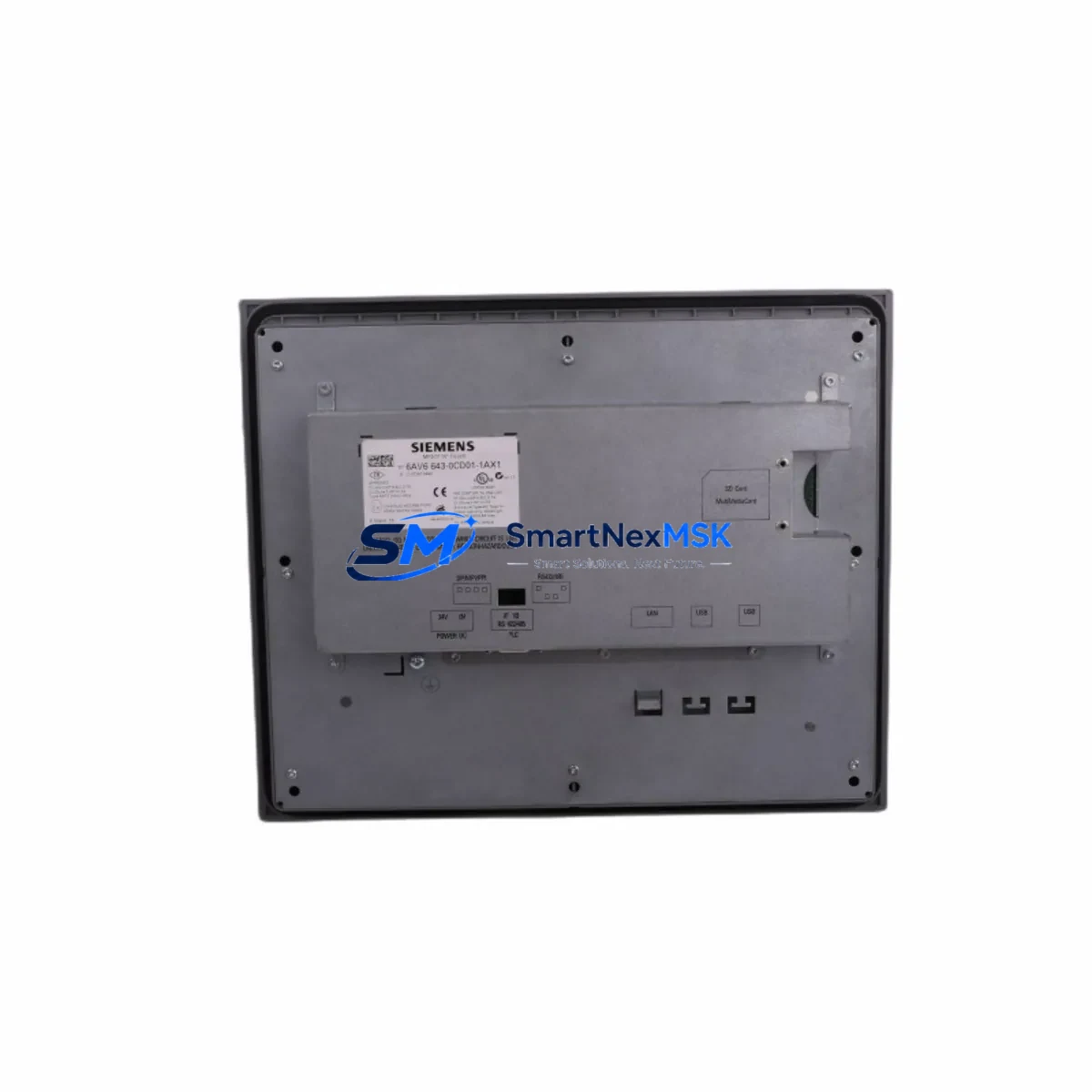

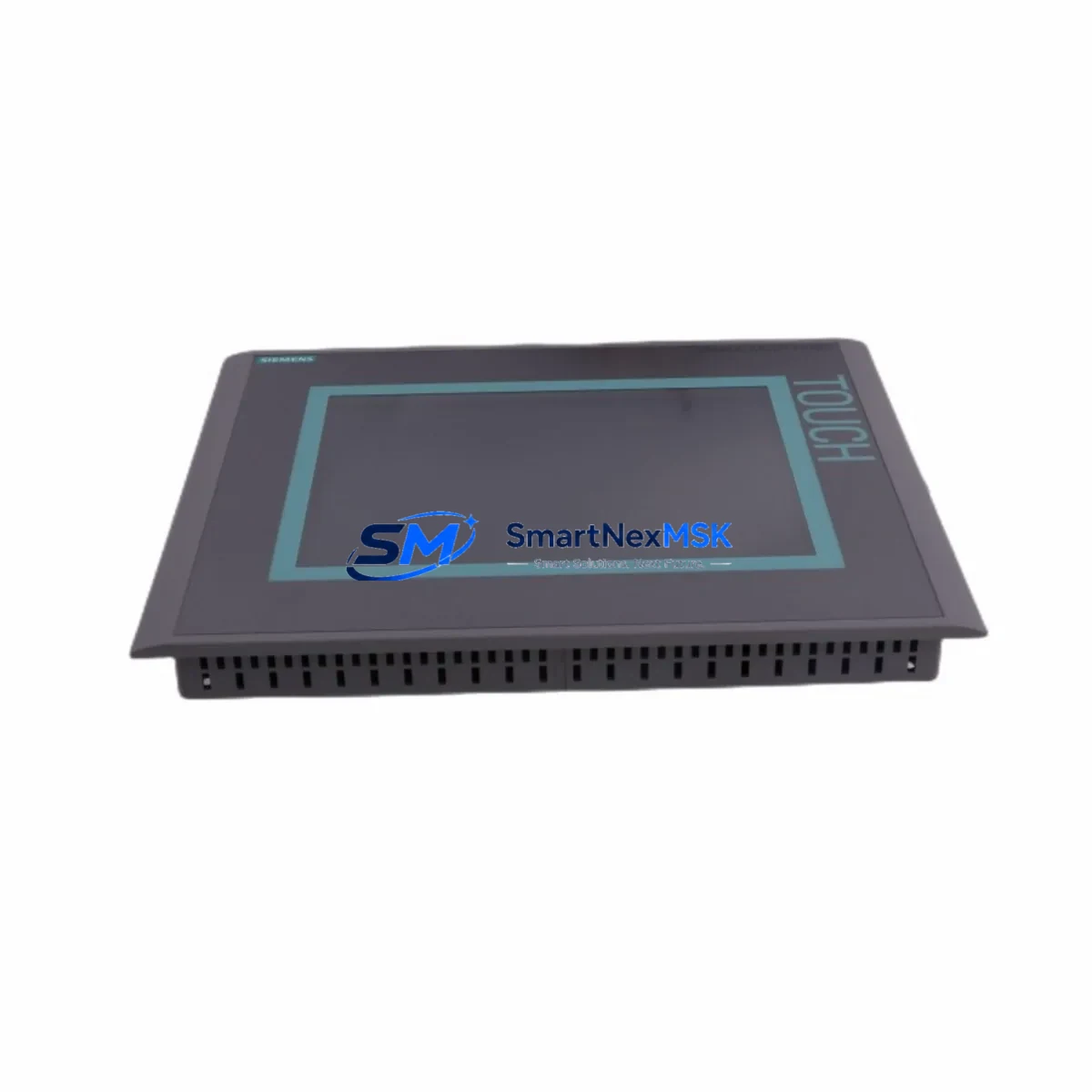

The Siemens 6AV6643-0CD01-1AX1 is a SIMATIC MP277 10″ Touch HMI panel engineered for demanding industrial environments where control reliability and operator safety are non-negotiable. Designed to operate continuously in high-vibration, high-dust, and electrically noisy conditions, this panel delivers stable human-machine interface performance across petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processes, port logistics, and continuous manufacturing lines. Its ruggedized enclosure, wide operating temperature range, and EMC-compliant design make it a trusted choice for safety-critical control cabinets and critical interlock circuits worldwide.

At SMARTNEXMSK, every unit of the 6AV6643-0CD01-1AX1 is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring your control system investment is protected from day one of installation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6AV6643-0CD01-1AX1 serves as the primary operator interface node, integrating directly with Siemens S7-300 and S7-400 PLCs via MPI or PROFIBUS DP — eliminating the latency and signal degradation risks associated with long-distance serial communication. When paired with a Siemens SITOP PSU100S 24 V DC power supply module, the panel receives clean, regulated power that suppresses voltage spikes and transient surges common in heavy industrial environments, protecting both the HMI and connected I/O modules from power-induced misoperation.

For cabinets operating in environments with significant electromagnetic interference — such as those adjacent to variable frequency drives (VFDs), large motor starters, or high-current bus bars — the MP277’s EMC-hardened design works in concert with Siemens ET 200S distributed I/O modules and shielded PROFIBUS connectors to maintain signal integrity across the entire control loop. Adding a Siemens SIMATIC S7-300 CP 343-1 Ethernet communication processor to the architecture further extends network resilience, enabling redundant communication paths that prevent single-point communication failures from cascading into process shutdowns.

Surge protection at the cabinet entry point — typically implemented with Phoenix Contact or Weidmüller DIN-rail surge arresters on 24 V DC supply lines and signal cables — complements the HMI’s internal protection, forming a layered defense against lightning-induced transients and switching surges. The 6AV6643-0CD01-1AX1’s IP65-rated front bezel also prevents ingress of conductive dust and moisture, a critical factor in cement plants, mining headframes, and coastal port facilities where airborne contaminants accelerate equipment degradation.

For safety interlock applications, the panel integrates seamlessly with Siemens SIMATIC Safety F-CPU modules (e.g., CPU 315F-2 PN/DP) and Siemens ET 200S F-modules, enabling the operator to monitor and acknowledge safety-relevant process states — such as emergency stop conditions, pressure relief activations, or gas detection alarms — directly from the HMI screen without requiring a separate dedicated safety terminal. This consolidation reduces wiring complexity and eliminates the risk of operator confusion between multiple interface devices during emergency response scenarios.

When the control system also incorporates a Siemens SCALANCE X208 industrial Ethernet switch for plant-wide SCADA connectivity, the MP277 panel can simultaneously serve local operator control and remote monitoring functions, reducing the need for personnel to enter hazardous areas for routine status checks — a direct contribution to site safety management.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6AV6643-0CD01-1AX1 is deployed in control cabinets managing pump station interlocks, compressor surge protection sequences, and emergency shutdown (ESD) system status displays. Its ability to operate reliably at elevated ambient temperatures and in the presence of hydrocarbon vapors — when installed in appropriately rated enclosures — makes it a preferred HMI choice for wellhead control panels and pipeline SCADA outstations.

In power generation and substation control, the panel provides operators with real-time visibility into generator excitation systems, transformer protection relay status, and bus-tie breaker interlock states. Its PROFIBUS DP connectivity allows direct integration with Siemens SIPROTEC protection relays and energy management systems, enabling coordinated load shedding and fault isolation without communication delays that could compromise grid stability.

In mining and mineral processing, the MP277 panel controls conveyor belt safety interlocks, crusher overload protection sequences, and ventilation fan monitoring systems. Its shock and vibration resistance — validated to IEC 60068 standards — ensures continued operation even when installed in mobile crushing equipment or near high-tonnage blasting zones.

In water and wastewater treatment, the 6AV6643-0CD01-1AX1 manages dosing pump control, UV disinfection system interlocks, and overflow alarm acknowledgment. Its wide humidity tolerance and sealed front panel prevent corrosion-related failures in the high-moisture environments typical of pump stations and treatment basins.

In metallurgical and steel production facilities, the panel withstands the intense radiant heat, electromagnetic noise from arc furnaces, and mechanical vibration from rolling mills — environments that rapidly degrade standard commercial HMI equipment. Paired with Siemens SIMATIC S7-400H redundant PLC systems, the MP277 supports hot-standby control architectures that eliminate unplanned downtime in continuous casting and annealing lines.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6AV6643-0CD01-1AX1?
The 12-month warranty covers all hardware defects, display failures, communication port malfunctions, and operational failures arising under normal industrial use conditions. If a unit fails within the warranty period, SMARTNEXMSK provides replacement or repair at no additional cost, with priority processing to minimize your control system downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6AV6643-0CD01-1AX1 unit undergoes a full functional test prior to shipment, including power-on verification, display calibration check, communication interface testing (PROFIBUS DP, MPI, Ethernet, USB), and visual inspection for physical integrity. Test records are available upon request for quality documentation purposes.

Q3: Is the 6AV6643-0CD01-1AX1 compatible with existing Siemens S7-300/400 PLC systems and WinCC flexible projects?
Yes. The SIMATIC MP277 is fully compatible with Siemens S7-300 and S7-400 PLC families via MPI and PROFIBUS DP, and supports WinCC flexible 2008 SP3 and later project configurations. Existing HMI projects can be transferred directly to a replacement unit without reprogramming, significantly reducing commissioning time during emergency spare part replacement.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare part programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the 6AV6643-0CD01-1AX1 and related SIMATIC MP277 series components to support long-term maintenance contracts and planned spare part programs. For facilities requiring guaranteed stock reservation or scheduled delivery agreements, please contact our sales team to discuss framework supply arrangements tailored to your maintenance cycle.
