Siemens 6AV6647-0AB11-3AX0 Spare for SIMATIC TP600 Automation

Siemens 6AV6647-0AB11-3AX0 Maintenance-Ready Spare for SIMATIC TP600 Automation

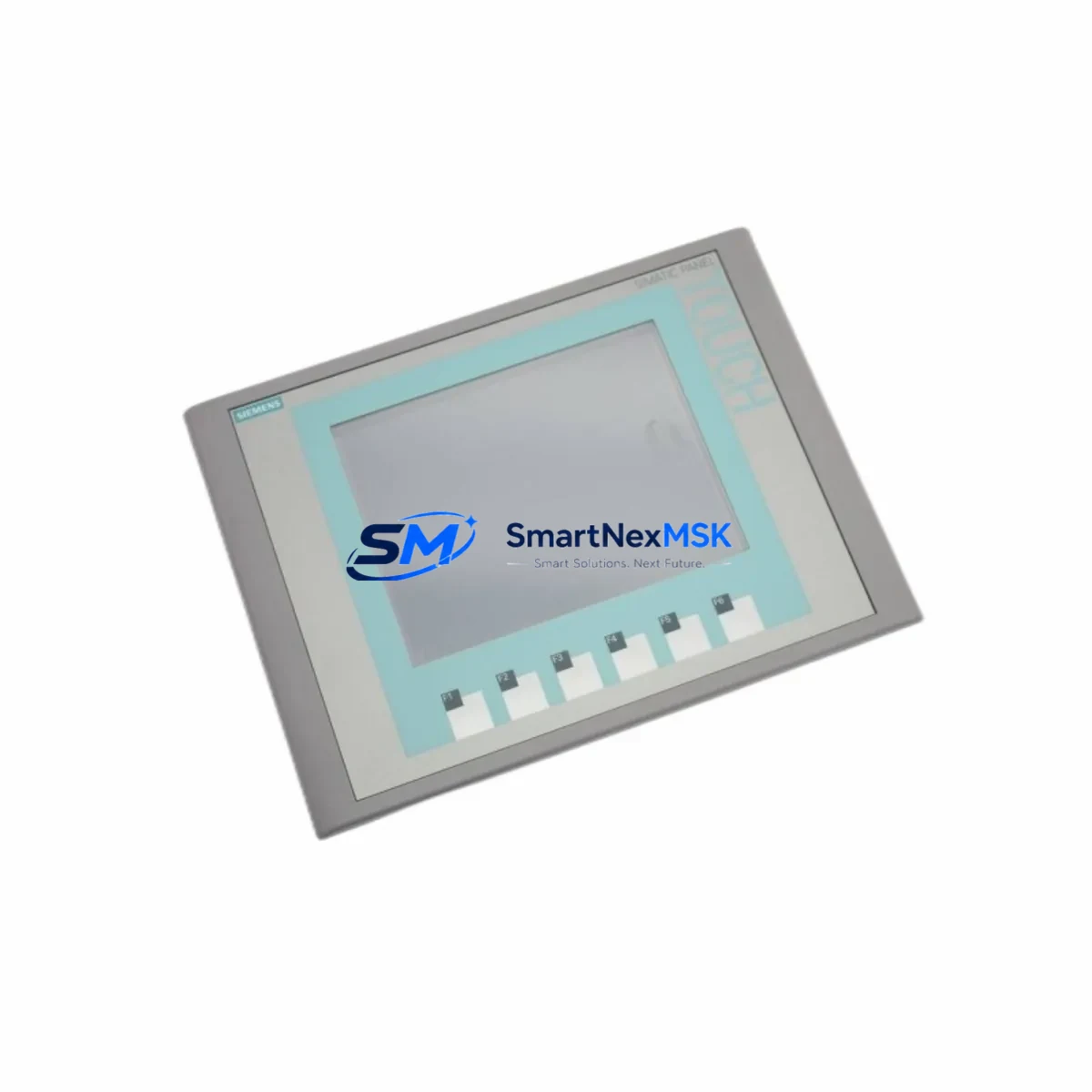

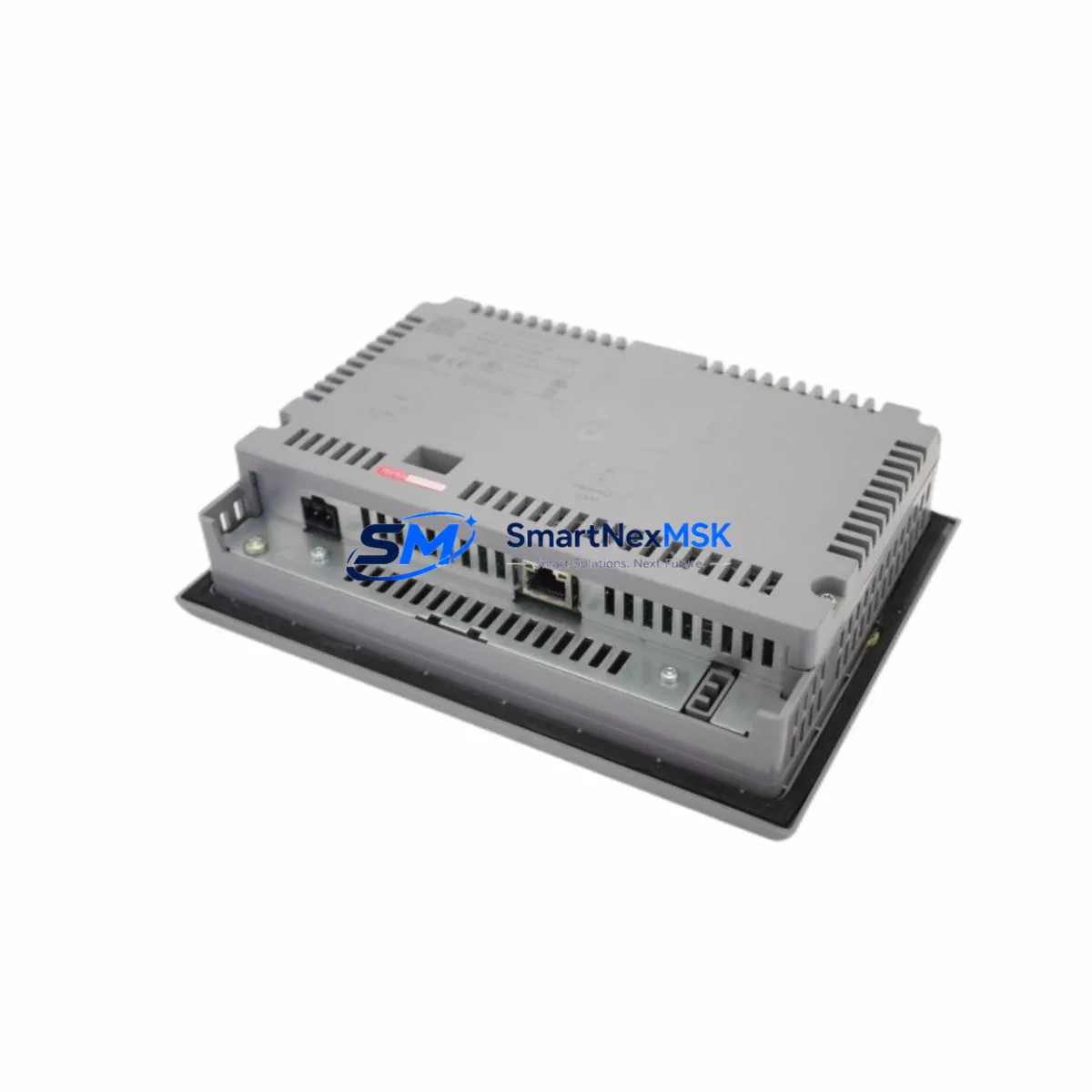

The Siemens 6AV6647-0AB11-3AX0 is a SIMATIC TP600 Basic Mono Touch Panel designed for operator control and monitoring in industrial automation environments. As a maintenance-ready spare, this unit is sourced, inspected, and dispatched to support rapid panel replacement in SIMATIC S7-300, S7-400, and compatible PLC-driven control systems. Whether you are managing a scheduled shutdown, responding to an unplanned HMI failure, or building a strategic spare parts inventory for aging control cabinets, this unit provides a direct, verified replacement path with minimal reconfiguration.

Maintenance engineers working with SIMATIC-based control systems understand that an HMI failure can cascade quickly — operators lose visibility, alarms go unacknowledged, and production lines halt. Stocking the 6AV6647-0AB11-3AX0 as a ready spare eliminates the lead time risk associated with sourcing panels on demand. This unit ships fully tested, with function verification completed prior to dispatch, and is backed by a 12-month warranty covering operational defects under normal industrial use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6AV6647-0AB11-3AX0 in a control cabinet, a thorough maintenance engineer will not stop at the panel itself. The HMI is the operator’s window into the control system, and its failure often signals stress on adjacent components. Before or during panel replacement, the following components should be inspected and, where appropriate, included in the spare parts review:

The 24 V DC power supply feeding the panel — such as a Siemens SITOP PSU100S or equivalent — should be checked for output voltage stability and ripple, as undervoltage is a common cause of HMI resets and display degradation. The MPI/PROFIBUS DP communication cable and its termination resistors should be verified for continuity and correct bus termination, since communication faults frequently present as HMI freeze or loss of PLC connection. If the panel communicates via RS-422/485, the signal isolator or repeater in the communication loop should also be tested.

The SIMATIC S7-300 CPU module (e.g., CPU 314C-2 DP or CPU 315-2 DP) connected to this HMI should be checked for active fault codes and battery status — a depleted CPU backup battery can cause program loss after a power cycle. The SM321/SM322 digital I/O modules in the same rack should be inspected for blown channel fuses and LED fault indicators. If the control cabinet includes a CP 343-1 Ethernet communication processor, its network connection and IP configuration should be confirmed to remain consistent after the HMI swap.

Terminal blocks and 24 V distribution terminals (such as Weidmüller or Phoenix Contact DIN rail terminals) feeding the HMI and associated I/O should be checked for loose connections and corrosion, particularly in high-vibration or high-humidity environments. If the cabinet includes intermediate relays or solid-state relays for output signal switching, their coil voltages and contact resistance should be verified. A miniature circuit breaker (MCB) or fuse protecting the HMI supply circuit should also be replaced as a precaution if the original panel failed due to an electrical fault.

For systems using WinCC flexible project files, ensure the replacement panel is loaded with the correct project version before commissioning. Keep a backup of the project file on a USB drive or engineering station. If the system uses a SIMATIC Micro Memory Card (MMC) for program storage in the connected CPU, verify the card is seated correctly after any cabinet work.

Site Replacement Workflow

Replacing the 6AV6647-0AB11-3AX0 on-site is a straightforward process when the correct spare is available and the replacement procedure is followed systematically. Begin by documenting the existing panel’s project version and communication parameters — MPI address, baud rate, and PLC connection settings — before powering down. Isolate the 24 V DC supply to the panel using the dedicated MCB or fuse, then disconnect the communication cable and power connector.

Remove the panel from the cutout by releasing the snap-in mounting clips from the rear. The replacement unit uses the same panel cutout dimensions (approximately 196 × 141 mm), so no mechanical modification is required. Install the new panel, reconnect the power and communication cables, and restore the 24 V supply. Transfer the WinCC flexible project to the new panel via the USB port or MPI download, confirm the MPI address matches the original configuration, and perform a communication test with the connected PLC.

This direct replacement approach eliminates the need for system reconfiguration, preserves existing PLC program logic, and restores operator visibility within a typical maintenance window of under two hours. For older SIMATIC installations where the TP600 series is approaching end-of-life, stocking one or two units of the 6AV6647-0AB11-3AX0 as long-term spares is a proven strategy for extending system service life without committing to a full HMI platform migration.

Spare Parts Support FAQ

Q: Is the 6AV6647-0AB11-3AX0 compatible with SIMATIC S7-300 and S7-400 PLCs?
A: Yes. The SIMATIC TP600 Basic Mono communicates via MPI and PROFIBUS DP, making it directly compatible with S7-300 and S7-400 CPUs. It also supports S7-200 via RS-422/485 and can be configured using WinCC flexible 2008 or later.

Q: What testing is performed before dispatch?
A: Each unit undergoes power-on functional verification, display and touch response testing, and communication port inspection before shipment. Units that do not pass full functional testing are not dispatched. A 12-month warranty covering operational defects is included with every order.

Q: Can this unit replace older or discontinued SIMATIC TP600 variants?
A: The 6AV6647-0AB11-3AX0 is a specific variant of the TP600 Basic Mono series. It is a direct replacement for units with the same part number. For adjacent TP600 variants, compatibility should be verified against the panel cutout dimensions, communication interface, and WinCC flexible project configuration before installation.

Q: What is the recommended spare parts stocking strategy for aging SIMATIC HMI systems?
A: For control systems with 5 or more SIMATIC TP600 panels, maintaining a minimum of one spare unit per site is recommended. For critical production lines, a two-unit buffer reduces the risk of extended downtime during multi-panel failures or when a spare is consumed during an unplanned replacement. Long-term supply availability is confirmed at time of order.
