Siemens 6AV6671-5AE00-0AX0 Maintenance-Ready Spare for SIMATIC HMI Automation

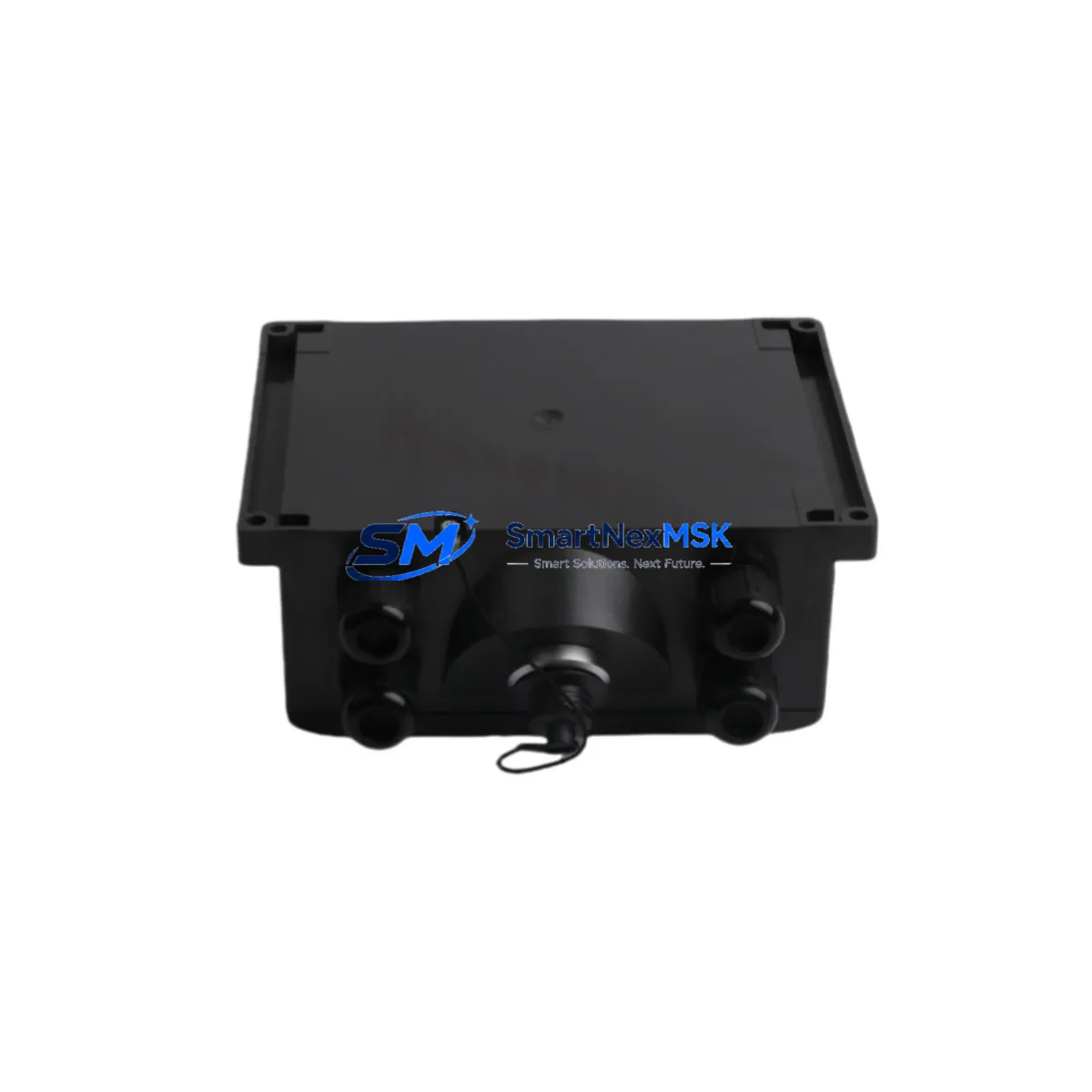

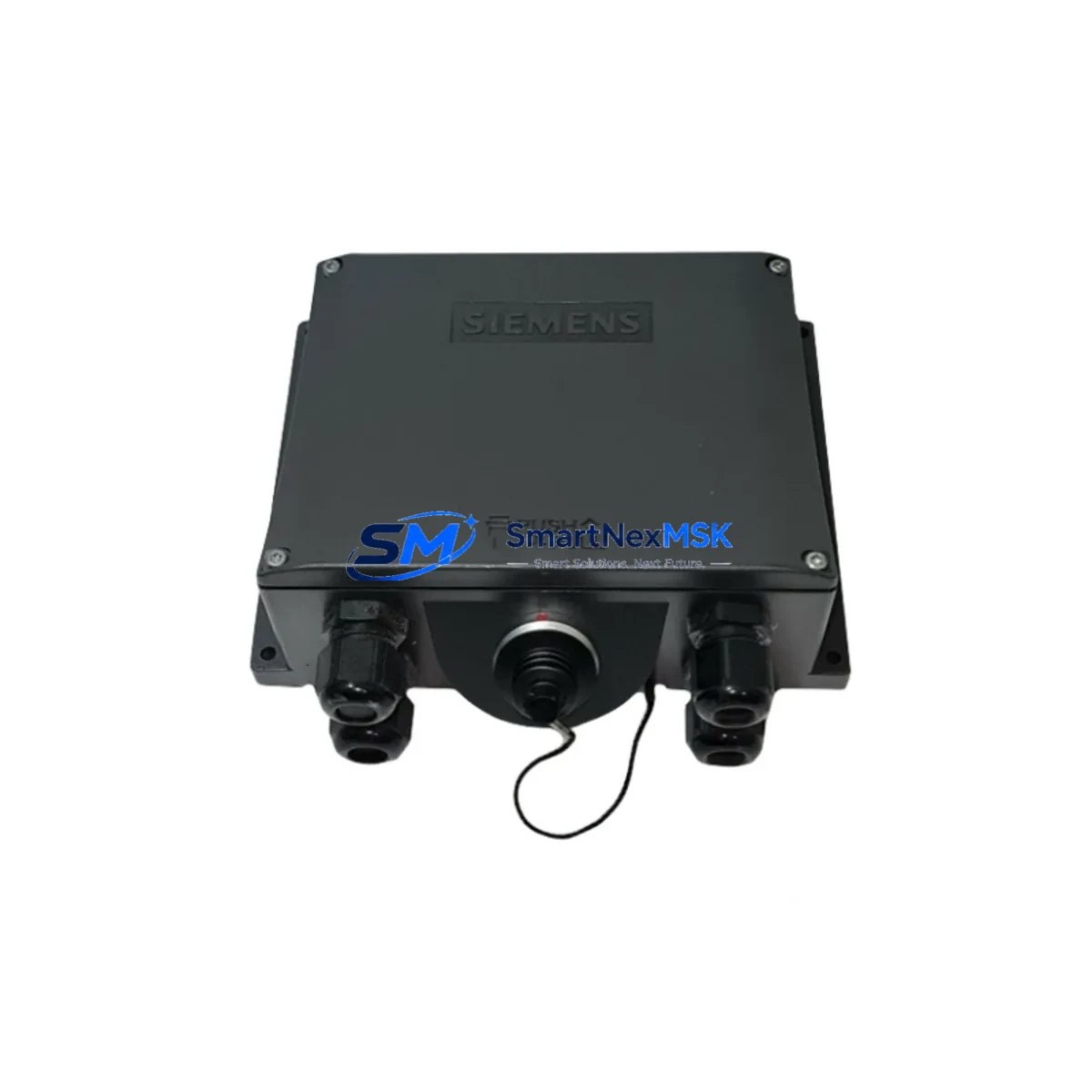

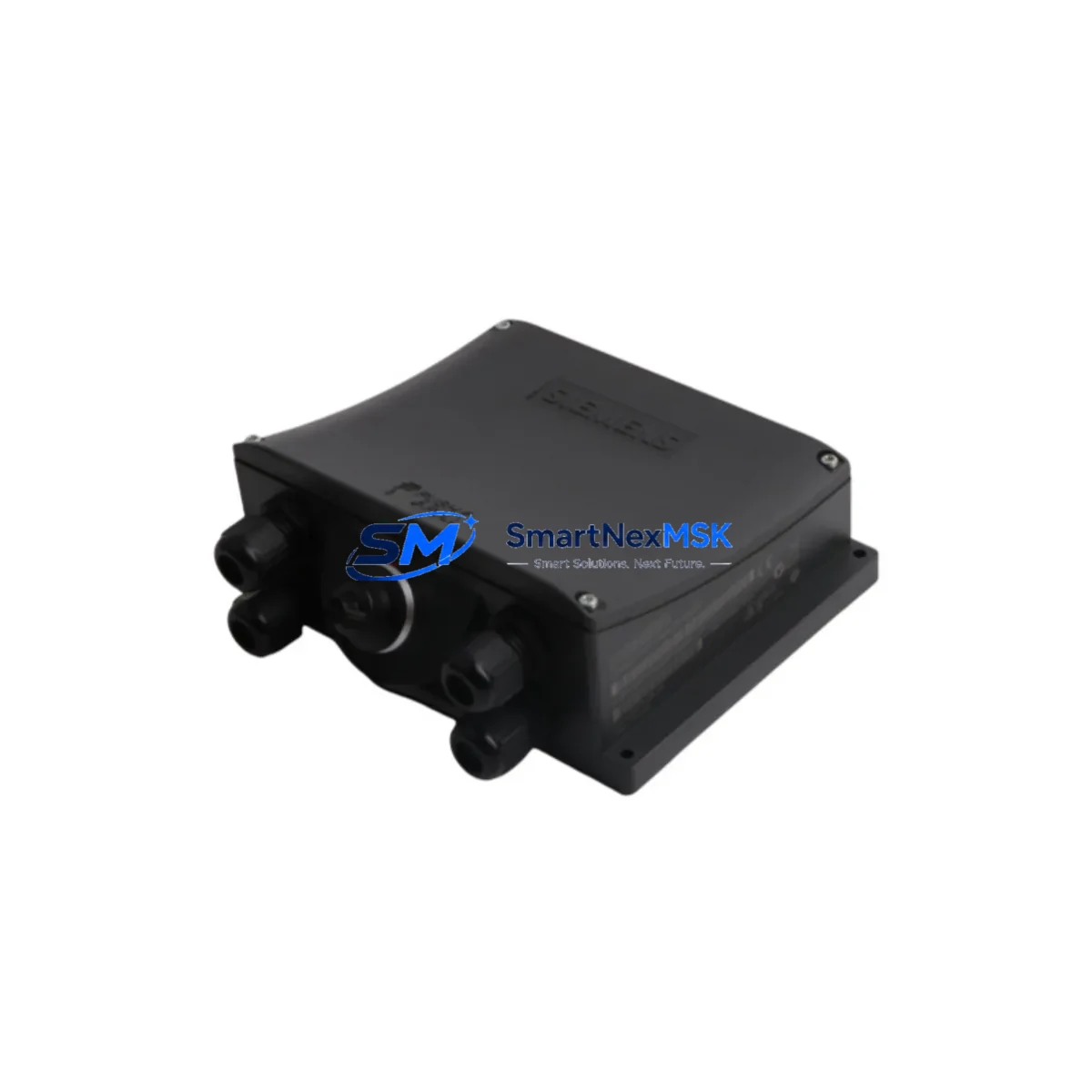

The Siemens 6AV6671-5AE00-0AX0 is an original rear-panel connection box engineered for SIMATIC HMI operator panels, including the TP177, MP177, TP270, MP270, TP277, and MP277 series. In industrial environments where HMI downtime directly translates to production loss, having a verified, tested spare of this component on hand is a fundamental element of any proactive maintenance strategy. This unit provides the mechanical and electrical interface between the HMI panel housing and its rear-mounted connectors, ensuring signal integrity, secure cable routing, and panel-to-cabinet sealing in demanding automation environments.
Maintenance engineers and spare parts procurement teams working with Siemens SIMATIC systems recognize the 6AV6671-5AE00-0AX0 as a critical wear-and-replacement item. Over time, repeated cable insertions, vibration, thermal cycling, and environmental exposure can degrade the connection box, leading to intermittent communication faults, display anomalies, or complete HMI failure. Stocking this spare eliminates the risk of extended lead times from OEM channels during an unplanned shutdown event.
Each unit supplied by SMARTNEXMSK is sourced from verified supply chains, individually inspected, and shipped with full functional testing documentation. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions.
Spare Maintenance Table
| Part Number | 6AV6671-5AE00-0AX0 |
| Brand | Siemens |
| Series Compatibility | SIMATIC HMI TP177, MP177, TP270, MP270, TP277, MP277 |
| Component Type | Rear-Panel Connection Box / Adapter |
| Origin | Germany (DE) |
| Mounting | Rear panel snap-fit; compatible with standard SIMATIC HMI cutout dimensions |
| Operating Temperature | 0 °C to +50 °C (storage: −20 °C to +70 °C) |
| Protection Rating | IP65 (front panel with connection box installed) |
| Application Environment | Control cabinets, machine panels, process automation, OEM equipment |
| Maintenance Interval | Inspect annually or upon HMI communication fault diagnosis |
| Replacement Scenario | Physical damage, connector wear, IP seal degradation, panel refurbishment |
| Warranty | 12 Months — Functional guarantee, tested before shipment |
| Lead Time | In-stock; ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the 6AV6671-5AE00-0AX0, the work order should extend beyond the connection box itself. A thorough inspection of the surrounding HMI subsystem is essential to prevent repeat failures and ensure the panel returns to full operational status.
Begin by verifying the 24 VDC power supply feeding the HMI panel — a degraded Siemens SITOP PSU100S compact power supply module can cause voltage sags that stress the HMI’s internal electronics and accelerate connector wear. Check the MPI or PROFIBUS DP communication cable and its associated 6ES7972-0BA52-0XA0 PROFIBUS bus connector (90° type) for insulation damage, bent pins, or loose termination resistors, as communication faults are frequently misdiagnosed as HMI hardware failures.
Inspect the I/O terminal blocks and signal wiring routed through the control cabinet. Loose connections on Phoenix Contact or Weidmüller terminal strips can introduce ground loops or signal noise that manifest as HMI screen glitches or spurious alarms. If the panel communicates via PROFINET, verify the Industrial Ethernet switch port assignment and patch cable integrity — a faulty RJ45 connector is a common and easily overlooked fault source. For older installations using RS-232 or RS-422 serial links, a signal isolator module should be checked for proper isolation resistance and replaced if degraded.
The HMI’s USB ports and CF card slot (where applicable on MP277 variants) should be inspected for debris and contact oxidation. Siemens S7-300 SM 322 digital output modules connected to the same PLC rack should be tested for contact resistance if the HMI is used to trigger relay-driven actuators. Additionally, the 24 VDC miniature circuit breaker protecting the HMI circuit should be replaced as a precautionary measure during any planned maintenance window. Surge protection devices (SPDs) on the power rail and communication lines are often overlooked; verify their status indicator and replace if the indicator shows fault. For aging SIMATIC installations, consider stocking the 6AV6671-5AE00-0AX0 alongside the HMI touch screen assembly and backlight unit to form a complete HMI refurbishment kit, significantly reducing mean time to repair (MTTR) during unplanned outages.
Site Replacement Workflow
Replacing the 6AV6671-5AE00-0AX0 on-site is a straightforward procedure when the correct spare is available and pre-tested. Begin by safely isolating the HMI panel from its 24 VDC supply and disconnecting all rear-panel cables, labeling each connector to ensure correct re-termination. Remove the panel from the cabinet cutout by releasing the mounting clamps, then disengage the existing connection box from the panel housing using the appropriate Torx or Phillips fasteners per the SIMATIC HMI installation manual.
Install the new 6AV6671-5AE00-0AX0, ensuring the IP65 gasket seats correctly against the panel housing. Re-terminate all cables in the documented sequence — power first, then communication (MPI/PROFIBUS/PROFINET), then any USB or serial peripherals. Restore power and verify the HMI boots to the correct project screen without communication alarms. Confirm tag updates are live from the connected Siemens S7-300 or S7-400 PLC CPU before returning the machine to production.
This replacement procedure is compatible across the TP177, MP177, TP270, MP270, TP277, and MP277 panel families, making the 6AV6671-5AE00-0AX0 a versatile spare that consolidates inventory requirements for multi-panel installations. Facilities managing mixed-generation SIMATIC HMI fleets benefit from stocking a single connection box SKU that covers multiple panel variants, reducing spare parts complexity and procurement overhead.
Spare Parts Support FAQ
Q1: Is the 6AV6671-5AE00-0AX0 compatible with both TP and MP series SIMATIC HMI panels?
Yes. The 6AV6671-5AE00-0AX0 is designed for use across multiple SIMATIC HMI panel variants including TP177, MP177, TP270, MP270, TP277, and MP277. Always cross-reference the panel’s order number and hardware revision against the Siemens compatibility matrix before installation. SMARTNEXMSK can assist with compatibility verification prior to order confirmation.
Q2: How is each unit tested before shipment?
Every 6AV6671-5AE00-0AX0 unit undergoes visual inspection for mechanical integrity, connector pin condition, and gasket seating quality. Functional verification is performed where test fixtures are available. Each unit ships with an inspection record. The 12-month warranty covers functional failures under normal operating conditions from the date of receipt.
Q3: What is the recommended spare parts stocking strategy for SIMATIC HMI installations?
For facilities operating three or more SIMATIC HMI panels of the same series, we recommend maintaining a minimum of one 6AV6671-5AE00-0AX0 per panel family in the on-site spare parts store. For critical production lines, a 1:5 ratio (one spare per five panels) is a common industry benchmark. Pairing this connection box spare with a backup HMI panel, a spare PROFIBUS bus connector, and a replacement 24 VDC power supply module provides comprehensive coverage for the most common HMI failure modes.
Q4: What if my exact panel variant is discontinued or the OEM lead time is unacceptable?
SMARTNEXMSK specializes in sourcing original and compatible spare parts for discontinued and long-lead Siemens SIMATIC components. If your panel variant requires a specific connection box configuration, contact our technical team with the full panel order number and hardware revision. We maintain inventory of hard-to-source SIMATIC HMI accessories and can advise on compatible alternatives that preserve system functionality without requiring a full panel replacement.
