Siemens 6BK1000-6TR00-0AA0 Safety-Enhanced IPC for Harsh Industrial Sites

Siemens 6BK1000-6TR00-0AA0 Safety-Enhanced IPC for Harsh Industrial Sites

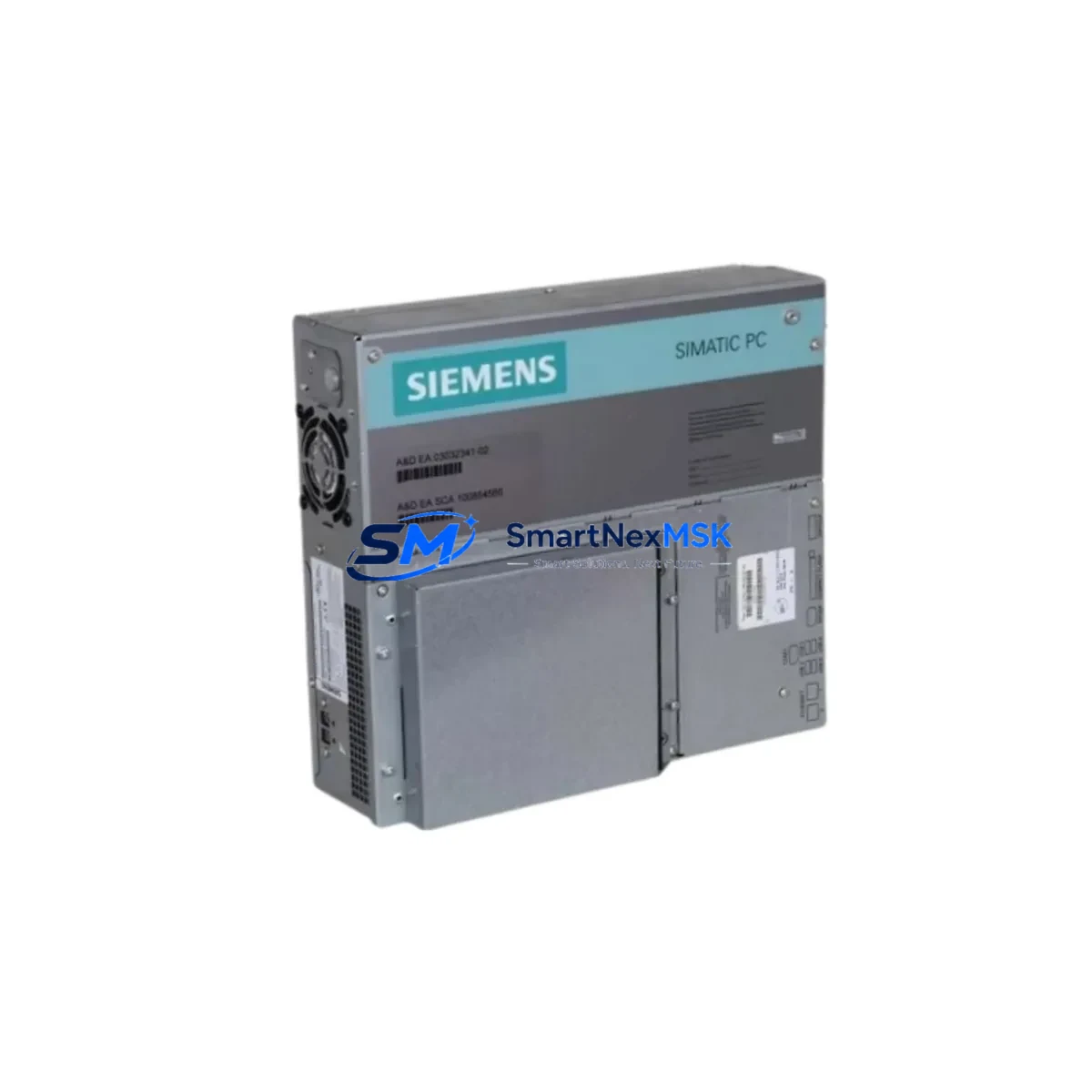

The Siemens PC627B (6BK1000-6TR00-0AA0) is a ruggedized SIMATIC Industrial Box PC engineered for mission-critical automation environments where control continuity, signal integrity, and operational safety are non-negotiable. Designed to operate reliably in high-vibration, wide-temperature, and electromagnetically hostile conditions, this IPC serves as the computational backbone of demanding control architectures across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing facilities.

In modern industrial safety systems, the computing platform is the first line of defense against unplanned downtime. The 6BK1000-6TR00-0AA0 addresses this by combining a fanless or actively cooled thermal design with robust EMI shielding, ensuring that signal drift, power fluctuation, and electromagnetic interference from adjacent variable frequency drives, high-voltage switchgear, or arc flash events do not compromise control loop execution. Its wide operating temperature range and conformal-coated board options make it suitable for outdoor substations, underground mining galleries, and coastal port crane control cabinets where humidity and particulate contamination are persistent threats.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Siemens PC627B 6BK1000-6TR00-0AA0 within a safety-rated control cabinet requires a layered protection strategy that addresses power quality, communication reliability, and I/O signal integrity simultaneously. At the power layer, pairing this IPC with a Siemens SITOP PSU8200 24 V DC power supply ensures stable, filtered DC power delivery even during upstream grid disturbances. For additional surge suppression on the 24 V DC rail, a DEHN DEHNguard surge arrester or equivalent DIN-rail transient voltage suppressor should be installed upstream of the IPC power input to absorb lightning-induced or switching transients that could otherwise corrupt the processor or storage media.

On the communication side, the IPC’s PROFINET port should be connected through a Siemens SCALANCE X208 managed industrial Ethernet switch, which provides port-level diagnostics, VLAN segmentation, and redundancy ring (MRP) support — critical for preventing a single cable fault from propagating a communication loss across the entire automation network. Where legacy serial field devices are integrated, a Siemens CP 5622 PROFIBUS communication card or an equivalent PROFIBUS-to-PROFINET gateway ensures deterministic data exchange without introducing latency jitter that could trigger watchdog faults in the safety PLC.

For I/O expansion and safety interlock integration, the IPC is commonly deployed alongside Siemens SIMATIC S7-1500 F-series safety CPUs and ET 200SP distributed I/O modules, where the IPC handles SCADA visualization, historian logging, and OPC UA data aggregation while the F-CPU manages the certified safety functions. In emergency shutdown (ESD) architectures, the IPC’s role is to provide operator interface and alarm management, while the Siemens SIMATIC Safety Relay 3SK1 or equivalent hardwired interlock module maintains the final safety function independently of software state. This separation of concerns ensures that an IPC software fault does not compromise the physical safety loop.

Thermal management within the cabinet is equally critical. Pairing the IPC with a Siemens SINAMICS G120 drive or similar high-power inverter in the same enclosure requires careful heat load calculation and the use of cabinet air conditioners or heat exchangers rated for the combined thermal output. Proper cable segregation — separating power cables from signal and communication cables using Weidmüller or Phoenix Contact cable management systems — further reduces induced noise on the IPC’s I/O and communication ports.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the Siemens PC627B 6BK1000-6TR00-0AA0 is deployed as the operator workstation and data concentrator within Zone 2 classified control rooms, where it interfaces with safety instrumented systems (SIS) to provide real-time process visualization, alarm rationalization, and audit trail logging. Its EMI-hardened design withstands the high-frequency interference generated by large motor starters and variable speed drives common in pump and compressor control systems.

In power generation and substation automation, this IPC serves as the local HMI and communication gateway between IEC 61850-compliant protection relays and the plant-wide SCADA system. Its wide DC input voltage tolerance accommodates the fluctuating battery-backed DC bus voltages typical of substation control panels, ensuring uninterrupted operation during grid switching events.

In underground mining operations, where vibration from blasting and heavy machinery is constant, the ruggedized chassis and solid-state storage options of the 6BK1000-6TR00-0AA0 prevent the mechanical failures that plague standard commercial PCs. It is used in conveyor belt control systems, ventilation management, and personnel tracking infrastructure where continuous availability is a safety requirement.

In water and wastewater treatment plants, the IPC manages SCADA visualization for pump stations, chemical dosing systems, and filtration control loops. Its corrosion-resistant design and wide humidity tolerance make it suitable for installation in wet process areas where condensation and chemical vapors are present.

In metallurgical and steel mill applications, the IPC is integrated into rolling mill control systems and furnace automation panels, where it must withstand intense electromagnetic fields from large induction furnaces and the thermal radiation from nearby high-temperature processes.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Siemens PC627B 6BK1000-6TR00-0AA0?
The 12-month warranty covers all hardware manufacturing defects, functional failures under normal operating conditions, and dead-on-arrival (DOA) units. If the unit fails within the warranty period due to a component or assembly defect, we provide repair, replacement, or full refund. The warranty period begins from the date of confirmed delivery. Warranty claims are processed within 3–5 business days upon receipt of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every Siemens PC627B 6BK1000-6TR00-0AA0 undergoes a full power-on functional test, BIOS/firmware verification, communication port check (Ethernet, USB, serial), and a burn-in inspection before packaging. Units are then sealed in anti-static packaging with desiccant and shipped in reinforced cartons to prevent transit damage. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 6BK1000-6TR00-0AA0 compatible with existing Siemens SIMATIC WinCC and TIA Portal projects?
Yes. The PC627B is fully compatible with Siemens SIMATIC WinCC (including WinCC Runtime Professional and WinCC Flexible), TIA Portal V14 and above, and STEP 7 legacy projects. It supports OPC UA and OPC DA communication standards, enabling integration with third-party SCADA platforms and MES systems. Compatibility with PROFINET and PROFIBUS networks is maintained through standard Siemens communication cards.

Q4: Can you guarantee long-term supply and spare parts availability for this model?
We maintain dedicated stock of the Siemens PC627B 6BK1000-6TR00-0AA0 and its compatible accessories to support long-term maintenance and spare parts programs for industrial facilities. For customers requiring guaranteed supply continuity — particularly in critical infrastructure, defense, or continuous process industries — we offer reserved stock agreements and priority fulfillment. Contact our sales team to discuss multi-unit procurement, scheduled delivery, and long-term supply contracts.
