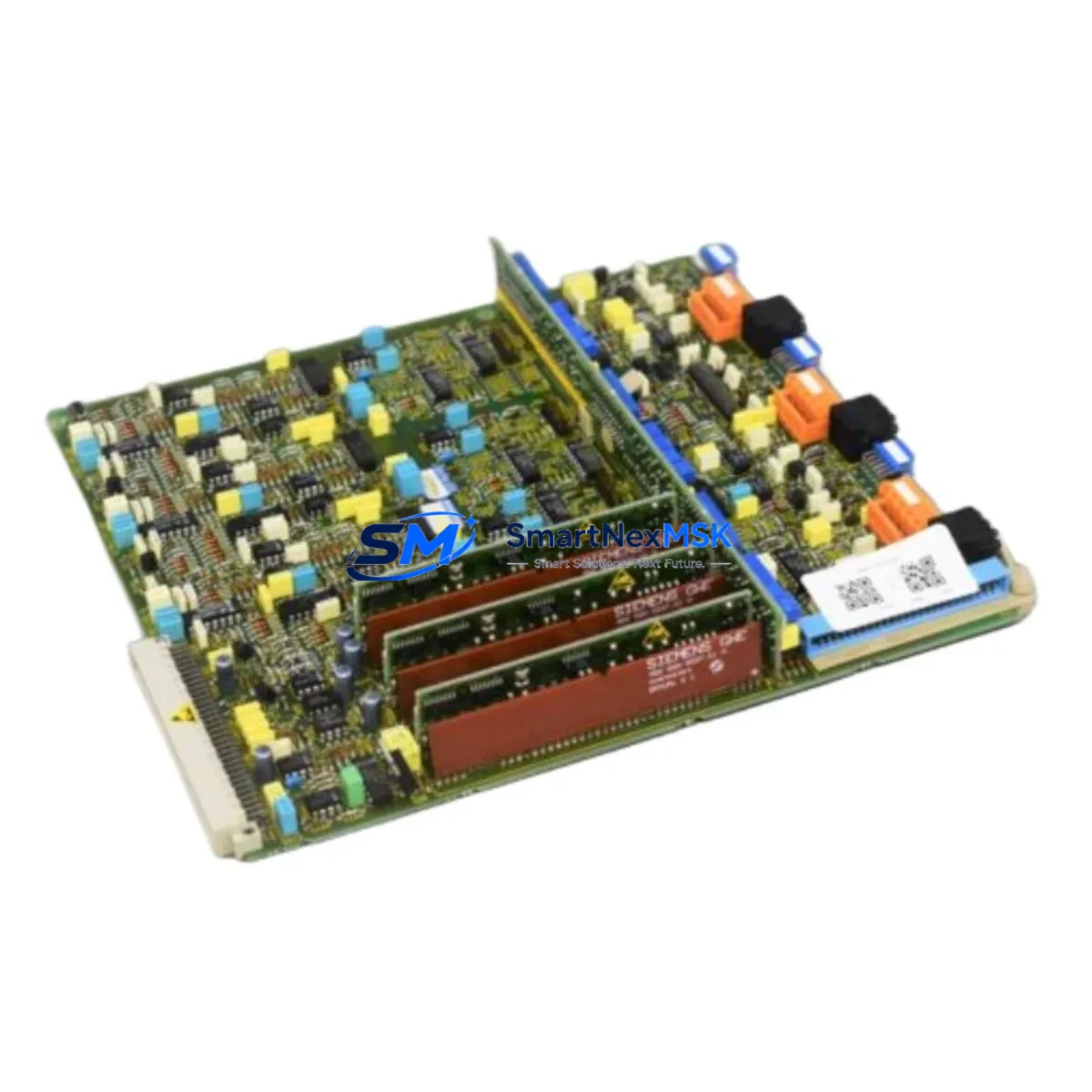

Siemens 6DD1600-0AH0 Safety-Enhanced PM4 Processor for Harsh Industrial Sites
The Siemens 6DD1600-0AH0 is a high-performance PM4 Processor Module designed for the SIMATIC TDC (Technology and Drive Control) automation platform. Built to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, metallurgical smelters, mining operations, and continuous-process manufacturing lines — this processor module delivers deterministic control execution, robust signal integrity, and sustained uptime where conventional automation hardware would fail.
In safety-critical control architectures, the processor module is the nerve center of the entire control cabinet. The 6DD1600-0AH0 is engineered to minimize the risk of control loop interruption, signal drift, module misoperation, surge impact, communication anomalies, and unplanned field shutdowns. Its ruggedized design ensures stable operation across wide temperature ranges, high-vibration environments, and electrically noisy industrial sites where electromagnetic interference (EMI) and power fluctuations are constant threats.
Every unit dispatched by SMARTNEXMSK undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring your procurement team and maintenance engineers can source with confidence.
Safety Reliability Table
| Parameter | Specification / Capability |
|---|---|
| Part Number / SKU | 6DD1600-0AH0 |
| Product Family | SIMATIC TDC (Technology and Drive Control) |
| Module Type | PM4 Processor Module |
| Manufacturer | Siemens AG |
| Country of Origin | Germany |
| Operating Voltage | 24 V DC (via backplane bus) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| EMC / Interference Protection | Designed to IEC 61000 industrial EMC standards |
| Vibration Resistance | Suitable for high-vibration industrial installations |
| Communication Interface | SIMATIC TDC backplane bus; compatible with CP51M1, CP52M0 communication processors |
| Compatibility | SIMATIC TDC UR2, UR2-H rack systems; interoperable with SM500F safety modules |
| Safety Relevance | Core processor for safety interlocks, closed-loop control, and critical sequencing |
| Pre-Shipment Testing | Full functional test performed on every unit |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Stock Status | In stock — available for immediate dispatch |
Control Cabinet Protection Strategy
In a well-engineered SIMATIC TDC control cabinet, the 6DD1600-0AH0 PM4 Processor Module does not operate in isolation. Its safety and reliability performance is directly tied to the quality and configuration of surrounding hardware. A properly protected cabinet pairs the PM4 processor with a Siemens 6DD1607-0AA0 PS4 Power Supply Module to deliver clean, regulated 24 V DC to the backplane — eliminating voltage sag and transient spikes that can cause processor resets or data corruption during load switching events.
For multi-axis drive coordination and high-speed closed-loop control, the PM4 processor works in conjunction with Siemens 6DD1606-0AA0 IM4 Interface Modules, which manage inter-rack communication and synchronize control cycles across distributed TDC racks. In plants where PROFIBUS-DP fieldbus connectivity is required — such as connecting to remote I/O stations, variable frequency drives, or intelligent field devices — the Siemens 6DD1607-0AB0 CP51M1 Communication Processor provides deterministic, noise-immune data exchange even in high-EMI environments.
Signal integrity at the field level is protected by pairing the TDC system with Siemens 6ES7 series SM321 and SM322 digital I/O modules for discrete safety interlocks, and SM331 / SM332 analog I/O modules for process variable monitoring. These modules, when properly shielded and grounded, prevent signal drift and false triggering in the presence of variable-frequency drive harmonics or high-current switching transients.
For installations in hazardous areas or where surge protection is mandatory, the control cabinet should incorporate Phoenix Contact TRABTECH surge protection devices on all incoming power and signal lines, and Weidmüller or PHOENIX CONTACT 24 V DC UPS modules to bridge power interruptions and allow the PM4 processor to complete its shutdown sequence safely — preventing data loss and protecting the integrity of the control program.
In safety interlock architectures, the 6DD1600-0AH0 is frequently deployed alongside Siemens SIRIUS 3TK28 safety relays and 3SK1 safety controllers, which handle emergency stop (E-stop) circuits, light curtain monitoring, and two-hand control interlocks. This layered approach — processor-level control combined with hardwired safety relay logic — ensures that a single-point failure in the automation layer does not propagate to a field-level safety hazard.
Critical Industrial Safety Applications
The Siemens 6DD1600-0AH0 PM4 Processor Module has a proven deployment record across the most demanding sectors of heavy industry:
Petrochemical & Refinery Plants: In continuous-process refinery operations, the PM4 processor manages closed-loop temperature, pressure, and flow control loops where a control interruption can trigger emergency shutdown systems (ESD) and result in significant production loss. Its deterministic scan cycle and robust EMC performance ensure stable operation in environments saturated with variable-speed pump drives and high-voltage switching equipment.
Power Generation & Grid Substations: Turbine governor control, excitation system regulation, and load-sharing automation in power plants demand processor modules that can sustain microsecond-level control precision under fluctuating grid conditions. The 6DD1600-0AH0 delivers the cycle-time consistency required for these applications, reducing the risk of frequency deviation events and generator trip incidents.
Metallurgy & Steel Mills: Rolling mill automation, furnace temperature control, and ladle crane sequencing in steel production environments expose control hardware to extreme thermal cycling, heavy vibration, and intense electromagnetic interference from arc furnaces and large DC drives. The ruggedized PM4 processor maintains control loop integrity in these conditions, preventing costly cobble events and unplanned furnace outages.
Mining & Mineral Processing: Conveyor belt control, crusher sequencing, and flotation cell automation in underground and open-pit mining operations require automation hardware that can withstand dust ingress, humidity extremes, and the shock loads generated by blasting and heavy machinery. The 6DD1600-0AH0 is suited for deployment in sealed, climate-controlled control enclosures in these environments.
Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous, uninterrupted process control for dosing, filtration, and pumping systems. The PM4 processor’s reliability profile supports 24/7 operation without scheduled reboots, reducing the risk of treatment process deviations that could have regulatory or public health consequences.
Port & Terminal Automation: Ship-to-shore crane control, automated stacking crane (ASC) systems, and conveyor logistics in port terminals demand high-availability processor platforms. The SIMATIC TDC system, anchored by the 6DD1600-0AH0, provides the real-time control performance and fault-tolerance required for safe, high-throughput cargo handling operations.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 6DD1600-0AH0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified functions within the warranty period, SMARTNEXMSK will provide a replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your plant downtime.
Q2: What pre-shipment testing is performed on each unit?
Every 6DD1600-0AH0 unit undergoes a comprehensive functional test prior to dispatch. This includes power-on verification, backplane communication integrity checks, and processor cycle execution validation. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-assurance documentation purposes.
Q3: Is the 6DD1600-0AH0 compatible with existing SIMATIC TDC installations?
Yes. The 6DD1600-0AH0 is a direct-fit replacement for PM4 processor slots in SIMATIC TDC UR2 and UR2-H rack systems. It is compatible with the full range of SIMATIC TDC I/O, communication, and interface modules. For mixed-generation TDC installations, compatibility with specific firmware versions should be verified against your system’s configuration documentation prior to installation.
Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated inventory of legacy and current-generation Siemens SIMATIC TDC components, including the 6DD1600-0AH0, to support long-term spare parts programs for plants with extended equipment lifecycles. We can provide volume pricing, scheduled delivery agreements, and priority allocation for customers with critical maintenance requirements. Contact our team to discuss your supply continuity needs.
