Siemens 6DD1611-0AD0 Safety-Enhanced IPC Module

Siemens 6DD1611-0AD0 Safety-Enhanced IPC Module: Reliable Control in Harsh Industrial Sites

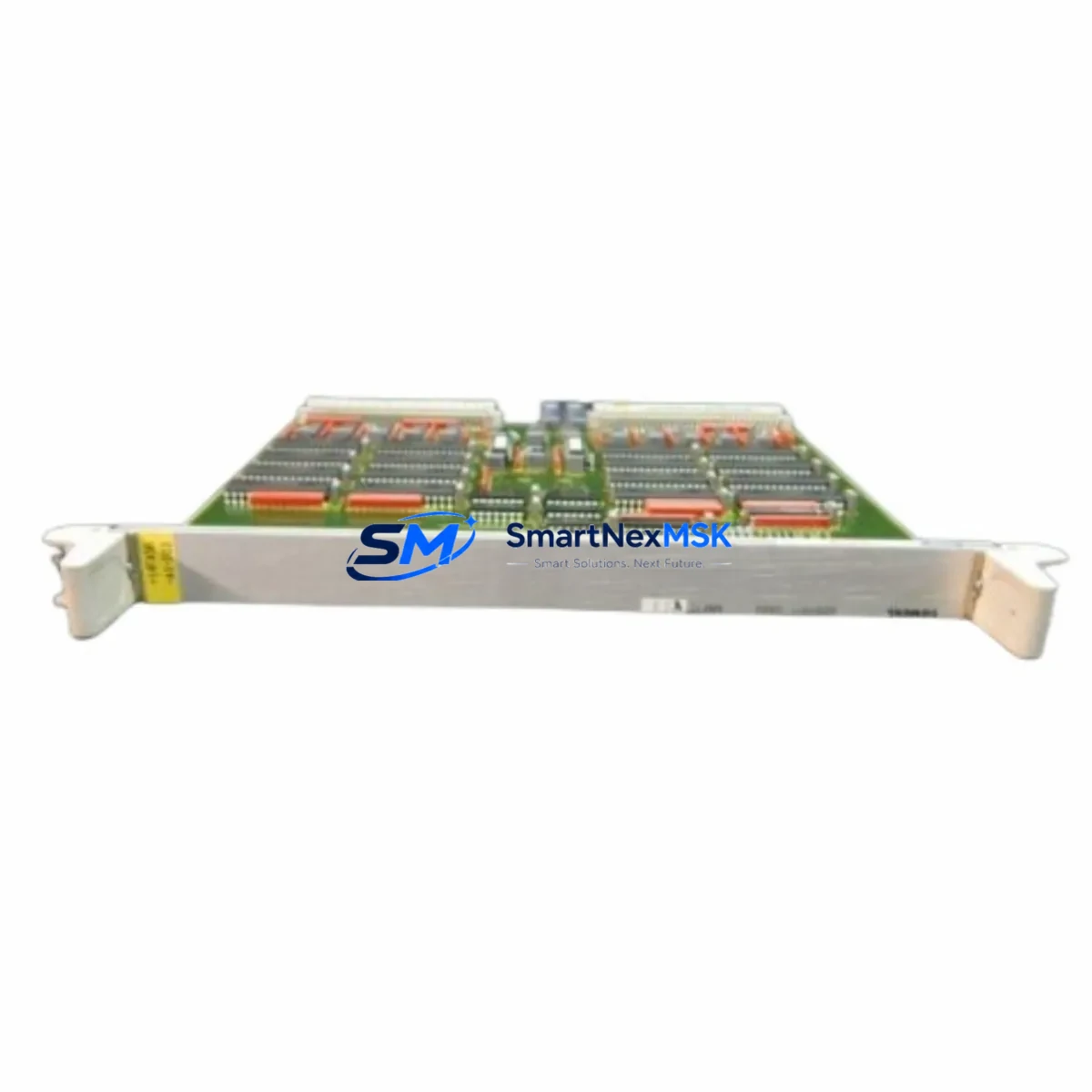

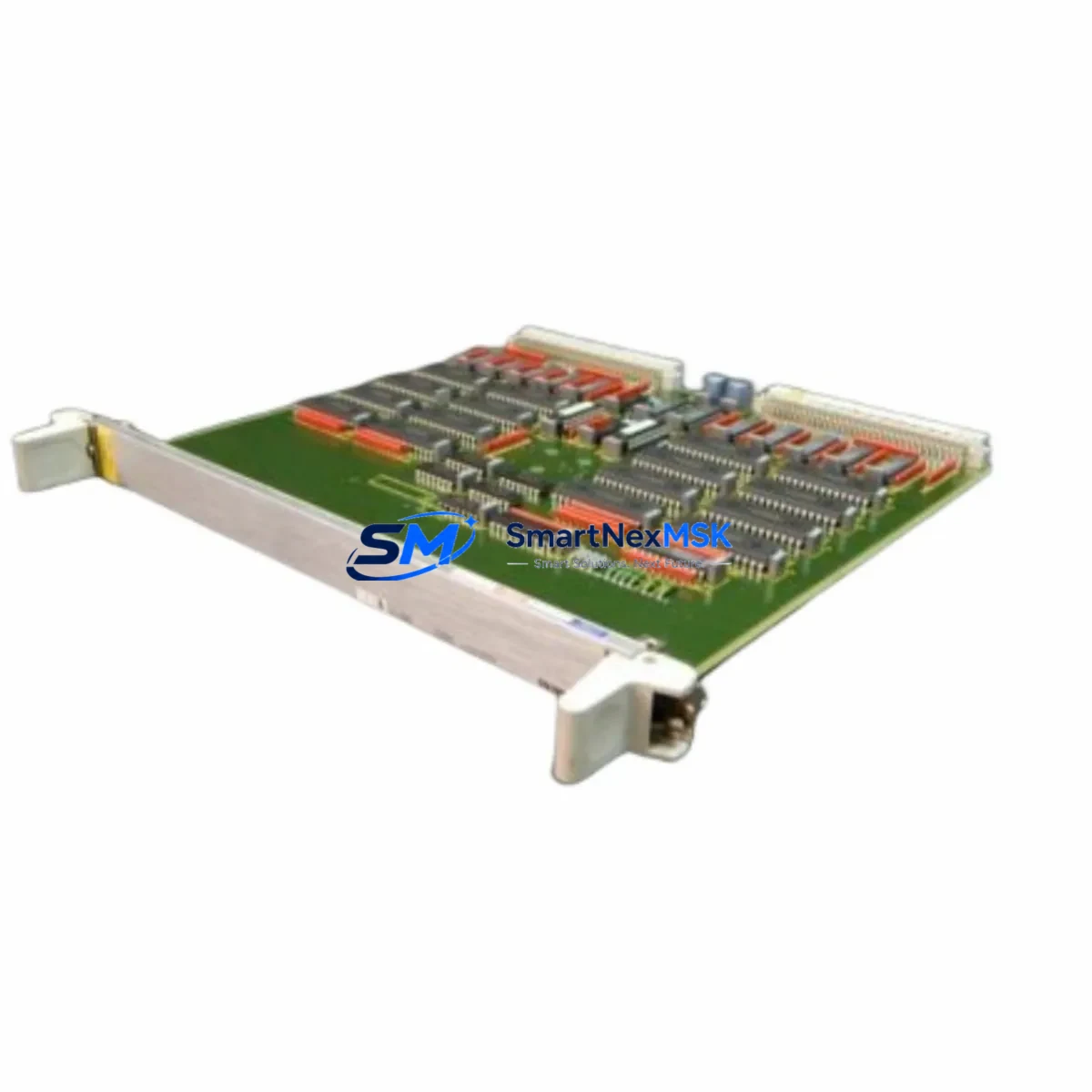

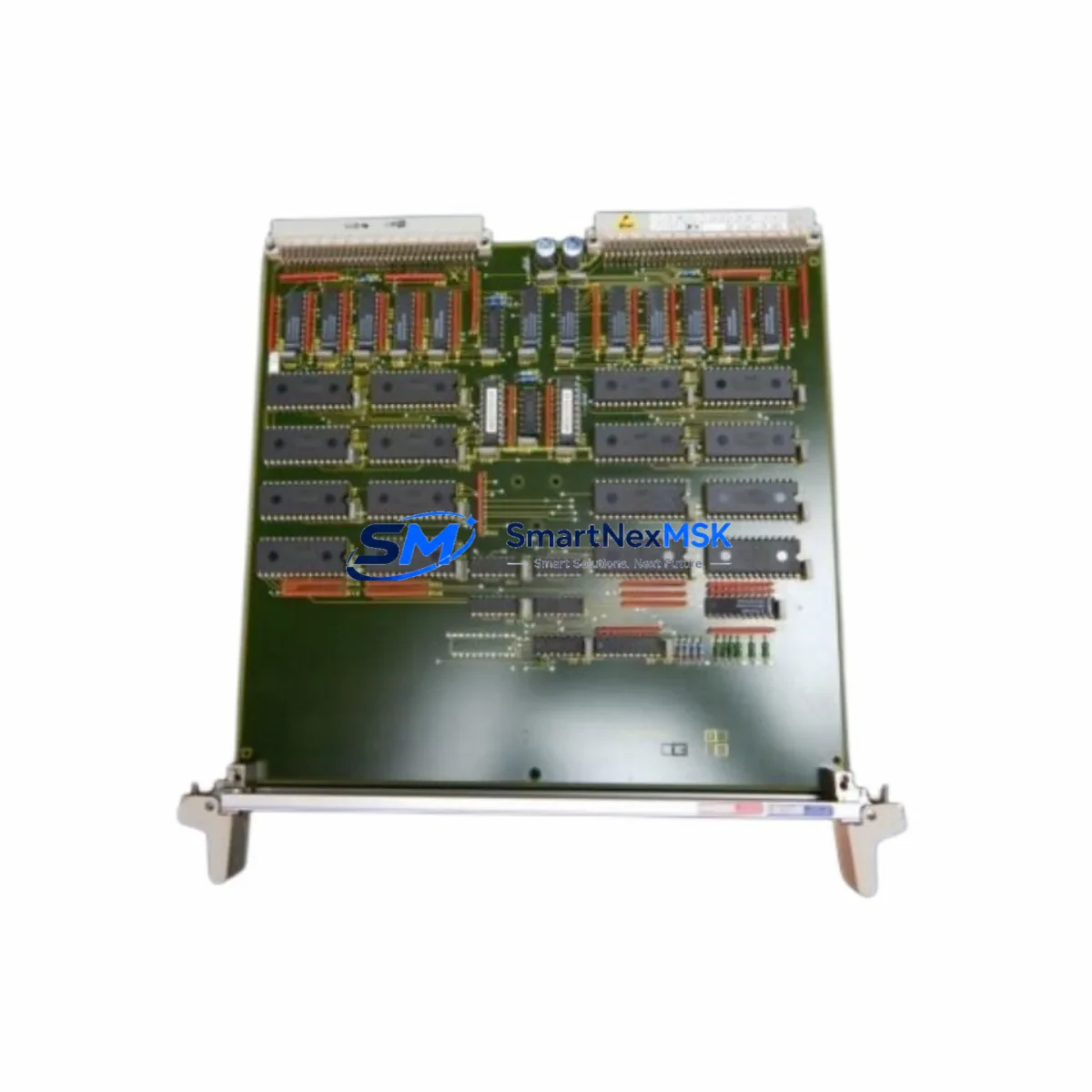

The Siemens 6DD1611-0AD0 is a ruggedized Inter-Processor Communication (IPC) module — specifically the MM11 Mailbox Module — designed for the SIMADYN D distributed control platform. In high-load, high-interference industrial environments such as petrochemical plants, power generation facilities, metallurgical smelters, and continuous process lines, this module serves as a critical backbone for inter-processor data exchange and control loop integrity. Its robust design directly addresses the risk of control interruption, signal drift, communication anomalies, and unplanned field shutdowns that can result from substandard or aging IPC components.

When integrated into a SIMADYN D control cabinet alongside companion modules such as the 6DD1607-0AA0 PM5 Processor Module and the 6DD1610-0AH0 CS7 Communication Submodule, the 6DD1611-0AD0 ensures that inter-task mailbox communication remains deterministic and fault-tolerant. In safety-critical interlocking circuits — where a missed or delayed signal can trigger emergency shutdowns or equipment damage — the reliability of this IPC module is non-negotiable. Its hardened backplane interface resists the vibration, thermal cycling, and electromagnetic interference (EMI) common in heavy industrial control rooms and field enclosures.

Safety Reliability Table

Control Cabinet Protection Strategy

A SIMADYN D control cabinet operating in a demanding industrial environment requires a layered protection strategy across power, communication, and processing subsystems. The 6DD1611-0AD0 MM11 Mailbox Module sits at the heart of inter-processor coordination, but its safe operation depends on the health of the entire cabinet ecosystem.

On the power supply side, modules such as the Siemens 6DD1600-0AE0 PS5 Power Supply Module provide the stable, filtered DC rail that prevents voltage fluctuation from propagating into the processor bus — a common cause of module misoperation and spurious trips. Upstream, industrial-grade surge protection devices and EMC filters on the incoming AC feed are essential to shield the entire rack from grid transients and lightning-induced surges.

For processor-level redundancy and task management, the 6DD1607-0AA0 PM5 Processor Module works in tandem with the MM11 to execute closed-loop control algorithms. Any degradation in mailbox communication between processor modules — caused by a failing IPC module — can result in control loop desynchronization, leading to process upsets or safety system activation. Replacing a suspect 6DD1611-0AD0 promptly with a tested spare is the fastest path to restoring deterministic control.

Communication integrity to field devices is maintained through modules like the 6DD1610-0AH0 CS7 Communication Submodule and compatible PROFIBUS DP interface cards, which relay setpoints and feedback signals between the SIMADYN D rack and distributed I/O stations, variable frequency drives, and smart field instruments. A failure in the IPC layer can cascade into communication timeouts on these fieldbus segments, triggering drive faults or I/O module errors across the production line.

In high-voltage switchgear rooms and motor control centers, the SIMADYN D platform often interfaces with Siemens SIMOREG DC Master drives and SINAMICS converter units via the inter-processor communication layer. The 6DD1611-0AD0 ensures that torque and speed references are passed between control tasks without latency or data corruption — critical in rolling mill, crane, and winding applications where precise speed synchronization is a safety requirement.

For I/O expansion and analog signal conditioning, companion modules such as the 6DD1681-0AE0 AE8 Analog Input Module and 6DD1682-0AE0 AA8 Analog Output Module rely on the IPC backbone to transfer process values between the field interface layer and the main processor. Signal drift or communication errors at this interface can result in incorrect PID outputs, leading to overpressure, overtemperature, or flow excursions in process plant applications.

Critical Industrial Safety Applications

The Siemens 6DD1611-0AD0 is deployed across a wide range of safety-critical and continuous-process industries where control system reliability is directly linked to personnel safety, environmental compliance, and production continuity.

Petrochemical & Refining: In distillation columns, compressor trains, and reactor control loops, the SIMADYN D platform with MM11 IPC modules manages complex multi-variable control strategies. A communication failure between processor modules in this environment can disable safety instrumented system (SIS) interfaces, potentially masking a hazardous process condition. Maintaining a tested 6DD1611-0AD0 spare on-site is a recognized best practice for SIL-rated loop maintenance.

Power Generation & Utilities: Turbine governor systems, boiler drum level controls, and excitation regulators built on SIMADYN D depend on fast, reliable inter-processor communication to maintain grid synchronization and load-following response. The MM11 module’s deterministic mailbox architecture supports the millisecond-level response times required in these applications.

Metallurgy & Steel Mills: Rolling mill main drives, ladle furnace electrode regulators, and continuous caster withdrawal controls use SIMADYN D for coordinated multi-axis speed and tension control. The 6DD1611-0AD0 enables the high-speed data exchange between drive control processors and supervisory logic that prevents cobble events, electrode breakage, and strand breakout — all of which carry significant safety and financial consequences.

Mining & Minerals Processing: Conveyor drive systems, crusher controls, and flotation cell regulators in underground and surface mining operations operate in environments with extreme dust, vibration, and electrical noise. The ruggedized design of the 6DD1611-0AD0 makes it well-suited for these conditions, where a control system failure can strand production or create hazardous equipment runaway situations.

Water & Wastewater Treatment: Pump station controls, aeration basin management, and chemical dosing systems using SIMADYN D benefit from the reliable IPC communication provided by the MM11 module, ensuring that treatment process parameters remain within regulatory limits even during peak load or storm surge events.

Port & Material Handling: Ship-to-shore crane drives, stacker-reclaimer systems, and bulk material conveyor networks rely on SIMADYN D for coordinated motion control. The 6DD1611-0AD0 supports the inter-processor communication required for anti-sway, load monitoring, and emergency stop interlocking functions.

Safety and Quality FAQ

Q1: What warranty is provided with the Siemens 6DD1611-0AD0?
All 6DD1611-0AD0 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning queries.

Q2: How is each module tested before shipment?
Every unit undergoes a comprehensive pre-shipment functional inspection, including visual examination for physical damage, board-level component verification, and where applicable, powered functional testing to confirm communication interface integrity. A test report is available upon request for critical spare applications.

Q3: Is the 6DD1611-0AD0 compatible with all SIMADYN D rack configurations?
The MM11 Mailbox Module is designed for use within the standard SIMADYN D VME-based rack system. Compatibility depends on the firmware revision of the host processor modules and the specific SIMADYN D system version in use. Our technical team can assist with compatibility verification based on your existing system configuration and software version data.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. SMARTNEXMSK maintains dedicated inventory of legacy Siemens SIMADYN D components, including the 6DD1611-0AD0, to support customers with long-lifecycle industrial installations. We provide ongoing replacement support for systems that have passed OEM end-of-life, ensuring your control infrastructure remains operational without forced platform migration.
