Siemens 6DD1681-0AG2 Safety-Enhanced Binary Output for Harsh Industrial Sites

Siemens 6DD1681-0AG2 Safety-Enhanced Binary Output for Harsh Industrial Sites

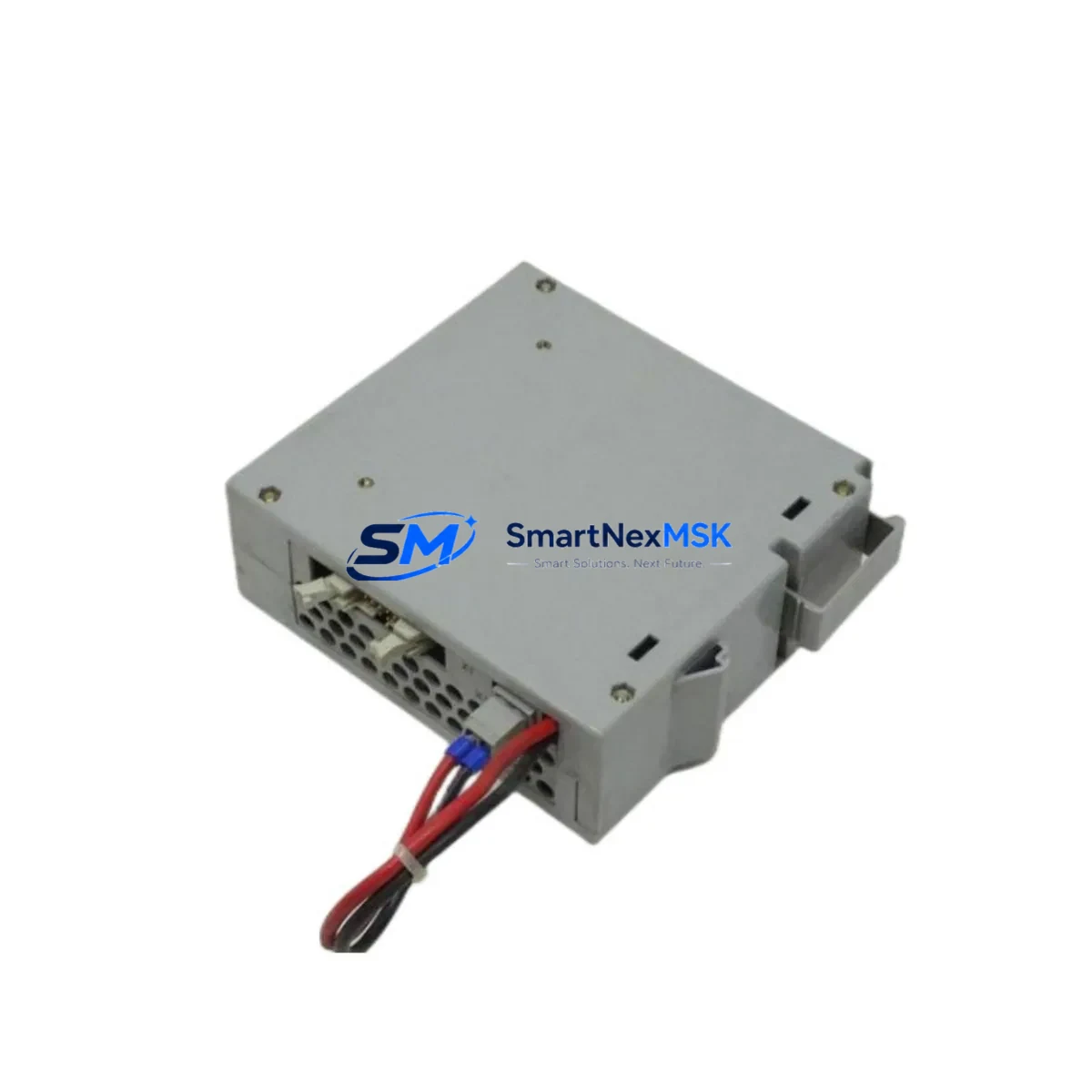

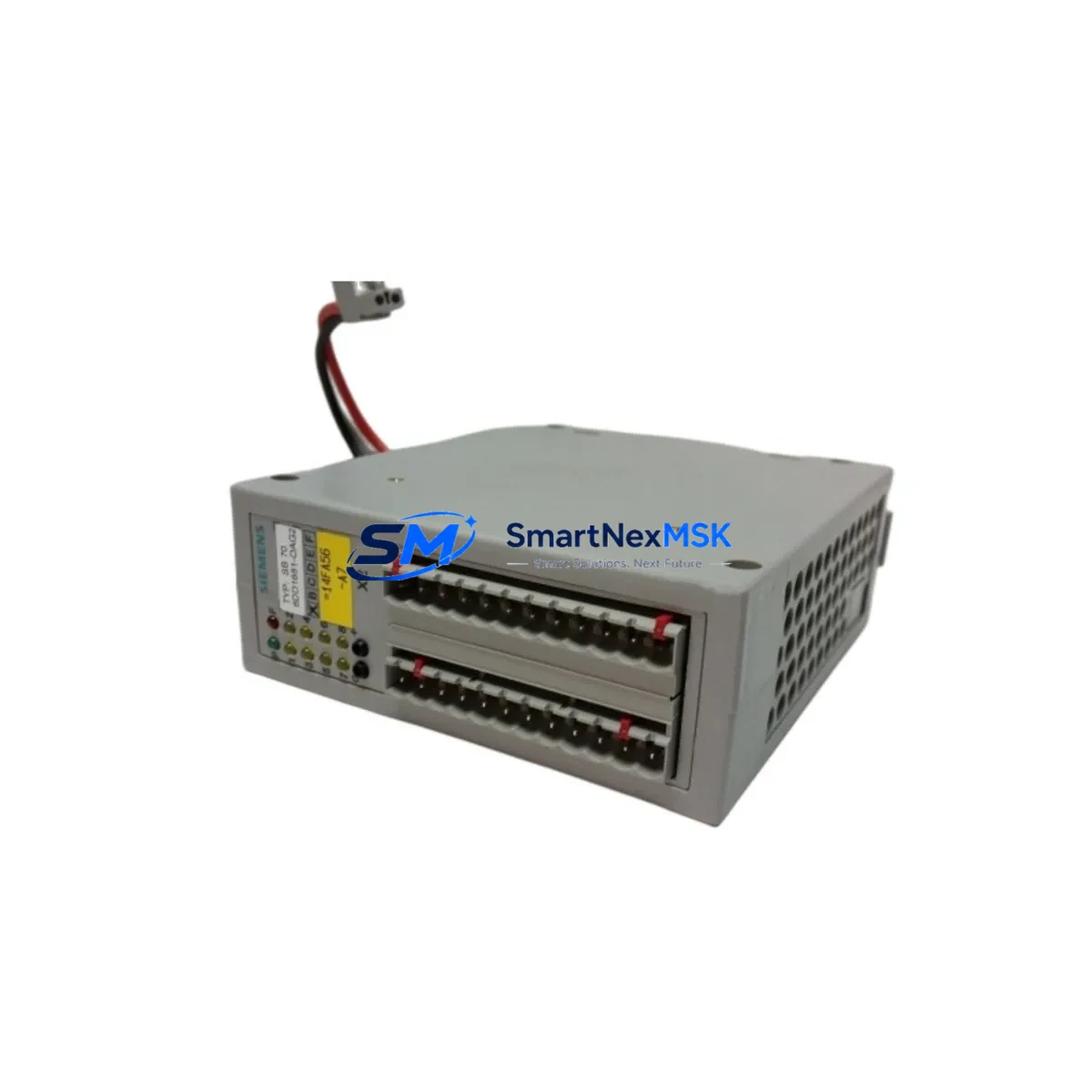

The Siemens 6DD1681-0AG2 is a ruggedized binary output module engineered for the SIMATIC TDC SB70 platform, purpose-built to sustain reliable digital output control in the most demanding industrial environments. In high-load continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, mining extraction systems, and port logistics automation — the integrity of every binary output channel is a direct safety variable. A single output failure in a critical interlock loop can trigger unplanned shutdowns, equipment damage, or personnel hazard. The 6DD1681-0AG2 is designed to eliminate that risk.

Manufactured in Germany to Siemens’ industrial-grade quality standards, this module delivers stable, repeatable digital output switching under conditions of high electromagnetic interference, wide temperature fluctuation, vibration, and power supply instability. Its robust output driver architecture suppresses inductive load transients and surge events that commonly cause module misoperation in heavy industrial control cabinets. Whether driving solenoid valves, motor contactors, relay coils, or safety-rated actuators, the 6DD1681-0AG2 maintains output state integrity without false triggering or signal drift — even during adjacent equipment switching events or bus voltage fluctuations.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered SIMATIC TDC control cabinet, the 6DD1681-0AG2 binary output module operates as part of a layered protection architecture. The SB70 subrack that houses this module is typically paired with a Siemens 6DD1600-0AK0 CPU module or 6DD1607-0AA0 communication processor, which coordinates the logic execution and fieldbus communication that drives the output channels. Upstream power integrity is maintained by a Siemens SITOP PSU300S 24V DC power supply, which provides regulated, filtered DC power to the subrack backplane — critical for preventing output state corruption during mains voltage dips or switching transients.

For installations in hazardous or high-interference zones, the output wiring from the 6DD1681-0AG2 is commonly routed through Phoenix Contact surge protection terminal blocks or Weidmüller WTR series surge arresters to clamp field-side voltage spikes before they can back-propagate into the module’s output drivers. In safety interlock circuits, the binary outputs of this module are often wired in series with Pilz PNOZ safety relay modules or Siemens 3SK1 safety relays to form a dual-channel monitored output loop compliant with SIL 2 or PLd requirements.

Communication redundancy in the TDC system is typically achieved through the Siemens 6DD1607-0EA0 PROFIBUS DP communication module, ensuring that even if the primary fieldbus segment experiences noise-induced errors, the output module continues to hold its last valid state rather than defaulting to an unsafe condition. For applications requiring high-speed I/O response, the 6DD1681-0AG2 is often deployed alongside Siemens 6DD1682-0AG0 binary input modules to form a matched I/O pair within the same SB70 subrack, minimizing scan-cycle latency between field signal acquisition and actuator response.

Thermal management within the control cabinet is supported by Rittal SK series cabinet cooling units or Pfannenberg PWS series heat exchangers, maintaining the ambient temperature within the 6DD1681-0AG2’s rated operating range even in high-ambient industrial buildings. Proper thermal management directly extends module service life and reduces the probability of thermally induced output drift or premature component failure.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6DD1681-0AG2 is deployed in emergency shutdown (ESD) and process safety management (PSM) systems, where binary output modules must respond to safety PLC commands within defined reaction times to close isolation valves, trip compressors, or activate deluge systems. The module’s surge-hardened output drivers are essential in these environments, where long cable runs to field actuators expose output circuits to induced voltages from adjacent high-power equipment.

In power generation and grid substations, SIMATIC TDC systems using the 6DD1681-0AG2 control turbine governor actuators, excitation system relays, and protection relay trip coils. The module’s ability to maintain output state integrity during bus voltage fluctuations — common during generator synchronization events — is a critical reliability requirement. Any spurious output transition in a turbine trip circuit can cause a forced outage with significant financial and grid-stability consequences.

In metallurgical and steel production facilities, the 6DD1681-0AG2 controls hydraulic servo valves, cooling water solenoids, and furnace atmosphere control actuators in continuous casting and rolling mill lines. These applications demand zero-tolerance for output misoperation, as a false actuator command in a casting line can result in breakout events or equipment damage costing millions in downtime and repairs.

In mining and mineral processing operations, the module is used in conveyor interlock systems, crusher protection circuits, and ventilation control panels, where reliable binary output switching is essential for both production continuity and personnel safety in underground or open-pit environments with high dust, vibration, and EMI exposure.

In water and wastewater treatment plants, the 6DD1681-0AG2 drives pump motor starters, valve actuators, and chemical dosing system controls within SIMATIC TDC-based SCADA architectures, where continuous 24/7 operation and resistance to humidity and chemical vapor ingress are baseline requirements.

Safety and Quality FAQ

Q1: What warranty does the 6DD1681-0AG2 carry, and what does it cover?
Every 6DD1681-0AG2 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide replacement or repair support. Our warranty reflects our confidence in the outgoing inspection process applied to every unit before shipment.

Q2: What pre-shipment testing is performed on each unit?
Each 6DD1681-0AG2 undergoes a full functional test prior to dispatch, verifying output channel switching, backplane interface integrity, and power consumption within specification. Modules that do not pass functional verification are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6DD1681-0AG2 compatible with all SIMATIC TDC SB70 subracks and firmware versions?
The 6DD1681-0AG2 is designed for the Siemens SIMATIC TDC SB70 subrack platform. Compatibility with specific CPU firmware versions and system configurations should be verified against the Siemens SIMATIC TDC system manual. Our technical team can assist with compatibility verification for your specific system configuration prior to order placement.

Q4: Can SMARTNEXMSK support long-term or repeat supply of the 6DD1681-0AG2 for maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains stock of the 6DD1681-0AG2 and related SIMATIC TDC components to support ongoing spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. We understand that industrial facilities require reliable, consistent supply of critical control system components — contact our team to discuss framework agreements or reserved stock arrangements for your facility.
