SIEMENS 6DD1842-0AA1 Retrofit-Ready Interface Board for SIMADYN D

SIEMENS 6DD1842-0AA1 Retrofit-Ready Interface Board for SIMADYN D Control Systems

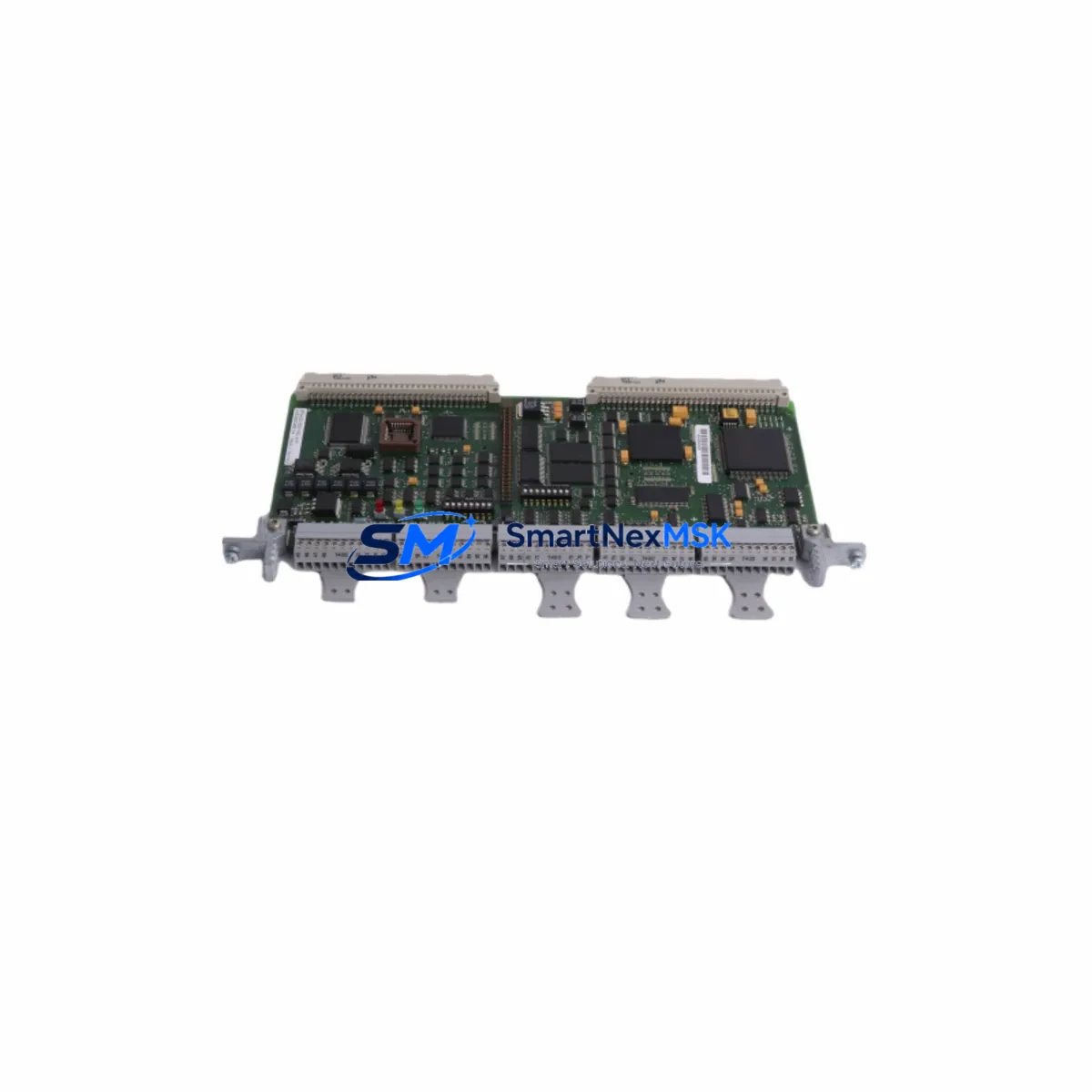

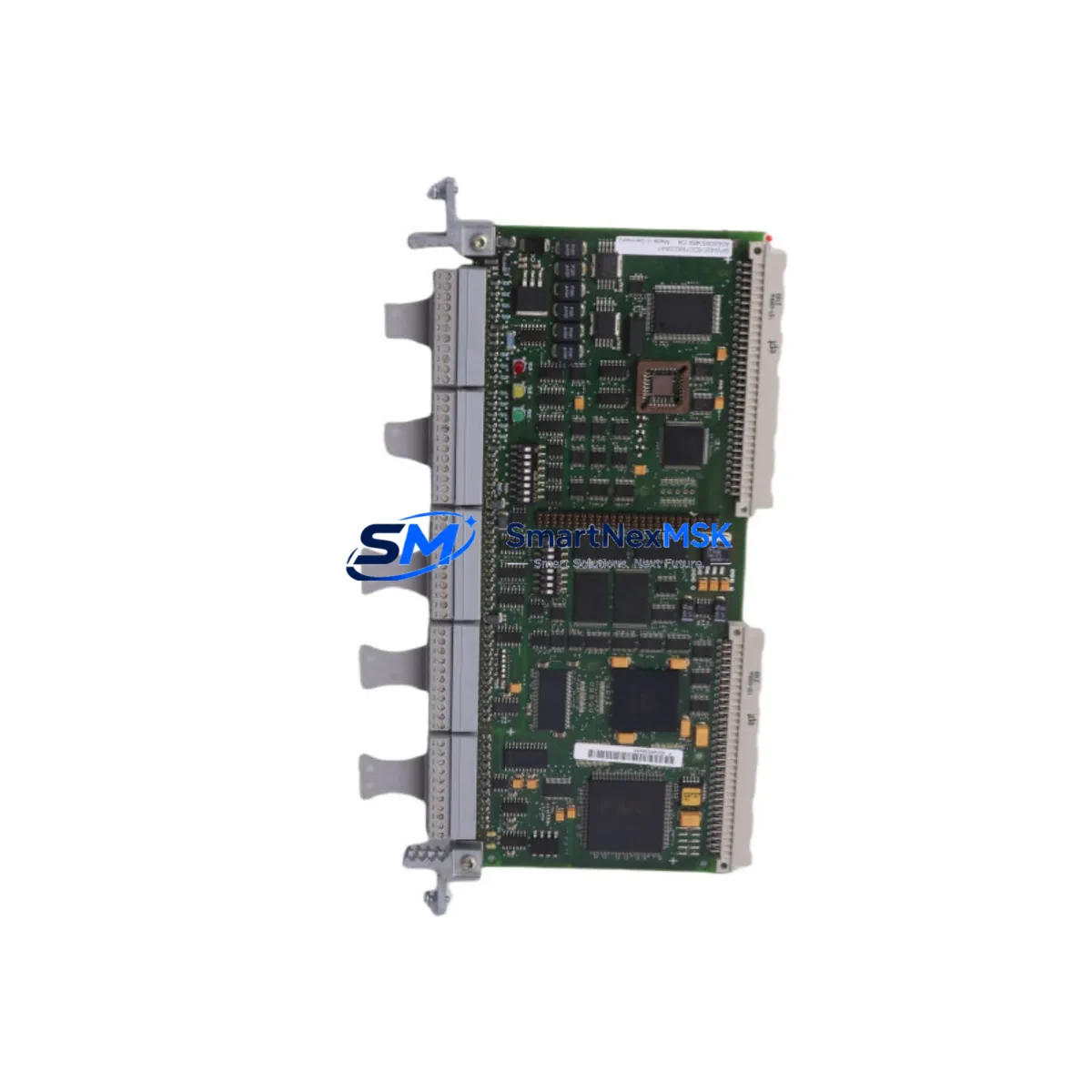

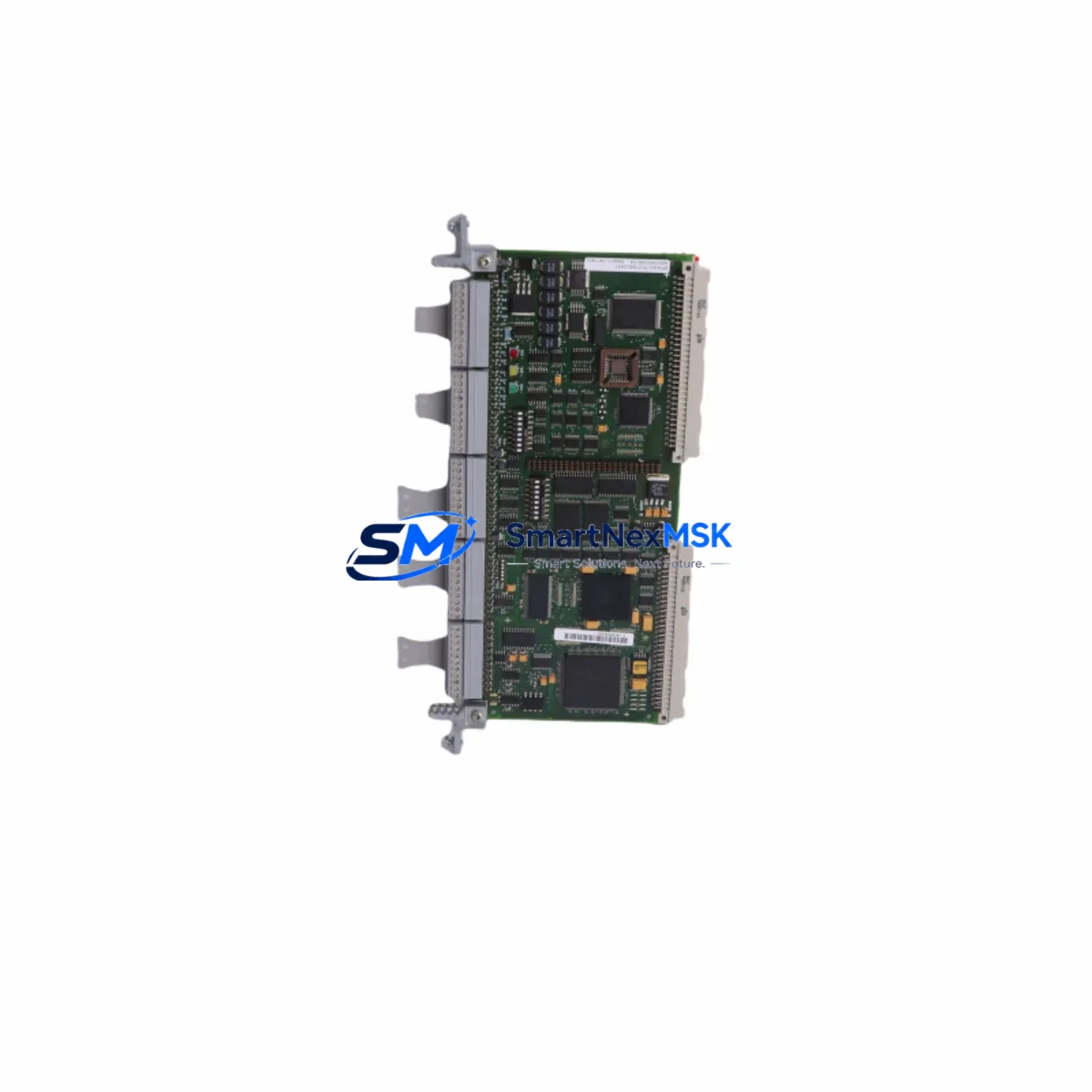

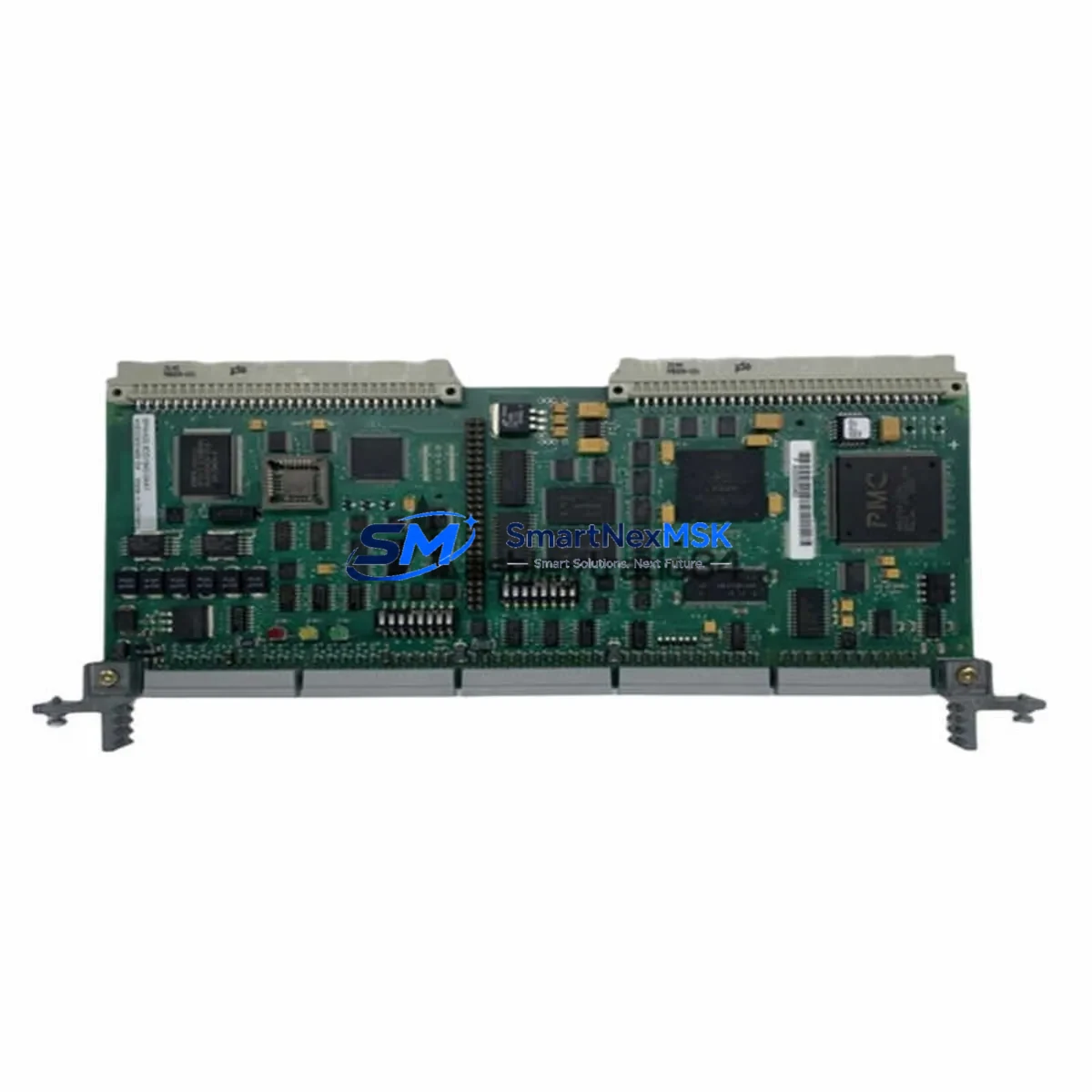

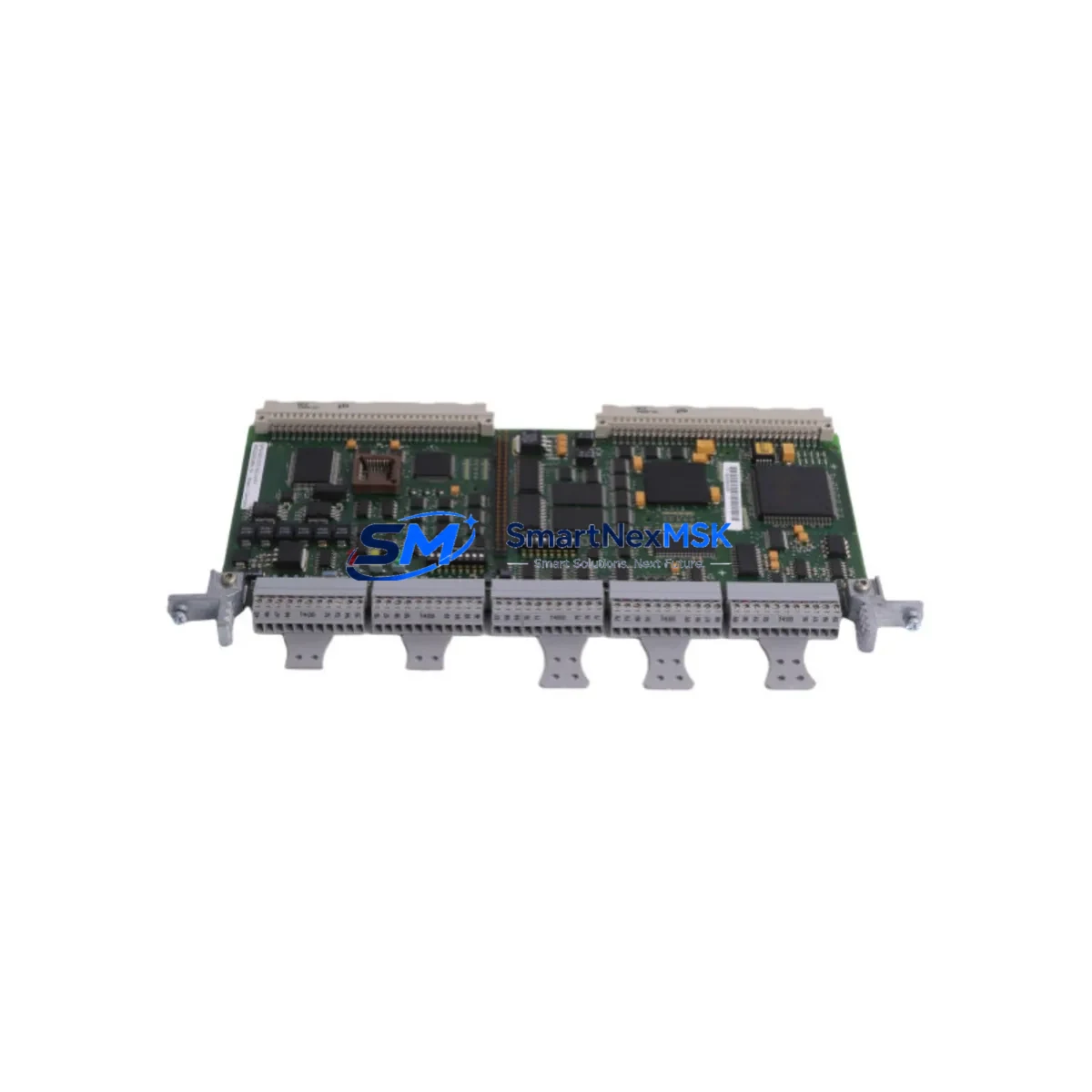

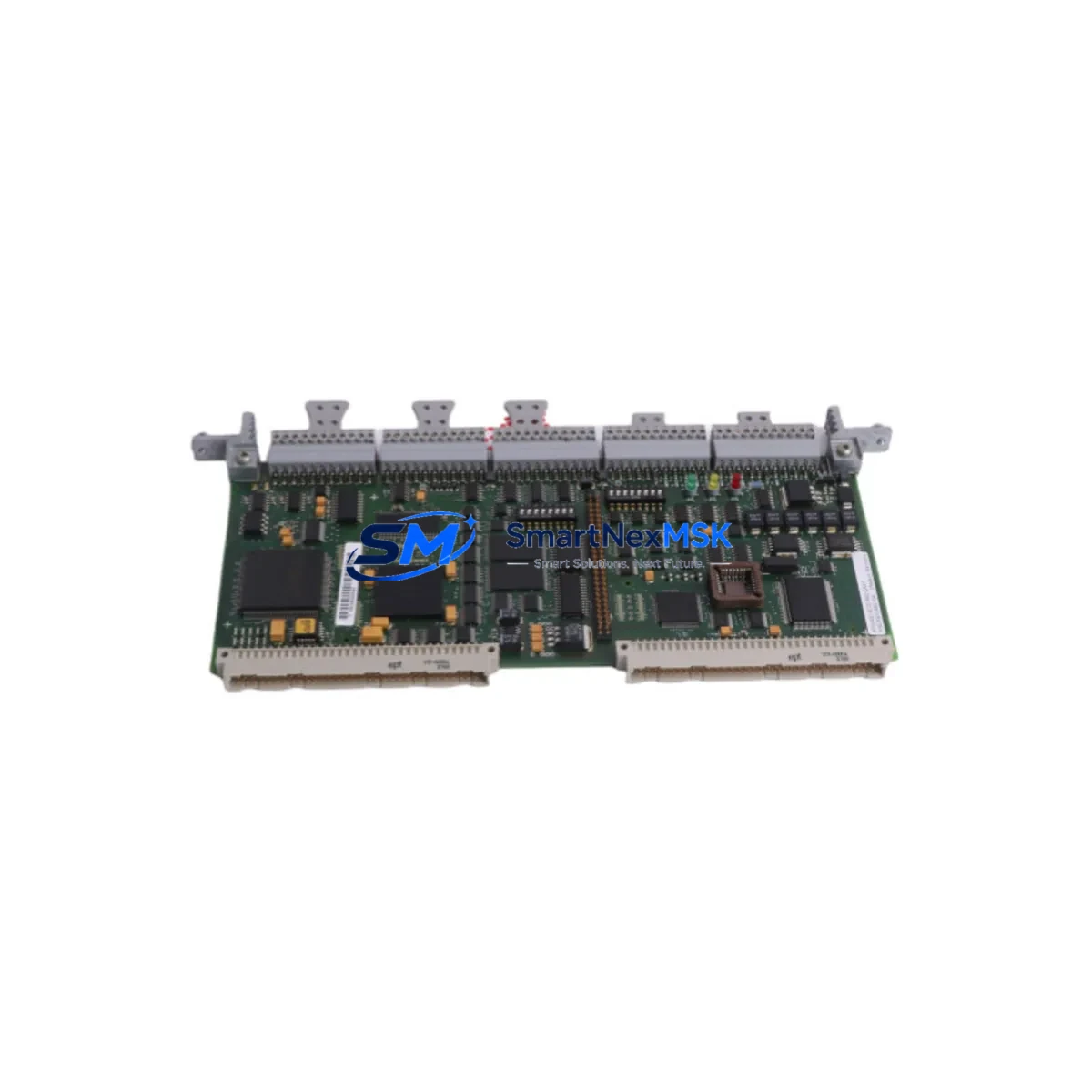

The SIEMENS 6DD1842-0AA1 is a high-reliability interface board engineered for the SIMADYN D modular control platform — one of Siemens’ most widely deployed drive and process control architectures in heavy industry. As SIMADYN D systems approach end-of-life support cycles, the 6DD1842-0AA1 has become a critical retrofit component for engineers tasked with extending operational life, replacing failed boards, or migrating legacy control cabinets to a more maintainable configuration without full system replacement.

This board serves as the primary communication and I/O interface layer within the SIMADYN D rack, bridging the processor module and field-level signals. Its compatibility with PROFIBUS-DP makes it directly applicable to modernization projects where existing field devices — including SIMATIC ET 200 distributed I/O stations, frequency converters, and third-party actuators — must remain online during the transition. Engineers replacing a failed 6DD1842-0AA1 can typically restore system operation without reprogramming the SIMATIC S5 or SIMATIC S7 host controller, provided the module address and rack slot assignment are preserved.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6DD1842-0AA1 into an existing SIMADYN D control cabinet begins with a thorough pre-replacement audit. Before removing the failed board, engineers should document the current rack slot position, module address settings (typically configured via DIP switches or jumpers on the board face), and the terminal wiring layout for any direct I/O connections. The SIMADYN D rack — often a 9-slot or 19-slot subrack — must be de-energized at the PS407 power supply module before board extraction to prevent backplane damage.

In systems where the 6DD1842-0AA1 interfaces with a CP5412 or CP5613 PROFIBUS master card installed in the host SIMATIC S7-400 or S7-300 controller, the PROFIBUS station address must be verified against the GSD file and hardware configuration in STEP 7. Mismatched addresses are the most common cause of communication faults following a board swap. After physical installation, bring the PROFIBUS segment online incrementally — starting with the 6DD1842-0AA1 node before enabling downstream ET 200M or ET 200S distributed I/O stations.

For control cabinets that also house a SIMOREG DC Master or MICROMASTER 440 drive unit communicating over the same PROFIBUS ring, it is advisable to isolate the drive segment during the board replacement to prevent spurious fault signals from propagating to the PLC. Once the 6DD1842-0AA1 is confirmed online, re-enable the drive segment and verify speed reference and feedback signals through the existing HMI screen — typically a TP270 or OP270 panel — before returning the line to production.

Projects involving I/O expansion alongside the board replacement should account for the additional current draw on the backplane. Adding SM321 digital input modules or SM331 analog input modules to the same rack requires recalculating the total load against the PS407 rated output. If the power budget is marginal, a second PS407 or an external 24 VDC rail fed through a SITOP PSU100S power supply unit should be considered before commissioning.

For sites migrating from SIMADYN D to a SIMATIC S7-1500 platform in parallel with the board replacement, the 6DD1842-0AA1 can serve as a bridge interface during the transition period, maintaining legacy signal paths while the new controller is configured and tested offline. This phased approach — keeping the SIMADYN D rack operational on the 6DD1842-0AA1 while the S7-1500 is validated — is the most effective strategy for minimizing unplanned downtime on continuous process lines.

Downtime Control During System Migration

Minimizing production interruption during a SIMADYN D interface board replacement requires a structured changeover plan. The recommended approach is a cold-swap procedure executed during a scheduled maintenance window: archive the current STEP 5 or STEP 7 program to an offline backup using a PC Adapter USB or MPI/PROFIBUS programming cable before any hardware is disturbed. This ensures that if the replacement board triggers an unexpected hardware fault, the original program logic can be reloaded without delay.

Where a hot-standby configuration is not available, the fastest path to restoration is pre-staging the 6DD1842-0AA1 with the correct module address settings before the maintenance window opens. Bench-test the board against a spare SIMADYN D rack if available, or use the Siemens hardware diagnostic tool to confirm board identity and firmware revision. On-site, limit the changeover to the board swap and address verification — defer any I/O rewiring or program modifications to a separate window to keep the critical path as short as possible.

For lines where even brief interruptions carry significant cost, consider deploying a temporary bypass relay panel to hold critical output states during the board swap interval. Document all analog and digital output states from the HMI historian or SCADA trend logs before shutdown, and verify each output against the recorded baseline during the post-swap functional test. This approach protects both the process and the original control logic, and supports the 12-month warranty validation requirement by ensuring the board is installed and commissioned under controlled conditions.

Retrofit Support FAQ

Q1: Is the 6DD1842-0AA1 a direct drop-in replacement for other SIMADYN D interface boards?
A: The 6DD1842-0AA1 is designed for direct slot replacement within the SIMADYN D rack series. Before installation, confirm that the replacement board’s hardware revision and DIP switch address settings match the original configuration. Minor revision differences between SIMADYN D interface board generations are generally backward compatible, but always cross-reference the Siemens hardware manual for your specific rack variant.

Q2: What wiring checks are required before powering on the replacement board?
A: Verify all terminal connections on the front connector against the original wiring diagram. Pay particular attention to the PROFIBUS A/B signal lines, shield termination, and any 24 VDC sense inputs. Confirm that the bus termination resistors at the physical ends of the PROFIBUS segment are correctly set — incorrect termination is a frequent cause of intermittent communication errors after a board replacement.

Q3: How is compatibility with the existing HMI and SCADA system verified after replacement?
A: After the board is installed and the PROFIBUS segment is online, navigate to the relevant HMI screen (TP270, OP270, or WinCC runtime) and confirm that all process values are updating correctly. Check the PLC diagnostic buffer in STEP 7 for any OB86 (rack failure) or OB122 (I/O access error) entries. A clean diagnostic buffer and live process values on the HMI confirm successful integration.

Q4: What does the 12-month warranty cover, and how is it validated?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. To validate warranty claims, retain the original shipment documentation and commissioning records. Boards that have been subjected to incorrect voltage, improper installation, or physical damage are excluded. Pre-shipment functional testing is performed on all units before dispatch to ensure out-of-box reliability.
