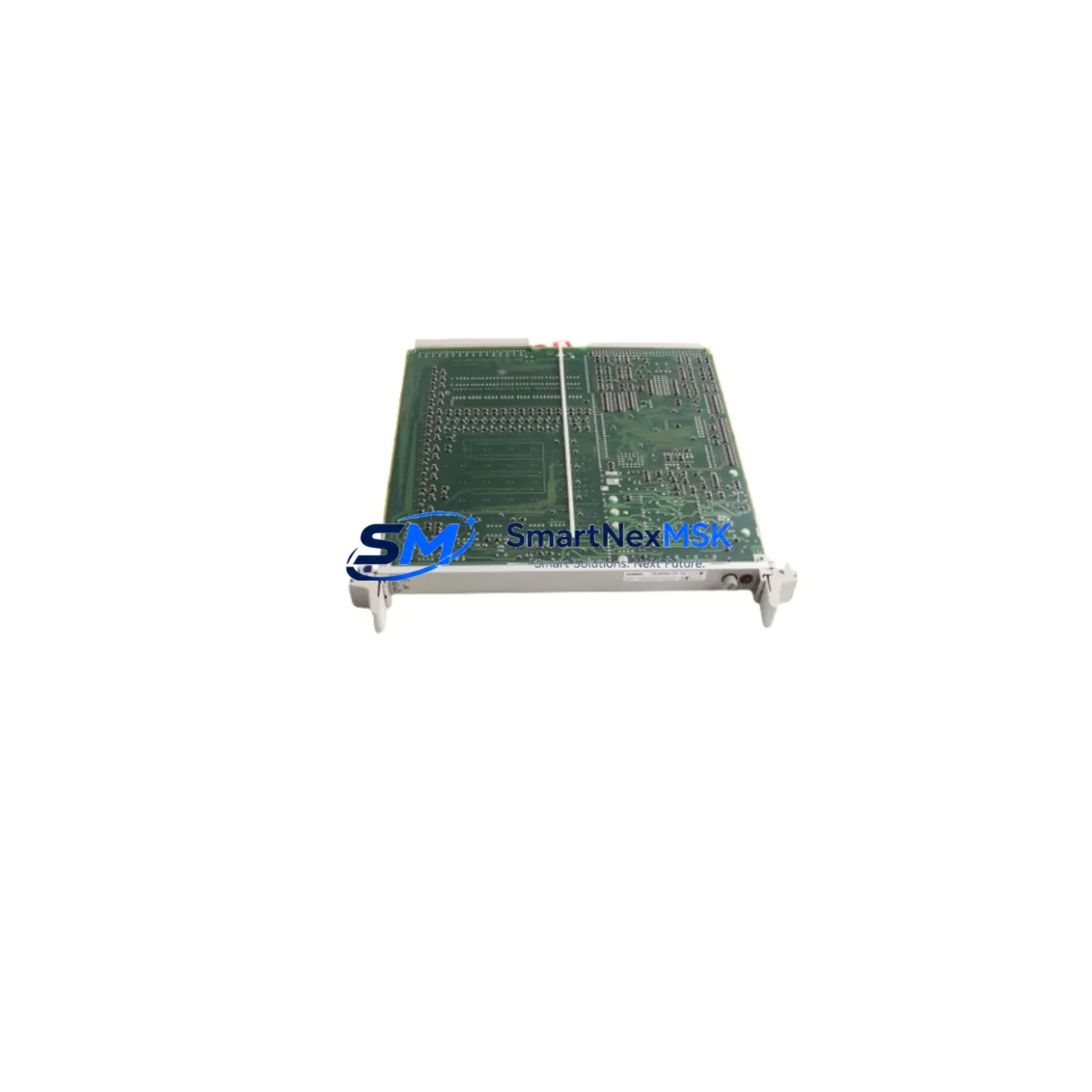

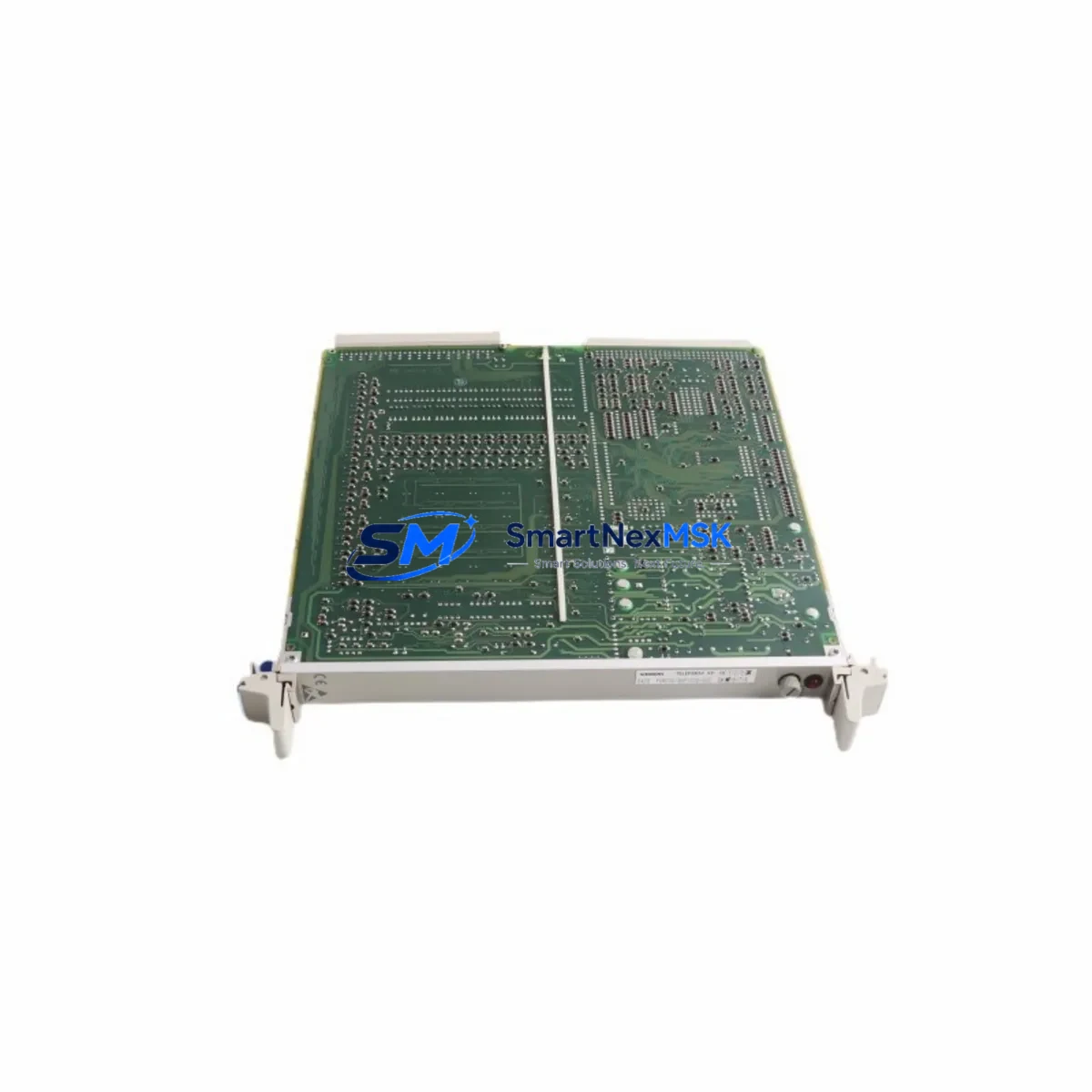

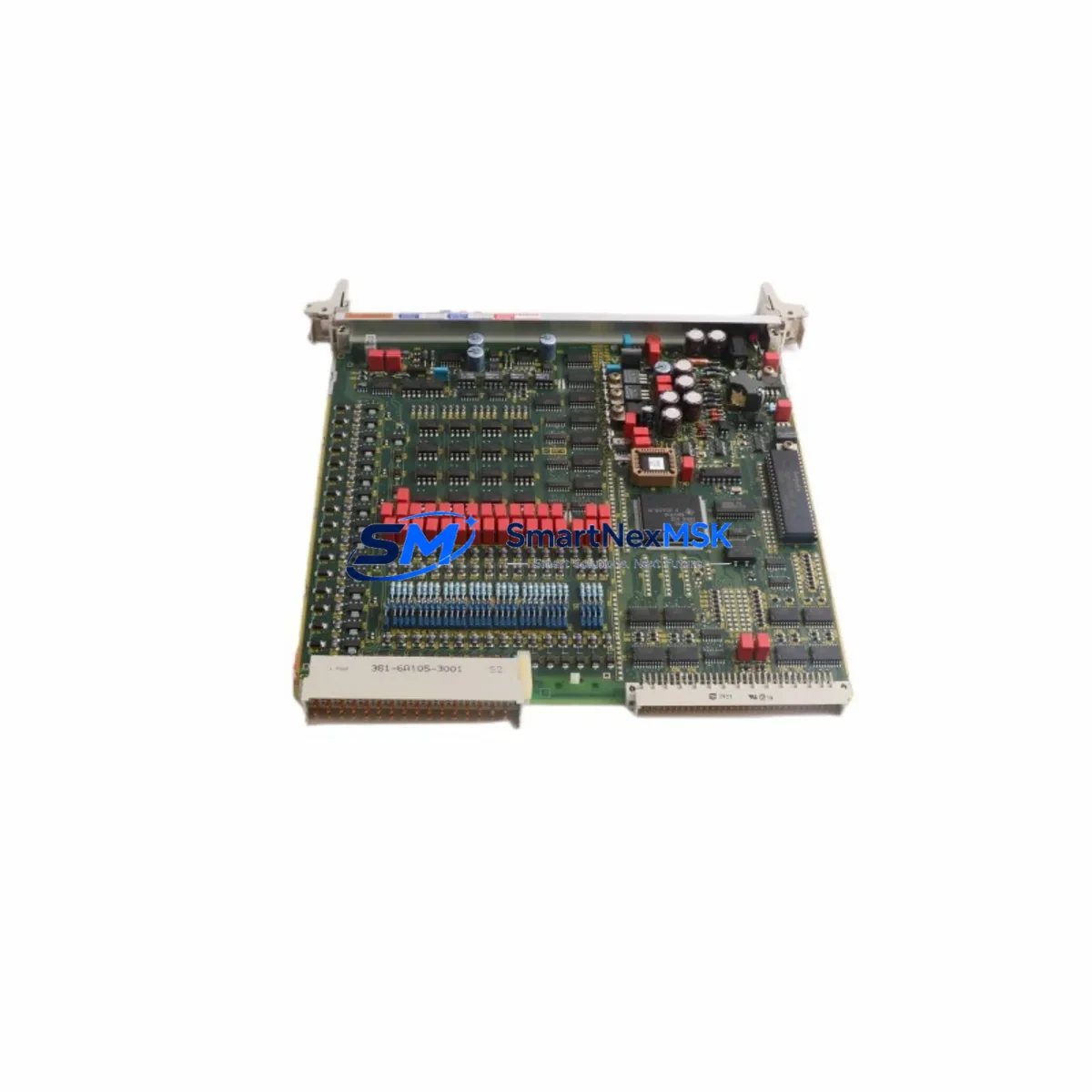

Siemens 6DP1230-8CC Safety-Enhanced Analog I/O Module

Siemens 6DP1230-8CC Safety-Enhanced Analog I/O Module: Reliable Control in Harsh Industrial Sites

The Siemens 6DP1230-8CC is a ruggedized analog input/output module engineered for the TELEPERM M Distributed Control System (DCS) — one of Siemens’ most proven process automation platforms deployed across critical industries worldwide. Designed to operate reliably in high-load, high-interference, and continuous-production environments, the 6DP1230-8CC delivers stable analog signal conditioning and I/O processing where control interruption is simply not an option.

In demanding industrial settings — including petrochemical plants, power generation facilities, metallurgical smelters, mining operations, and water treatment infrastructure — analog I/O modules are the frontline interface between field instrumentation and the control system. Signal drift, electromagnetic interference, power fluctuations, and module misfires are among the most common causes of unplanned shutdowns. The 6DP1230-8CC is built to suppress these failure modes through robust hardware design, tight signal tolerance, and proven compatibility within the TELEPERM M rack architecture.

When integrated into a control cabinet alongside the Siemens 6DP1232-8CC digital output module and the 6DP1231-8CC digital input module, the 6DP1230-8CC forms a complete I/O tier capable of handling both analog process variables and discrete safety signals within the same backplane. This tight integration reduces wiring complexity, minimizes signal path length, and lowers the risk of inter-module communication errors — all critical factors in safety interlock and emergency shutdown (ESD) loop design.

Power supply stability is a prerequisite for reliable analog measurement. The 6DP1230-8CC is designed to operate with the Siemens TELEPERM M PS power supply modules (such as the 6DP1610-8AA series), which provide regulated 24 VDC bus power with surge suppression and load isolation. In environments with frequent voltage transients — common in heavy industrial sites near large motor drives or arc furnaces — this power architecture protects the analog front-end from surge-induced offset errors and premature component degradation.

For process communication, the 6DP1230-8CC interfaces with the TELEPERM M CS275 bus system, Siemens’ proprietary high-speed process bus used across TELEPERM M installations. Paired with CS275 bus couplers and TELEPERM M central processing units (CPUs) such as the 6DP1612-8AA or 6DP1616-8AA, the module participates in deterministic scan cycles that ensure analog values are updated and acted upon within defined control intervals — a fundamental requirement for closed-loop safety control.

In critical interlock applications, the 6DP1230-8CC is often deployed alongside Siemens SIPART PS2 smart positioners and SITRANS P pressure transmitters, where it receives 4–20 mA process signals from field devices and converts them into engineering-unit values for the DCS logic. Its high common-mode rejection ratio (CMRR) and galvanic isolation between channels prevent ground loop interference — a persistent challenge in large industrial plants with long cable runs between field instruments and control rooms.

For facilities operating in classified hazardous areas (Zone 1/Zone 2 or Division 1/Division 2), the 6DP1230-8CC is typically used in conjunction with Siemens SITRANS IS barriers or third-party Zener barriers and galvanic isolators to maintain intrinsic safety compliance on the field side while preserving full analog resolution on the control side. This configuration is standard practice in offshore platforms, LNG terminals, and chemical processing units where flammable atmospheres require strict energy limitation at the field interface.

Replacement and spare parts management is a critical operational concern for any facility running legacy TELEPERM M systems. SMARTNEXMSK maintains verified stock of the 6DP1230-8CC and related TELEPERM M components, enabling rapid dispatch to minimize mean time to repair (MTTR). Every unit undergoes pre-shipment functional testing to confirm analog channel accuracy, bus communication integrity, and power consumption within specification — ensuring that replacement modules perform identically to the original factory-installed units.

Safety Reliability Table

Control Cabinet Protection Strategy

A well-engineered TELEPERM M control cabinet is a layered system where every module plays a defined role in maintaining signal integrity and process continuity. The 6DP1230-8CC occupies the analog I/O tier, but its reliable operation depends on the health of every adjacent component in the cabinet.

At the power layer, Siemens TELEPERM M PS power supply modules (6DP1610-8AA) provide the regulated 24 VDC bus that feeds the 6DP1230-8CC and all other rack modules. Surge events on the incoming AC supply — common in industrial facilities near large rotating machinery — are absorbed by the PS module’s internal protection circuitry before they can propagate to the analog front-end. For additional protection, many engineers install Phoenix Contact TRABTECH surge protection devices on the incoming supply rails to clamp transient overvoltages at the cabinet entry point.

At the digital I/O tier, the Siemens 6DP1231-8CC digital input module and 6DP1232-8CC digital output module handle discrete signals from limit switches, solenoid valves, and motor contactors. These modules share the CS275 bus with the 6DP1230-8CC, and their correct operation is essential for coordinated safety responses — for example, when an analog high-high alarm from the 6DP1230-8CC triggers a discrete shutdown command through the 6DP1232-8CC to a process isolation valve.

Communication reliability is maintained by the TELEPERM M CS275 bus coupler and the central TELEPERM M CPU module (6DP1612-8AA or 6DP1616-8AA), which orchestrate the deterministic scan cycle across all I/O modules. Any degradation in bus communication — caused by cable damage, connector oxidation, or termination resistance drift — will directly affect the 6DP1230-8CC’s ability to deliver timely analog updates to the control logic. Regular bus diagnostics and spare CPU/coupler inventory are therefore essential elements of a robust maintenance strategy.

For field-side protection in hazardous areas, Siemens SITRANS IS Zener barriers or equivalent galvanic isolators are installed between the 6DP1230-8CC’s analog input terminals and the field transmitters. These devices limit the energy that can reach the hazardous area, preventing ignition of flammable atmospheres while preserving the 4–20 mA signal accuracy that the module depends on for precise process measurement.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and reaction units, the 6DP1230-8CC monitors critical process variables — temperature, pressure, and flow — via 4–20 mA transmitters. Its galvanic isolation and high CMRR prevent ground loop errors that could cause false readings in safety interlock systems, where an incorrect analog value could delay or prevent an emergency shutdown response.

Power Generation: In coal-fired, gas turbine, and hydroelectric control rooms running TELEPERM M DCS, the 6DP1230-8CC handles analog feedback from turbine speed sensors, boiler pressure transmitters, and generator excitation systems. Its deterministic bus communication ensures that control loop updates occur within the required scan interval, maintaining stable frequency and voltage regulation under variable load conditions.

Mining & Mineral Processing: In ore processing plants and underground ventilation control systems, the 6DP1230-8CC operates in environments with high levels of vibration, dust, and electromagnetic interference from large variable-frequency drives (VFDs). Its ruggedized construction and EMI-resistant design maintain analog signal accuracy even in close proximity to high-power motor control centers.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on TELEPERM M DCS for continuous monitoring of pH, dissolved oxygen, turbidity, and flow. The 6DP1230-8CC’s multi-channel analog I/O capability allows a single module to handle multiple sensor inputs simultaneously, reducing rack space requirements and simplifying spare parts management for facility maintenance teams.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the 6DP1230-8CC must withstand extreme electromagnetic interference generated by high-current furnace electrodes and bus bars. Its shielded signal paths and robust isolation architecture maintain measurement integrity in one of the most electrically hostile environments in industrial automation.

Port & Terminal Automation: In bulk material handling and liquid terminal control systems, the 6DP1230-8CC interfaces with weighing systems, level transmitters, and flow meters to provide accurate inventory and throughput data to the TELEPERM M DCS. Reliable analog I/O is essential for custody transfer accuracy and regulatory compliance in these high-value logistics environments.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the Siemens 6DP1230-8CC?
All 6DP1230-8CC modules supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options to minimize your site downtime.

Q2: How is the 6DP1230-8CC tested before shipment?
Every unit undergoes a pre-shipment functional test that verifies analog channel accuracy, CS275 bus communication integrity, power consumption within specification, and physical connector condition. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6DP1230-8CC compatible with all TELEPERM M rack configurations?
Yes. The 6DP1230-8CC is designed for standard TELEPERM M rack slots and is compatible with all CS275 bus-based TELEPERM M configurations. If you are unsure about compatibility with your specific rack revision or CPU version, our technical team can verify compatibility based on your system documentation.

Q4: Can SMARTNEXMSK support long-term supply of 6DP1230-8CC for ongoing maintenance programs?
Yes. SMARTNEXMSK specializes in legacy DCS spare parts supply and maintains ongoing inventory of TELEPERM M components including the 6DP1230-8CC. We support planned maintenance programs, emergency replacement orders, and multi-year supply agreements to ensure your facility is never exposed to extended lead times for critical spare parts.
