Siemens 6DP1232-7AA Maintenance-Ready Spare for SIMATIC TDC

Siemens 6DP1232-7AA Maintenance-Ready Spare for SIMATIC TDC Automation

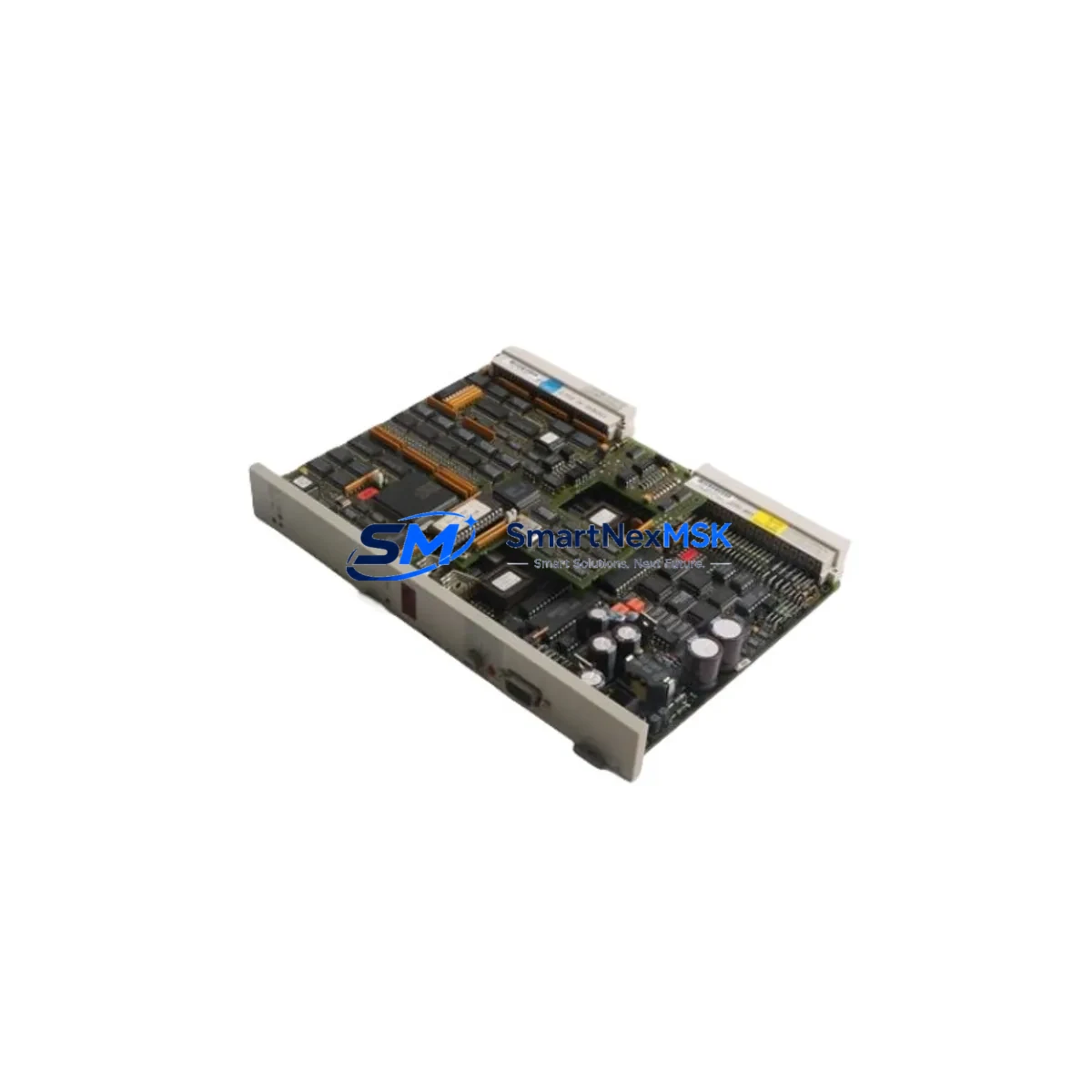

The Siemens 6DP1232-7AA is a critical control board within the SIMATIC TDC (Technology and Drive Control) platform — a high-performance automation system widely deployed in steel mills, paper machines, rolling lines, crane drives, and heavy industrial processes. When this board fails or degrades, the entire drive control loop is compromised, leading to unplanned downtime that can cost thousands of dollars per hour. Stocking a verified replacement unit of the 6DP1232-7AA is the single most effective measure a maintenance team can take to protect continuous operation.

Our 6DP1232-7AA units are sourced as original Siemens components, individually inspected, function-tested prior to dispatch, and backed by a 12-month warranty. Each unit ships with protective anti-static packaging and full traceability documentation, ensuring your maintenance team can install with confidence and your procurement team can close the purchase order without compliance risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6DP1232-7AA in a SIMATIC TDC system is rarely an isolated event. Experienced maintenance engineers know that a board-level failure in a TDC rack is often a symptom of broader stress across the control cabinet. A structured inspection during the replacement window significantly reduces the risk of a secondary failure within weeks of the repair.

When pulling the 6DP1232-7AA for replacement, the following components in the same control cabinet or electrical circuit should be inspected simultaneously:

• SIMATIC TDC Power Supply Module (e.g., 6DP1610-7AA) — Verify output voltage stability under load. A degraded PSU is a common root cause of control board failures. Check capacitor condition and ripple voltage.
• TDC Backplane / Rack Assembly — Inspect connector pins for oxidation, arcing marks, or mechanical deformation. A damaged backplane slot can destroy a new board within hours of installation.
• CPU551 or CPU555 Processor Module — Confirm firmware version compatibility with the replacement 6DP1232-7AA. Mismatched firmware revisions can cause initialization faults even with a healthy board.
• Digital I/O Modules (e.g., 6DP1232-7BA or equivalent TDC I/O boards) — Check for stuck channels, blown output drivers, or wiring faults on the field terminal side. I/O faults can cascade into control board errors.
• Communication / PROFIBUS DP Interface Module — Verify bus termination resistors and cable shielding integrity. A floating PROFIBUS segment can generate spurious faults that are misdiagnosed as board failures.
• Signal Isolation Modules — Inspect analog signal isolators on speed feedback and torque reference channels. Degraded isolation can introduce noise that stresses the control board’s analog input circuits.
• Drive Interface / Pulse Encoder Boards — Confirm encoder cable continuity and shield grounding. Encoder signal degradation is a frequent co-failure with TDC control board issues in high-vibration environments.
• Fuse and Circuit Breaker Panel — Replace any fuses that show signs of thermal stress or discoloration. Verify MCB trip ratings match the current draw of the TDC rack.
• Terminal Blocks and Wiring Harness — Re-torque all screw terminals in the control cabinet. Loose connections cause intermittent faults that are difficult to reproduce and diagnose.
• HMI / Operator Panel Interface — After board replacement, perform a full HMI communication test to confirm the TDC system is correctly reporting status to the operator station.

Procurement engineers should note that all of the above component types are available through our inventory. Consolidating your spare parts order reduces per-unit shipping costs and ensures all components arrive together for a single planned maintenance window.

Site Replacement Workflow

The 6DP1232-7AA is a direct replacement for the same SKU in any compatible SIMATIC TDC rack. No hardware modification is required. The following workflow is recommended for field replacement:

1. Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. De-energize the TDC rack and allow capacitors to discharge for a minimum of 5 minutes before opening the cabinet.
2. Document Current Configuration: Before removing the faulty board, photograph all wiring connections, DIP switch settings, and jumper positions. Record the firmware version displayed on the CPU module.
3. Board Removal: Release the ejector levers on the 6DP1232-7AA, slide the board out of the backplane slot, and place it in an ESD-safe bag for return or failure analysis.
4. Backplane Inspection: Visually inspect the vacated slot’s connector for damage before inserting the replacement unit.
5. Install Replacement: Align the replacement 6DP1232-7AA with the backplane guide rails, slide firmly until the ejector levers click into the locked position.
6. Power-Up and Diagnostics: Re-energize the rack and monitor the CPU module’s status LEDs. Confirm no fault codes are active. Run a full I/O diagnostic cycle from the HMI or engineering workstation.
7. System Handover: Document the replacement in the maintenance log, update the spare parts inventory record, and order a new 6DP1232-7AA to restore your buffer stock.

This workflow minimizes total downtime to under 2 hours for a prepared maintenance team, compared to 8–24 hours when working without a pre-stocked spare. The 6DP1232-7AA is a legacy-compatible component that allows aging SIMATIC TDC systems to continue operating without costly full-system upgrades — a critical advantage for facilities managing 15–25 year old drive infrastructure.

Spare Parts Support FAQ

Q1: Is this 6DP1232-7AA an original Siemens component or a third-party reproduction?
All 6DP1232-7AA units we supply are original Siemens components. We do not stock reproductions or reverse-engineered alternatives. Each unit is individually inspected and function-tested before shipment. Traceability documentation is available upon request for quality-controlled procurement processes.

Q2: How do I verify compatibility with my existing SIMATIC TDC system before ordering?
The 6DP1232-7AA is designed for use within the SIMATIC TDC platform. Compatibility depends on your rack configuration and firmware revision. We recommend providing your system’s CPU module part number and firmware version when placing your order. Our technical team will confirm compatibility before dispatch at no additional charge.

Q3: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact us with your order number and a description of the fault. We will arrange return shipping and provide a replacement or full refund within 5 business days of receiving the returned unit.

Q4: Can I order multiple units for buffer stock, and do you offer long-term supply agreements?
Yes. We encourage maintenance teams to hold a minimum of one spare 6DP1232-7AA in their control room inventory, particularly for systems running 24/7 operations. Volume pricing is available for orders of 3 or more units. For facilities managing multiple SIMATIC TDC systems, we can establish a long-term supply agreement with reserved stock allocation and priority dispatch to ensure you are never caught without a critical spare.
