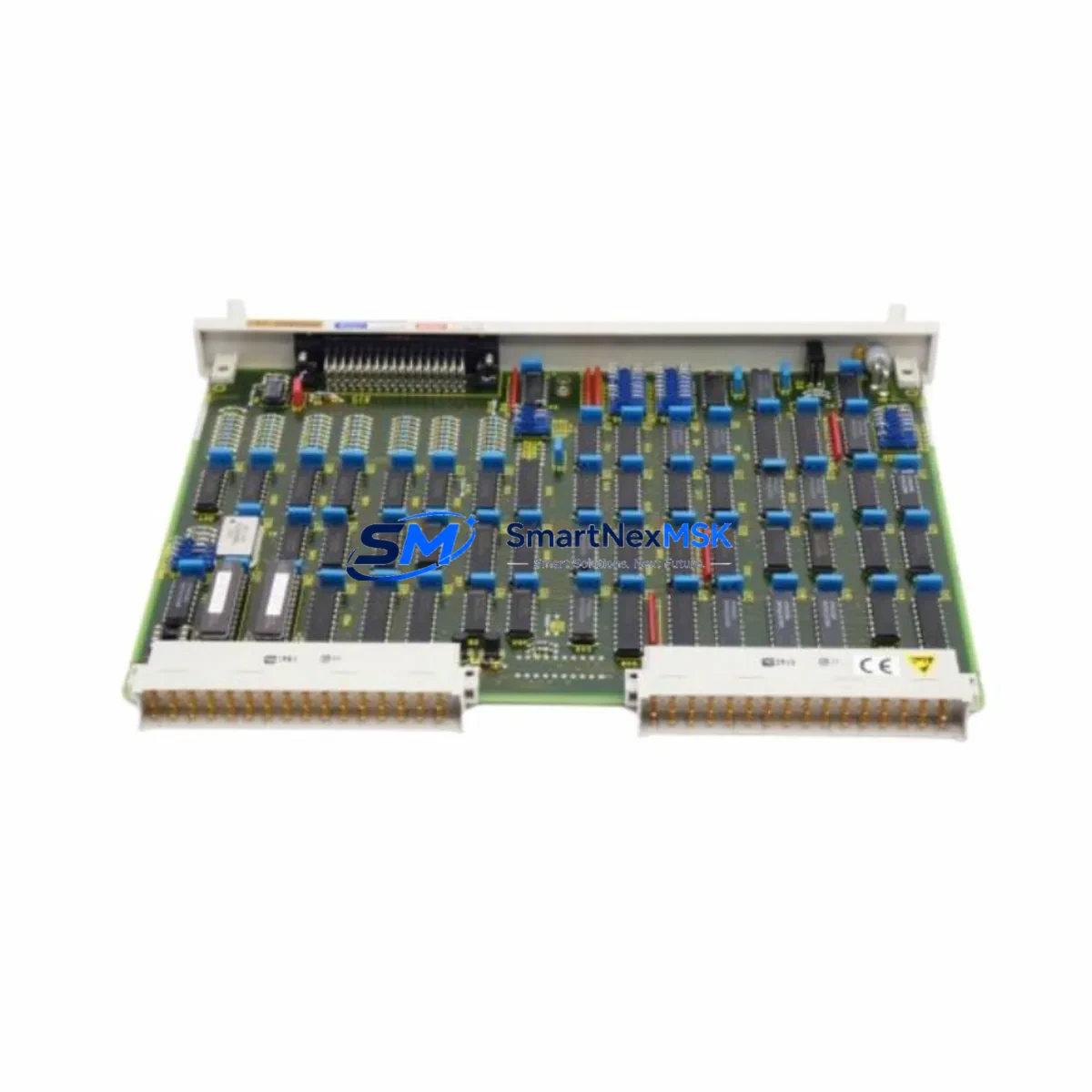

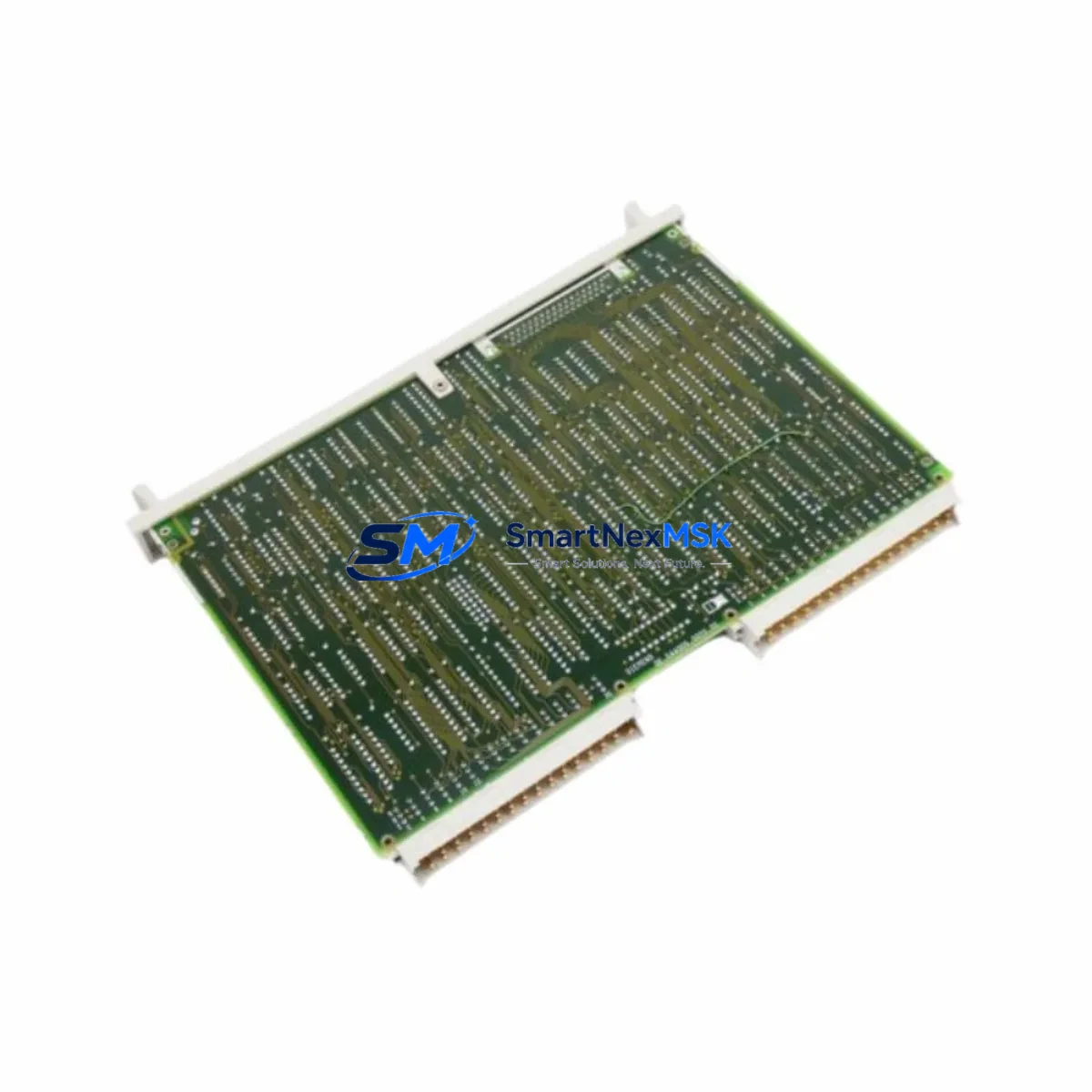

The Siemens 6DP1651-8AA is the IM651 Interface Module designed for the SIMATIC S5 ET 200 distributed I/O system. As a critical communication bridge between the central PLC rack and remote I/O stations, this module governs real-time data exchange across the SINEC L2 / PROFIBUS-DP fieldbus. When this component fails or degrades, the entire ET 200 station loses communication with the S5 CPU — triggering unplanned downtime that can cascade across production lines, conveyor systems, and process control loops.

For maintenance engineers managing legacy SIMATIC S5 installations, the 6DP1651-8AA is a non-negotiable spare. Its role in fault isolation, station recovery, and planned overhaul cycles makes it one of the highest-priority interface modules to stock. Whether you are executing a scheduled shutdown, responding to a bus fault alarm, or extending the service life of an aging control cabinet, having a tested, original-spec replacement on hand is the difference between a two-hour recovery and a two-day outage.

At SMARTNEXMSK, every 6DP1651-8AA unit is sourced from verified industrial channels, inspected against original Siemens specifications, and dispatched with a 12-month warranty. We support procurement engineers and plant maintenance teams with long-term supply continuity — not just one-off transactions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6DP1651-8AA IM651 in an ET 200 station, a disciplined maintenance engineer does not stop at swapping the interface module. The surrounding electrical environment must be verified to prevent repeat failures and ensure stable bus communication after restart.

Begin with the 24 V DC power supply module feeding the ET 200 rack — a degraded or undersized supply is a common root cause of IM651 communication faults. Inspect the PROFIBUS-DP bus connector and cable termination resistors; a missing or incorrectly placed terminator on the last station will cause intermittent bus errors that mimic interface module failure. Check the S5 CPU interface module on the central rack (such as the IM308-C or IM314) for matching firmware and address configuration.

Within the same control cabinet, inspect the digital input and output modules (e.g., 6ES5 series DI/DO cards) for signs of contact wear, blown fuses, or loose terminal connections. The terminal blocks and wiring harnesses connecting field devices to the I/O modules should be torque-checked and visually inspected for insulation degradation — particularly in high-vibration or high-temperature environments.

If the ET 200 station includes analog input modules for process signals (4–20 mA or 0–10 V), verify signal isolation integrity and check for ground loops that could corrupt readings after the interface module is replaced. For stations with relay output modules, inspect coil continuity and contact condition — relay modules in high-cycle applications often reach end-of-life around the same maintenance interval as the interface module.

Where the system includes a CP 5431 or CP 5412 communications processor on the S5 CPU rack, confirm that the PROFIBUS network parameters (baud rate, station address, watchdog timeout) are correctly configured and match the replacement IM651 settings. Finally, if the installation uses an OP (Operator Panel) or HMI terminal connected to the same PROFIBUS segment, verify that the HMI communication is restored and alarm states are cleared after the module swap.

Stocking the 6DP1651-8AA alongside complementary spares — including bus connectors, 24 V power supply modules, and a set of DI/DO cards for the same ET 200 station — is the most effective strategy for minimizing mean time to repair (MTTR) in legacy S5 installations.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the failed IM651, record the station address (set via DIP switches on the module face) and photograph the bus connector orientation. Incorrect address reassignment is the most common commissioning error after an interface module replacement.

Step 2 — Power down the ET 200 station: De-energize the 24 V DC supply to the affected ET 200 rack. Do not attempt a hot-swap unless the specific ET 200 variant explicitly supports it — the 6DP1651-8AA is a bus master interface and removal under power will trigger a bus fault on all downstream stations.

Step 3 — Install the replacement 6DP1651-8AA: Set the DIP switches to match the original station address. Seat the module firmly into the backplane connector and secure the retaining screw. Reconnect the PROFIBUS-DP bus connector, ensuring the terminating resistor is correctly positioned if this is the last station on the segment.

Step 4 — Power-up and verify: Restore 24 V DC supply and observe the module status LEDs. A steady green BF (Bus Fault) LED clearing within 5 seconds indicates successful bus integration. Monitor the S5 CPU diagnostic buffer for any residual station fault entries.

Step 5 — Functional test: Cycle the I/O signals through the restored ET 200 station and confirm that all field devices respond correctly. Update the maintenance log with the replacement date, module serial number, and post-swap test results.

This workflow applies equally to planned overhaul replacements and emergency fault recovery scenarios. The 6DP1651-8AA’s backward compatibility with the full SIMATIC S5 ET 200 product family means no firmware updates or CPU parameter changes are required in standard replacement scenarios — reducing commissioning time and downtime risk.

Spare Parts Support FAQ

Q1: Is the 6DP1651-8AA still available as a new original spare, or only as refurbished stock?
SMARTNEXMSK supplies the 6DP1651-8AA from verified industrial surplus and authorized distribution channels. Each unit undergoes functional inspection and is dispatched with a 12-month warranty. Condition (new original vs. tested surplus) is confirmed at the time of order inquiry — contact [email protected] for current stock status.

Q2: How do I verify compatibility before installation?
The 6DP1651-8AA is compatible with SIMATIC S5-115U, S5-135U, and S5-155U systems using ET 200 distributed I/O with SINEC L2 / PROFIBUS-DP. Confirm the station address range and baud rate settings in your existing S5 hardware configuration (STEP 5 project) before installation. Our technical team can assist with compatibility verification — provide your CPU type and ET 200 station configuration.

Q3: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All units are powered-on tested for bus communication functionality and LED status verification before dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage from incorrect installation, overvoltage, or environmental conditions outside the specified range. Warranty claims are processed via [email protected] with a fault description and return authorization.

Q4: Can SMARTNEXMSK support long-term supply for ongoing S5 maintenance programs?
Yes. We work with plant maintenance teams and MRO procurement engineers to establish standing spare parts agreements for legacy SIMATIC S5 and ET 200 components. If your facility operates multiple S5 installations, we can provide volume pricing, reserved stock allocation, and scheduled delivery to align with your planned maintenance intervals. Contact us at +86 18259474341 or [email protected] to discuss your program requirements.
