Siemens 6DR5210-0EG00-0AA0 Maintenance-Ready Spare SIPART PS2 Automation

Siemens 6DR5210-0EG00-0AA0 Maintenance-Ready Spare SIPART PS2 Automation

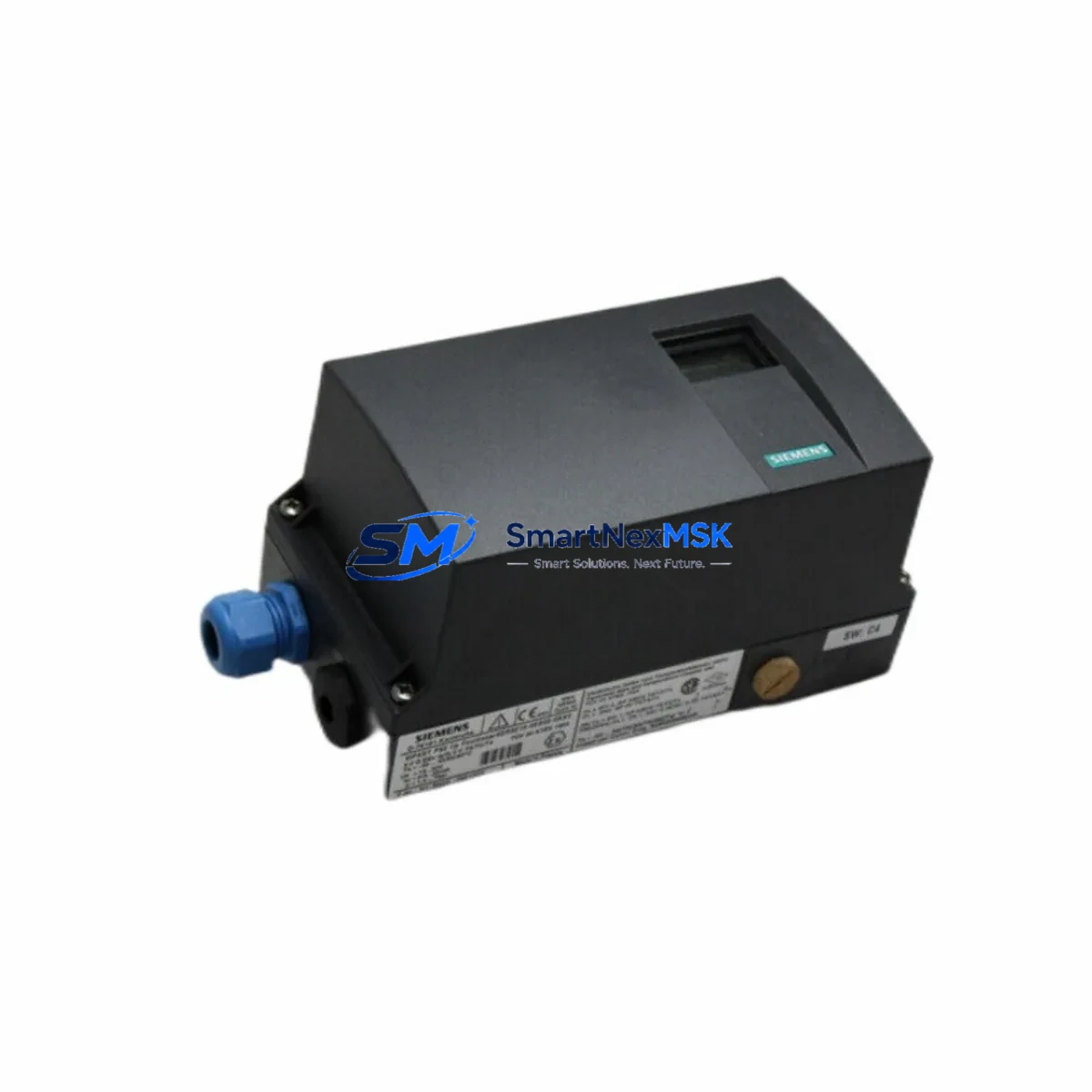

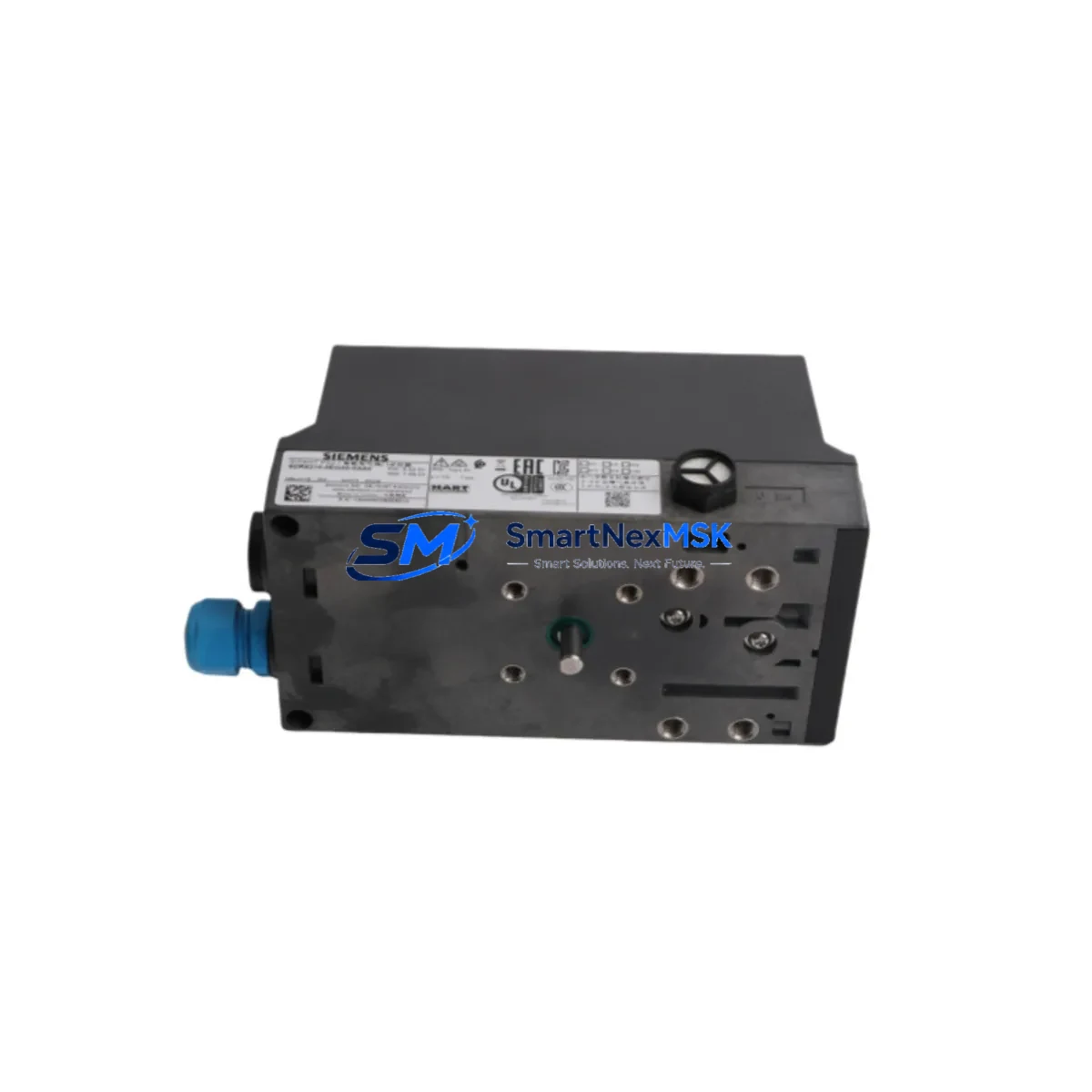

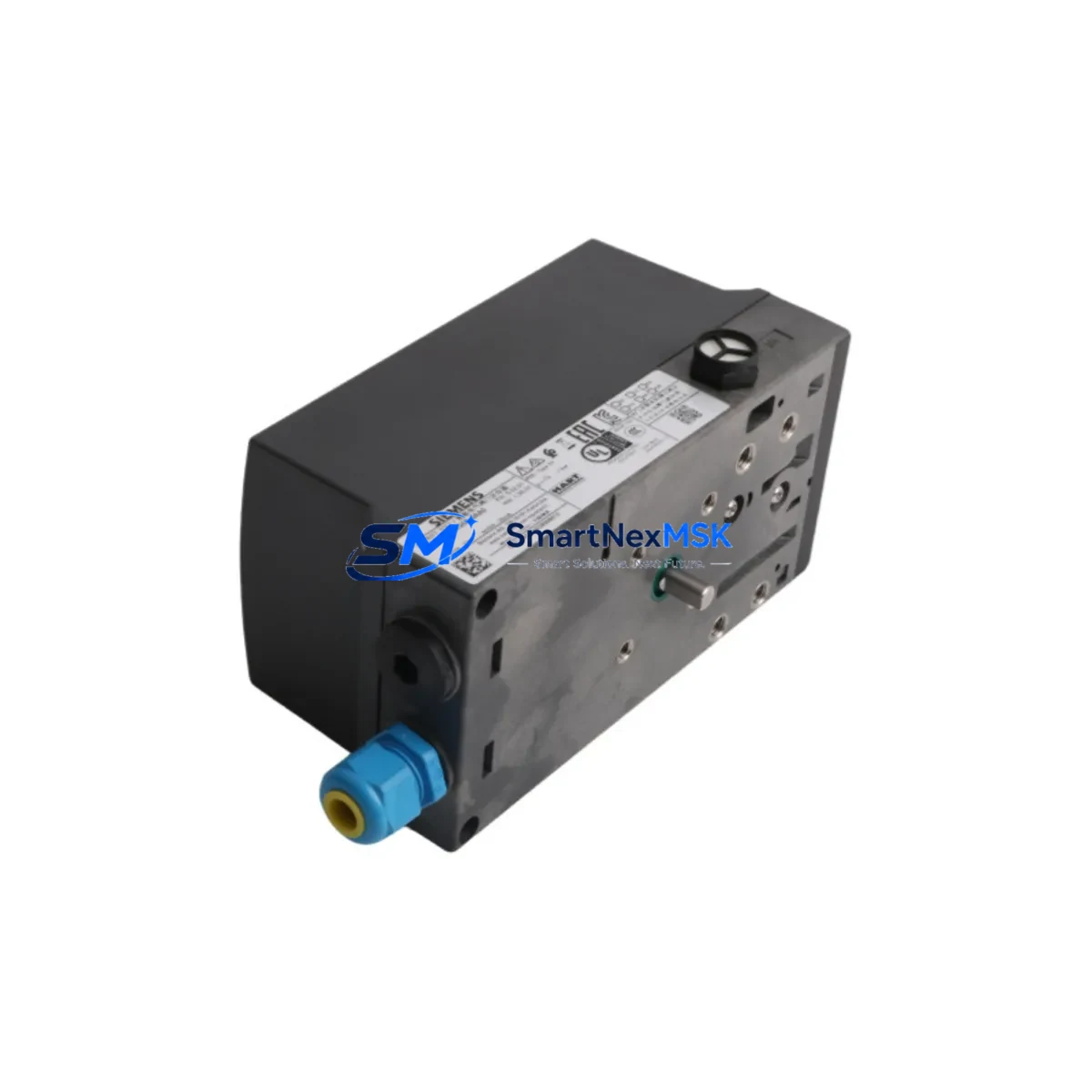

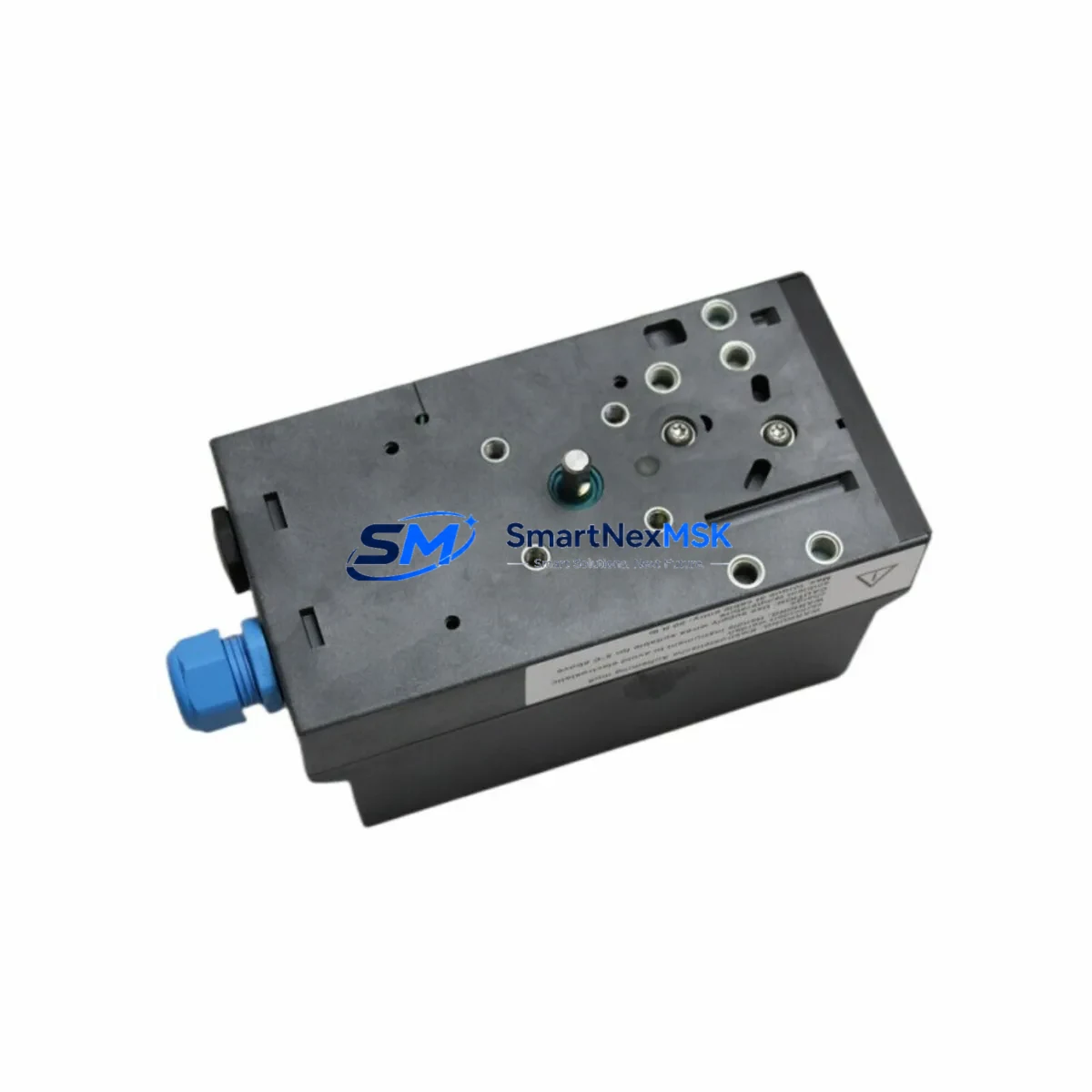

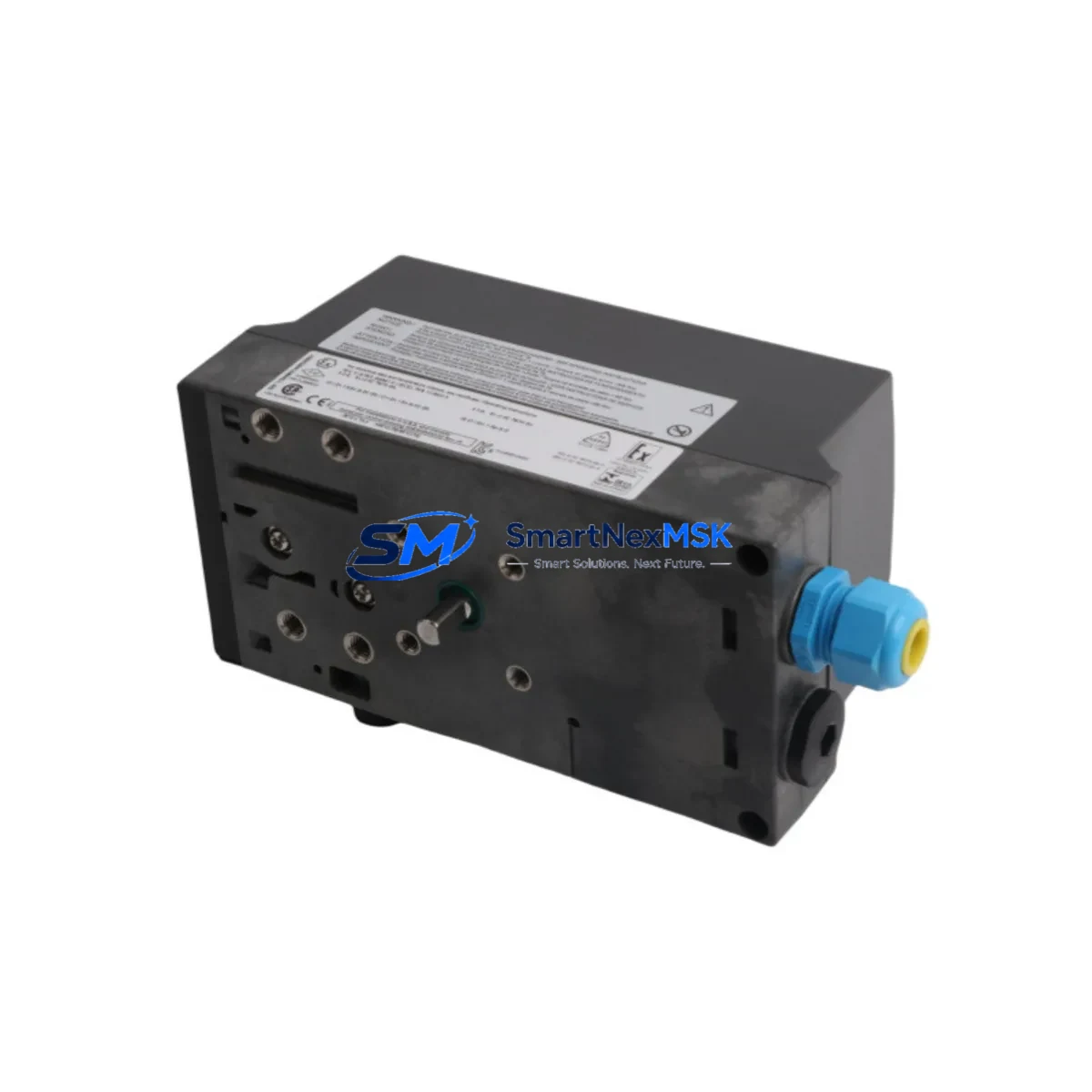

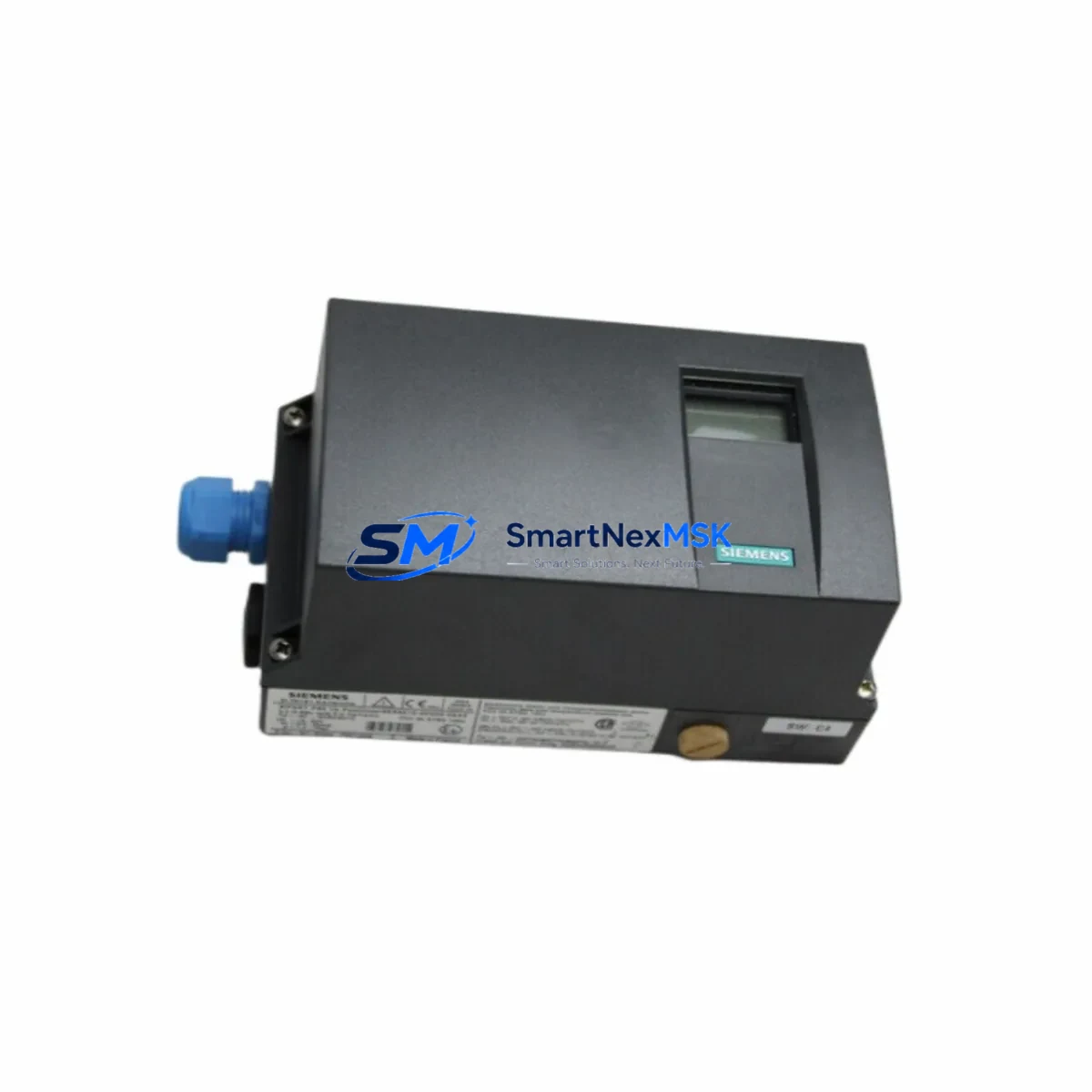

The Siemens 6DR5210-0EG00-0AA0 is a single-acting electropneumatic valve positioner from the SIPART PS2 series, engineered for precision control in process automation environments. As a maintenance-ready original spare, this unit is critical for facilities operating continuous process lines where valve positioning accuracy directly impacts throughput, product quality, and regulatory compliance. Unplanned positioner failure can trigger immediate process shutdown, making rapid access to a verified replacement essential for every maintenance and procurement team managing Siemens-based control infrastructure.

For maintenance engineers and spare parts procurement specialists, the 6DR5210-0EG00-0AA0 represents a high-priority stocking item. Its role in modulating control valves across pneumatic actuator circuits means that any degradation — whether from air supply contamination, feedback potentiometer wear, or communication faults — can cascade into broader loop instability. Keeping at least one verified unit on the shelf eliminates the lead-time risk associated with sourcing original Siemens components under emergency conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 6DR5210-0EG00-0AA0 in a live process environment, maintenance engineers should treat the positioner swap as part of a broader valve loop inspection. Begin by verifying the integrity of the 4–20 mA control signal from the upstream DCS output card — a degraded analog output module can mask positioner faults or cause premature failure of a new unit. If the plant runs on a Siemens SIMATIC PCS 7 or S7-400 platform, confirm that the relevant AI/AO module (such as a 6ES7 series analog card) is within calibration tolerance before commissioning the replacement positioner.

Inspect the pneumatic supply circuit thoroughly. The air filter-regulator upstream of the positioner should be serviced or replaced concurrently — contaminated instrument air is a leading cause of positioner spool valve wear. Check the solenoid valve in the fail-safe circuit and the volume booster if one is installed, as these components share the same air supply and failure modes. Tubing fittings and compression connectors should be leak-tested after reassembly.

On the electrical side, verify the cable gland integrity and terminal block connections inside the field junction box. Corroded terminals or loose ferrules on the signal wiring can introduce noise that disrupts HART communication with the asset management system. If the plant uses a HART multiplexer or a Siemens SITRANS FM or similar field device integration layer, re-register the new positioner’s device descriptor after installation.

For control cabinets housing the associated I/O, inspect the 24 VDC power supply rail and any installed surge protection devices on the signal lines. Relay output modules used for valve open/close limit feedback should be tested for contact resistance. If the positioner is part of a safety instrumented function, coordinate the replacement with the SIS engineer and verify proof-test documentation requirements under IEC 61511.

Procurement teams should also consider stocking complementary components from the SIPART PS2 ecosystem: the 6DR4004 series accessory modules (limit switch boxes), the 6DR5910 series spare parts kits, and compatible pneumatic tubing assemblies. For older installations where the 6DR5210-0EG00-0AA0 replaces an earlier SIPART PS1 or third-party positioner, confirm actuator stem travel range and feedback shaft adapter compatibility before ordering.

Site Replacement Workflow

Replacing the 6DR5210-0EG00-0AA0 on-site follows a structured sequence to minimize loop downtime and ensure safe handover. First, place the control loop in manual mode at the DCS workstation and confirm the valve is in its fail-safe position. Isolate the instrument air supply using the local isolation valve and vent residual pressure from the positioner body before disconnecting pneumatic tubing.

Disconnect the 4–20 mA signal wiring and HART communication leads, labeling each conductor for correct reconnection. Remove the positioner from the actuator yoke, noting the feedback linkage geometry and travel adjustment settings — photograph the existing configuration if the actuator is non-standard. Mount the replacement 6DR5210-0EG00-0AA0 using the NAMUR bracket, reconnect the feedback shaft, and perform the automatic self-calibration routine (PRST function) as described in the SIPART PS2 operating manual.

Reconnect instrument air and verify supply pressure at the positioner inlet. Restore the 4–20 mA signal and step-test the valve through 0%, 25%, 50%, 75%, and 100% travel to confirm linearity and zero/span accuracy. Re-establish HART communication and update the asset tag in the plant’s CMMS or field device management software. Return the loop to automatic control only after a stable step response is confirmed.

This workflow applies equally when upgrading from legacy positioner models or when performing like-for-like replacements during planned turnarounds. The 6DR5210-0EG00-0AA0’s backward-compatible NAMUR mounting and standard HART interface make it a direct drop-in for most single-acting pneumatic actuator applications without requiring actuator modification.

Spare Parts Support FAQ

Q1: What is the recommended spare parts stocking strategy for the 6DR5210-0EG00-0AA0?
For facilities with more than five SIPART PS2 positioners in service, maintaining a minimum of one replacement unit on-site is recommended. High-criticality loops — such as those on reactor feed, compressor anti-surge, or safety shutdown valves — warrant dedicated hot-spare inventory. Procurement lead times for original Siemens positioners can extend to several weeks through standard distribution channels; sourcing from a specialist industrial spare parts supplier with verified stock eliminates this risk.

Q2: How is the 6DR5210-0EG00-0AA0 tested before shipment?
Each unit undergoes functional verification prior to dispatch, including pneumatic output response testing, signal input linearity check, and HART communication confirmation. Units are inspected for physical condition, connector integrity, and correct labeling. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: Is the 6DR5210-0EG00-0AA0 compatible with third-party pneumatic actuators?
Yes. The positioner complies with IEC 60534-6 (NAMUR) mounting standards, making it mechanically compatible with the majority of linear and rotary pneumatic actuators from major manufacturers. Electrical compatibility requires a 4–20 mA control signal source. HART communication is optional but supported. Always verify actuator stem travel range and feedback linkage adapter requirements before installation on non-Siemens actuators.

Q4: What should I verify before installing a replacement positioner to avoid repeat failures?
Before installing the 6DR5210-0EG00-0AA0, inspect and service the instrument air filter-regulator, check the upstream analog output signal for accuracy, verify cable insulation resistance on the signal wiring, and confirm that the actuator diaphragm or piston seal is not leaking. Repeat failures are most commonly caused by contaminated air supply, signal wiring faults, or mechanical wear in the actuator rather than positioner defects. Addressing root causes before commissioning the replacement extends service life and protects the warranty.
