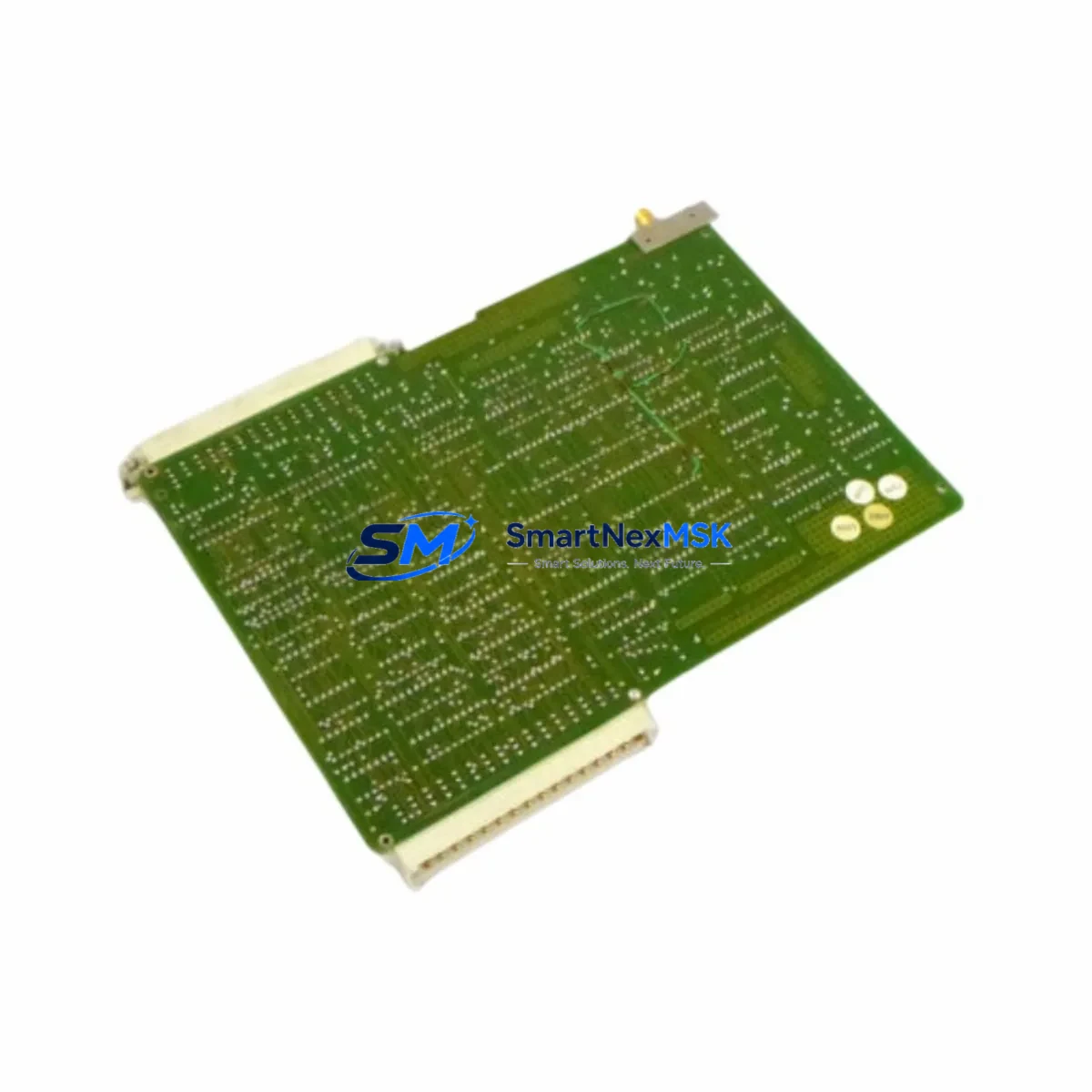

Siemens 6DS1300-8AB Retrofit-Ready Monitor Interface for TELEPERM M Control Systems
The Siemens 6DS1300-8AB is a Monitor Keyboard Interface Module engineered for the TELEPERM M distributed control system platform — one of Siemens’ most widely deployed process automation architectures in the chemical, petrochemical, power generation, and water treatment industries. As TELEPERM M hardware approaches end-of-life and spare parts become increasingly scarce, the 6DS1300-8AB remains a critical component for facilities that must maintain operational continuity without committing to a full DCS migration.
SMARTNEXMSK maintains verified stock of the 6DS1300-8AB, sourced from decommissioned systems and authorized surplus channels. Every unit undergoes functional testing prior to shipment and is backed by a 12-month warranty. Whether you are replacing a failed module on an active production line or building a strategic spare-parts inventory ahead of a planned retrofit, this module ships within 3–5 business days from confirmed order.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 6DS1300-8AB |
| Platform Compatibility | Siemens TELEPERM M (TM) DCS |
| Module Function | Monitor Keyboard Interface — connects operator station displays and input devices to the TELEPERM M backplane |
| Backplane / Rack Interface | Compatible with standard TELEPERM M subrack; verify slot assignment against your AS 230 / AS 235 configuration |
| Communication Protocol | TELEPERM M internal bus; not directly interchangeable with PROFIBUS or Industrial Ethernet without gateway modules |
| Power Supply Requirement | 24 V DC via backplane; confirm PS module (e.g., 6DS1702 series) output capacity before installation |
| Wiring Compatibility | Drop-in terminal-compatible with existing 6DS1300-8AB installations; no rewiring required for like-for-like replacement |
| Replacement Recommendation | Direct replacement for failed or degraded 6DS1300-8AB units; suitable for hot-standby spare strategy |
| Commissioning Notes | Verify module address DIP-switch settings match original unit; re-initialize HMI display mapping after swap |
| Warranty | 12 months from date of shipment — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful retrofit of a TELEPERM M system requires careful coordination across multiple hardware layers. The 6DS1300-8AB sits at the operator interface boundary, bridging the process control logic executed by the AS 230 or AS 235 automation stations with the operator workstations used by plant personnel. Before replacing this module, engineers should audit the full rack configuration — including the 6DS1702 or 6DS1703 power supply modules — to confirm that available 24 V DC capacity is sufficient to support the interface module alongside any co-installed I/O modules such as the 6DS1410 analog input module or 6DS1420 analog output module.
Terminal block wiring on the TELEPERM M subrack is typically documented in the plant’s as-built drawings. For a like-for-like 6DS1300-8AB replacement, no rewiring is required, but the commissioning engineer should verify that the module’s internal address switches are set identically to the original unit. Mismatched addressing is the most common cause of post-swap communication faults between the interface module and the OM 650 operator station or legacy OS 525 display terminals.
In facilities planning a phased migration toward modern SIMATIC PCS 7 or SIMATIC S7-400 platforms, the 6DS1300-8AB can serve as a bridge component — maintaining operator visibility and control continuity while upstream automation stations are progressively replaced. During this transition, communication gateway modules such as the 6DS9400 series may be required to translate TELEPERM M internal bus signals to PROFIBUS DP, enabling co-existence of legacy and modern I/O on the same control network. Similarly, if the facility operates 6DS1600 series digital I/O modules alongside the interface module, these should be inventoried and their firmware revisions confirmed before any rack-level changes are made.
For facilities upgrading HMI infrastructure in parallel, the replacement of legacy OS 525 terminals with modern SIMATIC WinCC-based workstations requires remapping of all HMI faceplates and alarm configurations. The 6DS1300-8AB’s role in this process is to maintain the physical keyboard and display signal path until the new HMI layer is fully validated. Programming cables compatible with the TELEPERM M platform — such as the 6DS9000 series programming interface — should be on-hand during commissioning to allow direct module diagnostics without relying on the operator station.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational constraint in any TELEPERM M retrofit. For a 6DS1300-8AB replacement, the recommended approach is a cold-swap with pre-verified spare: the replacement module is bench-tested and address-configured before the production system is taken offline. This reduces the active maintenance window to the time required for physical module extraction, insertion, and HMI re-initialization — typically 30 to 90 minutes for an experienced controls technician.
Where process conditions permit only brief interruptions, a staged approach is advisable. The existing 6DS1300-8AB can remain in service while the replacement unit is configured and verified on a test rack or simulator. Once the spare is confirmed functional, the switchover can be executed during a scheduled maintenance window or a natural process break. All original program logic residing in the AS 230 or AS 235 automation stations is unaffected by the interface module swap — no PLC program download or re-compilation is required, preserving the integrity of control sequences, PID loop parameters, and interlock logic that may have been tuned over years of operation.
For facilities without a test rack, SMARTNEXMSK can provide pre-configured units with address switches set to customer specification, further reducing on-site commissioning time. Shipment documentation includes a functional test report for each unit, which can be retained as part of the plant’s maintenance records and used to support regulatory compliance audits.
Retrofit Support FAQ
Q1: Is the 6DS1300-8AB a direct drop-in replacement for my existing unit?
Yes, for like-for-like replacement within a TELEPERM M subrack. The module is wiring-terminal compatible with existing installations. The only field adjustment required is confirming that the module address DIP switches match the original configuration. No changes to the automation station program or I/O mapping are needed.
Q2: How do I verify the module address settings before installation?
The module address is set via DIP switches on the front face of the 6DS1300-8AB. The correct address can be read from the original module (if still accessible) or retrieved from the plant’s as-built documentation. SMARTNEXMSK technical support can assist with address configuration guidance based on your system’s rack layout and slot assignment.
Q3: What testing is performed before shipment?
Every 6DS1300-8AB unit is functionally tested on a TELEPERM M-compatible test bench prior to shipment. The test verifies backplane communication, keyboard interface signal integrity, and display output. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.
Q4: Can this module be used during a phased migration to SIMATIC PCS 7?
Yes. The 6DS1300-8AB can remain in service as a bridge component during a phased migration. It maintains operator interface continuity while upstream automation stations are progressively upgraded. Communication gateway modules will be required to bridge the TELEPERM M internal bus to PROFIBUS DP or Industrial Ethernet as the migration progresses. Contact our technical team to discuss your specific migration roadmap and compatible gateway options.
