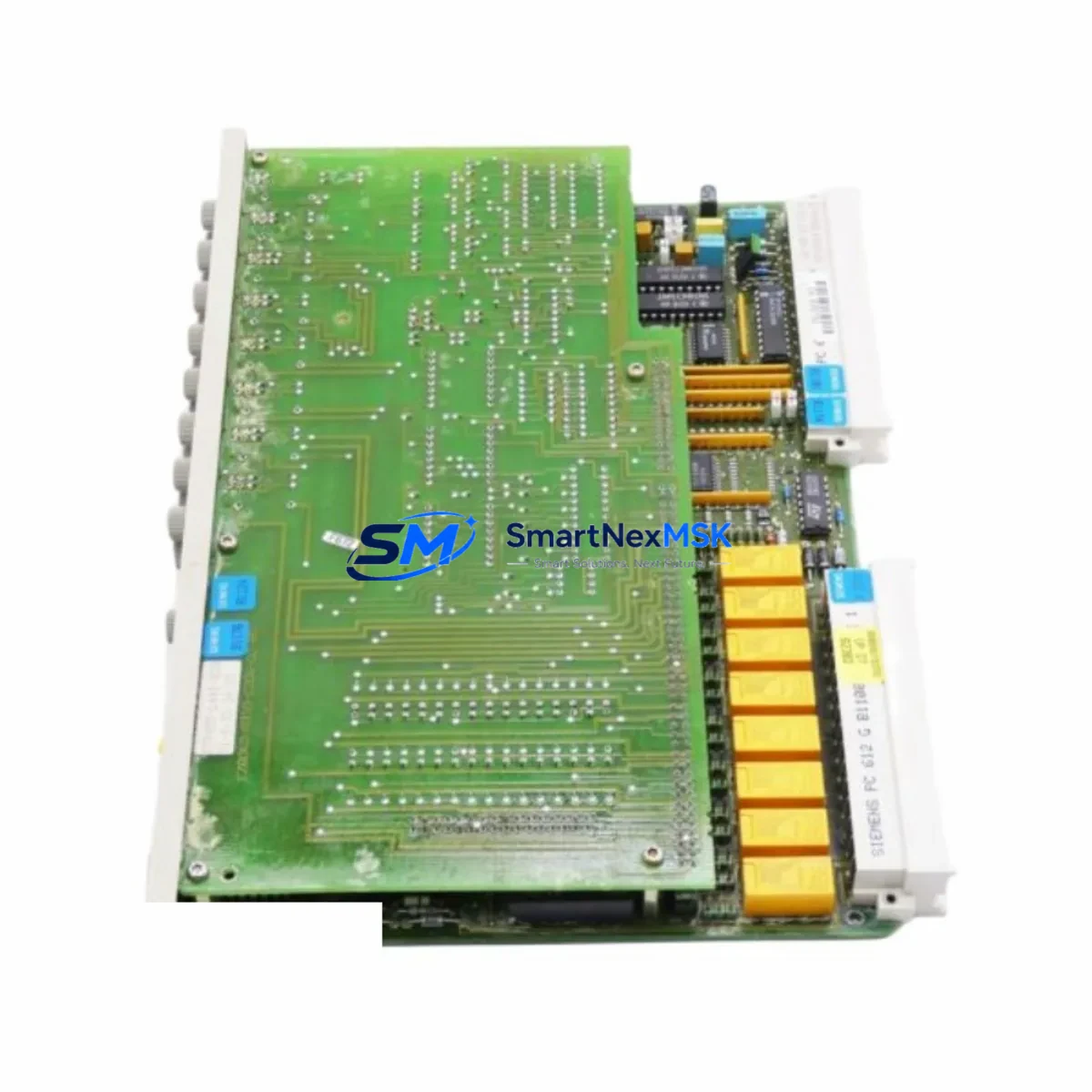

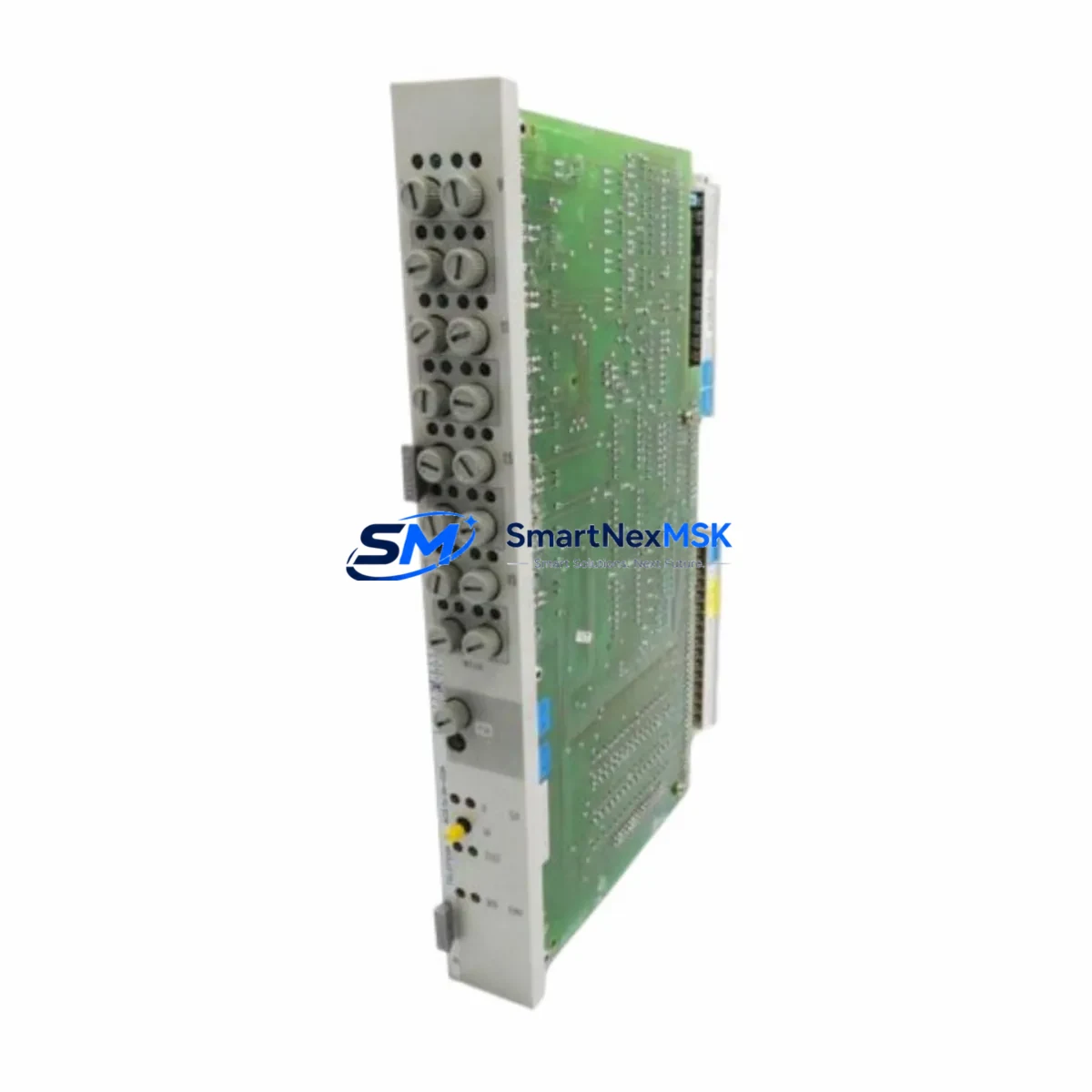

Siemens 6DS1606-8BA Retrofit-Ready Binary Output for Teleperm M Control Systems
The Siemens 6DS1606-8BA is a 16-channel binary output module originally designed for the Teleperm M distributed control system (DCS) platform. As Teleperm M has reached end-of-life and spare parts become increasingly scarce, the 6DS1606-8BA remains one of the most sought-after components for facilities maintaining legacy process control infrastructure in power generation, chemical processing, and heavy industry. SMARTNEXMSK maintains verified stock of the 6DS1606-8BA, fully tested and backed by a 12-month warranty, to support your retrofit, upgrade, or emergency replacement requirements.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Module SKU | 6DS1606-8BA |
| Platform | Siemens Teleperm M DCS |
| Function | 16-Channel Binary Output |
| Output Type | Digital relay / transistor output (24 VDC nominal) |
| Backplane Interface | Teleperm M standard bus connector (compatible with AS230, AS235 controllers) |
| Installation | Standard Teleperm M rack/subrack slot mounting |
| Communication Compatibility | Teleperm M internal bus; compatible with CS275 and SINEC H1 network segments |
| Replacement Recommendation | Direct slot-for-slot replacement; verify terminal wiring map before installation |
| Commissioning Notes | Module address must be set via DIP switch to match original configuration; verify in AS230/AS235 program |
| Warranty | 12 Months — covers functional defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Replacing the 6DS1606-8BA within a live Teleperm M environment requires careful pre-planning to avoid unplanned shutdowns. Before pulling the module, engineers should document the existing terminal wiring using the original I/O list and cross-reference it against the field cable schedule. The 6DS1606-8BA occupies a defined slot address within the Teleperm M subrack; this address is referenced directly in the AS230 or AS235 automation station program, so any replacement module must be configured with the identical DIP switch address setting.
Power budget verification is a critical step often overlooked during emergency replacements. The Teleperm M rack draws regulated 24 VDC from the 6DS1700-8AA or 6DS1700-8AB power supply modules. Before inserting the replacement 6DS1606-8BA, confirm that the rack power supply has sufficient current headroom, particularly if additional I/O modules such as the 6DS1605-8BA binary input module or 6DS1607-8BA analog output module have been added to the same subrack during previous expansions.
For facilities migrating from Teleperm M toward a modern platform such as SIMATIC PCS 7 or SIMATIC S7-400, the 6DS1606-8BA can serve as a bridge component — keeping the legacy DCS operational while the new control layer is engineered and validated in parallel. During this transition period, the CS275 bus coupler and associated SINEC H1 communication modules remain active, and the 6DS1606-8BA continues to handle field output signals without interruption. Replacement of the 6DS1601-8BA central processing module or the 6DS1602-8BA memory module should be sequenced after all I/O modules, including the 6DS1606-8BA, have been verified stable.
For I/O expansion projects, the 6DS1606-8BA is typically installed alongside the 6DS1604-8BA analog input module and 6DS1605-8BA binary input module to complete a balanced I/O complement within a single subrack. HMI screens built on Teleperm M OS or migrated to WinCC reference the binary output tags driven by the 6DS1606-8BA; tag mapping must be validated after module replacement to ensure alarm and interlock displays remain accurate. Programming cables such as the 6ES7 901-3CB30-0XA0 (for S7 cross-reference) or the original Teleperm M programming interface should be on hand during commissioning to allow live program monitoring and force-output testing.
Downtime Control During System Migration
Minimizing downtime during a 6DS1606-8BA replacement begins with a structured hot-swap assessment. While Teleperm M does not natively support hot-swap on all module types, many facilities have developed safe-state procedures that allow binary output modules to be replaced during a controlled process hold rather than a full plant shutdown. The key is to place all field devices driven by the 6DS1606-8BA outputs into a known safe state — typically de-energized — before removing the module.
Once the replacement module is seated and the DIP switch address confirmed, the AS230 or AS235 controller will automatically re-establish communication with the module on the next scan cycle. Engineers should monitor the controller diagnostic display and the Teleperm M OS alarm summary to confirm that all 16 output channels report correctly before releasing the process back to automatic control. Original program logic — including interlock conditions, output forcing, and sequence steps — is preserved in the controller memory and does not require re-download, provided the module address is correctly matched. This approach protects control continuity and eliminates the risk of logic loss during the hardware swap.
For sites where a controlled hold is not feasible, SMARTNEXMSK recommends pre-staging the replacement 6DS1606-8BA with address switches pre-set and a bench-test completed against a known-good Teleperm M rack before the maintenance window opens. This reduces on-site swap time to under 15 minutes in most cases, keeping unplanned downtime to an absolute minimum.
Retrofit Support FAQ
Q1: Is the 6DS1606-8BA a direct drop-in replacement for the original module in my Teleperm M rack?
A: Yes, provided the DIP switch module address is set to match the original configuration. The backplane connector and form factor are identical. Verify the terminal wiring map against your I/O list before reconnecting field cables.
Q2: What commissioning steps are required after installing the replacement 6DS1606-8BA?
A: After seating the module, confirm the DIP switch address matches the original, power up the rack, and monitor the AS230/AS235 diagnostic display for module acknowledgment. Force-test each of the 16 output channels from the Teleperm M OS or programming interface to verify field device response before returning to automatic mode.
Q3: Can the 6DS1606-8BA be used during a phased migration to SIMATIC PCS 7 or S7-400?
A: Yes. The 6DS1606-8BA can remain in service on the Teleperm M platform while the new control system is engineered in parallel. It continues to handle field outputs via the existing CS275 bus and SINEC H1 network until the cutover is executed and field wiring is migrated to the new I/O system.
Q4: What does the 12-month warranty cover, and how is it handled?
A: The 12-month warranty covers functional defects under normal operating conditions from the date of shipment. Each unit is tested prior to dispatch. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair. Contact [email protected] with your order reference and a description of the fault.
