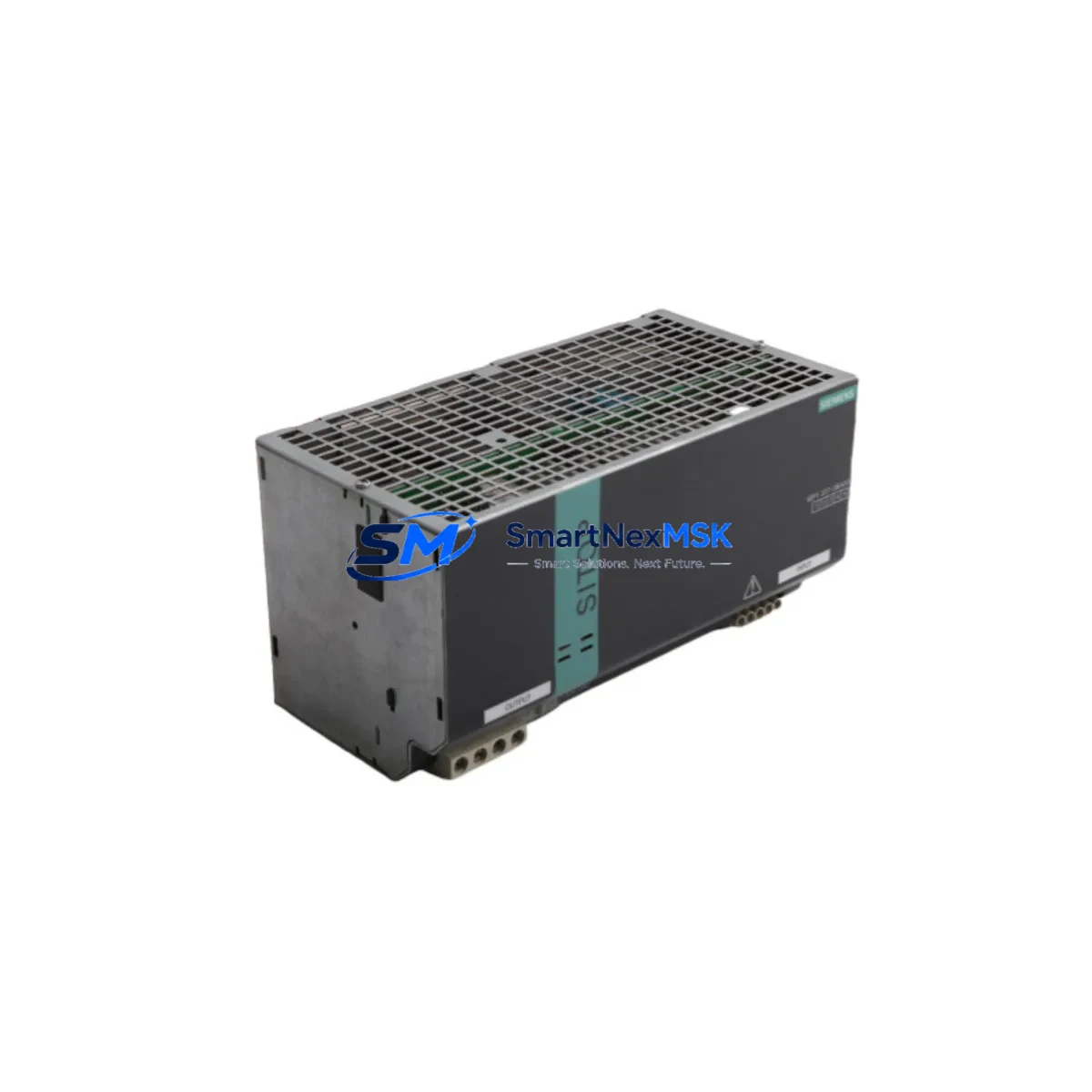

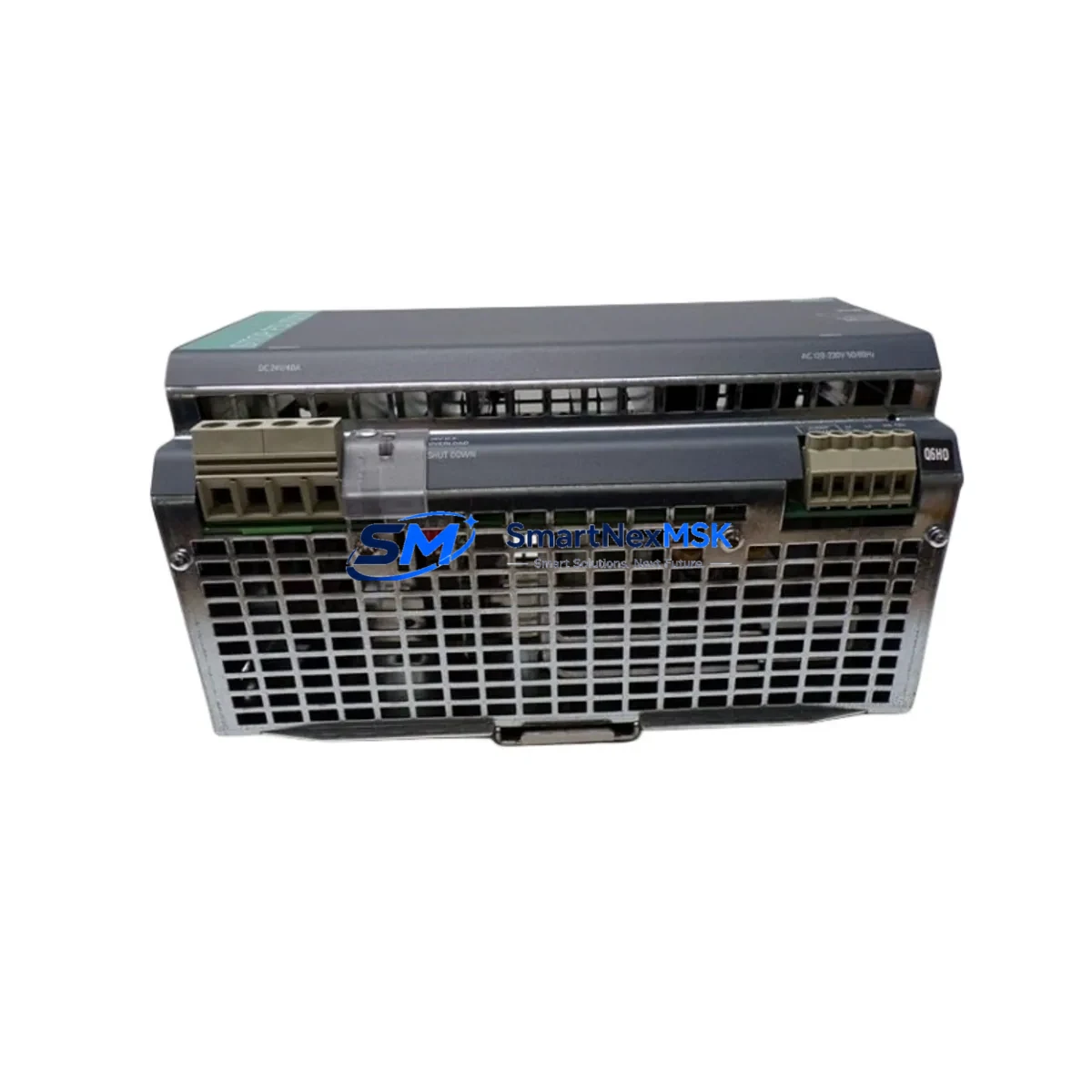

The Siemens 6EP1337-3BA00 is a SITOP Modular 40A 24VDC three-phase power supply unit engineered for continuous-duty industrial environments. As a maintenance-ready original spare, it is designed to replace aging or failed PSUs in Siemens S7-300, S7-400, and compatible PLC/DCS control cabinets with minimal downtime. Whether you are executing a planned shutdown, responding to an emergency fault, or building a strategic spare parts inventory, the 6EP1337-3BA00 delivers the electrical stability and form-factor compatibility that maintenance and procurement engineers require.

Unplanned power supply failures are among the most disruptive events in industrial automation. A failed 24VDC rail can simultaneously take down PLC CPUs, I/O modules, relay output cards, field transmitters, and HMI panels — cascading a single component fault into a full-line stoppage. Stocking the 6EP1337-3BA00 as a certified spare eliminates this risk and enables same-shift restoration of control power.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6EP1337-3BA00 in a live control cabinet, a disciplined maintenance engineer does not stop at the PSU itself. The 24VDC bus powered by this unit feeds a wide range of downstream components, each of which should be inspected or tested during the same maintenance window to prevent repeat faults and maximize the value of the planned outage.

Start with the input power circuit: verify the three-phase AC supply voltage at the terminal block, check the upstream fuse or circuit breaker (typically a 3-pole 16A MCB), and inspect the input wiring for insulation degradation or loose terminations. A failing input fuse or undersized breaker is a common root cause of PSU stress and premature failure.

On the DC output side, inspect the 24VDC distribution terminal blocks and bus bars for signs of overheating, discoloration, or oxidation. Measure the output voltage under load — values outside the 22.8–28.8 V adjustment range indicate either a failing PSU or excessive load on the rail. If the cabinet uses a SITOP UPS module (such as the 6EP1931-2EC41 or 6EP1931-2FC21) for buffer power during mains interruptions, verify its battery health and charge status simultaneously.

Inspect all Siemens S7-300 or S7-400 CPU modules connected to this power rail — the CPU 315-2 DP, CPU 317-2 PN/DP, or CPU 414-3 PN/DP are common co-residents in SITOP-powered cabinets. Check the CPU’s STOP/RUN LED status and review the diagnostic buffer for any power-related fault entries logged prior to the PSU failure.

Review the digital and analog I/O modules (SM 321, SM 322, SM 331, SM 332 series) for correct 24VDC supply voltage at their L+ terminals. A momentary power dip from a degrading PSU can corrupt I/O module configuration or trigger nuisance faults in field devices. Similarly, inspect any CP communication modules (CP 343-1, CP 443-1) for Ethernet or PROFIBUS connectivity — these modules are sensitive to supply voltage transients.

For cabinets with relay output modules or standalone relay banks, verify coil voltage and contact integrity. Relay coils operating on the 24VDC bus are often the first components to show stress from an unstable power supply. Check signal isolators and loop-powered transmitters on the 4–20 mA circuits — a sagging 24VDC rail will shift transmitter zero and span, causing false process readings before the PSU fully fails.

Finally, inspect the HMI panel (TP700, TP900, or KTP series) power input and the PROFIBUS or PROFINET network switches sharing the same cabinet power rail. Document all findings in the maintenance log and update the spare parts BOM to reflect the 6EP1337-3BA00 as a stocked critical spare.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the cabinet via the main isolator. Lock out / tag out (LOTO) the three-phase AC input. Verify absence of voltage on both AC input terminals and DC output bus bars using a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring layout, terminal assignments, and DIN rail position of the failed 6EP1337-3BA00 before removal. Note the output voltage trim setting on the adjustment potentiometer.

Step 3 — Removal: Disconnect AC input wiring (L1, L2, L3, PE) and DC output wiring (+24V, 0V, PE). Release the DIN rail locking tab and slide the unit off the rail.

Step 4 — Installation: Clip the replacement 6EP1337-3BA00 onto the 35 mm DIN rail. Reconnect AC input and DC output wiring per the documented terminal layout. Torque all terminals to the manufacturer specification (typically 0.8–1.2 Nm for M3 terminals).

Step 5 — Commissioning: Restore AC power. Measure DC output voltage under no-load, then under full load. Adjust the output trim potentiometer if required to match the system setpoint (typically 24.0 V ± 1%). Verify all downstream PLC modules, I/O racks, and HMI panels power up correctly and the CPU returns to RUN mode.

Step 6 — Verification & Handover: Clear the CPU diagnostic buffer. Run a functional test of all I/O channels. Update the maintenance record with the replacement date, new unit serial number, and post-replacement voltage readings. Return the failed unit for failure analysis if required by your maintenance program.

This workflow applies equally to direct replacement of legacy SITOP 40A PSU variants and to first-time installation in refurbished or upgraded control cabinets. The 6EP1337-3BA00’s backward-compatible footprint and standard DIN rail mounting ensure it integrates into existing cabinet layouts without mechanical modification.

Spare Parts Support FAQ

Q1: Is the 6EP1337-3BA00 a direct drop-in replacement for older SITOP 40A power supplies?
Yes. The 6EP1337-3BA00 maintains the same DIN rail footprint, terminal layout, and 24VDC/40A output specification as earlier SITOP Modular 40A variants. No wiring changes or cabinet modifications are required for a direct swap. Always verify the input voltage range (3-phase 400–500 VAC) matches your site supply before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 6EP1337-3BA00 dispatched by SMARTNEXMSK undergoes output voltage verification, load regulation testing, and visual inspection for terminal and housing integrity. Units are shipped with a test record and are covered by a 12-month warranty from the date of delivery. If a unit fails within the warranty period, we provide priority replacement to minimize your downtime exposure.

Q3: How many units should I stock as critical spares?
For facilities operating multiple SITOP-powered control cabinets, we recommend a minimum of one 6EP1337-3BA00 per three cabinets sharing this PSU model, with at least one unit always on-shelf. High-criticality lines (continuous process, food & beverage, pharmaceutical) should maintain two units on-hand. Pair the PSU spare with a stocked SITOP UPS buffer module and a set of upstream MCBs to cover the full power supply chain in a single emergency kit.

Q4: Can SMARTNEXMSK support long-term supply for end-of-life or discontinued SITOP variants?
Yes. SMARTNEXMSK specializes in long-term spare parts supply for industrial automation components, including discontinued and hard-to-source Siemens SITOP models. We maintain sourcing relationships that allow us to fulfill orders for legacy PSU variants alongside current-production units. Contact our team to discuss blanket order agreements, consignment stock arrangements, or multi-year supply contracts for your maintenance program.
