Siemens 6EP3337-8SB00-0AY0 Spare for PSU8200 Automation

Siemens 6EP3337-8SB00-0AY0 Spare for PSU8200 Automation: Spare Replacement & Industrial Downtime Risk Control

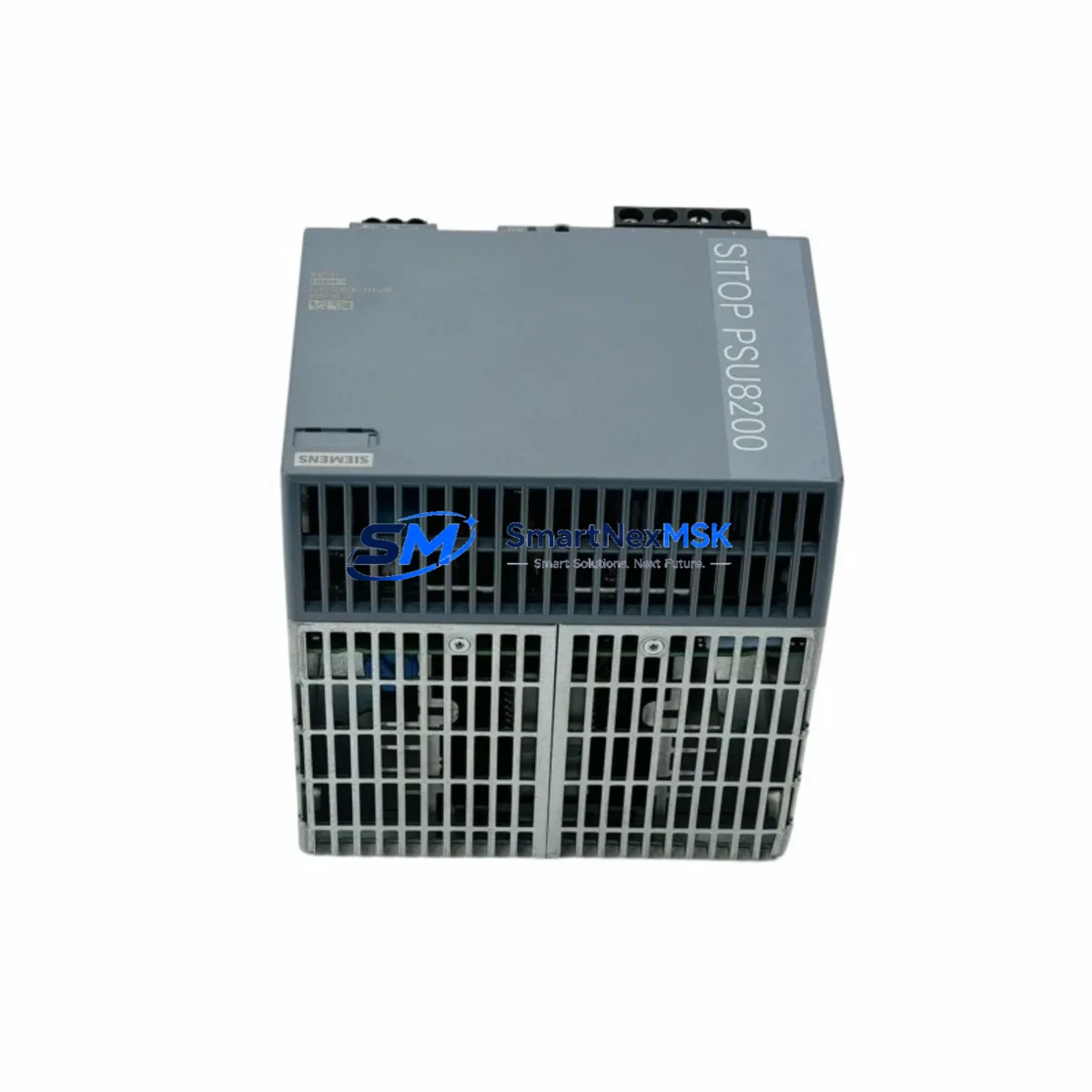

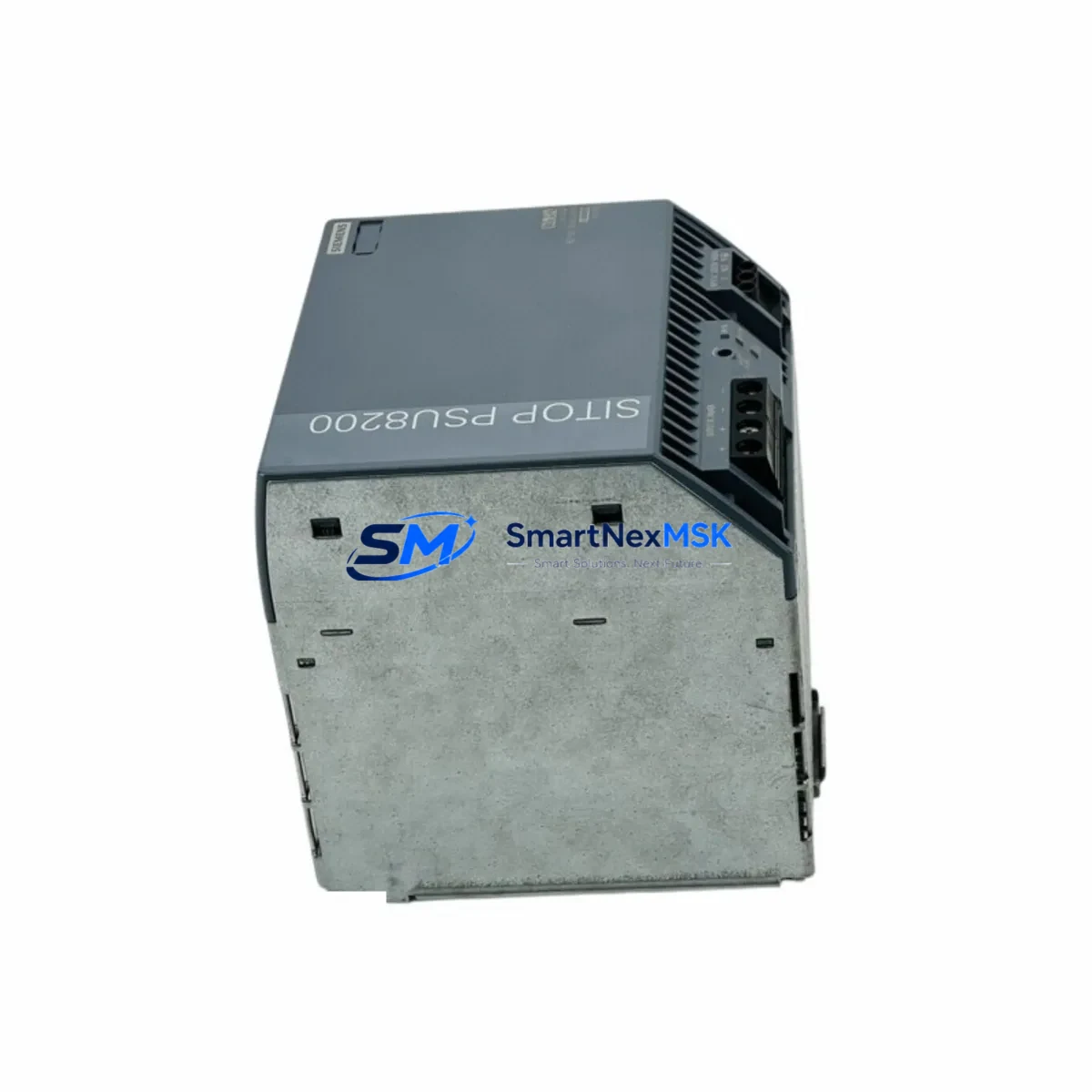

The Siemens 6EP3337-8SB00-0AY0 is a 40A stabilized DC power supply module from the SITOP PSU8200 series, engineered for continuous-duty industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and dispatched to support rapid field replacement in PLC-based control cabinets, DCS panels, and distributed I/O architectures. Whether you are executing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory, the 6EP3337-8SB00-0AY0 delivers the electrical reliability and dimensional compatibility required to restore system operation with minimal intervention.

Maintenance engineers working on Siemens S7-300, S7-400, or S7-1500 PLC systems frequently encounter power supply degradation as a root cause of intermittent faults, nuisance trips, and unexplained I/O errors. Replacing the SITOP PSU8200 module proactively — during scheduled maintenance windows — eliminates a common single point of failure and protects upstream control logic from voltage instability. Procurement engineers sourcing this unit for bonded warehouse stock benefit from our 12-month warranty coverage and pre-shipment functional testing protocol, which validates output voltage, ripple, and overload response before the unit leaves our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6EP3337-8SB00-0AY0 is flagged for replacement during a control cabinet inspection or fault investigation, experienced maintenance engineers treat the power supply swap as an opportunity to audit the entire power distribution chain. The SITOP PSU8200 feeds downstream loads including Siemens ET 200SP distributed I/O modules, S7-1500 CPU racks, and IM 155-6 interface modules — all of which should be checked for proper 24 V rail voltage after the new supply is commissioned.

Beyond the power rail itself, the replacement workflow should include verification of the 24 V DC wiring harness and terminal block connections on the DIN rail assembly. Loose or corroded terminals on Phoenix Contact or Weidmüller terminal strips are a frequent secondary cause of voltage drop complaints that are misattributed to the power supply. Inline fuse holders and miniature circuit breakers protecting individual load circuits should also be inspected and replaced if their trip characteristics have drifted.

For systems using Siemens SITOP UPS1600 or SITOP UPS500S uninterruptible power supply modules in parallel with the PSU8200, the battery module condition and DC bus coupling relay should be tested during the same maintenance window. Communication-dependent systems may also require inspection of PROFINET switches, CP 343-1 or CP 1543-1 communications processors, and any signal isolators or barriers protecting analog I/O channels from ground loops. Where the control cabinet includes a Siemens KTP700 or KTP900 HMI panel, the 24 V supply branch feeding the HMI should be load-tested independently to confirm adequate headroom after the new PSU8200 is installed.

Procurement teams building a comprehensive spare parts kit around the 6EP3337-8SB00-0AY0 typically include a SITOP PSU8200 24 V/20 A module as a secondary power tier spare, along with a selection of Siemens S7-1500 digital input/output modules to cover the most common I/O failure modes in the same cabinet. Stocking a replacement SITOP buffer module and a set of pre-crimped 24 V DC power cables further reduces mean time to repair when an emergency callout occurs outside normal business hours.

Site Replacement Workflow

The 6EP3337-8SB00-0AY0 is a direct form-fit-function replacement for earlier SITOP PSU8200 40A variants. The DIN rail footprint, terminal layout, and output connector positions are preserved across the PSU8200 generation, allowing field technicians to complete a swap without rewiring or panel modification. The replacement procedure follows a standard de-energize, isolate, verify-dead, disconnect, mount, reconnect, and re-energize sequence consistent with IEC 60364 and local electrical safety regulations.

Before powering up the replacement unit, confirm that the load current does not exceed the 40 A rated output by reviewing the cabinet load schedule or performing a clamp-meter survey on the existing supply’s output busbars. After energization, verify output voltage at the terminal block with a calibrated multimeter and confirm that all downstream PLC racks, I/O modules, and HMI panels have resumed normal operation. Log the replacement in the site maintenance management system with the unit serial number, installation date, and next scheduled inspection interval to support lifecycle tracking and warranty administration.

For legacy systems where the original PSU8200 has been discontinued or is approaching end-of-service-life, the 6EP3337-8SB00-0AY0 provides a validated upgrade path that extends system operational life without requiring a full control system redesign. This is particularly valuable in process industries where a PLC migration project may be deferred by several years due to capital budget constraints.

Spare Parts Support FAQ

Q1: Is the 6EP3337-8SB00-0AY0 covered by a warranty, and what does it include?
Yes. Every unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including output voltage verification, overload response, and ripple measurement — before dispatch. A test report is available upon request.

Q2: How do I confirm compatibility with my existing SITOP PSU8200 installation?
The 6EP3337-8SB00-0AY0 is compatible with all standard SITOP PSU8200 series installations using a 24 V DC / 40 A power tier. Verify your existing unit’s nameplate SKU and compare the input voltage range (AC 120/230 V wide-range) and DIN rail mounting dimensions. If your cabinet uses a redundancy module such as the SITOP RCD2401 or a parallel diode module, confirm that the new unit’s output characteristics are within the redundancy module’s operating envelope before installation.

Q3: What is the typical lead time, and can I order multiple units for bonded stock?
Standard in-stock units are dispatched within 1–3 business days. For bulk procurement or bonded warehouse orders, please contact our sales team directly to discuss volume pricing, staggered delivery schedules, and long-term supply agreements. We support strategic spare parts programs for OEMs, system integrators, and end-user maintenance departments.

Q4: What should I do if the replacement unit does not resolve the original fault?
If installing the 6EP3337-8SB00-0AY0 does not clear the fault condition, the root cause is likely downstream of the power supply. Proceed with systematic fault isolation: check the 24 V DC bus voltage under load, inspect individual circuit fuses and MCBs, verify PLC CPU and I/O module status LEDs, and review PROFINET diagnostic messages in the TIA Portal project. Our technical support team can assist with fault isolation guidance for SITOP PSU8200-based systems.
