Siemens 6ES5314-3UA11 Maintenance-Ready Spare S5 Automation

Siemens 6ES5314-3UA11 Maintenance-Ready Spare S5 Automation

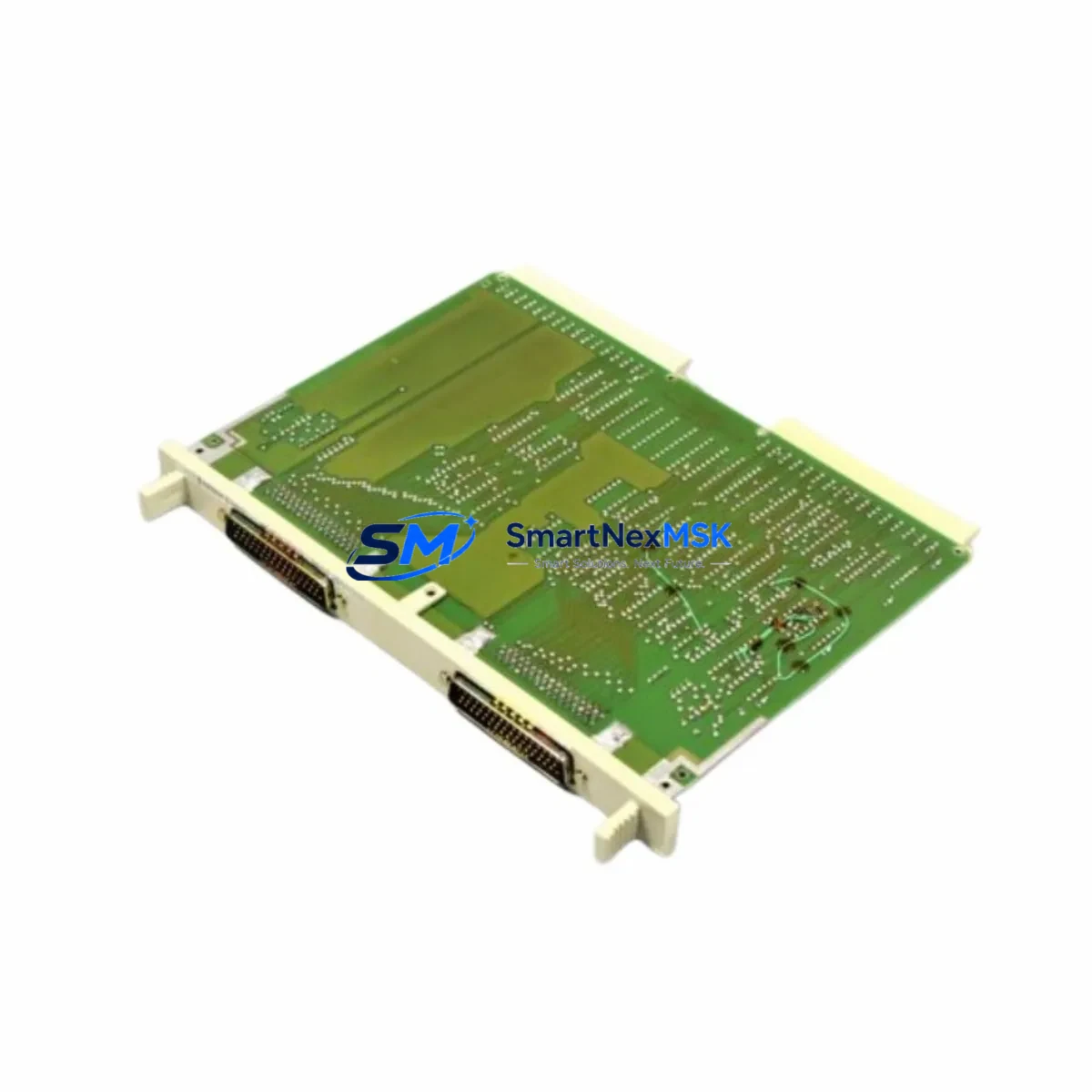

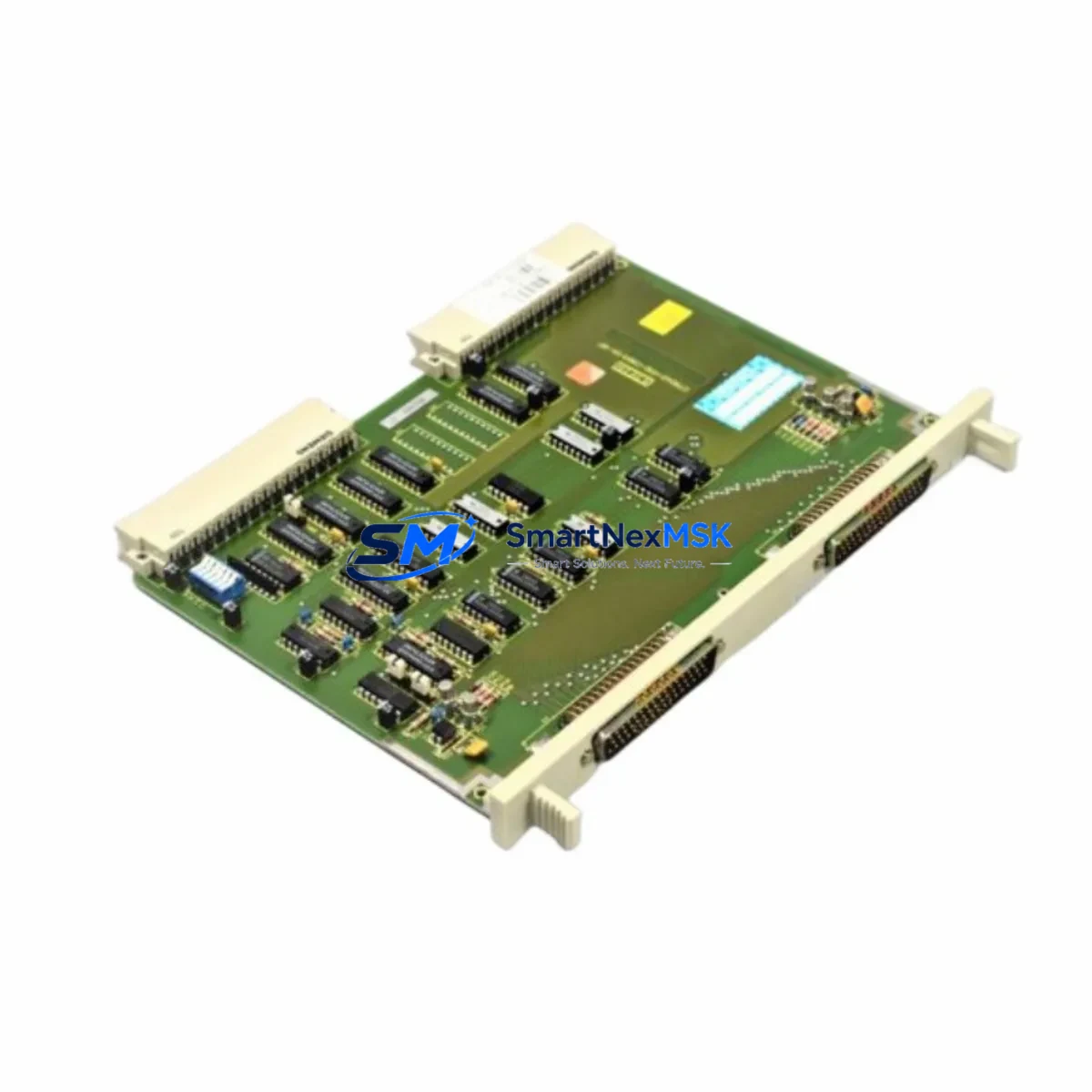

The Siemens 6ES5314-3UA11 is an original IM314 Interface Module designed for the SIMATIC S5 programmable controller family. In industrial environments where SIMATIC S5-115U, S5-135U, and S5-155U systems remain the backbone of process control, this interface module is a critical spare for maintaining multi-rack configurations and ensuring uninterrupted inter-rack communication. Sourced as an original Siemens component, the 6ES5314-3UA11 is fully tested prior to shipment and backed by a 12-month warranty, making it a reliable choice for maintenance engineers managing aging automation infrastructure.

For maintenance and procurement engineers responsible for legacy SIMATIC S5 installations, securing a verified replacement IM314 module is often the difference between a two-hour recovery and a multi-day production shutdown. The 6ES5314-3UA11 slots directly into the S5 central rack expansion bus, restoring inter-rack I/O communication without requiring software reconfiguration or hardware adaptation. Its plug-and-replace design minimizes downtime risk during emergency corrective maintenance or planned overhaul windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMATIC S5 system experiences inter-rack communication failure, the root cause is frequently the IM314 send module or its paired receive counterpart. A disciplined maintenance engineer will not replace the 6ES5314-3UA11 in isolation — a complete corrective action should also inspect the IM315 or IM316 receive interface module installed in the expansion rack, as degraded connectors or bus faults on the receive side can cause recurring failures even after the send module is replaced.

Beyond the interface modules themselves, a thorough control cabinet inspection during the same maintenance window should cover the PS951 or PS955 power supply module supplying the central rack — voltage ripple or marginal output under load is a common hidden cause of intermittent bus errors. The CPU module (such as the CPU944 or CPU945) should be checked for error LEDs and diagnostic buffer entries that may indicate whether the fault originated in the interface layer or the processor itself.

I/O integrity is equally important: SM321 digital input modules and SM322 digital output modules in the expansion rack should be verified for correct addressing and signal continuity after the interface module is replaced. If the system uses analog process signals, SM331 analog input modules should be re-calibrated and loop-checked post-replacement to confirm signal fidelity was not affected by the bus interruption.

Communication-dependent systems should also verify the CP523 or CP525 communication processor configuration, as a bus reset during module swap can occasionally clear communication parameters in older firmware versions. For systems with operator panels, the OP7 or OP17 HMI panel connection should be tested to confirm display and alarm functions are fully restored. Terminal blocks and signal isolators on field wiring should be inspected for loose terminations that may have contributed to the original fault condition. Keeping a stocked spare of the 6ES5314-3UA11 alongside its paired receive module and a spare power supply module is the recommended strategy for any facility running SIMATIC S5 in critical process applications.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the 6ES5314-3UA11, record the current rack slot position, cable routing, and any diagnostic buffer data from the CPU. Photograph the wiring and connector orientation.

Step 2 — Power down safely: De-energize the central rack following your site LOTO procedure. The IM314 is not hot-swappable; the rack must be powered off before module extraction.

Step 3 — Remove and inspect: Extract the faulty module and inspect the backplane connector for bent pins, corrosion, or debris. Clean the slot before inserting the replacement 6ES5314-3UA11.

Step 4 — Install and verify: Seat the new module firmly, restore power, and observe the CPU and IM314 status LEDs. A solid green INTF LED on the CPU confirms successful inter-rack link establishment.

Step 5 — Functional test: Cycle through I/O in the expansion rack, verify all signals in the diagnostic buffer are clear, and confirm HMI displays and process values are nominal before returning the system to production.

This workflow is compatible with direct replacement of older IM314 variants and does not require STEP 5 software changes, preserving your existing program and hardware configuration intact.

Spare Parts Support FAQ

Q1: Is the 6ES5314-3UA11 still available as a new original spare?
Yes. We supply original Siemens 6ES5314-3UA11 modules sourced from authorized channels. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty covering manufacturing defects and operational failure under normal use conditions.

Q2: How do I confirm compatibility with my existing SIMATIC S5 rack?
The 6ES5314-3UA11 (IM314) is the send-side module and must be paired with a compatible receive module — typically the IM315 (6ES5315-8MA11) or IM316 in the expansion rack. Verify your rack type (ER701-1, ER701-2, or ER701-3) and confirm the receive module part number before ordering to ensure a matched pair.

Q3: What is your recommended spare inventory strategy for SIMATIC S5 systems?
For facilities with critical S5 installations, we recommend holding at minimum one IM314 send module and one paired receive module on-site. Given the end-of-life status of the S5 platform, lead times for sourcing can be unpredictable; maintaining a local buffer stock eliminates emergency procurement delays and supports your planned maintenance schedule.

Q4: What does the 12-month warranty cover and how is it claimed?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact our support team with your order reference and a description of the fault. We will arrange priority replacement shipment or full refund based on your preference and fault verification.
