Siemens 6ES5526-3LF01 Safety-Enhanced Serial CP for Harsh Sites

Siemens 6ES5526-3LF01 Safety-Enhanced Serial CP for Harsh Industrial Sites

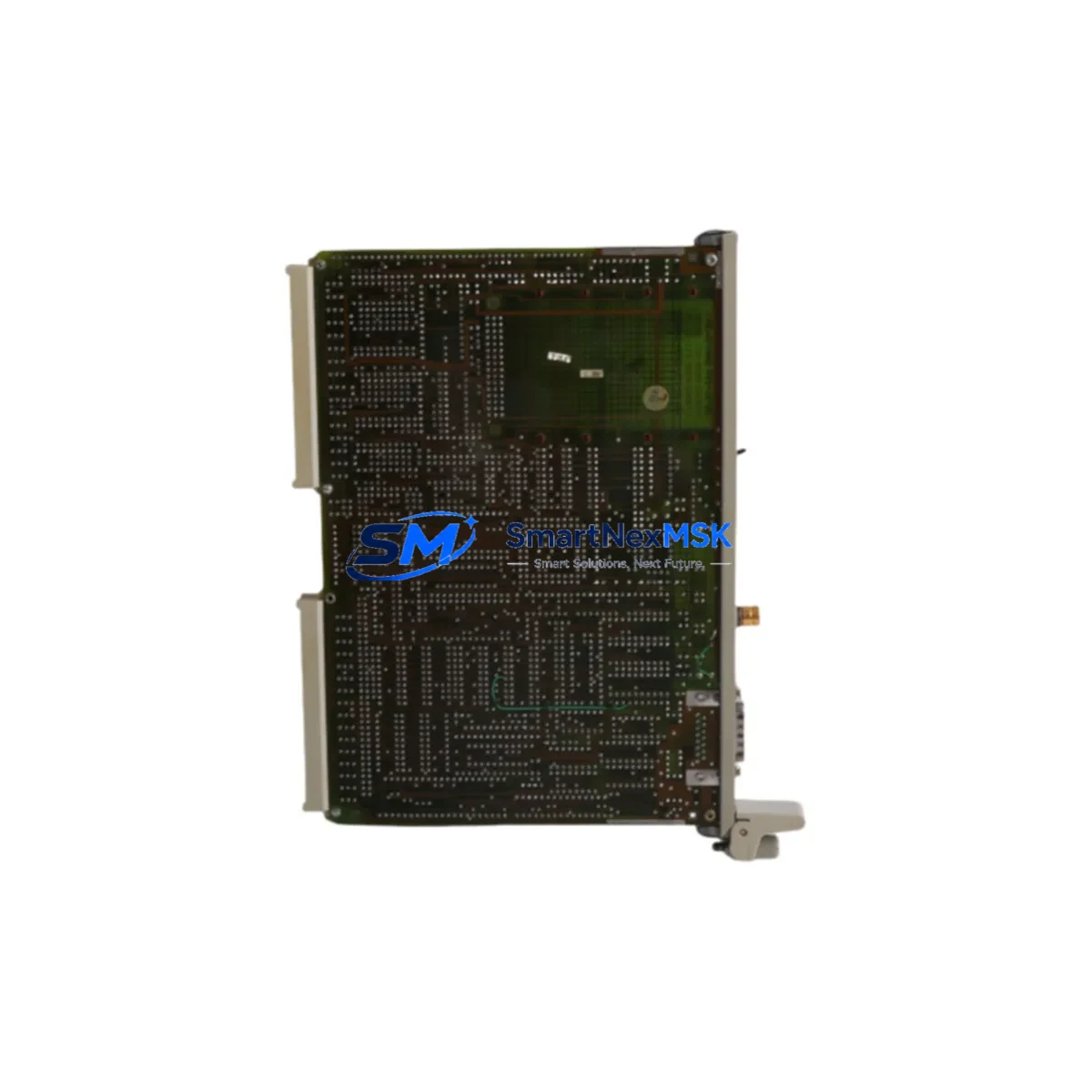

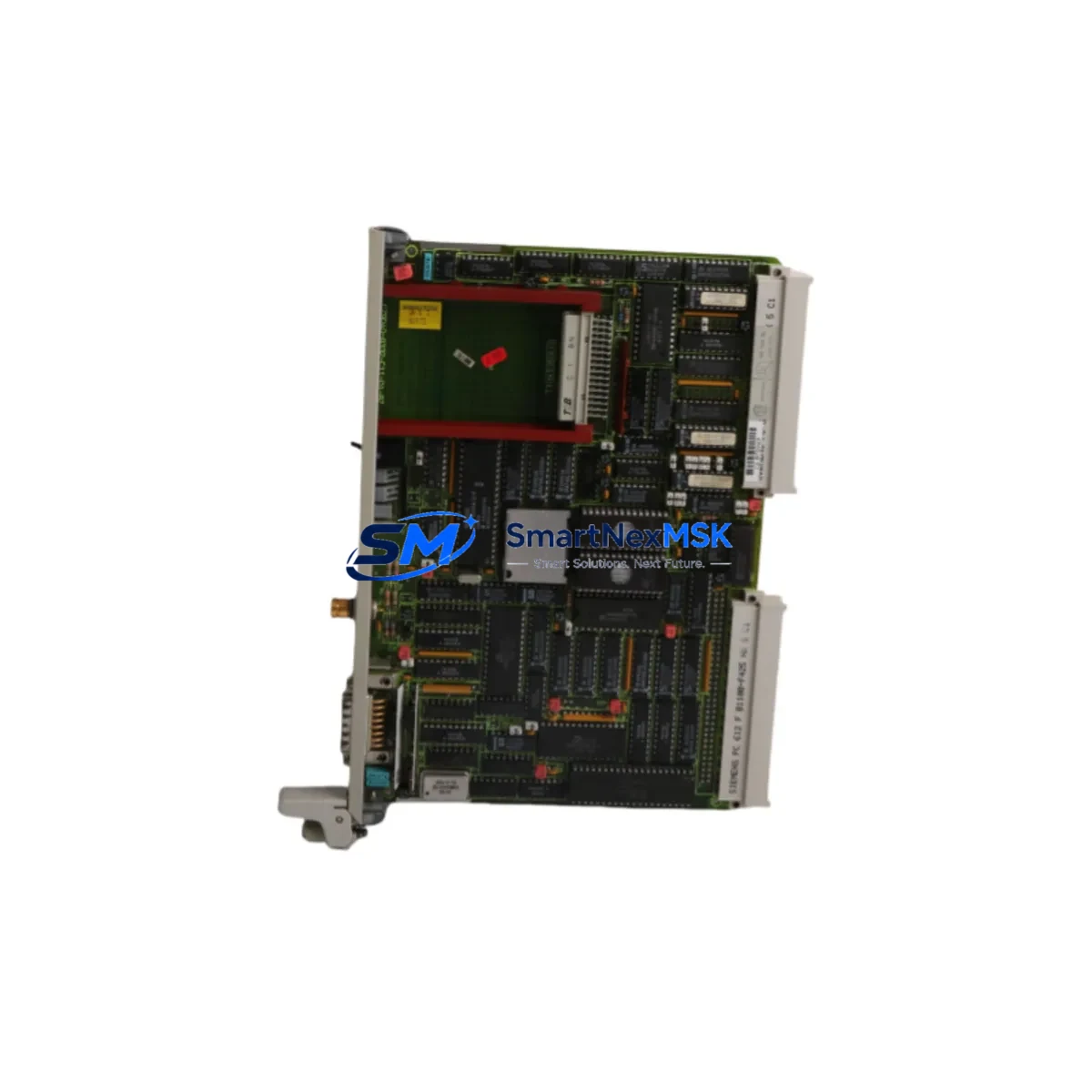

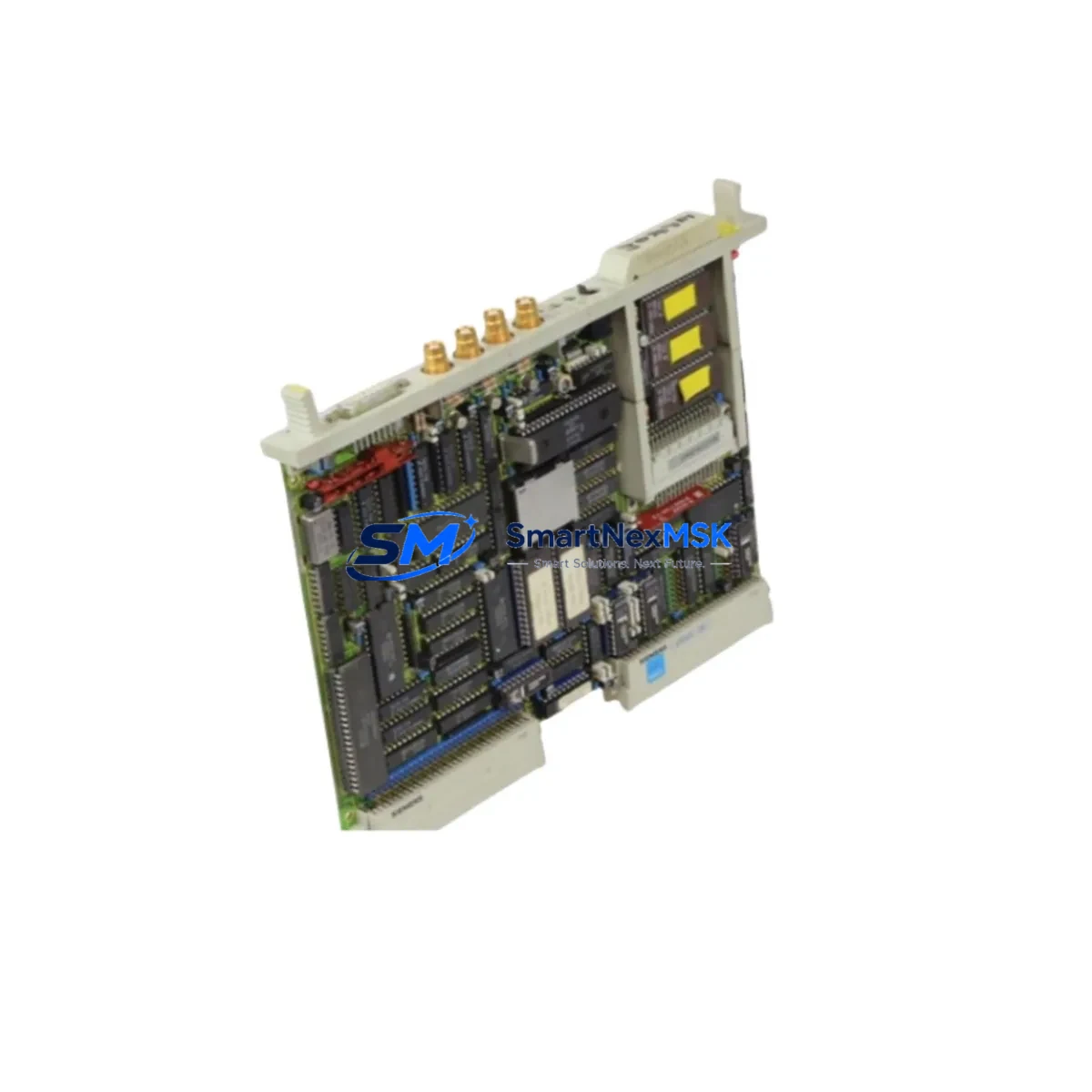

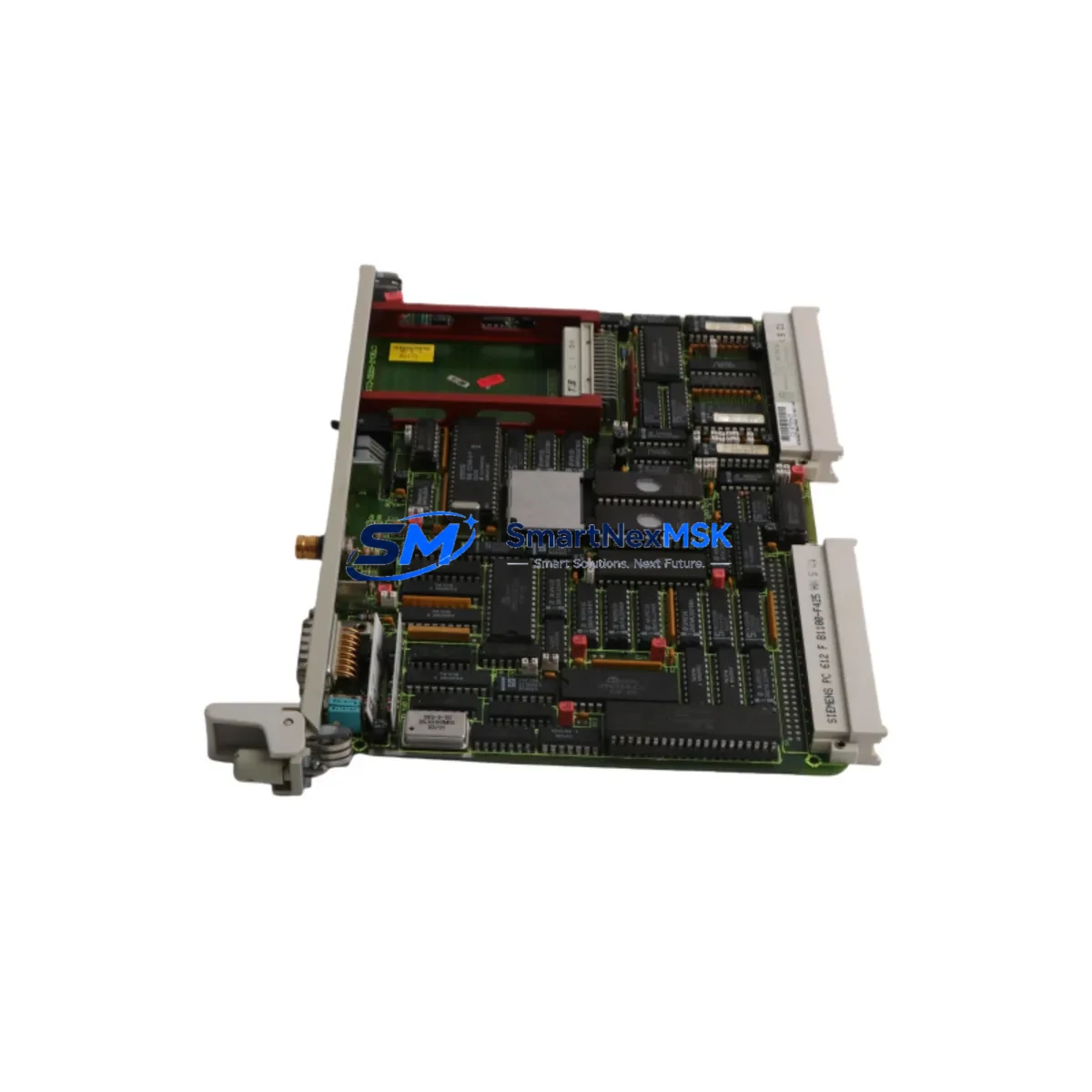

The Siemens 6ES5526-3LF01 is a ruggedized serial communication processor engineered for the SIMATIC S5 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, metallurgical smelters, water treatment stations, and continuous-process manufacturing lines — this module delivers stable, interference-resistant serial communication where control integrity is non-negotiable.

In high-load production environments, communication failures between the PLC rack and field devices can cascade into unplanned shutdowns, safety interlock failures, and costly production losses. The 6ES5526-3LF01 addresses these risks directly. Its hardware architecture is optimized to suppress electromagnetic interference (EMI) and radio-frequency interference (RFI) generated by variable-frequency drives, high-current switchgear, arc furnaces, and heavy motor loads commonly found in industrial control cabinets. Signal drift — a persistent threat in long-distance serial runs — is minimized through the module’s precision clock circuitry and robust RS-232/RS-422/RS-485 interface management, ensuring that data frames arrive intact even under sustained electrical noise.

Power supply fluctuations represent another critical failure vector in industrial control systems. The 6ES5526-3LF01 is designed to tolerate the voltage transients and surge events that occur when large inductive loads switch on and off within the same power distribution segment. When paired with a properly specified Siemens SITOP PSU100S 24 V DC power supply and protected by surge protection devices on the incoming supply rail, the module maintains uninterrupted communication throughput even during grid disturbances. This is particularly important in facilities where the SIMATIC S5 rack shares a power segment with high-power actuators or welding equipment.

Within the control cabinet, the 6ES5526-3LF01 slots into the S5 backplane alongside other critical modules such as the Siemens 6ES5095-8MA02 CPU module, 6ES5441-4UA13 digital output modules, and 6ES5431-8MA11 digital input modules. Together, these components form a tightly integrated control architecture where the communication processor acts as the nerve center, relaying process data between the central CPU and remote I/O stations, SCADA systems, or operator panels. Any degradation in the CP’s performance directly impacts the fidelity of the entire control loop.

For safety-critical interlock circuits — such as emergency shutdown (ESD) systems, fire and gas detection interfaces, or high-integrity pressure protection systems (HIPPS) — reliable serial communication is a prerequisite for functional safety compliance. The 6ES5526-3LF01 supports deterministic communication timing, which is essential when the PLC must respond to a safety event within a defined reaction window. Facilities operating under IEC 61511 or IEC 61508 frameworks will recognize the importance of a communication processor that does not introduce latency spikes or dropped frames under load.

Replacement and spare-part availability is a practical safety concern in its own right. An aging SIMATIC S5 installation that cannot source a replacement 6ES5526-3LF01 faces extended downtime risk if the installed module fails. SMARTNEXMSK maintains verified stock of this module, pre-tested and ready for immediate dispatch. Each unit undergoes outgoing inspection to confirm communication port integrity, backplane connector condition, and firmware version compatibility before shipment. This reduces the risk of receiving a non-functional spare during an emergency maintenance event.

The module is also compatible with Siemens S5 programming cables and STEP 5 software environments, allowing maintenance engineers to configure baud rates, parity settings, and protocol parameters without specialized tooling. For sites transitioning from S5 to SIMATIC S7-300 or S7-400 platforms, the 6ES5526-3LF01 can continue to serve legacy serial interfaces during the migration period, protecting capital investment and avoiding a hard cutover that could introduce new failure modes.

In port and terminal automation, where crane PLCs and conveyor control systems must exchange position and load data continuously, a communication fault can halt operations across an entire berth. In water treatment facilities, where SCADA polling of remote outstations must occur without interruption to maintain dosing accuracy and regulatory compliance, the 6ES5526-3LF01 provides the serial backbone that keeps data flowing. In metallurgical plants, where furnace temperature profiles are transmitted over serial links to supervisory systems, signal integrity directly affects product quality and energy efficiency.

SMARTNEXMSK supplies the Siemens 6ES5526-3LF01 with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our technical team can assist with compatibility verification, installation guidance, and cross-reference to alternative modules where required. Stock is maintained to support both planned maintenance schedules and emergency breakdown scenarios, with international shipping available to industrial sites worldwide.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the SIMATIC S5 platform requires more than a single reliable module — it demands a coordinated protection strategy across power, I/O, communication, and safety layers. The 6ES5526-3LF01 communication processor operates most effectively when the surrounding cabinet architecture is engineered to minimize the risk of cascading failures.

At the power layer, a Siemens SITOP PSU100S 24 V DC regulated power supply provides the stable, low-ripple DC supply that the S5 backplane and its modules require. Upstream of the power supply, Type 2 surge protection devices (SPDs) on the incoming AC feed prevent lightning-induced transients and switching surges from reaching the control electronics. A Siemens 6ES5955-3LC41 power supply module within the S5 rack distributes conditioned power to all installed modules, including the 6ES5526-3LF01, ensuring that voltage sags on one segment do not propagate to the communication processor.

At the I/O layer, Siemens 6ES5431-8MA11 digital input modules and 6ES5441-4UA13 digital output modules handle field signals from sensors, actuators, and safety devices. Proper cable segregation — separating signal cables from power cables within the cabinet — reduces the inductive coupling that can corrupt serial data frames. Shielded twisted-pair cabling on all RS-485 runs, terminated with matched impedance resistors, further protects the integrity of data transmitted through the 6ES5526-3LF01.

For safety interlock circuits, a Siemens SIRIUS 3TK28 safety relay or equivalent safety relay module provides the hardwired ESD layer that operates independently of the PLC communication bus. This ensures that a communication fault on the 6ES5526-3LF01 does not prevent a safety shutdown from executing. The CP module’s role in this architecture is to transmit status data and alarm signals to the SCADA or DCS layer — functions that complement, rather than replace, the hardwired safety layer.

Network-level protection is provided by Siemens SCALANCE industrial Ethernet switches where the S5 system interfaces with higher-level networks via gateways. Protocol converters that bridge the S5 serial interface to PROFIBUS DP or Industrial Ethernet allow the legacy platform to participate in modern plant communication architectures without requiring a full PLC replacement. The 6ES5526-3LF01 serves as the serial endpoint in this bridge configuration, maintaining backward compatibility while the plant network evolves.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous-process refinery operations, the SIMATIC S5 platform with the 6ES5526-3LF01 CP module manages serial communication between the PLC and distributed control system (DCS) gateways. The module’s EMI resistance is critical in environments where high-voltage motor control centers and variable-speed drives generate persistent electrical noise. A communication interruption in this context can trigger spurious shutdowns or, worse, mask a genuine process alarm — both outcomes with serious safety implications.

Power Generation and Substation Control: In coal-fired, hydroelectric, or gas turbine power plants, the S5 platform controls auxiliary systems including cooling water pumps, fuel feed conveyors, and generator excitation circuits. The 6ES5526-3LF01 transmits operational data to the plant SCADA system over serial links that must remain stable during generator synchronization events, which produce significant electromagnetic transients. The module’s ruggedized design ensures that these transients do not corrupt the communication stream.

Mining and Mineral Processing: Underground and surface mining operations rely on PLC-based control systems for conveyor drives, crusher controls, and ventilation management. The harsh environment — characterized by dust, vibration, humidity, and electrical interference from large DC drives — demands communication hardware that can sustain reliable operation without frequent maintenance intervention. The 6ES5526-3LF01 meets this requirement, supporting long-term deployment in mining control rooms where spare-part availability and module longevity are primary concerns.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use SIMATIC S5 systems to control dosing pumps, aeration blowers, and filtration processes. SCADA polling of remote outstations over serial links must occur without interruption to maintain regulatory compliance for effluent quality. The 6ES5526-3LF01 provides the reliable serial interface that keeps the SCADA system informed of process conditions across the treatment plant.

Metallurgy and Steel Production: In electric arc furnace (EAF) steelmaking, the electromagnetic environment is among the most severe encountered in any industrial application. The 6ES5526-3LF01’s ruggedized construction allows it to maintain communication integrity in control rooms adjacent to EAF operations, where other less-robust modules may experience data corruption or module resets. Reliable communication in this context directly supports furnace temperature control, electrode positioning, and melt quality monitoring.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Siemens 6ES5526-3LF01?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we will provide a replacement or full refund after technical verification. Our warranty process is designed to minimize downtime for your facility.

Q2: What pre-shipment testing is performed on each module?
Each 6ES5526-3LF01 unit undergoes outgoing inspection before dispatch. This includes verification of backplane connector integrity, communication port functionality, and visual inspection for physical damage. Refurbished units are additionally tested for correct operation across all supported serial interfaces. Test records are available upon request for quality-assurance documentation purposes.

Q3: Is the 6ES5526-3LF01 compatible with all SIMATIC S5 rack configurations?
The 6ES5526-3LF01 is compatible with standard SIMATIC S5 central racks (CR) and expansion racks (ER) that support the S5 module form factor. It is designed for use with S5-115U, S5-135U, and S5-155U CPU families. Compatibility with specific rack configurations should be verified against the installed CPU type and firmware version. Our technical team can assist with compatibility confirmation before purchase.

Q4: Can long-term supply of the 6ES5526-3LF01 be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated stock of legacy SIMATIC S5 modules, including the 6ES5526-3LF01, to support facilities with long-term maintenance and spare-part programs. We understand that many industrial sites operate S5-based systems well beyond the original product lifecycle and require a reliable source for replacement modules. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your maintenance calendar.
