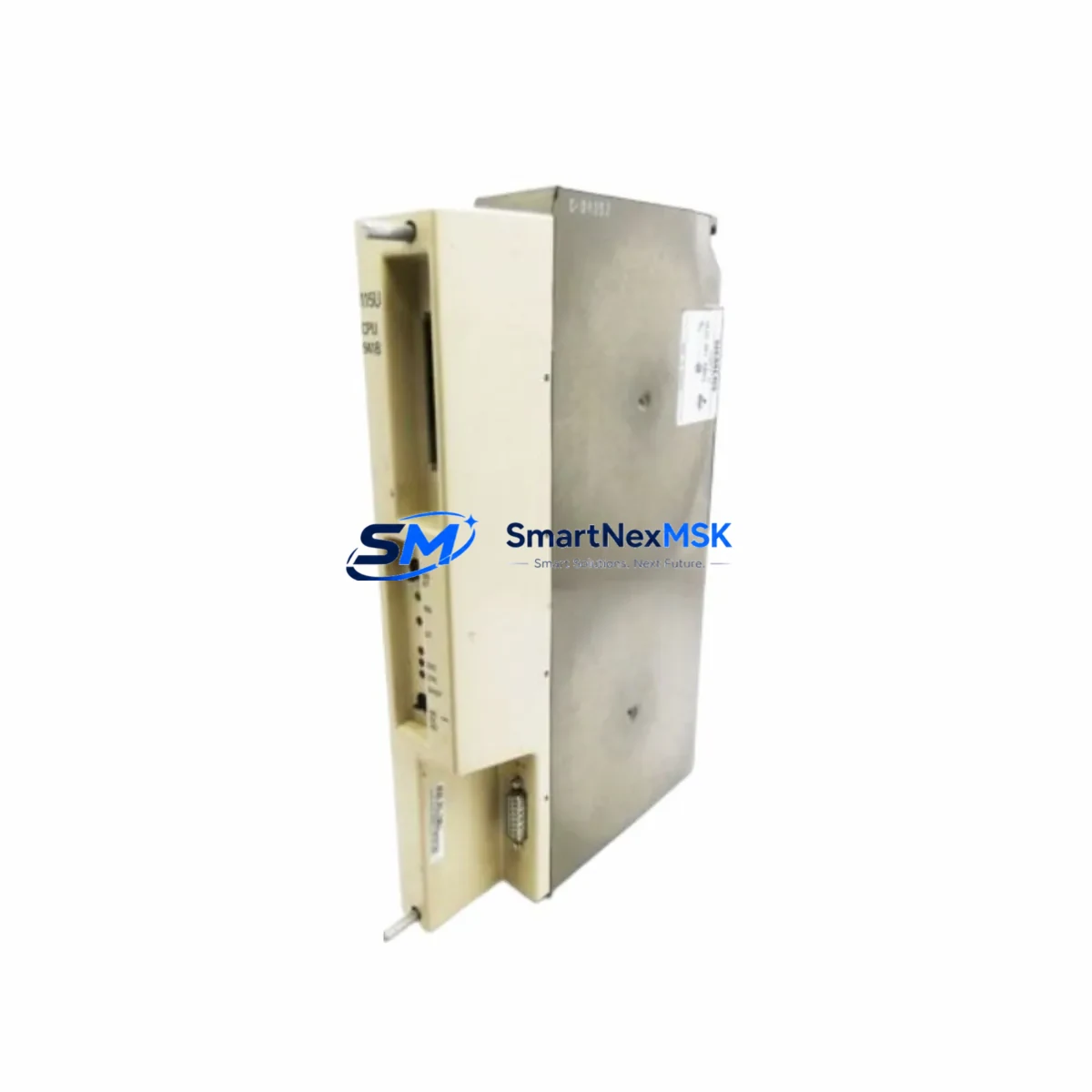

Siemens 6ES5941-7UB11 Maintenance-Ready Spare for S5 Automation
The Siemens 6ES5941-7UB11 (CPU941B) is a central processing unit module for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed legacy automation architectures in global manufacturing, chemical processing, power generation, and heavy industry. As original production of S5 hardware has been discontinued, maintaining a verified spare of the 6ES5941-7UB11 in your parts inventory is a critical risk-mitigation strategy for any facility still operating S5-based control systems.
This unit is supplied as an original Siemens spare, fully tested prior to shipment, and backed by a 12-month warranty. Whether you are managing a planned shutdown, responding to an unplanned CPU fault, or building a long-term lifecycle extension strategy for your S5 installation, the 6ES5941-7UB11 provides a direct, pin-compatible replacement that eliminates the need for costly system migration during emergency downtime events.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6ES5941-7UB11 |
| Module Designation | CPU941B |
| Compatible Platform | Siemens SIMATIC S5 (S5-115U / S5-135U / S5-155U) |
| Supply Voltage | 24 V DC (via backplane bus) |
| Memory | Up to 48 KB program memory (with memory submodule) |
| Communication Interface | SINEC H1 / Multipoint Interface (MPI-compatible via adapter) |
| Mounting | S5 central rack / expansion rack slot |
| Operating Temperature | 0 °C to +60 °C |
| Degree of Protection | IP20 |
| Origin | Germany (Original Siemens manufacture) |
| Condition | Original spare — tested before shipment |
| Warranty | 12 Months |
| Typical Application | Legacy S5 system maintenance, emergency CPU replacement, lifecycle extension |
| Compatibility Verification | Cross-referenced against S5-115U/135U/155U rack configurations |
Maintenance Planning for Continuous Operation
When a CPU941B fault is identified during routine control cabinet inspection or triggered by a system alarm, the replacement workflow extends beyond the CPU module itself. Maintenance engineers and procurement teams should treat the 6ES5941-7UB11 replacement as an opportunity to audit the full S5 rack assembly for latent faults that could cause secondary failures within days or weeks of the CPU swap.
Begin by inspecting the 6ES5955-3LC41 power supply module — the S5 CPU is highly sensitive to ripple and voltage sag on the 24 V DC bus. A degraded power supply is one of the most common root causes of intermittent CPU941B faults and should be replaced or load-tested before the new CPU is commissioned. Similarly, the 6ES5316-8MA12 digital input module and 6ES5340-3KB42 digital output module in the same rack should be inspected for contact wear, blown output transistors, or field wiring faults that may have contributed to the original CPU overload condition.
For systems using the 6ES5374-1KH21 memory submodule, verify that the EPROM or RAM cartridge is seated correctly and that the battery-backed RAM has not lost its program due to a depleted backup battery — the 6ES5980-0MA11 backup battery should be replaced as a matter of course during any CPU maintenance event. If the S5 rack communicates via SINEC L2 or H1 network, inspect the 6ES5318-8MA12 communications processor for firmware version compatibility with the replacement CPU941B.
Facilities running mixed S5 and S7 environments should also verify that any 6ES7972-0CB20-0XA0 PC adapter or 6GK1571-0BA00-0AA0 USB/MPI adapter used for programming and diagnostics is compatible with the CPU941B firmware revision. Terminal blocks, particularly Weidmüller or Phoenix Contact DIN-rail terminal strips used for field I/O wiring, should be inspected for loose connections and oxidation — a common cause of intermittent I/O faults that are misdiagnosed as CPU errors. Finally, if the cabinet includes 6ES5700-series analog input or output modules, verify their calibration status and signal isolation integrity before returning the system to production.
Site Replacement Workflow
Step 1 — Pre-replacement backup: Before removing the CPU941B, use a Siemens PG (programmer) or compatible software such as STEP 5 to perform a full program backup from the existing CPU if it is still partially functional. Store the backup on a verified PG or industrial PC. If the CPU is completely non-responsive, retrieve the program from the memory submodule directly.
Step 2 — Power isolation: De-energize the S5 rack via the main disconnect. Verify zero-energy state with a calibrated multimeter before touching any rack components. Do not rely solely on the CPU STOP LED as a power indicator.
Step 3 — Module swap: Remove the faulty 6ES5941-7UB11 by releasing the front panel locking mechanism and sliding the module out of the rack slot. Insert the replacement CPU941B, ensuring the bus connector engages fully. Transfer the memory submodule from the old CPU if it contains the active program and the submodule is confirmed functional.
Step 4 — Program restore and I/O check: Re-energize the rack and connect the PG. Download the backed-up program if required. Perform a full I/O force test to verify all digital and analog channels respond correctly before releasing the system to automatic operation.
Step 5 — Documentation: Record the replacement date, firmware revision of the new CPU941B, memory submodule serial number, and the results of the I/O verification test in the equipment maintenance log. Update the spare parts inventory to reflect the consumed unit and initiate a reorder to maintain minimum stock levels.
This workflow is designed to minimize total downtime to under four hours for a prepared maintenance team, and to eliminate the risk of secondary failures caused by undetected ancillary faults in the S5 rack.
Spare Parts Support FAQ
Q1: Is the 6ES5941-7UB11 still available as a new original spare, or is it refurbished stock?
We supply the 6ES5941-7UB11 as an original Siemens spare sourced from authorized distribution channels and verified industrial surplus. Each unit undergoes functional testing prior to shipment. The condition and test results are documented and available upon request. We do not supply unchecked or cosmetically refurbished units without disclosure.
Q2: How do I confirm compatibility with my specific S5 rack configuration before ordering?
The CPU941B is compatible with the S5-115U, S5-135U, and S5-155U central racks. Compatibility depends on the rack type, slot position, and firmware revision of your existing system. Please provide your rack order number and current CPU firmware version when contacting us — our technical team will confirm compatibility before shipment.
Q3: What is included in the 12-month warranty, and how is a warranty claim handled?
The 12-month warranty covers functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. In the event of a warranty claim, contact us with the order number and a description of the fault. We will arrange return shipping and provide a replacement or full refund within the agreed service window.
Q4: Can you support long-term supply for facilities running multiple S5 systems?
Yes. We maintain ongoing sourcing relationships for S5-series CPU modules, power supplies, I/O modules, and memory submodules. For facilities managing multiple S5 installations, we recommend establishing a blanket order or consignment stock arrangement to ensure availability without lead-time risk. Contact our sales team to discuss volume pricing and dedicated inventory allocation.
