Siemens 6ES5947-3UA22 Maintenance-Ready Spare for S5 Automation

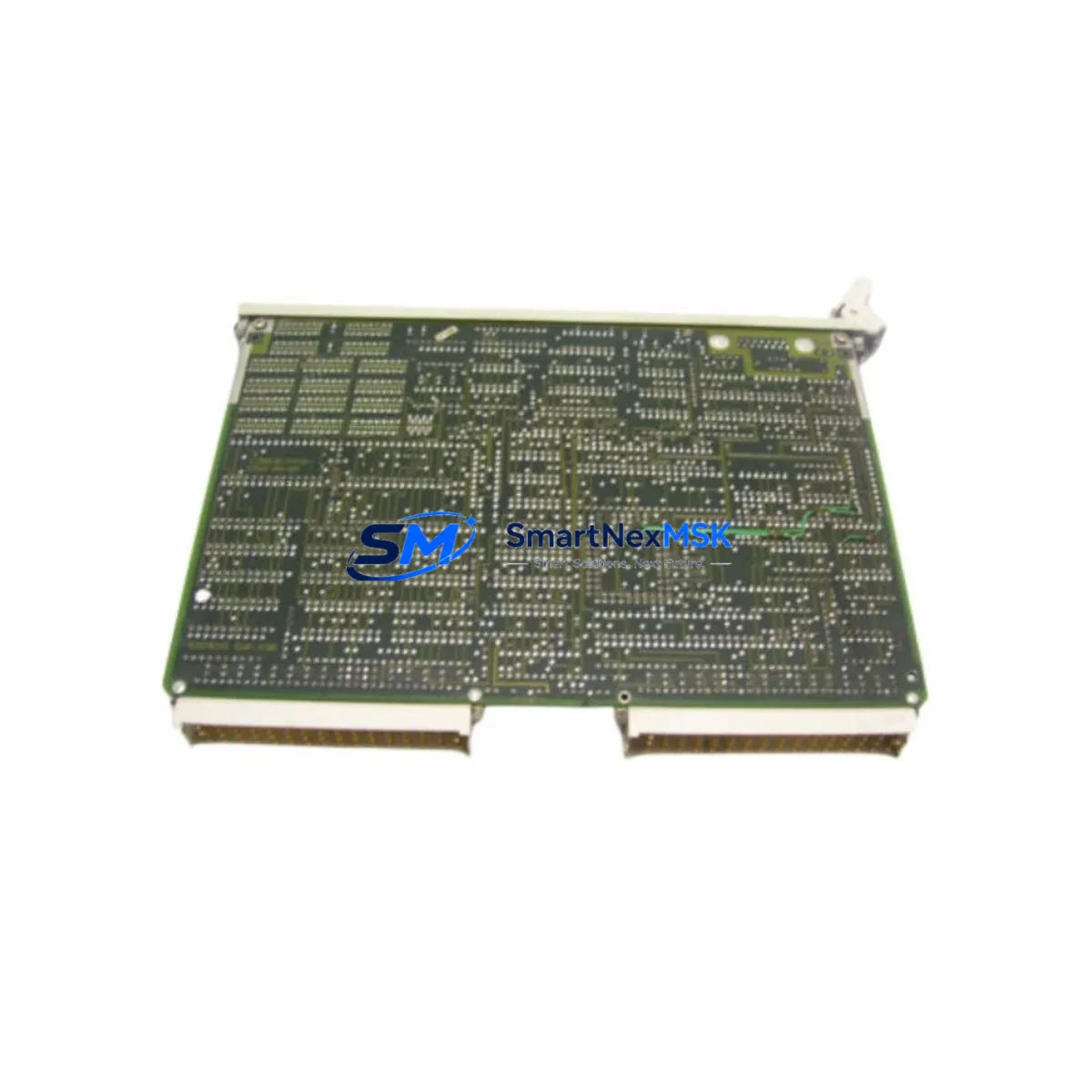

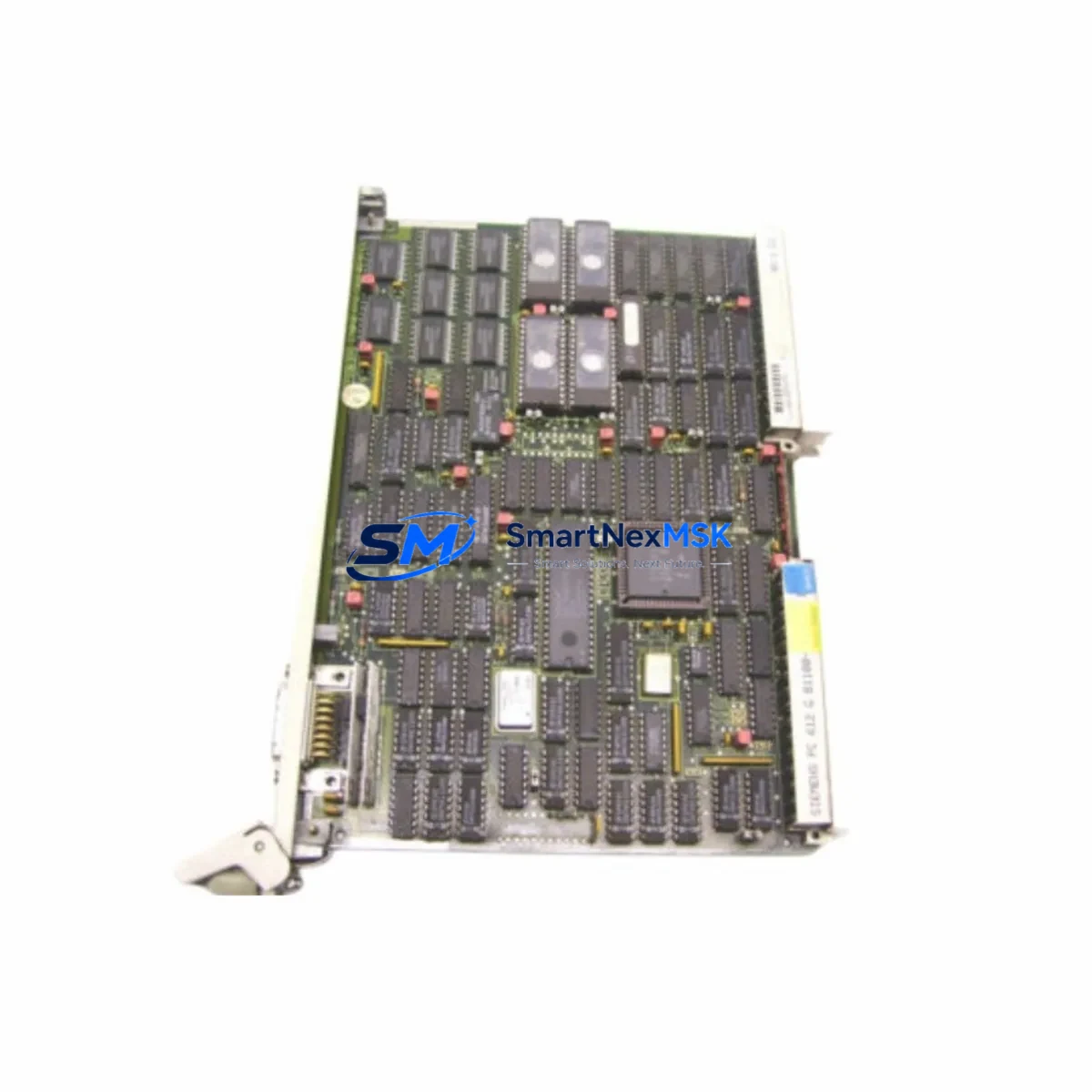

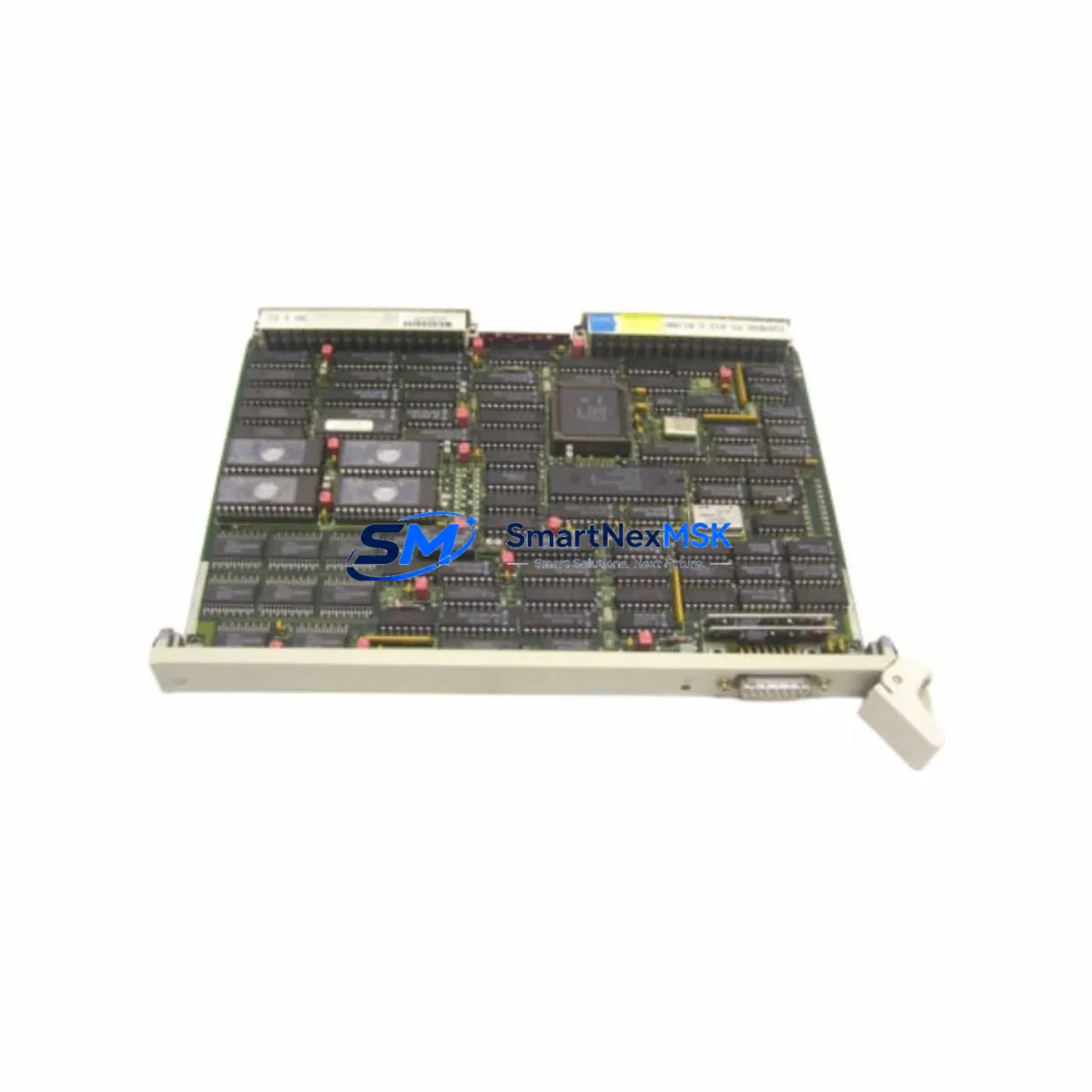

The Siemens 6ES5947-3UA22 is a CPU947 central processing unit designed for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed legacy automation architectures in heavy industry, process plants, and manufacturing facilities worldwide. As original equipment reaches end-of-life and OEM support is discontinued, maintaining a verified spare of the 6ES5947-3UA22 in your critical spare parts inventory is the single most effective strategy for minimizing unplanned downtime and protecting long-term system continuity.
This unit is sourced as an original Siemens component, fully tested prior to dispatch, and backed by a 12-month warranty. Each unit undergoes functional verification covering CPU initialization, memory integrity, and communication bus response before shipment. Whether you are managing a planned overhaul, responding to an emergency fault, or building a resilience buffer for aging SIMATIC S5 infrastructure, the 6ES5947-3UA22 is available for immediate dispatch with full traceability documentation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6ES5947-3UA22 |
| Module Type | CPU947 — Central Processing Unit |
| Compatible Platform | SIEMENS SIMATIC S5 (S5-115U / S5-135U / S5-155U) |
| Memory Support | Program memory via EPROM/EEPROM cartridge; RAM expandable |
| Communication Interface | SINEC H1 / L2 industrial Ethernet and serial interfaces |
| Supply Voltage | 24 V DC (via backplane bus) |
| Operating Temperature | 0 °C to +60 °C |
| Mounting | S5 central rack / expansion rack (UR1/UR2) |
| Country of Origin | Germany |
| Condition | Original spare — tested and verified |
| Warranty | 12 Months |
| Shipping | Global express; ESD-safe packaging |
| Documentation | Test report available on request |
Maintenance Planning for Continuous Operation
When a CPU947 fault is identified during routine control cabinet inspection or triggered by a watchdog alarm, the replacement of the 6ES5947-3UA22 alone is rarely sufficient to restore full system integrity. A disciplined maintenance engineer will treat the CPU failure as a signal to audit the entire control loop. Begin by inspecting the PS951 or PS955 power supply module — voltage instability is a leading cause of CPU lockup and memory corruption in S5 racks. Verify output voltage under load and check for capacitor aging symptoms.
Next, examine the IM308-C or IM314 interface modules that link the central rack to expansion racks. A degraded interface module can cause intermittent I/O faults that are misdiagnosed as CPU failures. Inspect the DI/DO modules (6ES5 420 / 430 / 450 series) for blown fuses, relay contact wear, and terminal corrosion — particularly in high-cycle or high-humidity environments.
Communication integrity should be verified at the CP1430 or CP143 communication processor level, especially if the S5 system is integrated into a SINEC H1 or Profibus network. A faulty CP module can cause the CPU to enter a fault state that mimics hardware failure. Similarly, inspect signal isolators and analog input modules (6ES5 460 / 464 series) for drift or open-circuit conditions that may have contributed to the original fault event.
For systems with operator interface panels, verify the OP15, OP17, or TD17 HMI units and their serial communication cables — damaged cables cause repeated CPU communication errors. Check terminal blocks and bus connectors for oxidation, and replace any backup batteries (6ES5 980-0MA11) that are approaching end-of-life to prevent program loss during power cycling. A complete spare parts kit for an S5 control cabinet should include at minimum: one CPU947 spare, one power supply module, one IM interface module, and a set of I/O module fuses.
Site Replacement Workflow
Replacing the 6ES5947-3UA22 in a live industrial environment requires a structured approach to minimize downtime and avoid configuration loss. Before removing the faulty CPU, use a SIMATIC S5 programmer (PG740 or PG760) or compatible software (STEP 5 / S5 for Windows) to perform a full program backup to EPROM cartridge or PC. Confirm the backup is complete and readable before proceeding.
Power down the rack via the PS module switch — do not remove the CPU under live bus conditions. Seat the replacement 6ES5947-3UA22 firmly into the CPU slot, ensuring the bus connector is fully engaged. Restore the program from the backup cartridge, set the operating mode switch to RUN, and monitor the SF (system fault) and BASP LEDs during startup. A clean startup with no SF indication confirms successful replacement.
For systems where the original 6ES5947-3UA22 is being replaced due to obsolescence rather than failure, verify firmware compatibility with existing I/O and communication modules before commissioning. Where direct replacement is not possible due to slot configuration differences, the 6ES5948-3UA11 or 6ES5942-7UB11 may serve as compatible alternatives depending on rack generation — confirm with your system documentation before substitution. This workflow reduces mean time to repair (MTTR) and supports a structured transition from legacy S5 infrastructure to modern control platforms without emergency re-engineering.
Spare Parts Support FAQ
Q1: Is the 6ES5947-3UA22 still available as a new original spare?
Yes. We maintain stock of original Siemens 6ES5947-3UA22 units sourced through authorized industrial channels. Each unit is individually tested and ships with a 12-month warranty. Contact us to confirm current stock availability and lead time.
Q2: How is compatibility with my existing S5 rack verified before shipment?
Compatibility is confirmed based on your rack type (UR1/UR2), firmware revision, and slot configuration. Provide your full system configuration or existing CPU label data and our technical team will verify fit before dispatch. We also supply test reports on request.
Q3: What does the 12-month warranty cover for this spare part?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. Units that fail within the warranty period are replaced or refunded. The warranty does not cover damage caused by incorrect installation, overvoltage, or environmental factors outside the rated specification.
Q4: Can you support long-term supply for fleet maintenance programs?
Yes. We support scheduled procurement programs for maintenance teams managing multiple S5 installations. Blanket orders, reserved stock arrangements, and priority dispatch agreements are available. Contact our sales team to discuss a supply agreement tailored to your maintenance cycle and inventory strategy.
