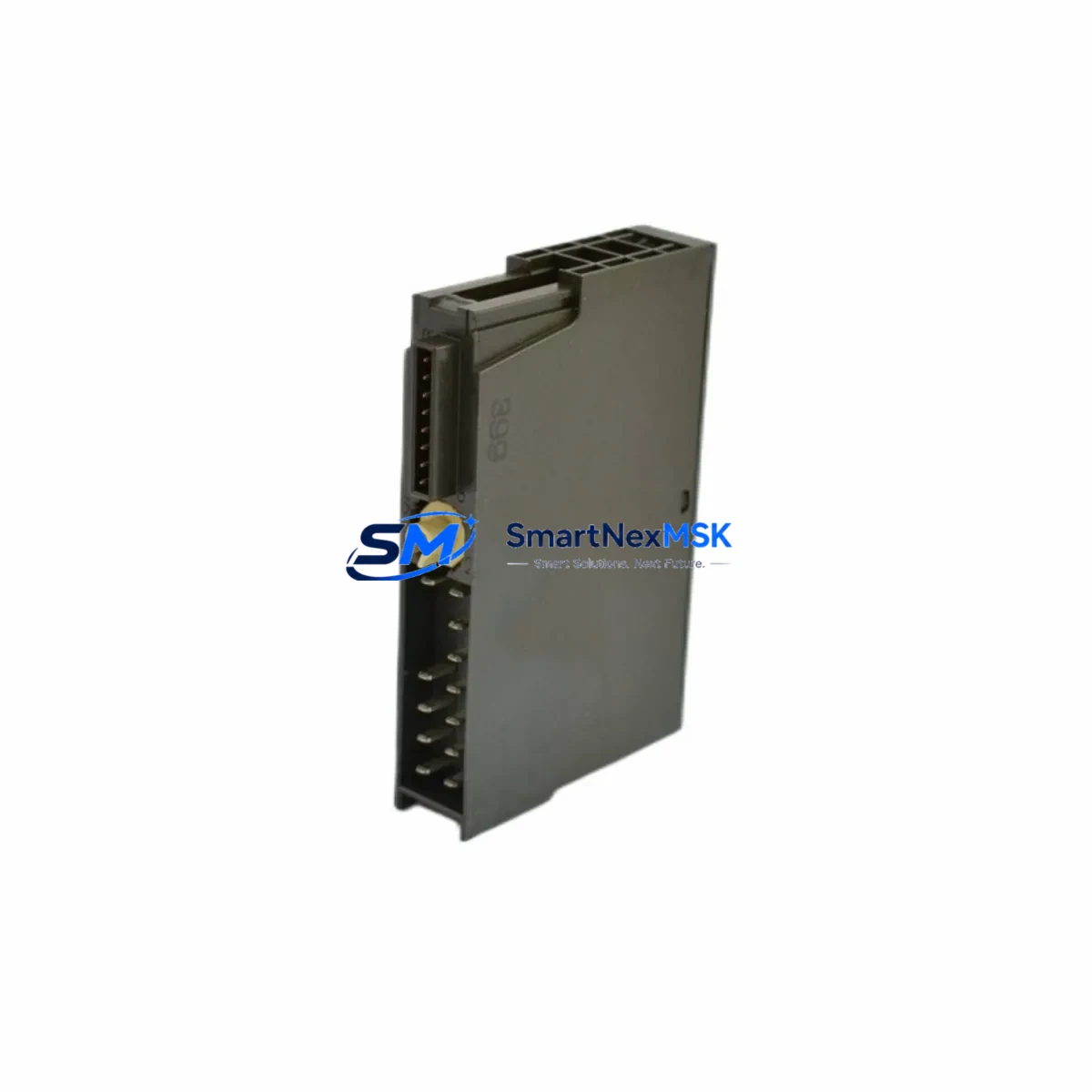

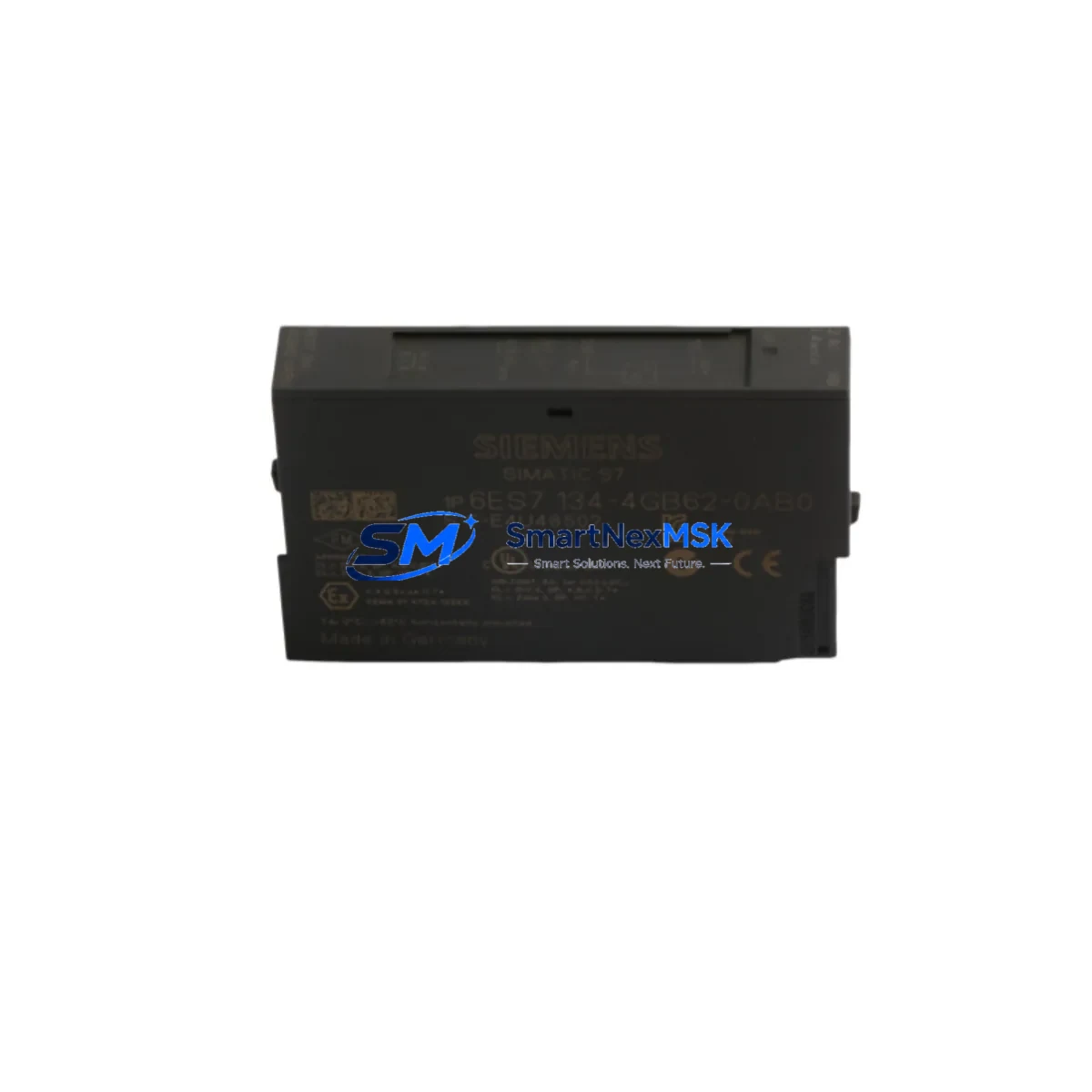

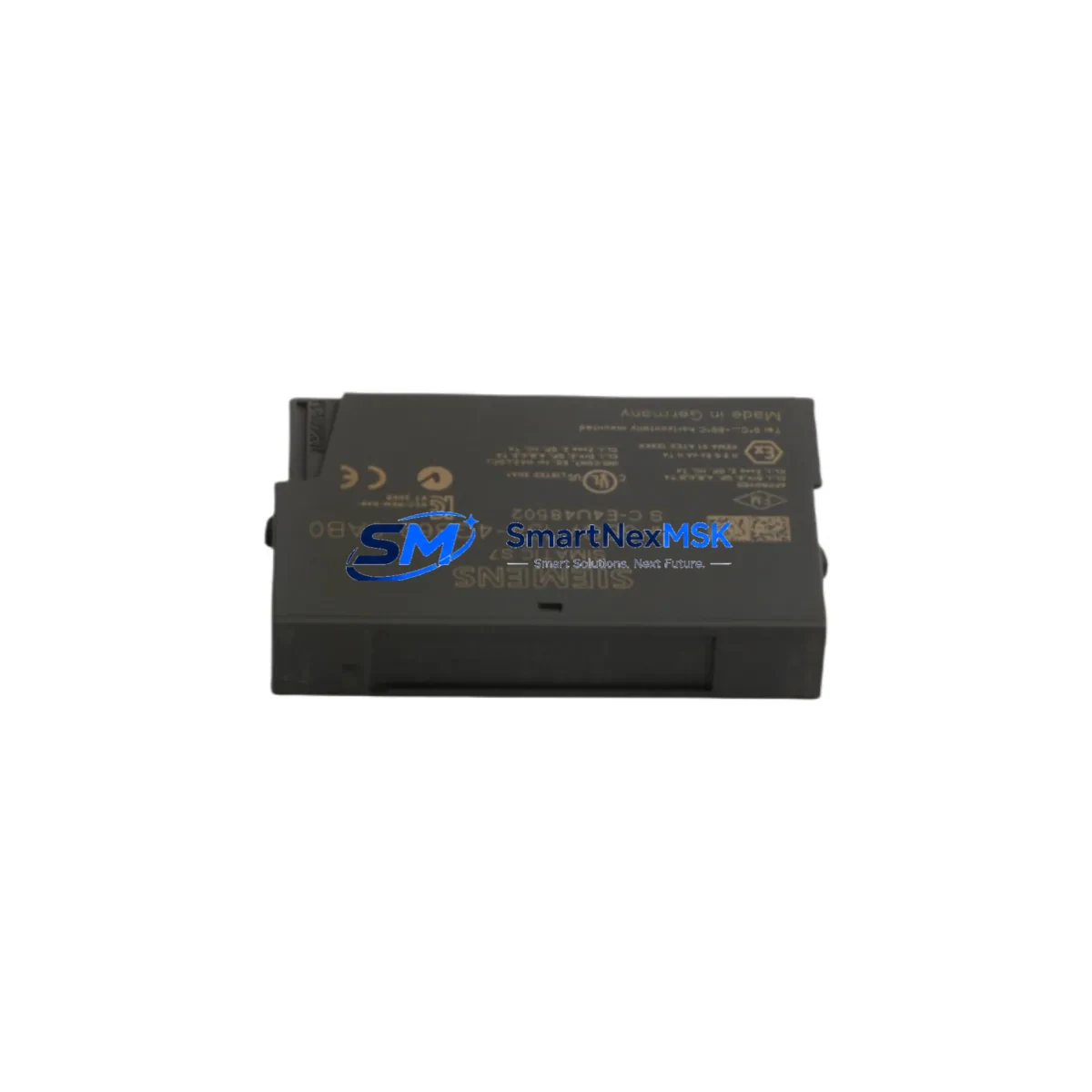

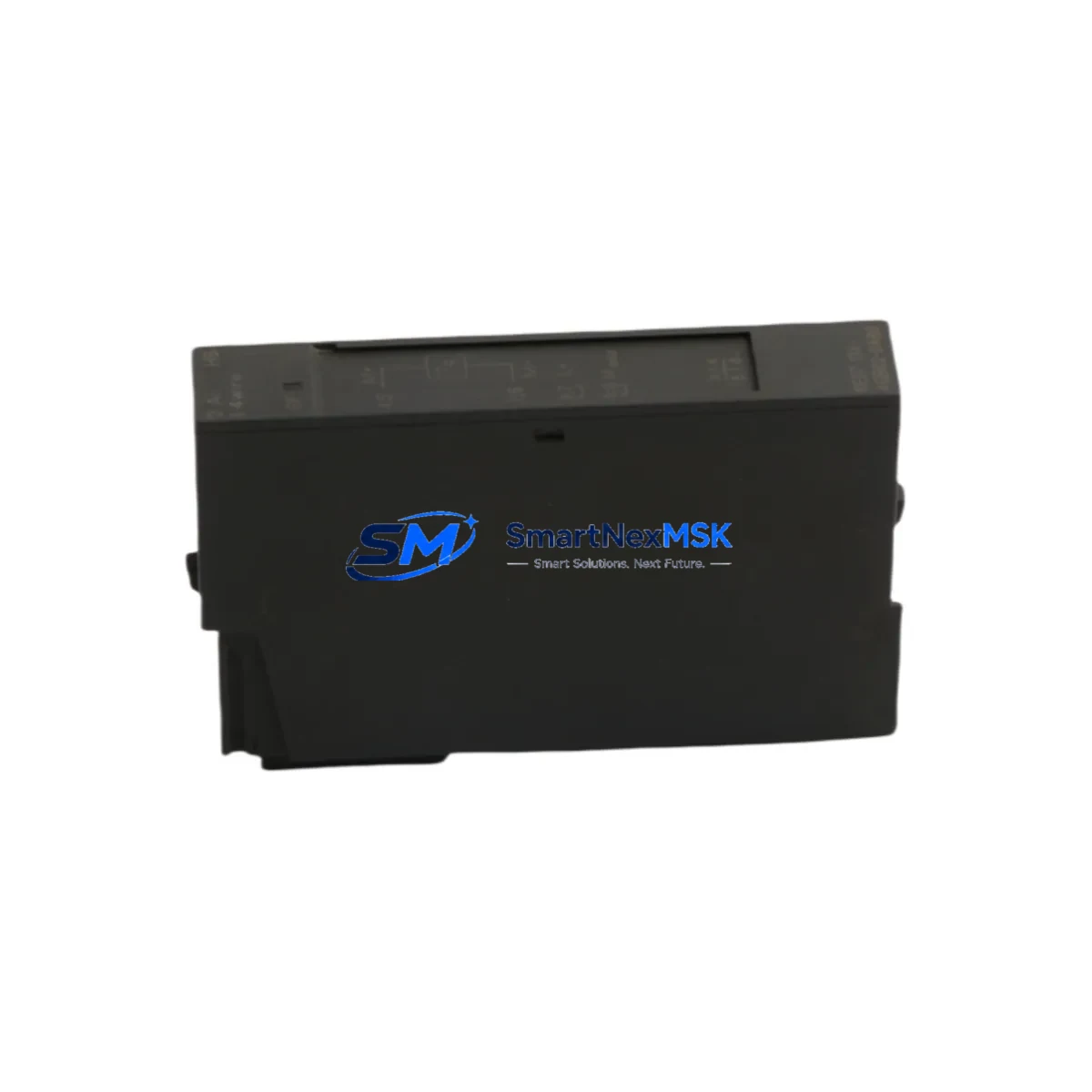

Siemens 6ES7134-4GB62-0AB0 Safety Analog Input for Harsh Industrial Sites
The Siemens 6ES7134-4GB62-0AB0 is a high-performance 2-channel analog input module designed for the SIMATIC ET 200S distributed I/O system. Engineered to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this module delivers precise signal acquisition while maintaining exceptional resistance to electromagnetic interference, voltage surges, and extreme ambient conditions.
In high-stakes control architectures where signal integrity is non-negotiable, the 6ES7134-4GB62-0AB0 serves as a critical front-end component in safety instrumentation loops, process control cabinets, and critical interlock circuits. Its robust design minimizes the risk of signal drift, module misoperation, and communication anomalies that can cascade into unplanned shutdowns or hazardous process deviations. Whether integrated into a SIMATIC S7-300 or S7-400 backbone via PROFIBUS DP, or deployed as a standalone ET 200S station, this module ensures that field-level analog data reaches the controller with full fidelity — even under continuous heavy-load operation.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 6ES7134-4GB62-0AB0 |
| Brand / Manufacturer | Siemens (SIMATIC) |
| Series | ET 200S Distributed I/O |
| Module Type | 2-Channel High-Speed Analog Input |
| Input Signal Range | ±10 V / 0–20 mA / 4–20 mA (configurable) |
| Resolution | 15-bit + sign |
| Conversion Time | ≤ 1 ms per channel (high-speed mode) |
| Supply Voltage | 24 V DC (via ET 200S power module) |
| EMC / EMI Protection | Compliant with EN 61000-4 series; shielded signal path |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Protection Class | IP20 (installed in control cabinet) |
| Surge / Transient Protection | Built-in overvoltage clamping on signal inputs |
| Isolation | Galvanic isolation between field side and backplane bus |
| Compatibility | SIMATIC ET 200S, S7-300, S7-400, PROFIBUS DP master |
| Country of Origin | Germany |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
Control Cabinet Protection Strategy
Deploying the 6ES7134-4GB62-0AB0 within a well-engineered control cabinet demands a layered protection strategy. The module is typically paired with the Siemens 6ES7138-4CA01-0AA0 PM-E power module, which provides stable 24 V DC bus power and protects downstream I/O modules from supply voltage fluctuations and transient spikes. For applications requiring high-density analog acquisition alongside digital control, engineers commonly integrate the 6ES7131-4BF00-0AA0 digital input module and 6ES7132-4BF00-0AA0 digital output module within the same ET 200S station, enabling coordinated analog-digital interlock logic within a single compact rail assembly.
To safeguard the PROFIBUS DP communication backbone that links the ET 200S station to the Siemens CPU 315-2 DP (6ES7315-2AH14-0AB0) or similar S7-300 controllers, network repeaters such as the Siemens 6ES7972-0AA02-0XA0 RS 485 repeater are deployed to extend segment length and isolate electrical noise from field cabling. In environments with significant ground potential differences — common in heavy industrial sites — the Siemens 6ES7972-0BB52-0XA0 OLM optical link module provides galvanic isolation across the PROFIBUS segment, eliminating ground loop interference that could corrupt analog readings.
For power conditioning upstream of the ET 200S rack, a Siemens SITOP PSU100S 24 V/10 A power supply (6EP1334-2BA20) is the recommended companion, delivering regulated, ripple-free DC power that directly reduces the risk of analog signal noise caused by power supply instability. In safety-critical interlock circuits — such as emergency shutdown (ESD) systems or burner management systems — the 6ES7134-4GB62-0AB0 is often used alongside Siemens SIRIUS 3SK safety relays to ensure that analog process values (temperature, pressure, flow) are continuously monitored and that threshold violations trigger safe-state outputs without delay.
Critical Industrial Safety Applications
In petrochemical and refinery environments, the 6ES7134-4GB62-0AB0 is deployed in distributed control systems (DCS) interfacing with pressure transmitters, temperature sensors, and flow meters across hazardous process units. Its high-speed conversion capability — under 1 ms per channel — ensures that rapidly changing process variables are captured in real time, enabling the control system to respond to abnormal conditions before they escalate into safety incidents.
In power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, this analog input module monitors critical parameters such as generator winding temperatures, turbine vibration signals, and cooling water flow rates. Its galvanic isolation between the field signal side and the PROFIBUS backplane bus prevents ground faults in high-voltage environments from propagating into the control system, protecting both personnel and equipment.
In mining and mineral processing operations, where conveyor systems, crushers, and flotation cells operate under continuous heavy load, the module’s EMI resistance ensures stable signal acquisition despite the intense electromagnetic noise generated by large variable-frequency drives (VFDs) and high-current motor starters. Reliable analog feedback from load cells and level sensors is essential for preventing overload trips and protecting mechanical equipment.
In water and wastewater treatment plants, the 6ES7134-4GB62-0AB0 interfaces with pH sensors, dissolved oxygen probes, and turbidity meters, providing the process controller with accurate, drift-free measurements that are essential for regulatory compliance and safe chemical dosing. In metallurgical and steel production facilities, it monitors furnace temperatures and cooling system pressures in real time, supporting both product quality control and personnel safety in high-temperature environments.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 6ES7134-4GB62-0AB0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform within its specified parameters during the warranty period, we provide a replacement or full refund. Warranty claims are processed promptly to minimize your downtime.
Q2: What pre-shipment testing is performed on each unit?
Every 6ES7134-4GB62-0AB0 unit undergoes functional verification testing prior to shipment, including power-on self-test, analog input channel accuracy verification, and backplane bus communication check. Units that do not meet Siemens factory specifications are quarantined and not shipped.
Q3: Is this module compatible with existing S7-300 and ET 200S installations?
Yes. The 6ES7134-4GB62-0AB0 is fully compatible with the SIMATIC ET 200S distributed I/O system and integrates seamlessly with S7-300 and S7-400 controllers via PROFIBUS DP. It is a direct replacement for earlier ET 200S analog input variants and requires no hardware modifications to the existing rack or terminal module.
Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the 6ES7134-4GB62-0AB0 to support ongoing maintenance, planned shutdowns, and emergency spare requirements. Our inventory management ensures consistent availability for both single-unit orders and bulk procurement, with fast global shipping to minimize lead times for critical replacement scenarios.
