Siemens 6ES7151-1AA05-0AB0 ET 200S IM151-1 Spare: Rapid Replacement for Industrial Downtime Control

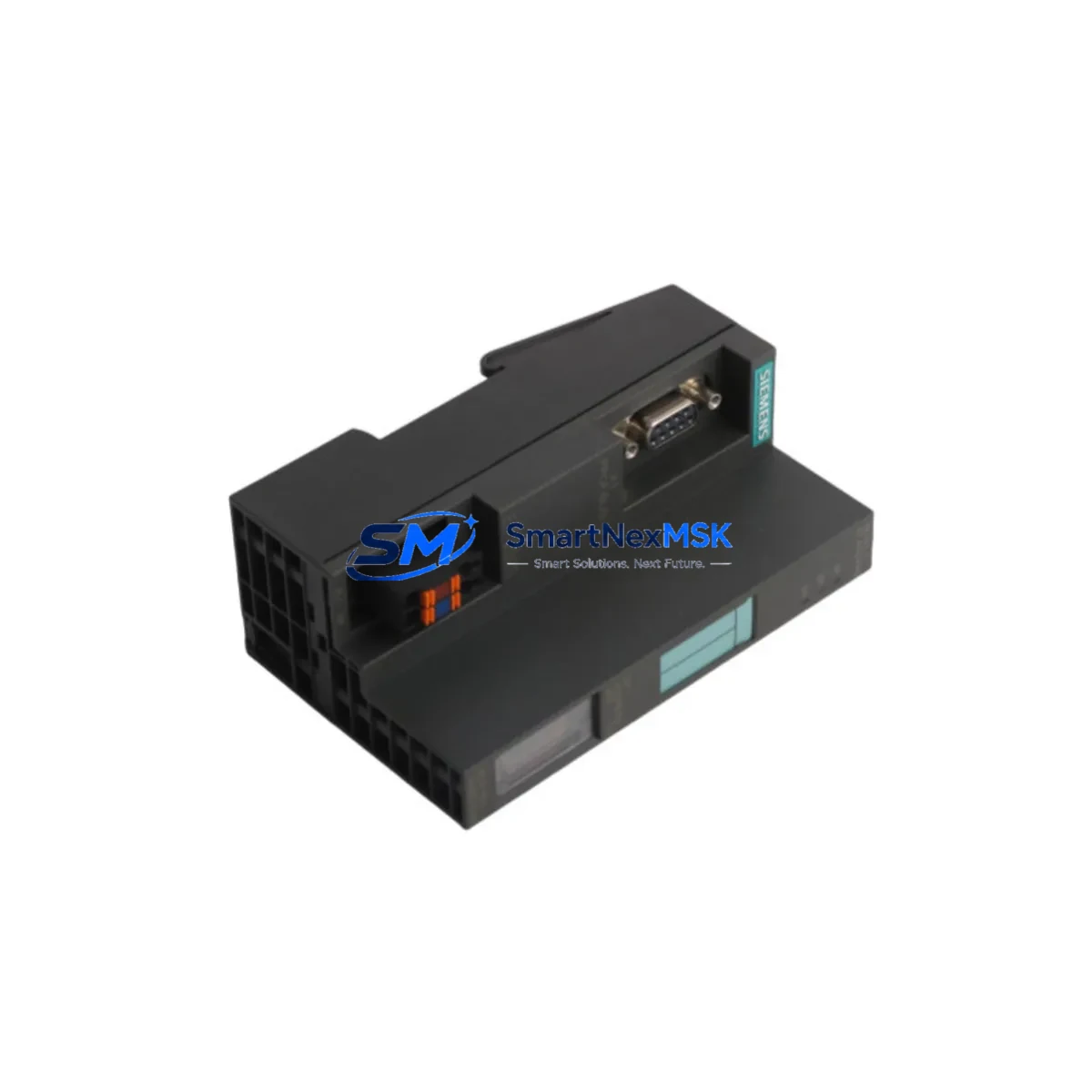

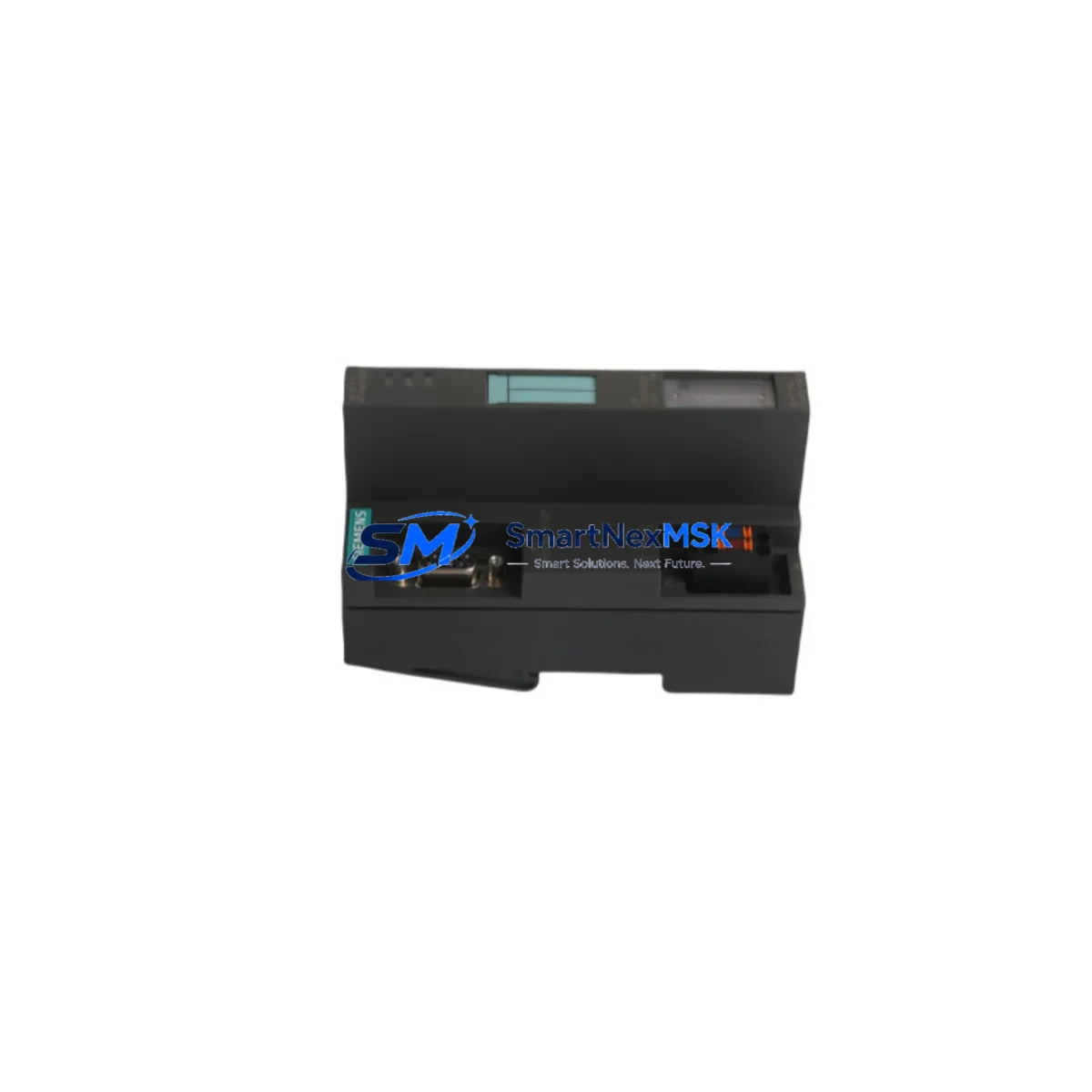

The Siemens 6ES7151-1AA05-0AB0 is the IM151-1 Standard interface module for the ET 200S distributed I/O system, communicating via PROFIBUS DP at up to 12 Mbit/s. In industrial automation environments — from automotive body shops to chemical processing lines — this module serves as the critical communication gateway between the PROFIBUS DP master (typically a Siemens S7-300 or S7-400 CPU) and the ET 200S I/O station. A failure of this interface module immediately isolates the entire ET 200S station, triggering a process stop. Maintaining a verified original spare on the shelf is the single most effective measure to contain unplanned downtime to under 30 minutes.

This listing supplies an original Siemens 6ES7151-1AA05-0AB0 unit — not a clone, not a refurbished pull. Each unit is individually tested for PROFIBUS DP communication integrity, power rail continuity, and backplane bus signaling before dispatch. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the 6ES7151-1AA05-0AB0, the scope of inspection should extend beyond the interface module itself. The ET 200S station is a tightly integrated assembly, and a communication fault at the IM151-1 level is frequently accompanied by — or caused by — degradation in adjacent components.

Begin with the ET 200S power module (e.g., 6ES7138-4CA01-0AA0 PM-E 24VDC): measure the 24 V DC supply rail under load. A sagging supply voltage is a common root cause of IM151-1 resets that are misdiagnosed as module failure. Next, inspect the PROFIBUS DP cable and bus connector (e.g., 6ES7972-0BB52-0XA0) at the IM151-1 port — damaged shielding or a loose terminating resistor will cause intermittent DP faults that survive a module swap. Check the terminal module (TM-E or TM-P series) beneath each I/O module for cracked latches or corroded contacts, as a failed terminal module can generate false I/O errors that implicate the interface module.

For digital I/O, verify the 4DI/4DO electronic modules (e.g., 6ES7131-4BD01-0AA0 and 6ES7132-4BD02-0AA0) — these are high-cycle components that wear faster than the IM151-1 itself. In analog signal loops, inspect the 2AI analog input module (e.g., 6ES7134-4FB01-0AB0) for drift or channel failure, particularly in high-vibration or high-temperature environments. If the ET 200S station includes motor starter modules, check the DS1e-x or 3RK1 motor starter electronic modules for overload trip history.

At the control cabinet level, inspect the 24 V DC power supply unit (e.g., Siemens SITOP PSU100S 6EP1334-2BA20) feeding the ET 200S rack. Verify fuse integrity on the 24 V distribution rail — a blown fuse upstream of the IM151-1 power input will produce the same symptom as a failed interface module. Finally, review the PROFIBUS DP segment repeater if the station is at the end of a long cable run, and confirm that the S7-300 CPU’s DP master configuration (station address, watchdog time) matches the replacement module’s settings before going live.

Stocking the 6ES7151-1AA05-0AB0 alongside these associated components — power module, bus connector, one set of digital I/O electronic modules, and a spare power supply fuse kit — constitutes a practical minimum spare parts kit for an ET 200S station supporting a critical production line.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit’s order number (6ES7151-1AA05-0AB0) and firmware version match the installed module. In STEP 7 or TIA Portal, note the DP station address configured for the existing IM151-1 — the replacement module ships with address 3 as default and must be set to match before installation.

Step 2 — Safe isolation: Place the S7-300/S7-400 CPU in STOP mode or disable the DP master for the affected station. Switch off the 24 V DC supply to the ET 200S rack via the upstream isolator. Do not hot-swap the IM151-1 without confirming the station is de-energized — backplane bus damage can result.

Step 3 — Module removal and installation: Release the orange locking lever on the IM151-1, slide the module off the terminal module, and seat the replacement unit firmly until the latch clicks. Reconnect the PROFIBUS DP bus connector, ensuring the terminating resistor switch position is correct (ON only at physical segment ends).

Step 4 — Address and parameter restore: Set the PROFIBUS DP station address on the replacement module using the address switches on the module face. Restore power and place the CPU back in RUN mode. Monitor the DP diagnostic buffer in STEP 7 / TIA Portal for any residual faults. A clean startup with no BF LED on the IM151-1 confirms successful replacement.

Step 5 — Post-replacement test: Exercise all I/O points on the station through a short functional test cycle before releasing the line to production. Document the replacement in the maintenance log with the new module’s serial number and the date.

This workflow typically achieves full station restoration in under 45 minutes for a prepared maintenance team, minimizing production loss and avoiding secondary damage from rushed procedures.

Spare Parts Support FAQ

Q1: Is the 6ES7151-1AA05-0AB0 still available as a new original part, or is it discontinued?
The 6ES7151-1AA05-0AB0 has been in the Siemens ET 200S product lifecycle for an extended period. While Siemens has introduced successor platforms (ET 200SP), original 6ES7151-1AA05-0AB0 units remain available through authorized industrial spare parts suppliers. SMARTNEXMSK maintains stock specifically to support legacy ET 200S installations that are not yet scheduled for migration. Contact us to confirm current availability and lead time before your next planned maintenance window.

Q2: How is compatibility verified before shipment?
Each 6ES7151-1AA05-0AB0 unit undergoes a pre-shipment functional test that verifies PROFIBUS DP communication initialization, 24 V DC power rail response, and backplane bus signaling. The module order number and hardware version are confirmed against the shipping documentation. A test report is included with each shipment. If your application requires a specific hardware version (e.g., for compatibility with an older STEP 7 project), please specify this at the time of order.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers functional failure of the module under normal operating conditions — correct supply voltage, within-spec operating temperature, and proper installation per Siemens documentation. Physical damage caused by incorrect installation, overvoltage, or environmental contamination is excluded. To initiate a warranty claim, contact [email protected] with the order number, a description of the fault symptom, and photos of the installed module and its diagnostic LED state. Replacement units are dispatched within 3 business days of claim approval.

Q4: What is the recommended spare parts stocking strategy for an ET 200S-based production line?
For a production line with 3–10 ET 200S stations, the recommended minimum stock is: 1× IM151-1 (6ES7151-1AA05-0AB0), 1× PM-E power module, 2× digital input electronic modules, 2× digital output electronic modules, and 1× PROFIBUS DP bus connector per segment. For lines running 24/7 with no scheduled downtime windows, consider doubling this stock. Annual review of the spare parts list against the installed base — cross-referencing module serial numbers and hardware versions — ensures the stocked spares remain compatible as the installed modules age.
