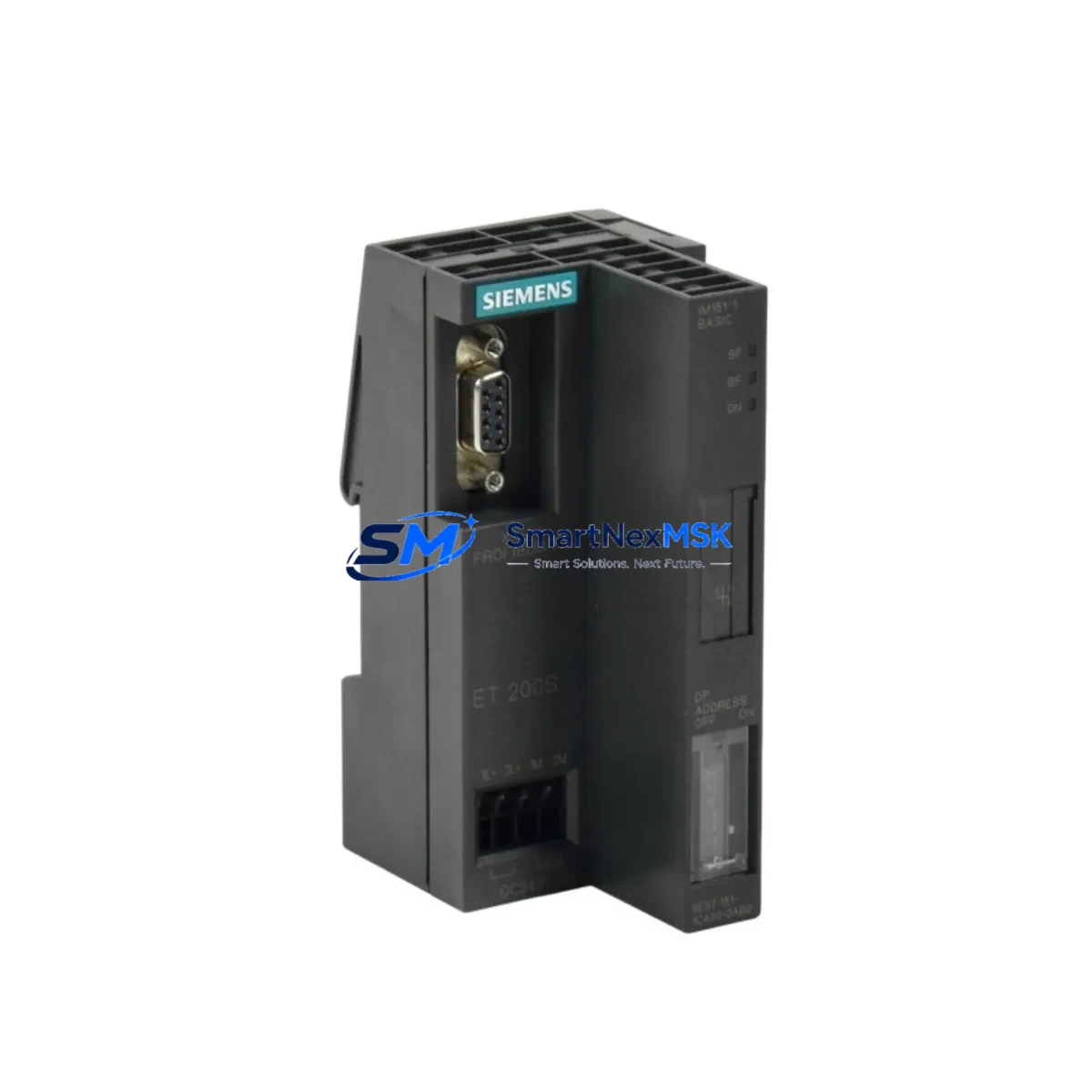

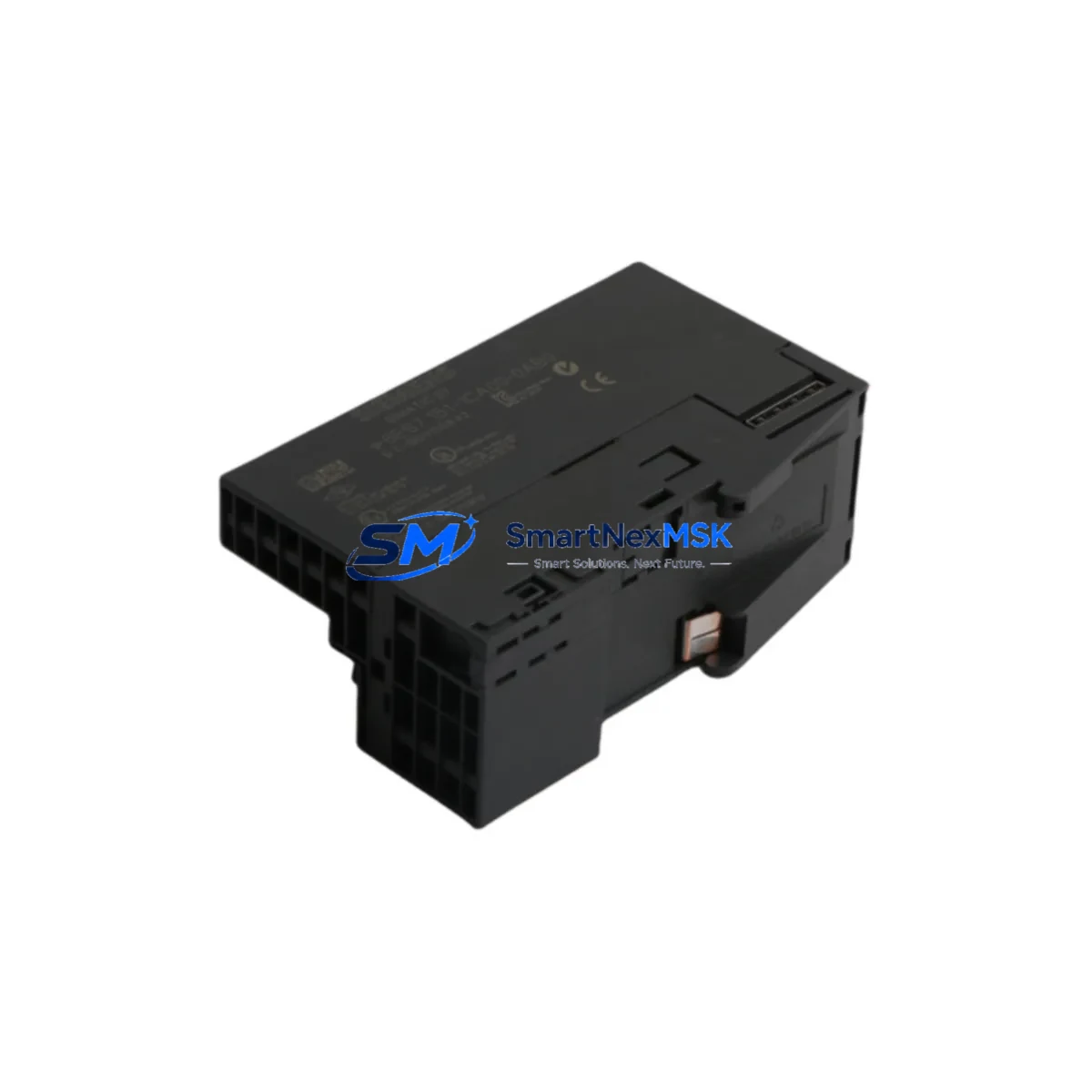

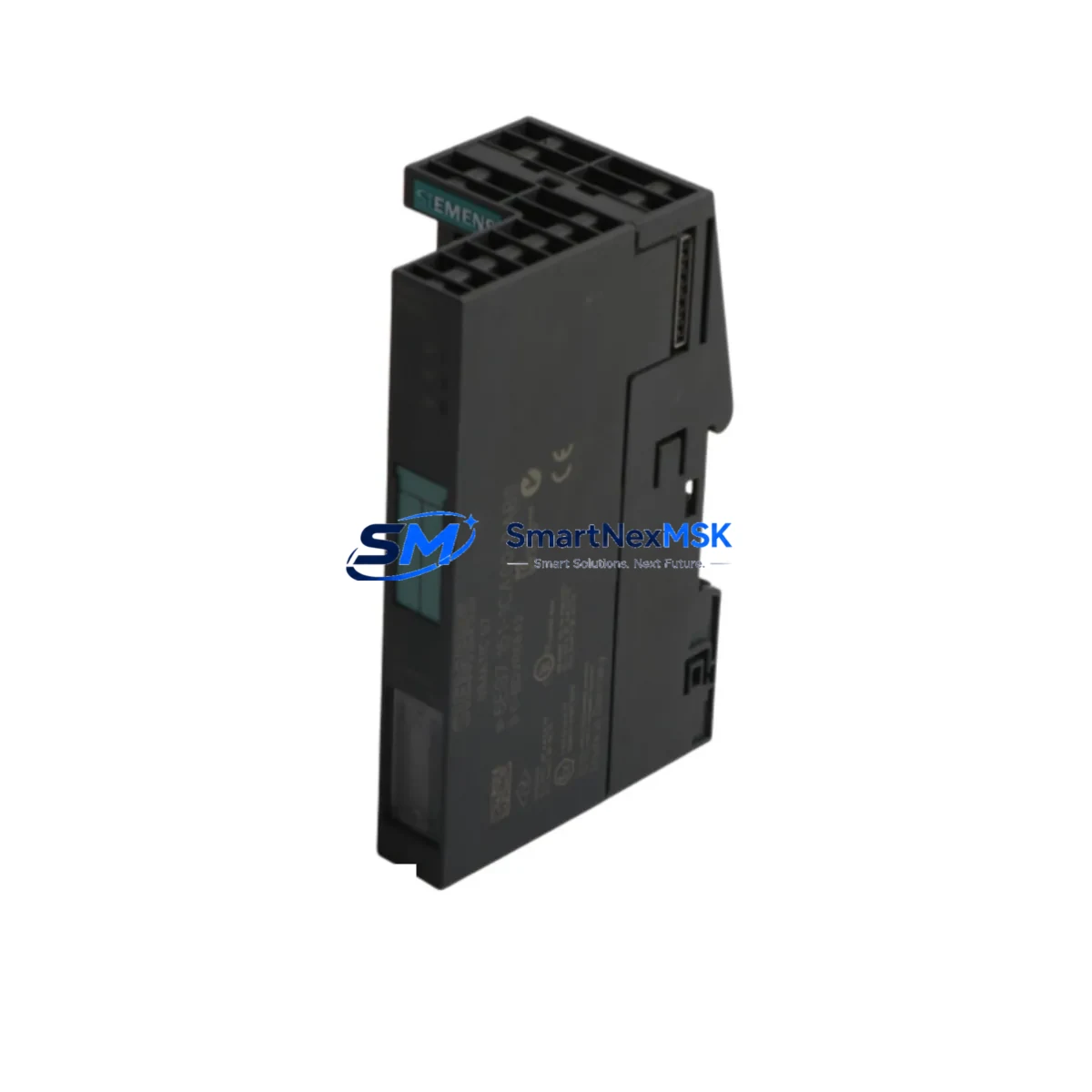

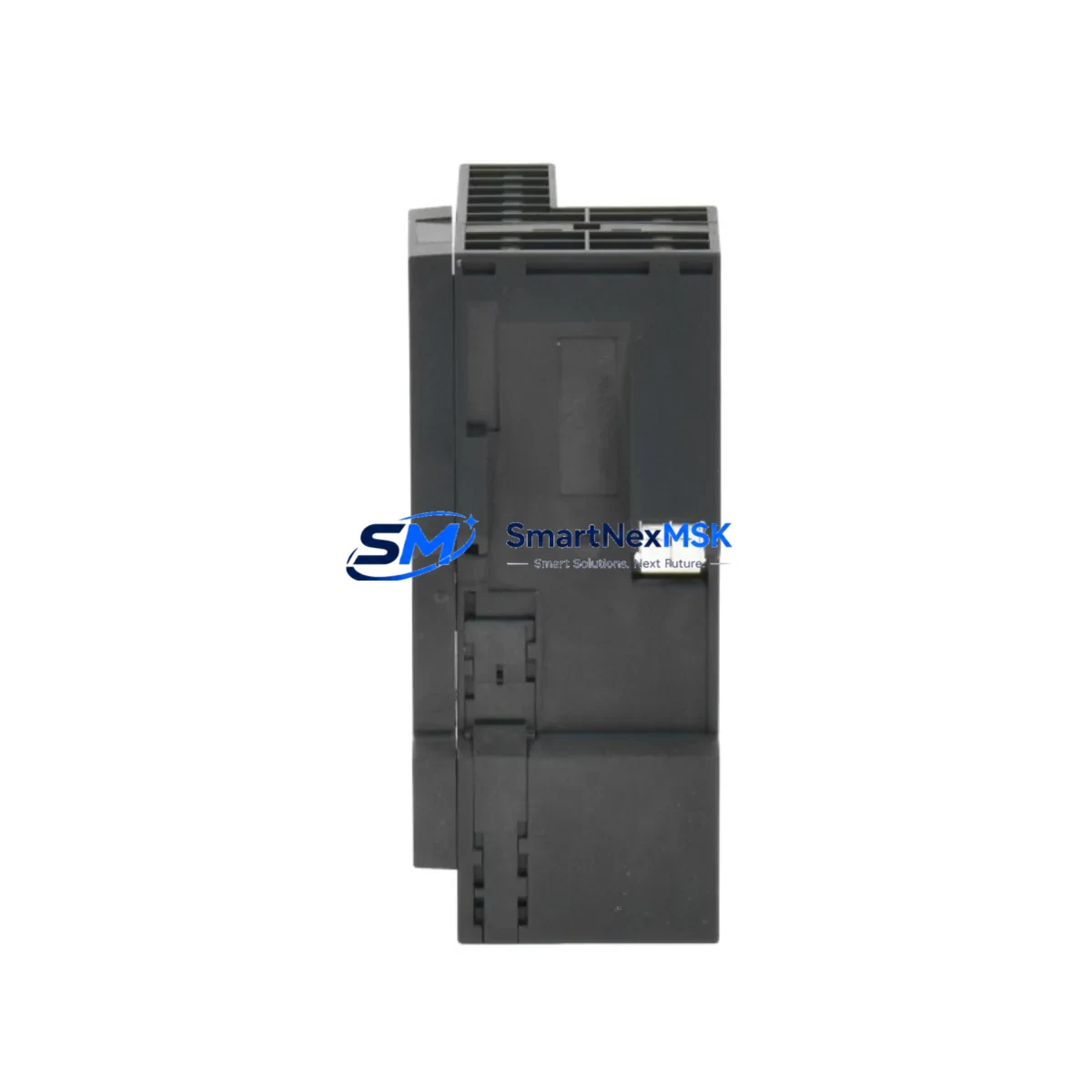

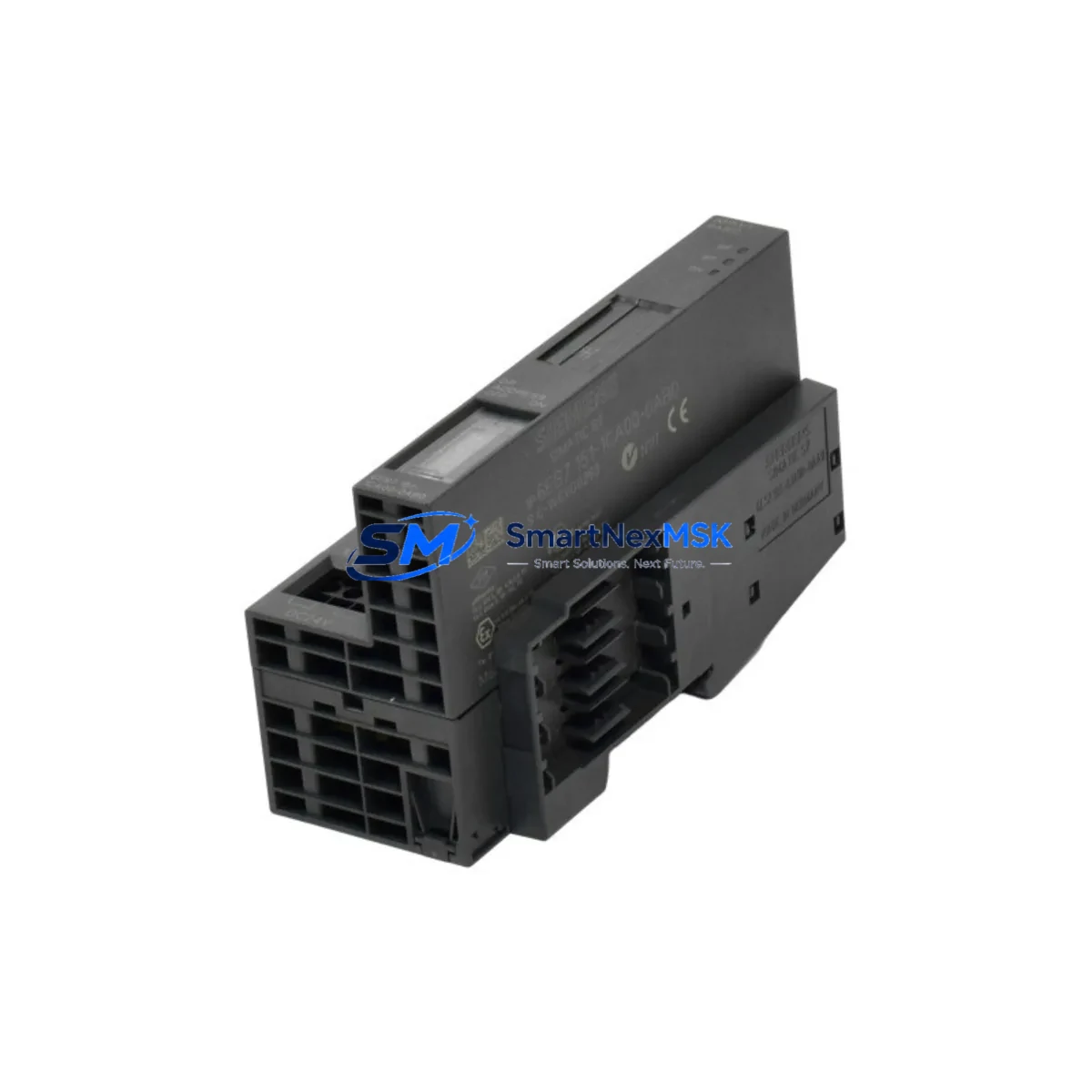

The Siemens 6ES7151-1CA00-0AB0 is the IM151-1 Basic Interface Module for the ET 200S distributed I/O system, designed to operate on PROFIBUS DP networks at data rates up to 12 Mbit/s. In industrial maintenance environments, this module is a critical node between the PROFIBUS DP master — typically a Siemens S7-300 or S7-400 CPU — and the field-level I/O slice modules installed in the ET 200S station. When this interface module fails or degrades, the entire ET 200S station drops off the PROFIBUS segment, triggering immediate process interruption. Holding a verified replacement unit on the shelf is the single most effective measure to contain downtime to under 30 minutes.

At SMARTNEXMSK, every 6ES7151-1CA00-0AB0 unit is sourced from authorized supply channels, inspected against Siemens factory specifications, and dispatched with a 12-month warranty covering functional defects. Each shipment includes a test report confirming PROFIBUS DP communication integrity, power-on self-test results, and backplane connector condition — giving maintenance engineers the confidence to install directly without bench pre-testing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7151-1CA00-0AB0 in a live ET 200S station is rarely an isolated task. Experienced maintenance engineers treat an interface module swap as a trigger for a broader cabinet inspection, because the root cause of IM151-1 failure is often upstream — a degraded 24 V DC power supply rail, a loose PROFIBUS connector, or accumulated heat stress from a failed cabinet fan. Before declaring the replacement complete, the following components in the same control cabinet should be verified:

24 V DC Power Supply (e.g., Siemens SITOP PSU100S or equivalent): Measure output voltage under load. A sagging rail below 20.4 V will cause repeated IM151-1 resets even after module replacement. If the power supply is more than five years old, schedule a proactive swap during the same maintenance window.

PROFIBUS DP Bus Connector (e.g., 6ES7972-0BA52-0XA0): Inspect the 9-pin Sub-D connector at the IM151-1 port for bent pins, cracked housing, or oxidized contacts. A faulty bus connector is a common cause of intermittent DP communication errors that are misdiagnosed as interface module failure.

PROFIBUS Termination Resistor: Confirm that the terminal station on the PROFIBUS segment has active termination enabled. Missing or double termination causes reflection errors that stress the IM151-1 ASIC over time.

ET 200S Terminal Module (TM-IM/IM): Inspect the backplane terminal module on which the IM151-1 seats. Damaged spring contacts or cracked plastic will cause poor electrical contact with the replacement module. If contact resistance is elevated, replace the terminal module simultaneously.

ET 200S Power Module (PM-E 24 V DC, e.g., 6ES7138-4CA01-0AA0): Verify that the PM-E module supplying the I/O slice segment is delivering stable 24 V. A failing PM-E will cause I/O modules to drop out even when the IM151-1 is healthy.

Digital Input / Output Modules (e.g., 6ES7131-4BF00-0AA0 / 6ES7132-4BF00-0AA0): After restoring PROFIBUS communication, run a full I/O diagnostic cycle. Modules that were powered down during the fault may have latched error states requiring a manual reset or firmware re-initialization.

PROFIBUS Cable Shielding and Grounding: Check that the PROFIBUS cable shield is properly grounded at the cabinet entry point. Ungrounded shields are a leading cause of EMI-induced DP communication faults in high-noise industrial environments.

Siemens S7-300 / S7-400 DP Master CPU or CP Module: Review the CPU diagnostic buffer (OB82/OB86) for historical station failure events. Repeated IM151-1 faults logged against the same station address may indicate a DP master port issue rather than a field module problem.

Fuse and Circuit Breaker for 24 V DC Feed: Confirm that the miniature circuit breaker or fuse protecting the 24 V DC feed to the ET 200S station is rated correctly and has not thermally degraded. An undersized or aging breaker can cause nuisance trips that mimic interface module failure.

Addressing these components during the same planned maintenance window eliminates the risk of a repeat callout and maximizes the value of the downtime already incurred.

Site Replacement Workflow

Step 1 — Isolate and Document: Before removing the 6ES7151-1CA00-0AB0, capture the current PROFIBUS station address setting using the address switches on the module face. Photograph the wiring and connector orientation. Note the GSD file version configured in the DP master to ensure the replacement module is configured identically.

Step 2 — Power Down the ET 200S Station: Switch off the 24 V DC supply to the ET 200S station via the dedicated circuit breaker. Do not rely on the PROFIBUS master to suppress the station — always de-energize locally before handling the IM151-1.

Step 3 — Remove the Faulty Module: Disconnect the PROFIBUS DP bus connector. Release the IM151-1 from the terminal module by pressing the release lever and sliding the module upward. Inspect the terminal module contacts for damage before proceeding.

Step 4 — Install the Replacement 6ES7151-1CA00-0AB0: Set the PROFIBUS station address on the new module to match the documented value. Slide the module onto the terminal module until it clicks into place. Reconnect the PROFIBUS DP bus connector, ensuring the termination switch position is preserved.

Step 5 — Power On and Verify: Restore 24 V DC power. Observe the BF (Bus Fault) and SF (System Fault) LEDs on the IM151-1. Both should extinguish within 5 seconds of power-on if the PROFIBUS segment is healthy. Confirm station presence in the DP master diagnostic view (e.g., STEP 7 HW Config or TIA Portal Device View).

Step 6 — Run I/O Verification: Execute a full I/O force test on all digital and analog modules in the ET 200S station to confirm correct data exchange. Log the result in the maintenance record and update the spare parts inventory to reflect the consumed unit.

This workflow is compatible with legacy S7-300/S7-400 systems and modern TIA Portal-managed architectures, ensuring the 6ES7151-1CA00-0AB0 replacement integrates without requiring GSD file changes or DP master reconfiguration in standard installations.

Spare Parts Support FAQ

Q1: Is the 6ES7151-1CA00-0AB0 still available as a new original spare, or only as a refurbished unit?
A: SMARTNEXMSK supplies the 6ES7151-1CA00-0AB0 as an original spare sourced from authorized industrial distribution channels. Each unit undergoes functional testing prior to dispatch. Refurbished or remanufactured units are clearly identified separately and are never substituted without prior customer confirmation.

Q2: How do I verify compatibility with my existing ET 200S station before ordering?
A: The 6ES7151-1CA00-0AB0 (IM151-1 Basic) is compatible with all standard ET 200S terminal modules and I/O slice modules operating on PROFIBUS DP. It is not compatible with ET 200S stations configured for PROFINET IO — those require the IM151-3 PN series. Confirm your fieldbus protocol in the existing GSD/GSDML configuration file or the cabinet wiring diagram before ordering.

Q3: What does the 12-month warranty cover, and what is the replacement process?
A: The 12-month warranty covers all functional defects arising under normal operating conditions, including PROFIBUS communication failure, power-on self-test errors, and backplane connector defects. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number and a description of the fault. SMARTNEXMSK will arrange a replacement dispatch or technical review within 3 business days.

Q4: Can SMARTNEXMSK support long-term spare parts stocking for multi-site maintenance programs?
A: Yes. SMARTNEXMSK offers reserved stock agreements for maintenance teams managing multiple ET 200S installations. Procurement engineers can request a dedicated inventory allocation for the 6ES7151-1CA00-0AB0 and related ET 200S components, with agreed lead times and pricing valid for 12-month contract periods. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss program terms.
