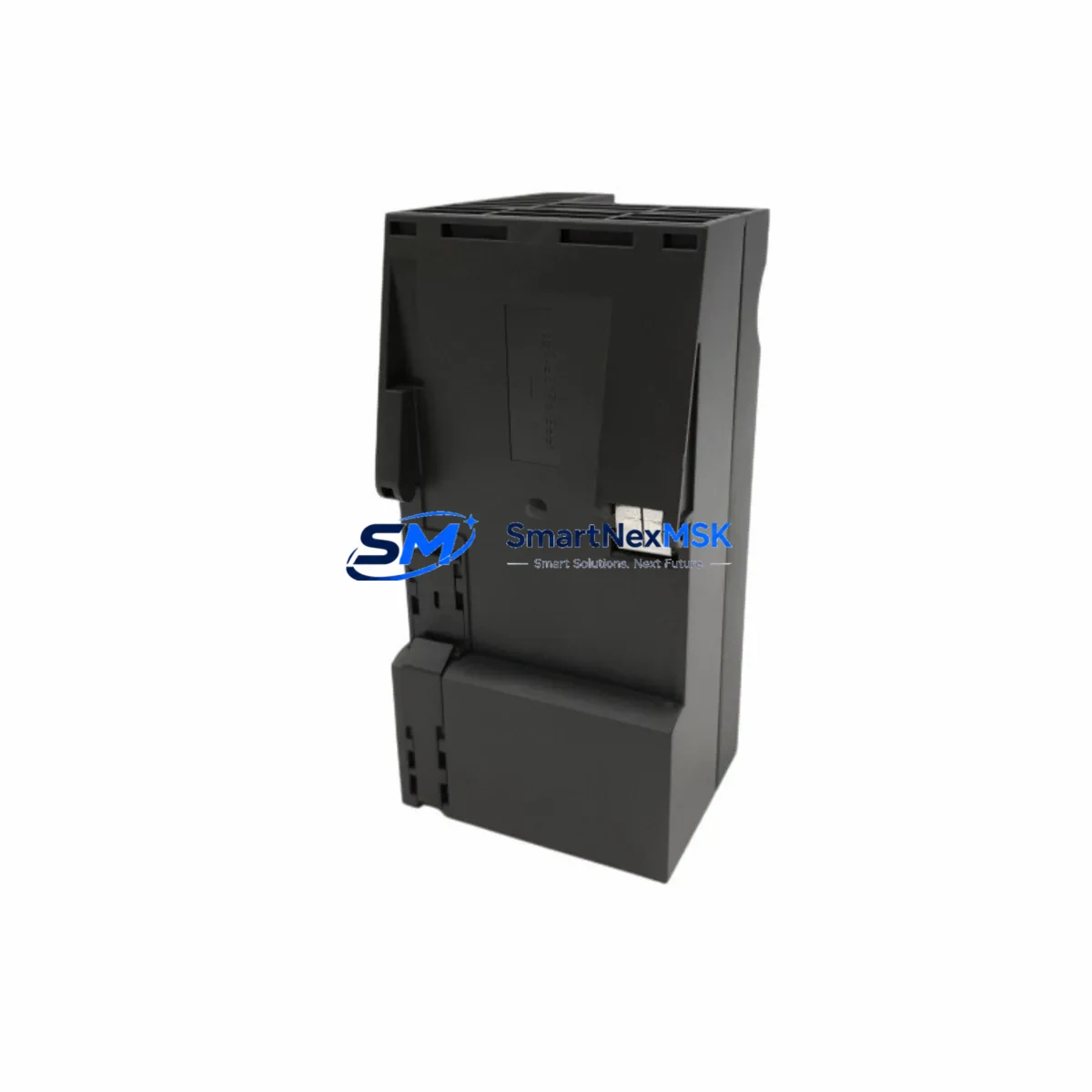

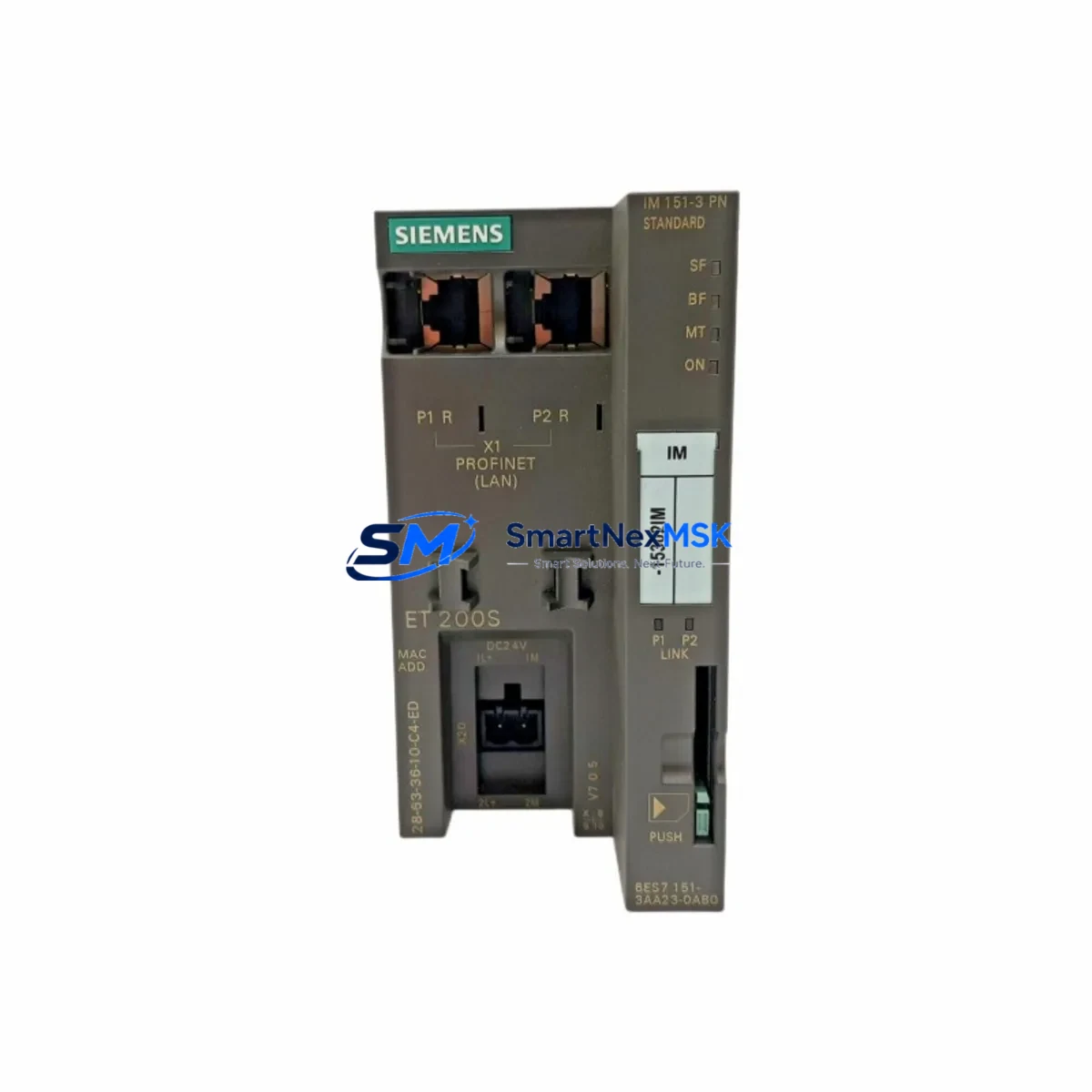

The Siemens 6ES7151-3AA23-0AB0 is the IM151-3 Compact PROFIBUS DP Interface Module for the ET 200S distributed I/O system — a mission-critical component in countless industrial automation installations across manufacturing, process control, and utility sectors. When this interface module fails or reaches end-of-service life, the entire ET 200S station loses communication with the SIMATIC S7 PLC host, triggering an immediate production stoppage. Sourcing a verified, original replacement quickly is not optional — it is the difference between a controlled maintenance window and an unplanned multi-hour outage.

At SMARTNEXMSK, every 6ES7151-3AA23-0AB0 unit is sourced from authorized supply chains, individually inspected, and function-tested before dispatch. We maintain buffer stock specifically to support emergency replacement scenarios, with same-day or next-business-day shipping available for in-stock units. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7151-3AA23-0AB0 interface module is rarely an isolated task. In a well-structured preventive maintenance program, the replacement of an ET 200S IM151-3 module should trigger a systematic inspection of the entire distributed I/O station and its upstream control architecture. Maintenance engineers and procurement teams should treat this event as an opportunity to audit the following associated components:

Power Supply and Bus Infrastructure: The ET 200S station relies on a dedicated PM-E 24VDC power module (e.g., 6ES7138-4CA01-0AA0) to supply 24 V DC to the electronic modules. Verify that the PM-E module output voltage is within tolerance and that the load current does not exceed rated capacity. A degraded power module is a common root cause of intermittent IM151-3 communication faults. Inspect the terminal module TM-IM/IM (6ES7193-4CA40-0AA0) for contact oxidation or mechanical damage, as poor backplane contact can mimic interface module failure.

I/O Modules and Signal Integrity: With the station offline for IM replacement, inspect all installed 4DI 24VDC digital input modules and 2DO 24VDC/0.5A digital output modules for signs of overload, burned contacts, or loose terminal wiring. Check 2AI U analog input modules for drift — analog signal accuracy degrades over time in high-vibration or high-temperature environments. If the station includes 1SI serial interface modules for RS-232/RS-485 communication, verify baud rate settings and cable shielding integrity.

PROFIBUS Network Health: After installing the replacement 6ES7151-3AA23-0AB0, use a PROFIBUS diagnostic tool or the SIMATIC S7 hardware configuration to verify bus termination resistors at both ends of the segment. Inspect the PROFIBUS cable connectors (e.g., Siemens 6ES7972-0BA52-0XA0 bus connectors) for pin damage or improper termination switch settings. A single faulty terminator can destabilize the entire PROFIBUS segment, causing all DP slaves to report communication errors.

Relay and Protection Components: If the ET 200S station controls motor starters or safety relays via 1RO NO/NC relay output modules, inspect relay contact wear and coil resistance. Relay modules in high-cycle applications should be included in the annual spare parts budget alongside the IM151-3. Check upstream miniature circuit breakers (MCBs) and fuse terminal blocks in the control cabinet for correct rating and continuity.

HMI and Upstream PLC Communication: Verify that the SIMATIC S7-300 or S7-400 CPU’s PROFIBUS DP master port (e.g., CP 342-5 communication processor) shows the ET 200S station as active after module replacement. If the system uses a SIMATIC HMI TP700 Comfort or similar panel, confirm that process values from the ET 200S I/O are updating correctly on the HMI screens. Stale or frozen values after a module swap indicate a configuration mismatch or GSD file version conflict that must be resolved before returning the system to production.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing IM151-3 module, document the PROFIBUS DP address set on the address switch of the current module. The 6ES7151-3AA23-0AB0 uses a rotary address switch; the replacement unit must be set to the identical address before installation. Failure to match the DP address will cause the S7 CPU to report a station fault immediately upon power-up.

Step 2 — Safe Isolation: De-energize the ET 200S station by switching off the PM-E power module or the upstream MCB feeding the station. Do not rely solely on the PROFIBUS DP master going offline — the 24 V DC supply to the station must be physically interrupted before removing the IM151-3 module from the terminal module.

Step 3 — Module Removal and Inspection: Slide the IM151-3 module off the TM-IM/IM terminal module. Inspect the terminal module contacts for corrosion or deformation. If contact damage is present, replace the terminal module (6ES7193-4CA40-0AA0) simultaneously — installing a new IM151-3 onto a damaged terminal module will cause intermittent faults and premature module failure.

Step 4 — Replacement Installation and Address Setting: Set the PROFIBUS DP address on the new 6ES7151-3AA23-0AB0 to match the documented address. Slide the module firmly onto the terminal module until the locking mechanism engages. Restore 24 V DC power and verify that the BF (Bus Fault) LED extinguishes within 5 seconds of power-up, confirming successful PROFIBUS DP communication establishment.

Step 5 — Functional Verification: From the SIMATIC S7 CPU or STEP 7 / TIA Portal online diagnostics, confirm that the ET 200S station is shown as active with no module faults. Cycle test all I/O points associated with the station before releasing the system to production. Log the replacement in the plant maintenance system with the module serial number, date, and technician ID for traceability.

Compatibility Note: The 6ES7151-3AA23-0AB0 is backward-compatible with earlier ET 200S configurations programmed for the 6ES7151-3AA22-0AB0 and 6ES7151-3AA20-0AB0. No GSD file update is required when replacing like-for-like within the same hardware revision family. For cross-revision replacements, verify the GSD file version in the STEP 7 hardware catalog before going online.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 6ES7151-3AA23-0AB0 supplied by SMARTNEXMSK?
All units carry a 12-month functional warranty from the date of shipment. This covers failures attributable to manufacturing defects or latent component faults under normal operating conditions (24 V DC supply within ±10%, ambient temperature 0–60 °C, IP20 environment). Damage caused by incorrect installation, overvoltage, or physical impact is excluded. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How do I verify compatibility before ordering if my existing module has a different firmware revision?
The 6ES7151-3AA23-0AB0 is identified by its order number and hardware/firmware revision printed on the module label. For PROFIBUS DP applications, the DP address and GSD file determine station behavior — not the firmware revision. If your STEP 7 or TIA Portal project was configured with an earlier revision GSD, contact our technical team at sales@smartnexmsk.com with your project’s hardware configuration export, and we will confirm compatibility before shipment.

Q3: Can I order multiple units for strategic spare parts inventory?
Yes. We recommend maintaining a minimum of one IM151-3 spare per 5 ET 200S stations in your plant, or one unit per critical production line regardless of station count. Volume orders of 3 or more units qualify for priority allocation from our buffer stock. Contact us for volume pricing and lead time confirmation. We support blanket orders with scheduled releases for customers managing annual maintenance budgets.

Q4: What pre-shipment testing is performed on each unit?
Every 6ES7151-3AA23-0AB0 unit undergoes a functional power-on test verifying LED status indicators, PROFIBUS DP communication initialization, and supply voltage acceptance before packaging. Units are shipped in ESD-safe anti-static bags with protective foam inserts. A test report is available upon request for quality-critical applications. New original units include Siemens factory seals; tested refurbished units are clearly identified on the order confirmation.
