Siemens 6ES7158-3AD10-0XA0 Safety-Enhanced PROFIBUS Coupler

Siemens 6ES7158-3AD10-0XA0 Safety-Enhanced PROFIBUS Coupler: Reliable Control in Harsh Industrial Sites

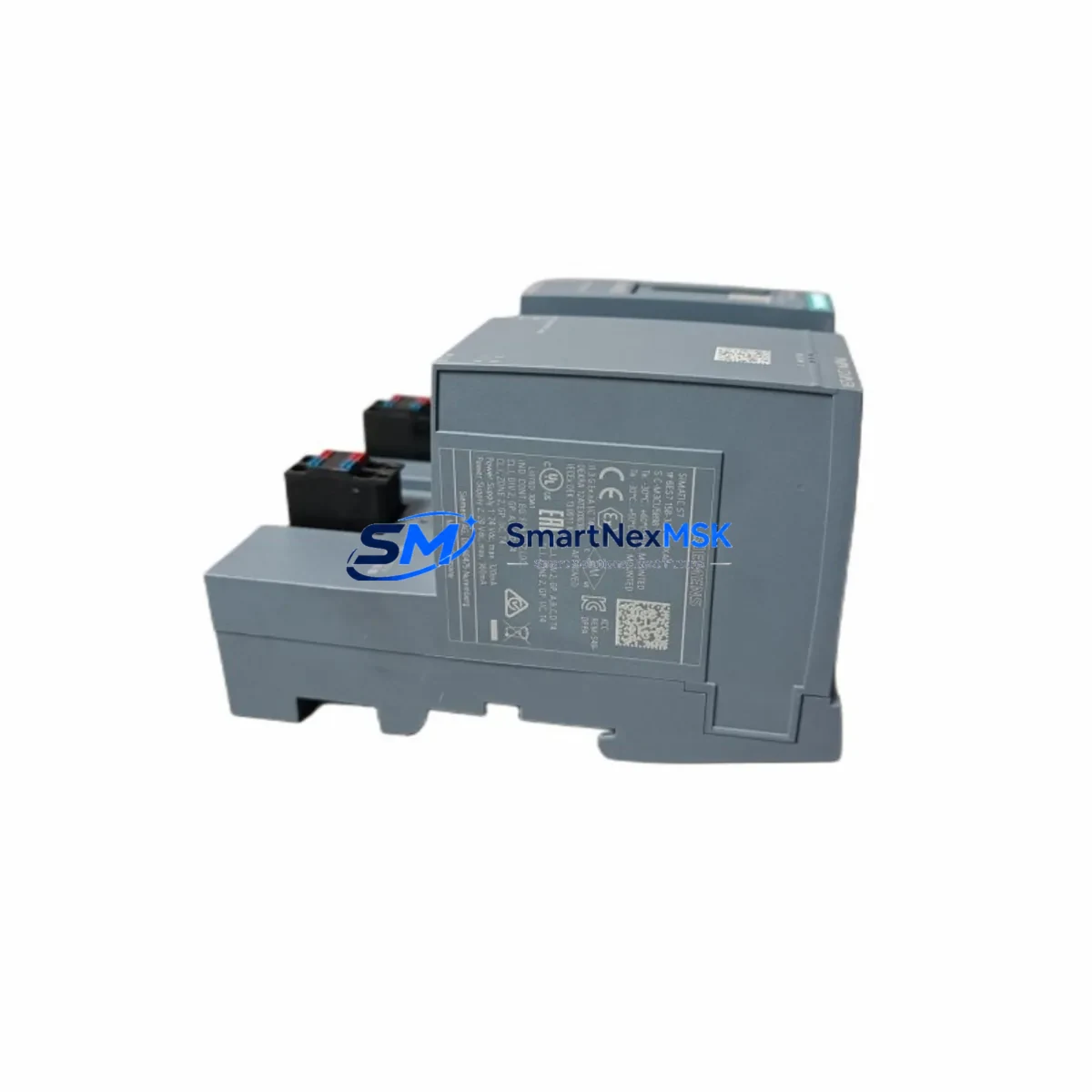

The Siemens 6ES7158-3AD10-0XA0 is a PROFIBUS DP/DP Coupler module engineered for mission-critical industrial automation environments where control loop integrity and communication reliability are non-negotiable. Designed as part of the Siemens SIMATIC S7 ET 200 distributed I/O architecture, this coupler bridges two independent PROFIBUS DP networks — enabling safe, isolated data exchange between master systems without introducing ground loops, signal interference, or cascading fault propagation. In high-load continuous production facilities, petrochemical plants, power generation substations, and heavy metallurgical operations, the 6ES7158-3AD10-0XA0 serves as a critical safety boundary component that keeps control segments operationally independent and fault-contained.

Industrial environments subject automation hardware to relentless stress: voltage transients from large motor starts, electromagnetic interference from variable frequency drives and welding equipment, thermal cycling in outdoor switchgear cabinets, and vibration from rotating machinery. The 6ES7158-3AD10-0XA0 is built to withstand these conditions. Its galvanic isolation between the two PROFIBUS DP segments prevents surge energy from propagating across network boundaries — a common cause of simultaneous multi-node failure in non-isolated bus architectures. When paired with a properly specified SITOP PSU100S 24 V DC power supply and surge protection devices such as the Siemens 5SD7 series surge arresters, the coupler forms a robust, layered protection strategy for the entire control cabinet.

In safety instrumented systems and critical interlock loops, communication latency and determinism are as important as physical protection. The 6ES7158-3AD10-0XA0 supports baud rates up to 12 Mbit/s on both DP segments independently, ensuring that time-sensitive process data — emergency shutdown signals, pressure relief triggers, motor protection commands — is transmitted without delay even under high bus load conditions. This makes it suitable for integration alongside Siemens SIMATIC S7-300 and S7-400 CPUs, as well as ET 200M and ET 200S distributed I/O stations deployed in remote field panels.

Control cabinet designers working on projects in water treatment facilities, mining hoists, port crane automation, and continuous casting lines frequently specify the 6ES7158-3AD10-0XA0 to segment their PROFIBUS networks by functional safety zone. By isolating the safety-related segment — which may include Siemens F-modules such as the SM 326 F-DI or SM 336 F-AI — from the standard process control segment, engineers ensure that a fault or communication disruption on the process side cannot compromise the integrity of the safety instrumented function. This architecture aligns with IEC 61511 process safety management principles and supports SIL-rated loop design.

The module’s compact rail-mount form factor integrates directly into standard 35 mm DIN rail assemblies alongside SIMATIC S7 power modules, interface modules such as the IM 153-2, and bus connectors. Its status LEDs provide immediate visual diagnostics for bus activity, fault states, and power status — reducing mean time to repair in the event of a network anomaly. For facilities operating 24/7 with zero planned downtime tolerance, the ability to quickly identify and isolate a faulty segment without shutting down the entire PROFIBUS network is a significant operational safety advantage.

Spare parts availability and supply continuity are critical considerations for long-lifecycle industrial installations. The 6ES7158-3AD10-0XA0 is stocked and available for immediate dispatch. Every unit undergoes pre-shipment functional testing to verify bus communication, isolation integrity, and LED diagnostics before leaving our facility. A 12-month warranty is included with every order, covering manufacturing defects and functional failures under normal operating conditions. For facilities managing planned maintenance cycles or building strategic spare parts inventories, we support bulk procurement with documented traceability.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for systems incorporating the 6ES7158-3AD10-0XA0 begins with a clean, regulated 24 V DC power rail. The Siemens SITOP PSU100S or SITOP modular 20 A power supply provides the stable, low-ripple DC supply that PROFIBUS nodes require for consistent communication. Upstream of the power supply, a Siemens 5SD7 series Type 2 surge arrester protects against transient overvoltages entering through the AC mains — a common failure vector in facilities near high-voltage switchyards or with frequent lightning exposure.

On the PROFIBUS network itself, bus termination resistors and PROFIBUS connectors with integrated termination — such as the Siemens 6ES7972-0BA52-0XA0 — must be correctly installed at both ends of each DP segment to prevent signal reflections that cause communication errors under high baud rate operation. The 6ES7158-3AD10-0XA0 coupler then provides the critical isolation boundary between the two segments, ensuring that a wiring fault, ground potential difference, or surge event on one segment cannot propagate to the other.

For distributed I/O stations connected to the isolated segment, the Siemens ET 200M with IM 153-2 interface module provides a reliable, modular I/O platform. Digital input modules such as the SM 321 DI 32×DC 24V and analog input modules such as the SM 331 AI 8×12Bit handle field signals from sensors, transmitters, and limit switches. In safety-rated applications, Siemens F-modules — including the SM 326 F-DI 24×DC 24V and SM 336 F-AI 6×13Bit — are deployed on the isolated safety segment, with the 6ES7158-3AD10-0XA0 ensuring that the safety segment remains electrically and logically independent from the standard process control network.

Communication diagnostics are supported through the SIMATIC S7 CPU’s integrated PROFIBUS DP master interface, which continuously monitors bus health, node status, and error counters. When anomalies are detected — such as a node dropout caused by a loose connector or a cable fault — the CPU generates diagnostic alarms that can trigger controlled safe-state transitions rather than uncontrolled process shutdowns. This deterministic fault response is a cornerstone of functional safety design in continuous process industries.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 6ES7158-3AD10-0XA0 is deployed in emergency shutdown system (ESD) panels where the safety instrumented system must remain isolated from the basic process control system (BPCS). The coupler allows process data to be shared between the two systems for monitoring purposes while maintaining the electrical and logical independence required by IEC 61511 and IEC 61508 functional safety standards.

In power generation and substation automation, PROFIBUS DP networks connect protection relays, motor control centers, and distributed I/O panels across large physical distances. The galvanic isolation provided by the 6ES7158-3AD10-0XA0 is essential in these environments, where ground potential differences between buildings or switchgear bays can reach tens of volts — sufficient to corrupt communication or damage non-isolated bus interfaces.

In mining and mineral processing, conveyor systems, crusher drives, and hoisting equipment operate under extreme mechanical and electrical stress. Control systems must tolerate high levels of conducted and radiated EMI from large variable speed drives. The 6ES7158-3AD10-0XA0’s isolation and EMC-compliant design make it a reliable choice for segmenting drive control networks from process monitoring networks in these demanding environments.

In water and wastewater treatment, continuous operation is mandatory — even partial control system failures can result in regulatory non-compliance or environmental incidents. The 6ES7158-3AD10-0XA0 enables network segmentation that limits the blast radius of any single point of failure, supporting high-availability architectures with redundant PROFIBUS masters and hot-standby CPU configurations.

In metallurgical and steel production facilities, the combination of high-current arc furnaces, induction heaters, and rolling mill drives creates one of the most electromagnetically hostile environments in industry. Deploying the 6ES7158-3AD10-0XA0 as a segment boundary component — alongside properly shielded PROFIBUS cables and grounded cable trays — significantly reduces the risk of communication-induced process interruptions in these facilities.

Safety and Quality FAQ

Q1: What warranty is included with the Siemens 6ES7158-3AD10-0XA0?
Every unit is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options to minimize your downtime.

Q2: How is each unit tested before shipment?
All 6ES7158-3AD10-0XA0 modules undergo pre-shipment functional testing that verifies PROFIBUS DP bus communication on both segments, galvanic isolation integrity, power-up behavior, and LED diagnostic status. Only units that pass all test criteria are released for dispatch.

Q3: Is the 6ES7158-3AD10-0XA0 compatible with both S7-300 and S7-400 PROFIBUS DP masters?
Yes. The module is fully compatible with Siemens SIMATIC S7-300 and S7-400 CPUs with integrated DP master interfaces, as well as CP 342-5 and CP 443-5 communication processors. It is also compatible with third-party PROFIBUS DP masters that conform to the IEC 61158 / EN 50170 standard.

Q4: Can you support long-term or bulk supply for maintenance and spare parts programs?
Yes. We maintain stock of the 6ES7158-3AD10-0XA0 and can support scheduled spare parts procurement programs, blanket orders, and emergency replacement supply. Contact our team to discuss your facility’s long-term supply requirements and lead time commitments.
