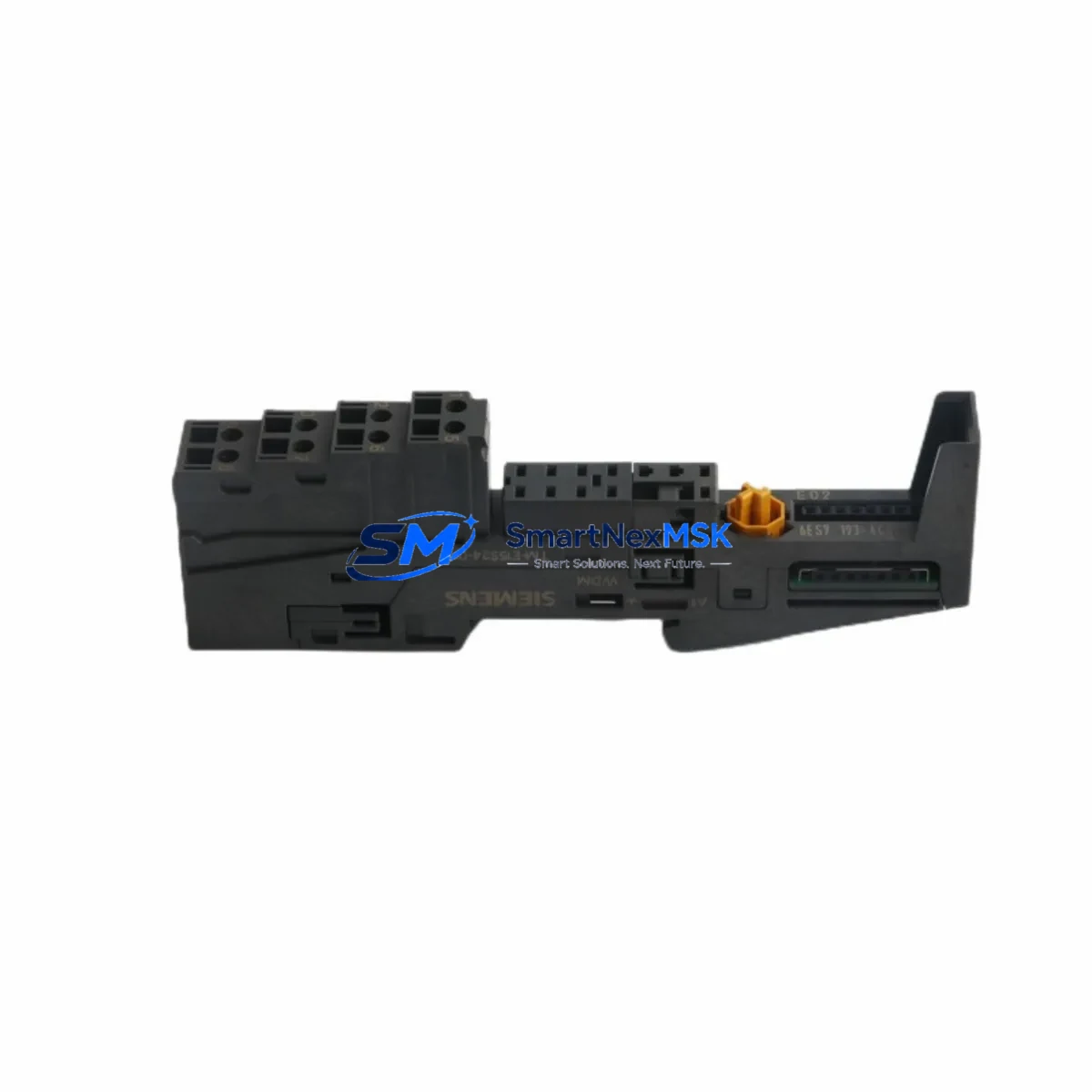

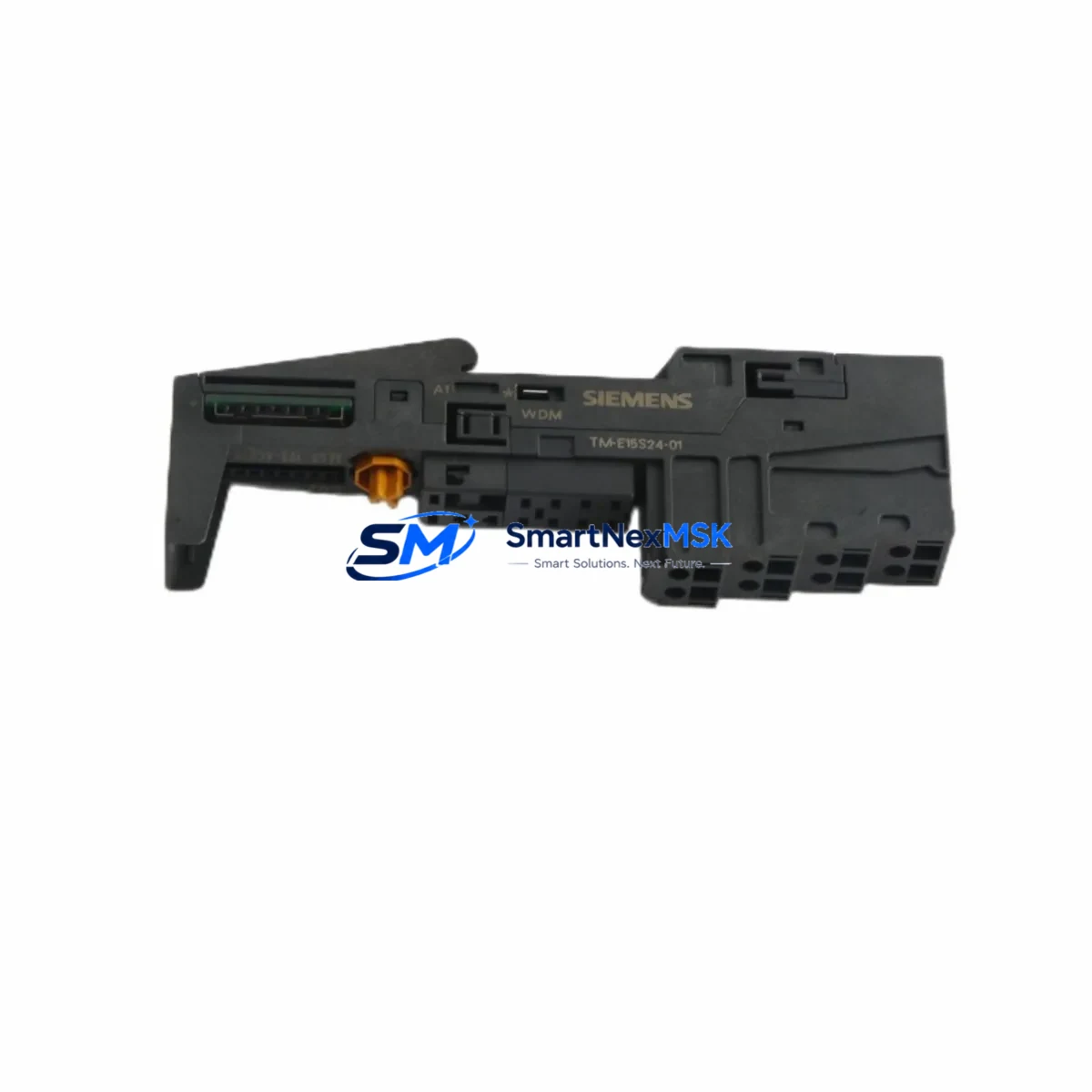

The Siemens 6ES7193-4CB20-0AA0 is a ruggedized terminal module designed for the SIMATIC ET 200S distributed I/O system, engineered to deliver uncompromising safety control and signal integrity in the most demanding industrial environments. Whether deployed in high-load petrochemical processing lines, continuous steel mill operations, underground mining control cabinets, or critical power plant interlock circuits, this terminal module provides the structural and electrical foundation that keeps your control loops running without interruption.

In harsh industrial sites where electromagnetic interference, voltage transients, mechanical vibration, and extreme temperature cycles are daily realities, the integrity of every terminal connection is a safety-critical concern. The 6ES7193-4CB20-0AA0 addresses these challenges through its robust housing, secure spring-cage or screw-type field wiring interface, and precise alignment with the ET 200S power module and electronic module stack. It eliminates the risk of loose field wiring — one of the most common causes of spurious trips, signal drift, and unplanned shutdowns in distributed I/O architectures.

Within a typical ET 200S control cabinet, this terminal module works in close coordination with components such as the 6ES7138-4CA01-0AA0 PM-E power module, which supplies stable 24 VDC to the I/O tier, and the 6ES7131-4BF00-0AA0 4DI digital input module for field sensor acquisition. When paired with the 6ES7132-4BF00-0AA0 4DO digital output module, the terminal module ensures that actuator command signals reach field devices without voltage drop or contact resistance buildup — a critical requirement in safety interlock and emergency shutdown (ESD) circuits. For analog process control loops, it supports clean signal routing alongside the 6ES7134-4GB11-0AB0 2AI analog input module, preventing ground loops and shielding degradation that could cause 4–20 mA signal drift in temperature or pressure measurement chains.

In applications where surge protection is paramount — such as outdoor substations, port crane control panels, or water treatment SCADA nodes — the 6ES7193-4CB20-0AA0 provides a mechanically stable termination point that complements upstream surge protection devices and downstream 6ES7138-4CB11-0AB0 PM-E F power modules used in fail-safe ET 200S configurations. Its compatibility with the 6ES7151-1BA02-0AB0 IM 151-1 interface module ensures that the entire distributed station maintains PROFIBUS DP communication continuity even under high-frequency noise conditions common in variable frequency drive (VFD) environments.

For facilities operating under IEC 61511 functional safety requirements — including chemical plants, offshore platforms, and nuclear auxiliary systems — the terminal module’s role in maintaining wiring segregation and module-to-module isolation is indispensable. It supports the physical separation of safety-instrumented system (SIS) field wiring from standard control wiring, reducing the risk of common-cause failures. When used alongside 6ES7138-4FC01-0AB0 F-DO fail-safe digital output modules and 6ES7136-4RA00-0AA0 relay output modules, it forms part of a certified safety loop architecture capable of achieving SIL 2 performance levels.

Every unit of the 6ES7193-4CB20-0AA0 supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including contact resistance testing, mechanical fit inspection, and compatibility confirmation against the target ET 200S station configuration. Stock is maintained to support both planned maintenance schedules and emergency replacement scenarios, minimizing mean time to repair (MTTR) in critical production environments. All units are covered by a 12-month warranty from the date of shipment.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust ET 200S control cabinet in a continuous production environment is only as reliable as its weakest termination point. The 6ES7193-4CB20-0AA0 terminal module anchors the field wiring layer of the cabinet, providing a stable, vibration-resistant interface between field cables and the electronic modules above it. In a typical high-availability cabinet design, it operates alongside the 6ES7138-4CA01-0AA0 PM-E 24VDC power module to ensure that power distribution to each I/O slice remains stable even during load transients caused by simultaneous actuator switching.

For cabinets installed near large motor drives or welding equipment — where conducted and radiated EMI levels routinely exceed industrial norms — the terminal module’s shielded housing and low-impedance grounding path help suppress common-mode noise before it reaches the signal conditioning stage of the 6ES7134-4GB11-0AB0 analog input module. This is particularly important in 4–20 mA current loop circuits monitoring furnace temperatures or reactor pressures, where even a 0.1 mA signal error can trigger a false alarm or mask a genuine process deviation.

In safety-critical cabinets incorporating 6ES7138-4FC01-0AB0 F-DO fail-safe output modules and 6ES7136-4RA00-0AA0 relay modules for ESD valve control, the terminal module provides the physical wiring segregation required by IEC 61511 to prevent cross-wiring faults between safety and non-safety circuits. Surge events from field cable runs — common in outdoor installations at ports, water treatment plants, or open-pit mining sites — are absorbed by coordinated SPD devices upstream, while the terminal module maintains contact integrity at the cabinet boundary. The 6ES7151-1BA02-0AB0 IM 151-1 interface module and 6ES7193-4CC20-0AA0 terminal module variants complete the station architecture, ensuring that PROFIBUS DP communication to the S7-300 or S7-400 CPU is never interrupted by field-side disturbances.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous catalytic cracking units and distillation column control systems, the 6ES7193-4CB20-0AA0 supports the reliable termination of field signals from pressure transmitters, flow meters, and emergency isolation valve positioners. Its resistance to hydrocarbon vapor environments (when installed in purged or pressurized enclosures) and compatibility with SIL 2 interlock architectures make it a preferred choice for safety instrumented function (SIF) wiring panels.

Electric Power Generation & Transmission: In turbine control panels and substation automation cabinets, where 110 VDC or 220 VAC control bus surges are a recurring threat, the terminal module’s robust contact design prevents the micro-arcing and contact oxidation that degrade signal quality over time. It supports the reliable operation of protection relay input circuits and generator excitation control loops.

Mining & Mineral Processing: Underground conveyor control systems and surface crusher automation panels operate in environments with extreme dust loading, mechanical shock, and high-voltage interference from haul truck electrical systems. The 6ES7193-4CB20-0AA0 provides the mechanical durability and contact stability required for 24/7 unattended operation in these conditions.

Water & Wastewater Treatment: SCADA-controlled pump stations and chemical dosing systems require terminal modules that maintain signal integrity in high-humidity, corrosive-atmosphere control rooms. The ET 200S platform with this terminal module supports both local and remote I/O configurations, enabling flexible distributed control across large treatment facilities.

Metallurgy & Steel Production: In electric arc furnace (EAF) control systems and continuous casting line automation, where electromagnetic pulse (EMP) events from furnace switching can reach several kilovolts, the terminal module’s grounding architecture and module isolation properties protect downstream I/O electronics from damage, reducing unplanned downtime and costly module replacements.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 6ES7193-4CB20-0AA0?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects, contact failure, and functional non-conformance identified under normal operating conditions. Warranty claims are processed with priority to minimize production downtime for our industrial customers.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7193-4CB20-0AA0 undergoes contact resistance measurement, mechanical fit verification against the ET 200S rail and module stack, and visual inspection for housing integrity and terminal condition. Units that do not meet acceptance criteria are quarantined and not shipped. Test records are available upon request for quality-audited procurement processes.

Q3: Is this terminal module compatible with both PROFIBUS DP and PROFINET ET 200S configurations?
Yes. The 6ES7193-4CB20-0AA0 is a passive terminal module that is compatible with all ET 200S interface module variants, including the IM 151-1 (PROFIBUS DP) and IM 151-3 PN (PROFINET). It does not contain active communication components, so its compatibility is determined by the physical ET 200S rail and module slot configuration rather than the communication protocol in use.

Q4: Can long-term supply and emergency replacement stock be arranged?
SMARTNEXMSK maintains standing inventory of the 6ES7193-4CB20-0AA0 to support both scheduled maintenance programs and emergency breakdown replacement requirements. For customers operating large ET 200S installations across multiple sites, we offer consignment stock arrangements and priority allocation agreements. Contact our technical sales team to discuss your specific supply continuity requirements.
