Siemens 6ES7193-6BP00-0BA0 Safety-Enhanced ET 200SP Base Unit

Siemens 6ES7193-6BP00-0BA0 Safety-Enhanced ET 200SP Base Unit for Harsh Industrial Sites

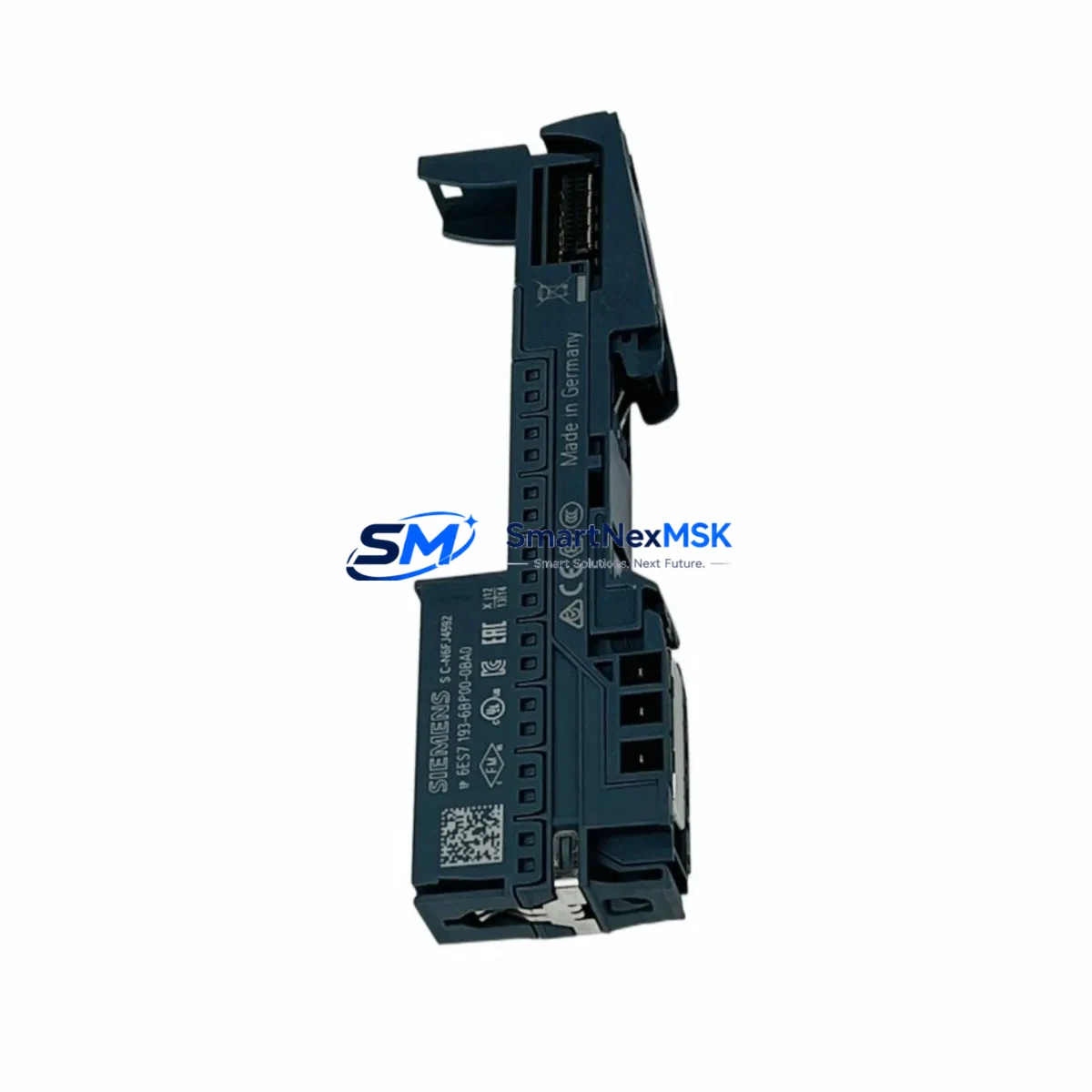

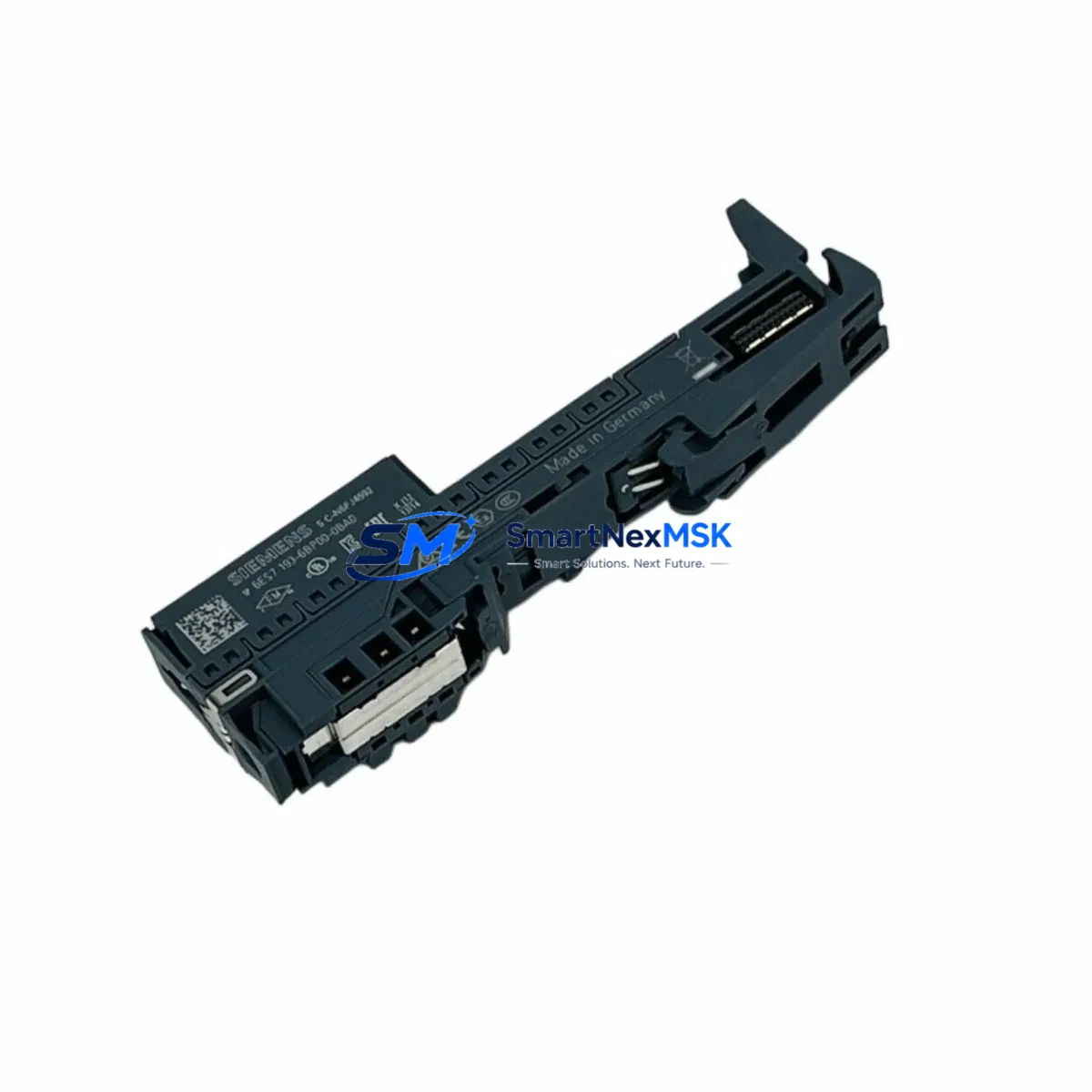

The Siemens 6ES7193-6BP00-0BA0 is a BU15-P16+A0+2B base unit designed for the ET 200SP distributed I/O system — one of Siemens’ most widely deployed field-level control platforms in demanding industrial environments. Built to operate reliably under continuous production loads, high electromagnetic interference, and fluctuating power conditions, this base unit serves as the structural and electrical backbone of ET 200SP I/O assemblies in safety-critical control cabinets worldwide.

In high-stakes applications such as chemical plant interlocks, power generation control loops, mining conveyor safety circuits, and water treatment SCADA systems, the integrity of every base unit directly affects system uptime and personnel safety. The 6ES7193-6BP00-0BA0 addresses these demands through its robust push-in terminal design, stable backplane bus communication, and full compatibility with the SIMATIC ET 200SP I/O module ecosystem — including digital input modules such as the 6ES7131-6BF01-0BA0, analog output modules like the 6ES7135-6GB00-0BA1, and safety-rated I/O modules from the F-series range.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6ES7193-6BP00-0BA0 base unit does not operate in isolation. It forms part of a layered protection architecture that begins at the power supply level and extends through every I/O channel to the field device. A properly configured ET 200SP station typically pairs this base unit with a 6ES7138-6CF00-0AB0 PM-E DC24V power module to ensure stable, isolated 24 V DC supply to the I/O rail — protecting against voltage sags, transient surges, and ground faults that could otherwise cause module mis-operation or spurious safety trips.

Signal integrity across the backplane is maintained through the base unit’s integrated bus connector design, which eliminates the loose-connector failure modes common in older modular systems. When combined with 6ES7131-6BH01-0BA0 digital input modules and 6ES7132-6BH01-0BA0 digital output modules, the assembly provides a complete, low-latency I/O path from field sensor to PLC CPU — critical in emergency shutdown (ESD) and safety instrumented system (SIS) applications where response time directly affects process safety.

For installations requiring functional safety certification, the 6ES7193-6BP00-0BA0 is fully compatible with Siemens F-DI and F-DO safety I/O modules (e.g., 6ES7136-6DC00-0CA0), enabling SIL 2 / SIL 3 loop configurations without additional external safety relays. Communication reliability is further reinforced when the ET 200SP station is connected via a 6GK7243-1BX30-0XE0 CM 1241 PROFINET interface module or through a dedicated 6ES7155-6AU01-0BN0 ET 200SP IM 155-6 PN interface module, both of which support media redundancy protocol (MRP) for uninterrupted network operation during cable faults.

Surge protection at the cabinet entry point — using devices such as the Siemens SITOP PSU8600 power supply series — further reduces the risk of transient damage propagating to the ET 200SP backplane. Together, these components form a coherent, defense-in-depth control cabinet strategy that minimizes unplanned downtime and protects personnel in hazardous area operations.

Critical Industrial Safety Applications

The Siemens 6ES7193-6BP00-0BA0 base unit is deployed across a broad spectrum of safety-critical industrial sectors where control continuity and signal reliability are non-negotiable.

In petrochemical and refinery operations, ET 200SP stations built on this base unit are integrated into emergency shutdown systems and burner management systems, where any I/O module failure or communication dropout can trigger costly process upsets or, in worst cases, safety incidents. The base unit’s robust push-in terminal design resists vibration-induced loosening — a common failure mode in pump skid and compressor control panels operating under continuous mechanical load.

In electric power generation and substation automation, the 6ES7193-6BP00-0BA0 supports high-density I/O assemblies for generator excitation control, transformer protection relay interfacing, and switchgear status monitoring. Its wide operating temperature range and IEC 61000-4 EMC compliance make it suitable for outdoor substation control rooms where temperature swings and electromagnetic interference from high-voltage switching are constant challenges.

In mining and mineral processing, the base unit is used in conveyor belt safety interlock panels, crusher control cabinets, and ventilation monitoring systems. These environments demand components that can withstand dust ingress, vibration, and frequent power fluctuations — conditions under which the ET 200SP platform’s modular, hot-swap-capable architecture provides a significant operational advantage by enabling rapid module replacement without full system shutdown.

In water and wastewater treatment facilities, the 6ES7193-6BP00-0BA0 supports SCADA-integrated I/O stations for pump control, chemical dosing, and effluent monitoring. Continuous 24/7 operation requirements in these facilities make long-term component reliability and guaranteed spare parts availability essential procurement criteria.

In metallurgical and steel production environments, the base unit is found in rolling mill control panels, furnace temperature regulation systems, and ladle crane safety circuits — applications where thermal stress, high-current switching noise, and mechanical shock place extreme demands on every control system component.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7193-6BP00-0BA0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes backplane bus communication failures, terminal block defects, and module interface faults. Warranty claims are supported by pre-shipment test documentation provided with each unit.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7193-6BP00-0BA0 unit undergoes functional verification testing prior to dispatch, including backplane bus continuity checks, terminal integrity inspection, and visual conformance review against Siemens factory specifications. Test records are available upon request for quality-critical procurement processes.

Q3: Is this base unit compatible with all ET 200SP I/O modules and safety F-modules?
Yes. The 6ES7193-6BP00-0BA0 (BU15-P16+A0+2B type) is compatible with the full range of standard ET 200SP I/O modules as well as Siemens F-series safety I/O modules for SIL 2/SIL 3 applications. Compatibility with specific CPU and interface module firmware versions should be verified against the current Siemens ET 200SP system manual prior to integration.

Q4: Can long-term supply and replacement support be guaranteed for this model?
Yes. We maintain dedicated stock of the 6ES7193-6BP00-0BA0 to support ongoing maintenance, planned replacement cycles, and emergency spare part requirements. For projects requiring guaranteed multi-year supply commitments or volume procurement agreements, please contact our sales team directly to discuss framework supply arrangements.
