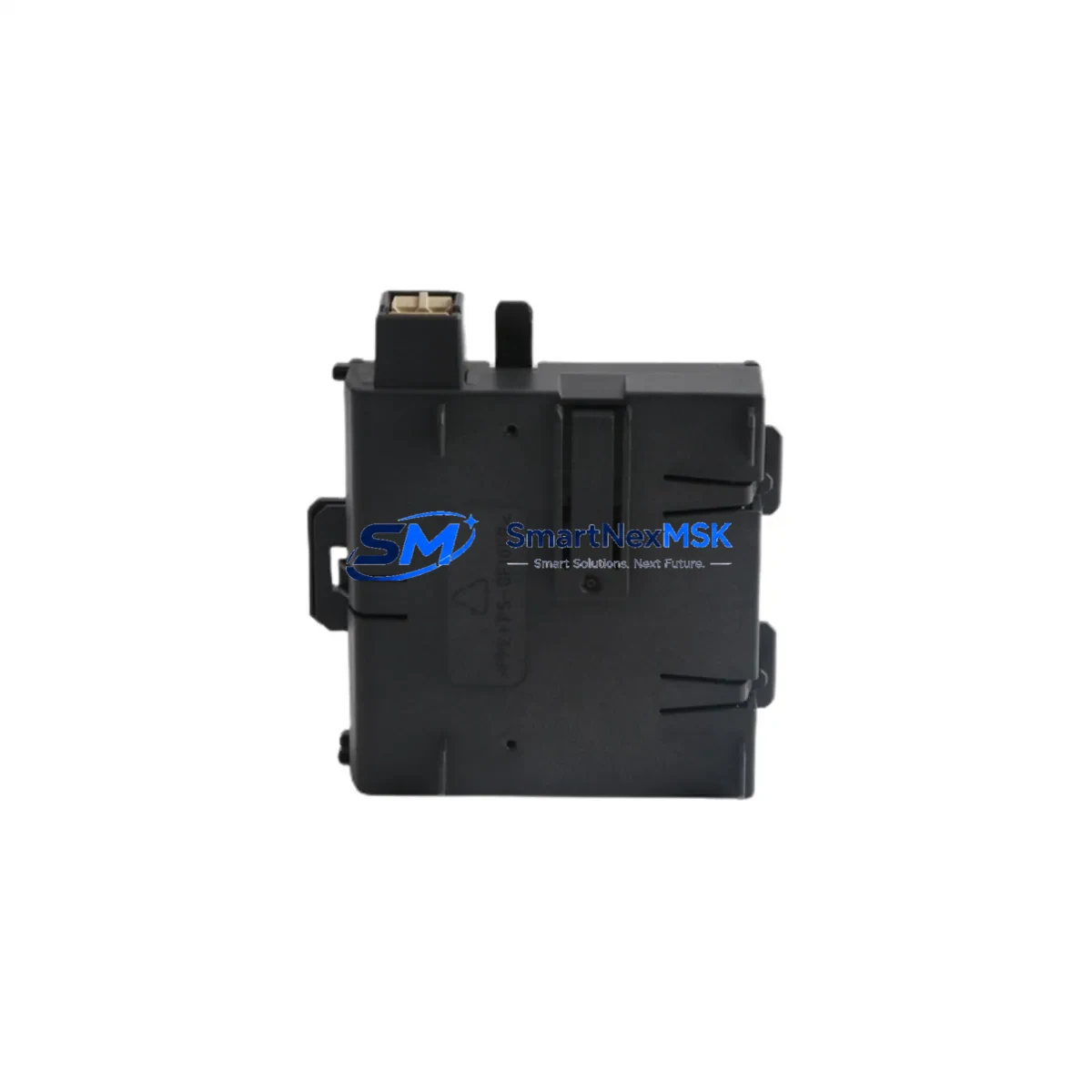

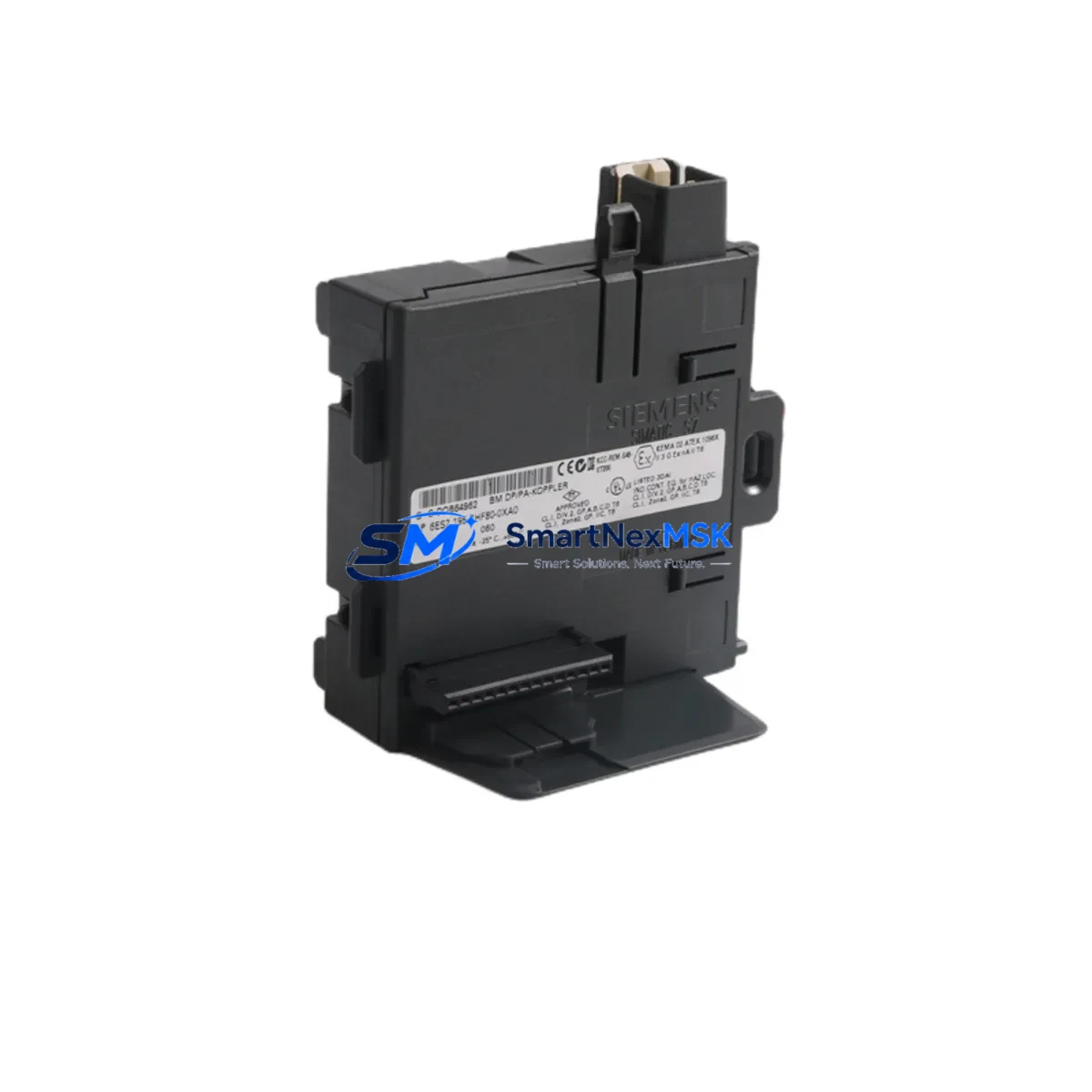

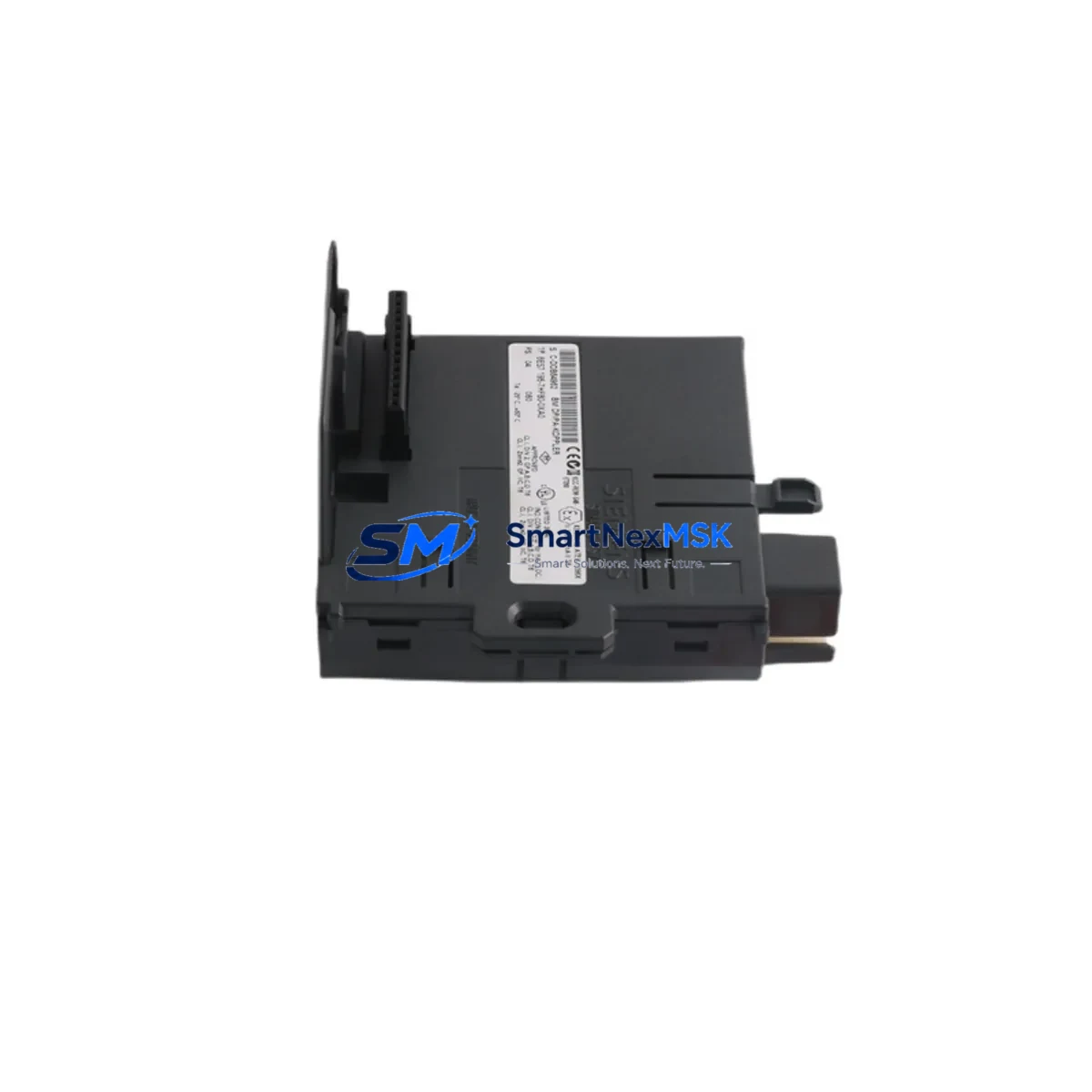

Siemens 6ES7195-7HF80-0XA0 Safety DP/PA Bus Module

Siemens 6ES7195-7HF80-0XA0 Safety DP/PA Bus Module: Reliable Control in Harsh Industrial Sites

The Siemens 6ES7195-7HF80-0XA0 is a ruggedized DP/PA Link Bus Module engineered for the SIMATIC ET 200M distributed I/O station. Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, this module serves as a critical backbone for safe and stable fieldbus communication between PROFIBUS DP and PROFIBUS PA segments. In demanding applications — from petrochemical control rooms to heavy metallurgical plants — the integrity of the bus interface directly determines whether a control loop remains stable or triggers an unplanned shutdown. The 6ES7195-7HF80-0XA0 is built to eliminate that risk.

Industrial sites subject to strong electromagnetic interference, voltage transients, and mechanical vibration place extreme stress on bus infrastructure. Signal drift, communication timeouts, and module mis-triggering are common failure modes when substandard bus components are used. The 6ES7195-7HF80-0XA0 addresses these failure modes through robust shielding, stable connector mechanics, and full compliance with SIMATIC ET 200M system architecture — ensuring that every I/O module in the rack, from analog input cards to safety-rated digital output modules, maintains uninterrupted data exchange with the S7-300 or S7-400 CPU upstream.

This module is stocked, tested, and shipped with a 12-month warranty, making it a dependable choice for both planned maintenance cycles and emergency spare-part replacement in critical infrastructure.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6ES7195-7HF80-0XA0 does not operate in isolation — it is one node in a layered protection architecture. The module slots into the ET 200M rack alongside signal modules such as the 6ES7321-1BL00-0AA0 32-channel digital input card and the 6ES7322-1BL00-0AA0 digital output module, both of which depend on a stable backplane bus to avoid spurious output activation or missed input reads in safety-critical interlocks.

Power integrity is equally essential. The ET 200M station is typically powered by a 6EP1333-2BA20 SITOP PSU100S 24 VDC power supply, which provides regulated, filtered DC power with built-in overload protection. Pairing this with a 6ES7195-7HD10-0XA0 active bus module for segment extension ensures that longer ET 200M racks maintain signal integrity across all slots without voltage drop or timing skew.

On the PROFIBUS PA side, the DP/PA coupler — such as the 6ES7157-0AC83-0XA0 DP/PA Link — bridges the high-speed DP backbone to intrinsically safe PA field instruments, including pressure transmitters, flow meters, and valve positioners in hazardous zones. The 6ES7195-7HF80-0XA0 bus module ensures that this bridge remains mechanically and electrically stable under continuous vibration and thermal cycling.

For communication redundancy in critical loops, the ET 200M station is often paired with a 6GK7343-1EX30-0XE0 CP 343-1 Ethernet communication processor, enabling parallel diagnostic data to reach the SCADA layer even when the primary PROFIBUS segment is under load. Surge protection devices such as the 6ES7972-0BB52-0XA0 PROFIBUS bus connector with integrated termination resistor further protect the bus from transient spikes introduced by large motor starts or welding equipment operating nearby.

Together, these components form a coherent cabinet-level safety architecture where the 6ES7195-7HF80-0XA0 serves as the structural and communicative foundation — preventing control interruption, signal drift, and module mis-operation across the entire I/O station.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and catalytic cracking columns, the 6ES7195-7HF80-0XA0 supports the ET 200M stations that monitor and control critical process variables — temperature, pressure, and flow — in real time. Any bus interruption in these loops can trigger emergency shutdowns or, worse, undetected process deviations. The module’s EMI-hardened design ensures stable communication even when large variable-frequency drives and high-voltage switchgear operate in adjacent panels.

Electric Power Generation & Transmission: Substations and power plant auxiliary control systems rely on PROFIBUS-based I/O for turbine governor feedback, excitation control, and protection relay interfacing. The 6ES7195-7HF80-0XA0 maintains bus continuity in environments with high ground-loop noise and frequent switching transients, reducing the risk of nuisance trips in generator protection circuits.

Mining & Mineral Processing: Underground and surface mining operations subject control hardware to extreme dust, humidity, and mechanical shock. ET 200M stations equipped with the 6ES7195-7HF80-0XA0 are deployed in conveyor control, crusher automation, and ventilation safety systems, where a single bus failure can halt production across an entire section of the mine.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use PROFIBUS PA field instruments — pH sensors, turbidity meters, and dosing pump controllers — connected through DP/PA links supported by this bus module. Reliable bus operation ensures that chemical dosing interlocks and overflow protection systems respond correctly under all load conditions.

Metallurgy & Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate intense electromagnetic interference. The 6ES7195-7HF80-0XA0’s shielded bus architecture prevents communication errors in the I/O stations controlling cooling water valves, hydraulic press sequencing, and furnace temperature regulation — applications where a missed signal can cause equipment damage or personnel injury.

Port & Heavy Logistics Automation: Container crane control systems and automated stacking equipment use distributed I/O over PROFIBUS to manage hoist, trolley, and gantry motion. The bus module’s vibration and shock resistance ratings make it suitable for mobile crane cabinets subject to constant mechanical stress during loading and unloading cycles.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7195-7HF80-0XA0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified bus interface function within the warranty period, we provide a replacement or full refund. Warranty claims are processed promptly to minimize your site downtime.

Q2: How is the module tested before shipment?
Every 6ES7195-7HF80-0XA0 unit undergoes a full functional verification test prior to dispatch. This includes bus connectivity checks, slot interface validation, and visual inspection for physical integrity. Only units that pass all test criteria are packaged and shipped.

Q3: Is this module compatible with both S7-300 and S7-400 systems?
Yes. The 6ES7195-7HF80-0XA0 is designed for the SIMATIC ET 200M distributed I/O platform, which is compatible with both S7-300 and S7-400 CPUs via PROFIBUS DP. It is also compatible with IM 153-x interface modules used in standard and redundant ET 200M configurations.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare-part programs?
Yes. We maintain dedicated stock of the 6ES7195-7HF80-0XA0 to support planned maintenance schedules, emergency replacements, and multi-unit procurement for spare-part programs. For large-quantity or scheduled supply agreements, please contact our sales team directly to discuss availability and lead times.
