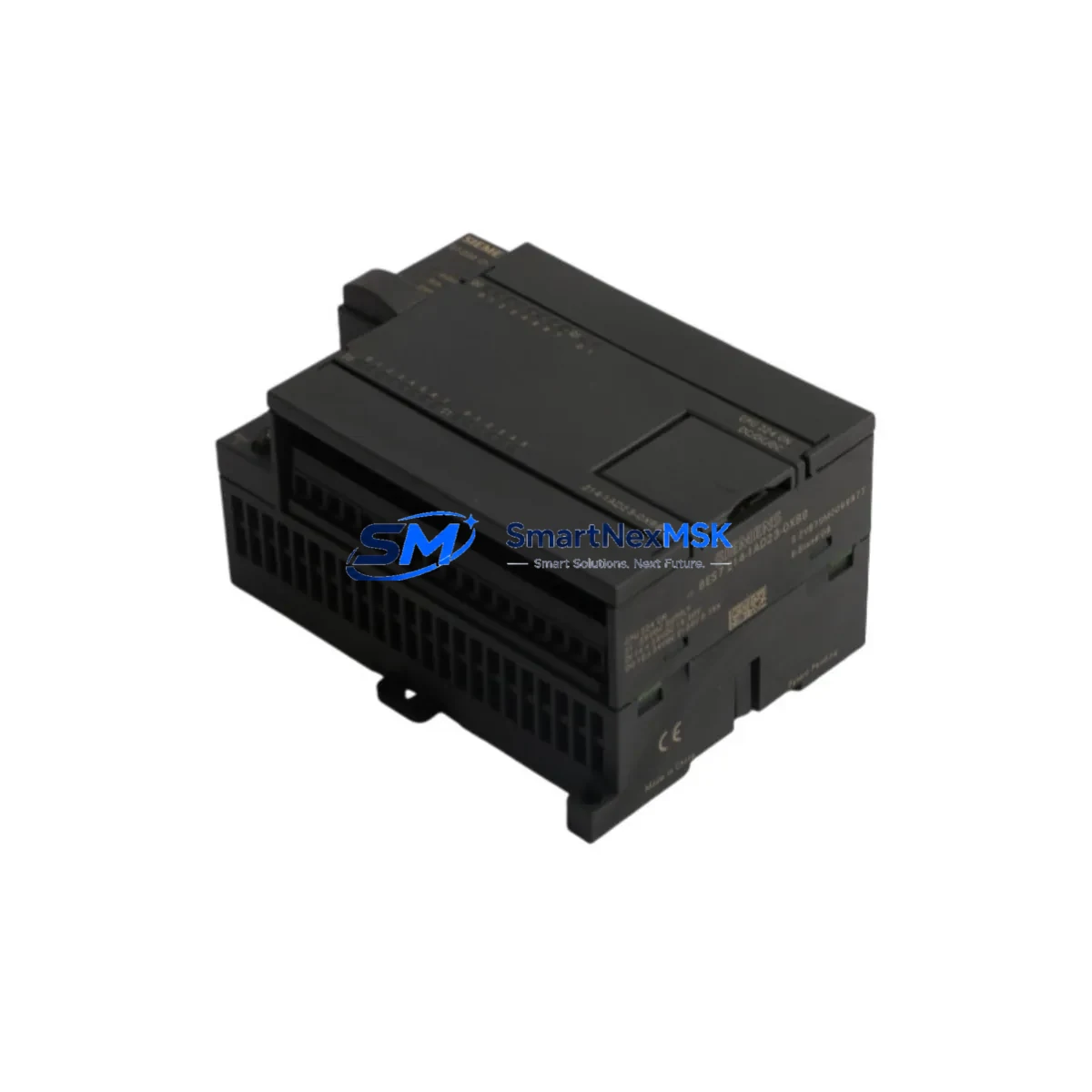

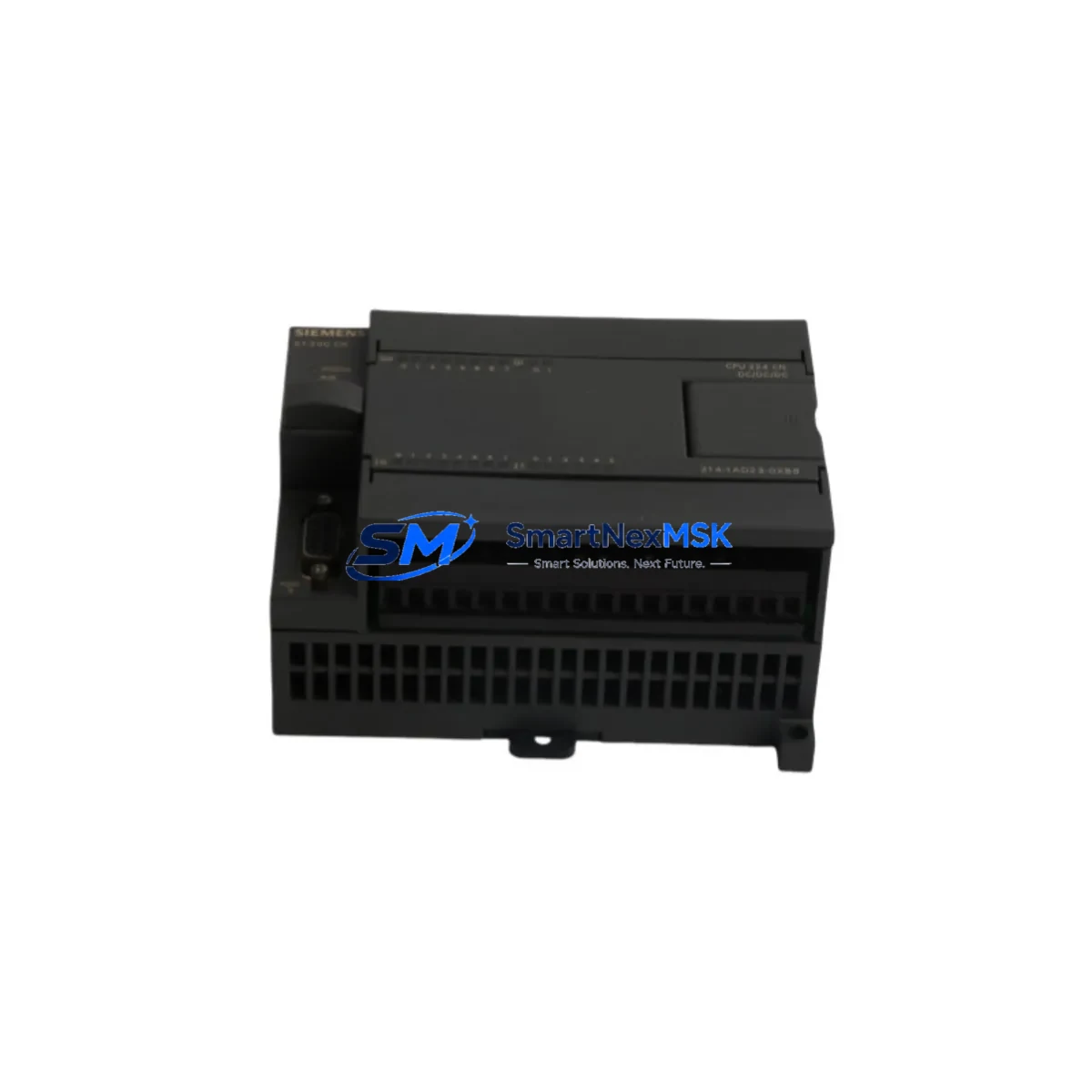

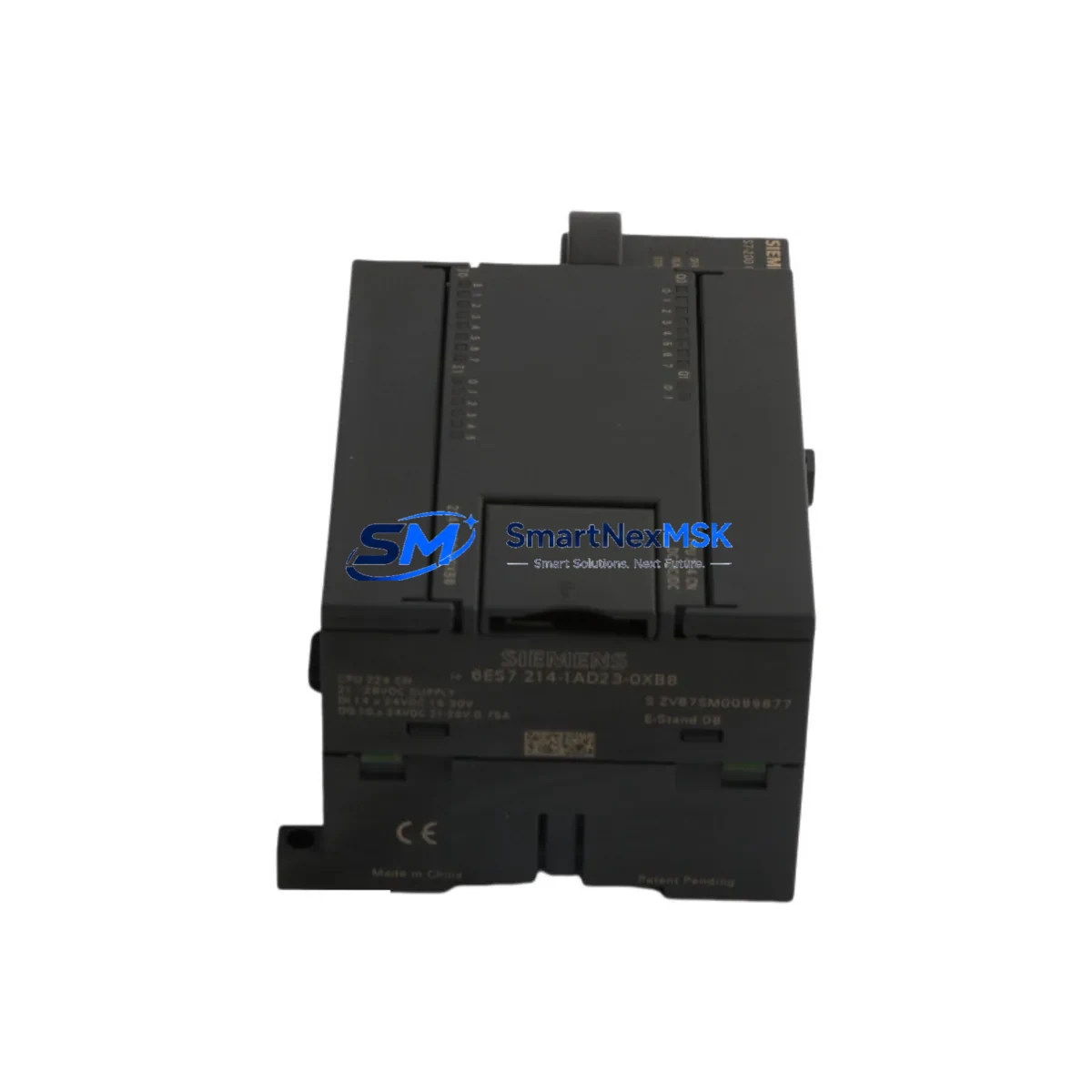

The Siemens 6ES7214-1AD23-0XB8 is the CPU SR40 unit of the S7-200 SMART series — a compact yet powerful programmable logic controller engineered for continuous, safety-critical operation in demanding industrial environments. With 24 digital inputs, 16 digital relay outputs, an onboard 24 VDC sensor supply, and dual high-speed pulse outputs, this CPU module delivers deterministic scan-cycle performance even under severe electromagnetic interference, voltage fluctuation, and thermal stress. It is the backbone of control cabinets where uptime is non-negotiable and control loop interruption carries real operational or safety consequences.

In high-load continuous production lines — petrochemical reactors, power distribution substations, mining conveyor systems, water treatment SCADA networks, metallurgical furnace controls, and port crane automation — the 6ES7214-1AD23-0XB8 provides the processing stability that prevents spurious trips, signal drift, and module mis-operation. Its robust housing, wide operating temperature range (0 °C to 55 °C), and compliance with IEC 61131-2 electrical immunity standards make it a trusted choice for engineers designing safety interlocks and critical interlock loops where a single control failure can cascade into a plant-wide shutdown.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet built around the 6ES7214-1AD23-0XB8 CPU SR40 depends on a carefully selected ecosystem of protective and communicative components. The CPU’s 24 VDC sensor supply powers field devices directly, but in high-interference environments, engineers typically pair it with a Siemens SITOP PSU100S 24 V/5 A power supply module to ensure clean, regulated DC power free from mains-borne transients. For surge events on incoming AC lines — common in mining substations and port switchgear rooms — a Siemens 5SD7 series surge protective device installed upstream of the control panel provides the first line of defense against voltage spikes that could corrupt CPU memory or damage relay output contacts.

The CPU SR40’s RS-485 port enables direct communication with Siemens SMART LINE HMI panels (such as the KTP700 Smart or KTP1000 Smart), allowing operators to monitor interlock status, alarm states, and process variables without introducing additional communication latency. For distributed I/O expansion in larger cabinets, the Siemens EM DT16 digital expansion module and EM DR16 relay expansion module extend the I/O count while maintaining the same deterministic scan cycle. In applications requiring analog process control — flow, pressure, or temperature loops — the Siemens EM AE04 analog input module integrates seamlessly with the CPU SR40 over the internal S7-200 SMART expansion bus.

For Ethernet-based SCADA integration, the CPU’s built-in Ethernet port connects directly to Siemens SCALANCE X series industrial Ethernet switches, which provide managed, EMC-hardened network infrastructure suitable for ring topologies and redundant communication paths. In safety interlock circuits where relay output contact wear is a concern under high-cycle switching, engineers often supplement the CPU SR40 with Siemens 3RT2 series contactors and 3RV2 motor protection circuit breakers to protect downstream motor loads and prevent nuisance tripping caused by inrush currents. Together, these components form a complete, safety-oriented control architecture that minimizes single points of failure across power, logic, communication, and field output layers.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 6ES7214-1AD23-0XB8 is deployed in emergency shutdown (ESD) pre-logic and auxiliary interlock panels where it monitors valve position feedback, pressure switch states, and flame detector signals. Its relay outputs directly drive solenoid valve coils and alarm annunciators, while its high-speed counters track flow pulse signals from turbine meters. The wide AC power supply input (85–264 VAC) ensures uninterrupted operation during utility voltage sags common in large process plants.

Power Generation & Substation Automation: In thermal and hydroelectric power stations, the CPU SR40 manages auxiliary equipment control — cooling water pumps, lube oil systems, and generator excitation auxiliaries. Its EMC immunity to conducted and radiated interference, per IEC 61131-2, is critical in environments saturated with high-frequency switching noise from variable frequency drives and high-voltage bus bars.

Mining & Mineral Processing: Underground and open-pit mining operations rely on the S7-200 SMART CPU SR40 for conveyor belt safety interlocks, crusher motor sequencing, and ventilation fan control. The module’s vibration and shock resistance ratings (IEC 60068-2-6 and IEC 60068-2-27) ensure mechanical integrity in environments subject to blasting vibration and heavy equipment operation.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 6ES7214-1AD23-0XB8 to automate pump station sequencing, chemical dosing control, and UV disinfection system interlocks. The CPU’s Ethernet port enables integration with plant-wide SCADA systems over Modbus TCP or S7 communication protocols, supporting remote monitoring and alarm management without requiring additional communication processors.

Metallurgy & Steel Manufacturing: In continuous casting lines and rolling mill auxiliary systems, the CPU SR40 handles high-speed position control feedback, cooling water valve sequencing, and roll gap interlock logic. Its 200 kHz high-speed counter inputs capture encoder pulses from position sensors on rolling stands, enabling precise speed synchronization and preventing cobble events caused by control timing errors.

Port & Material Handling Automation: Container crane control systems and bulk material conveyor networks in port terminals use the S7-200 SMART platform for hoist limit switch monitoring, anti-sway logic pre-processing, and emergency stop circuit management. The CPU SR40’s relay outputs provide the galvanic isolation required when interfacing with high-voltage crane drive control circuits.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7214-1AD23-0XB8?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions that occur under normal operating conditions within the specified environmental and electrical ratings. It includes free repair or replacement of the unit. Damage caused by incorrect wiring, overvoltage beyond rated limits, or physical mishandling is excluded. Warranty claims are processed with a target turnaround of 5–7 business days.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7214-1AD23-0XB8 unit undergoes a full functional burn-in test prior to dispatch. This includes power-on verification, I/O point-by-point continuity and switching tests, communication port handshake verification (Ethernet and RS-485), and a program load/execute cycle using a standard test routine. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical procurement orders.

Q3: Is the 6ES7214-1AD23-0XB8 compatible with existing S7-200 SMART expansion modules and HMI panels?
Yes. The CPU SR40 is fully compatible with all S7-200 SMART series expansion modules — including EM DT16, EM DR16, EM AE04, EM AQ02, and EM AR02 — as well as SMART LINE HMI panels programmed with STEP 7-Micro/WIN SMART V2.4 and above. It is also backward-compatible with legacy S7-200 SMART programs with minor adaptation, making it a reliable drop-in replacement for aging CPU units in existing control cabinets without requiring full system redesign.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated safety stock of the 6ES7214-1AD23-0XB8 to support planned maintenance schedules, emergency spare parts programs, and MRO procurement contracts. Orders are typically dispatched within 1–3 business days. For customers requiring guaranteed availability under a service-level agreement, blanket purchase order arrangements are available. Contact our technical sales team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your plant’s maintenance strategy.
