Siemens 6ES7214-1AG40-0XB0 Spare for S7-1200 Automation

Siemens 6ES7214-1AG40-0XB0 Spare for S7-1200 Automation

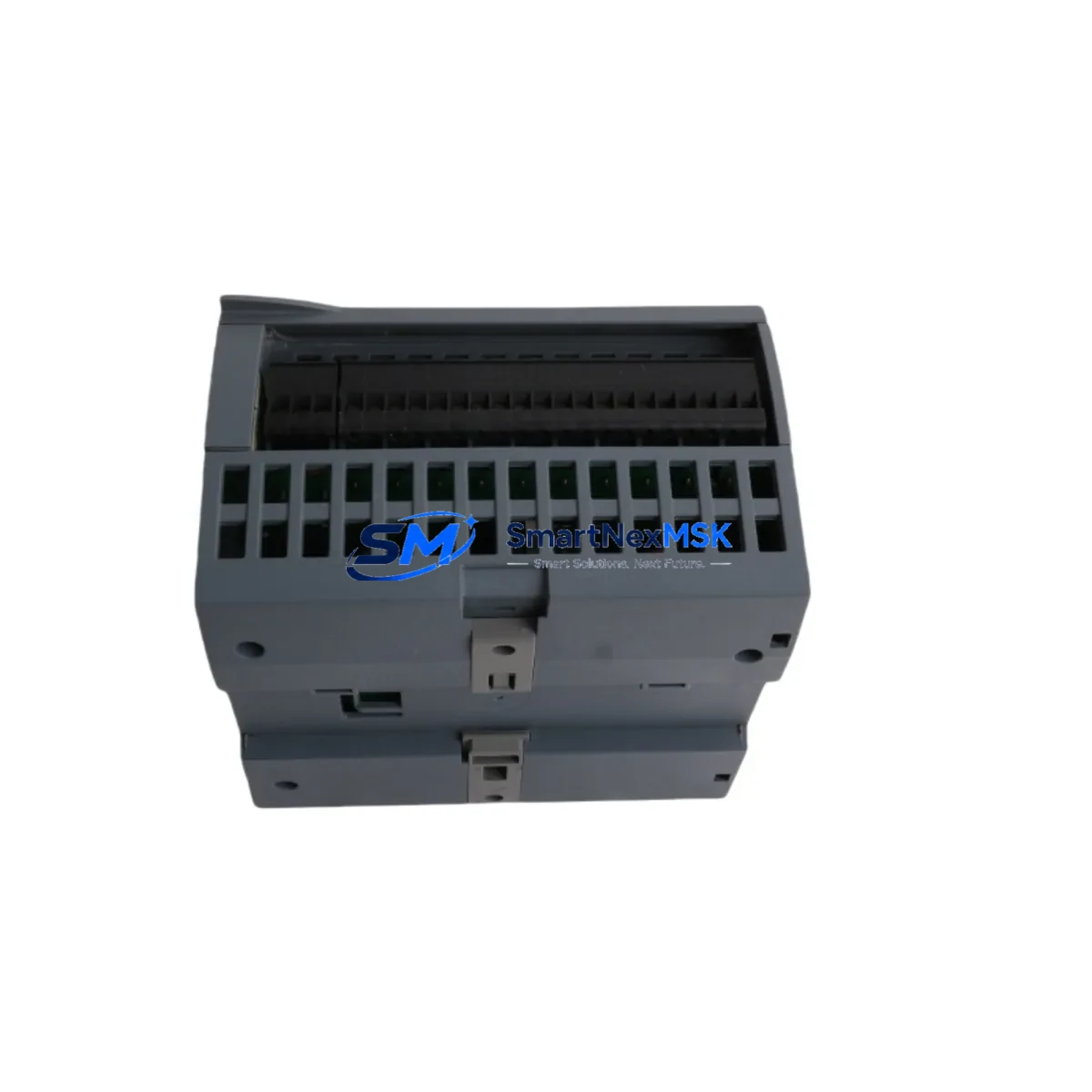

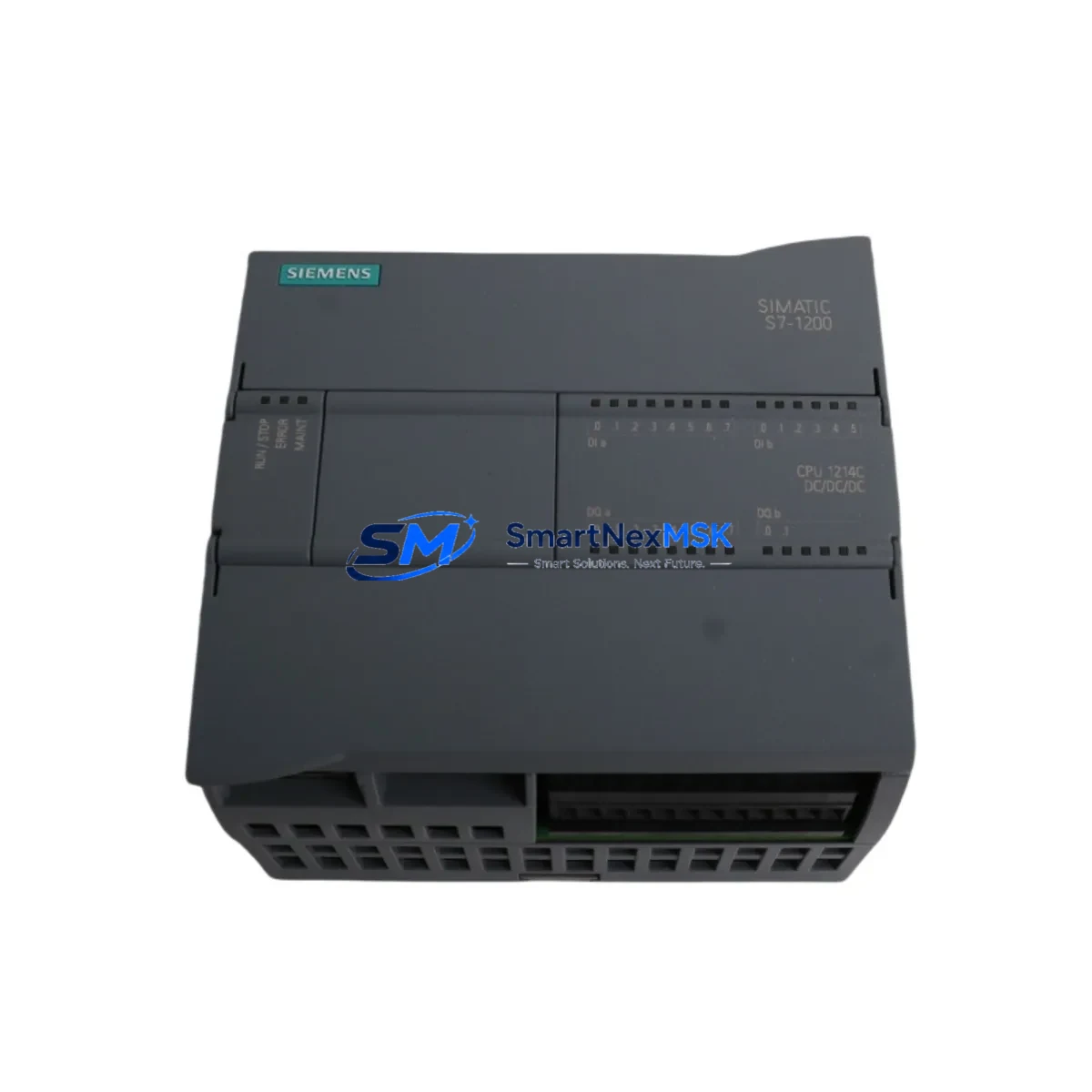

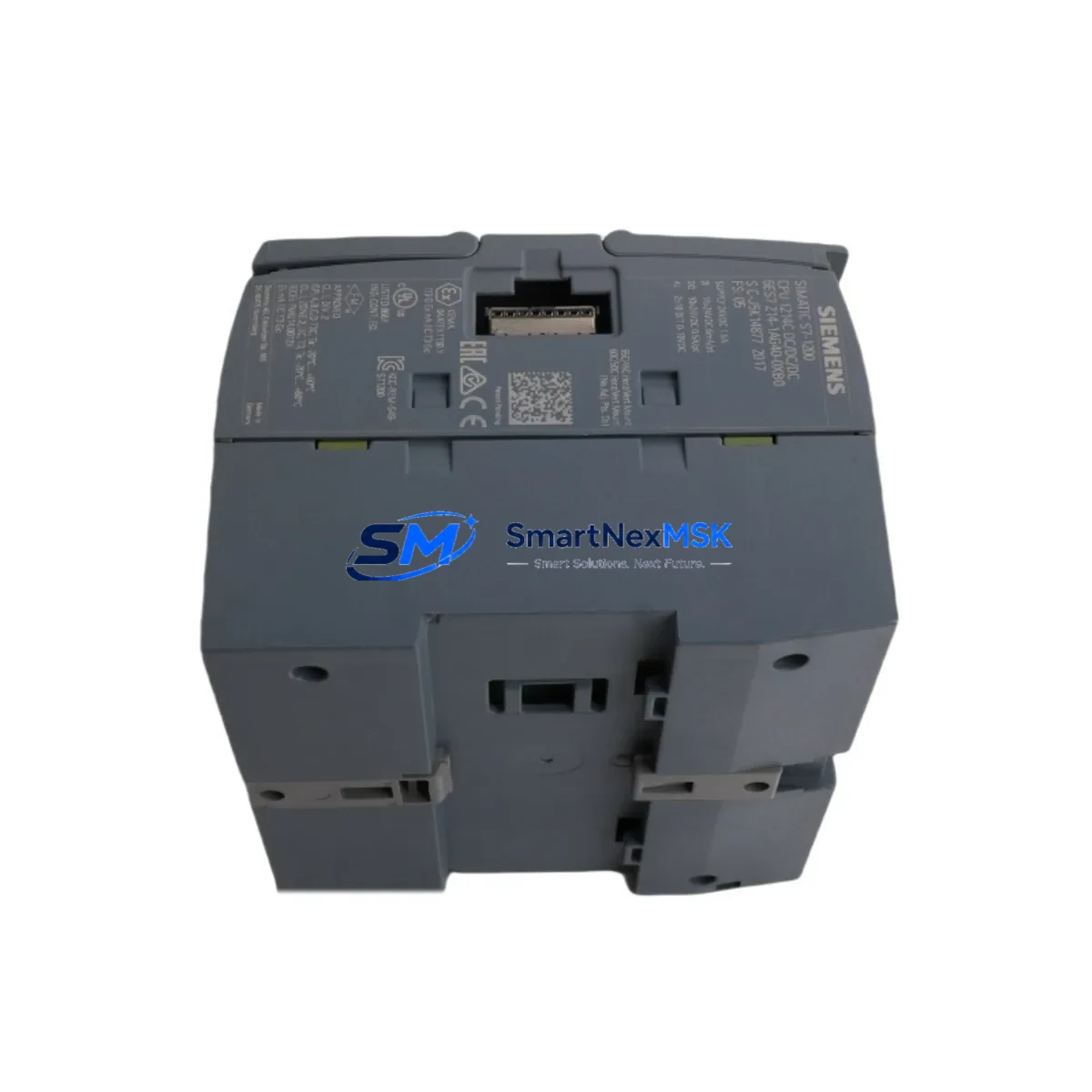

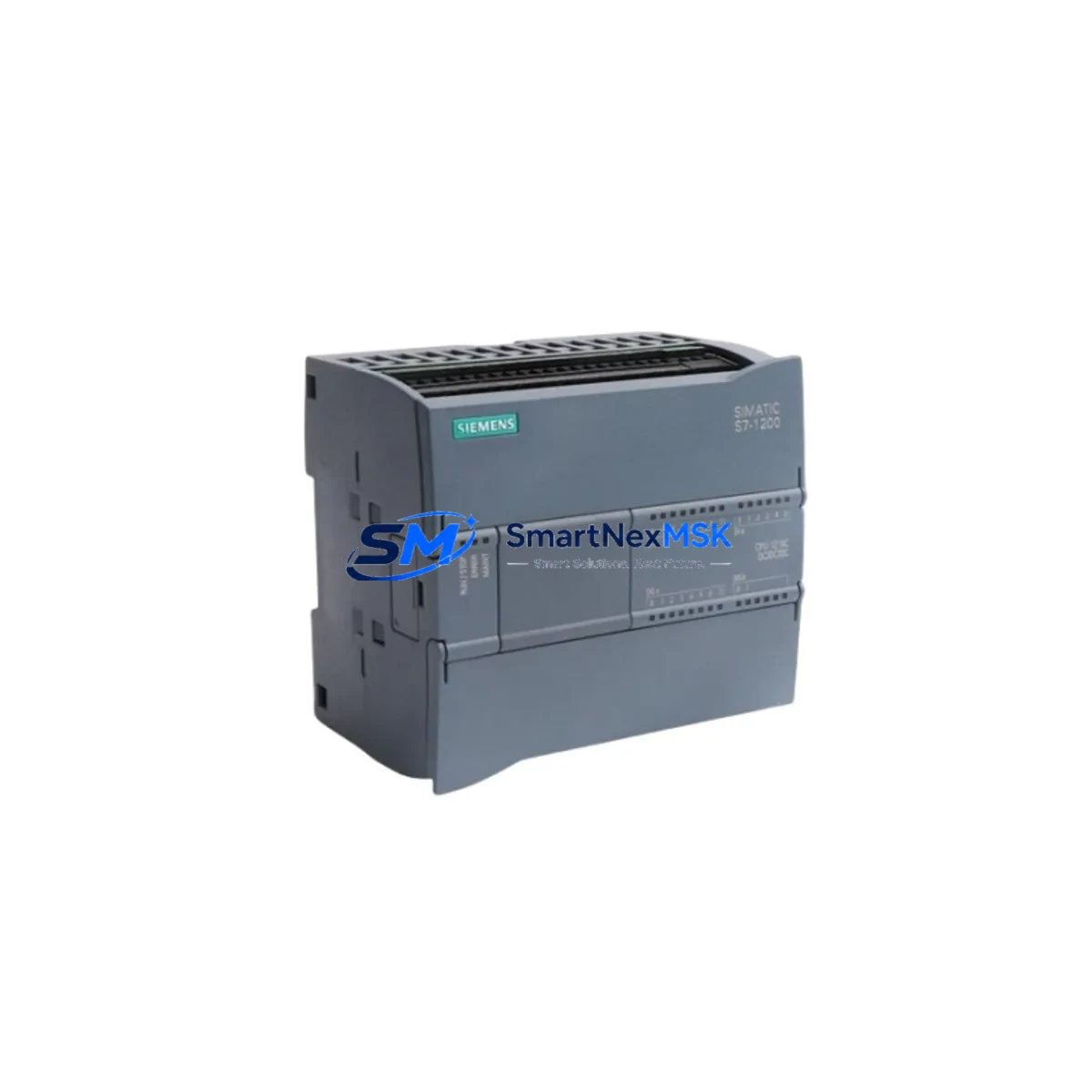

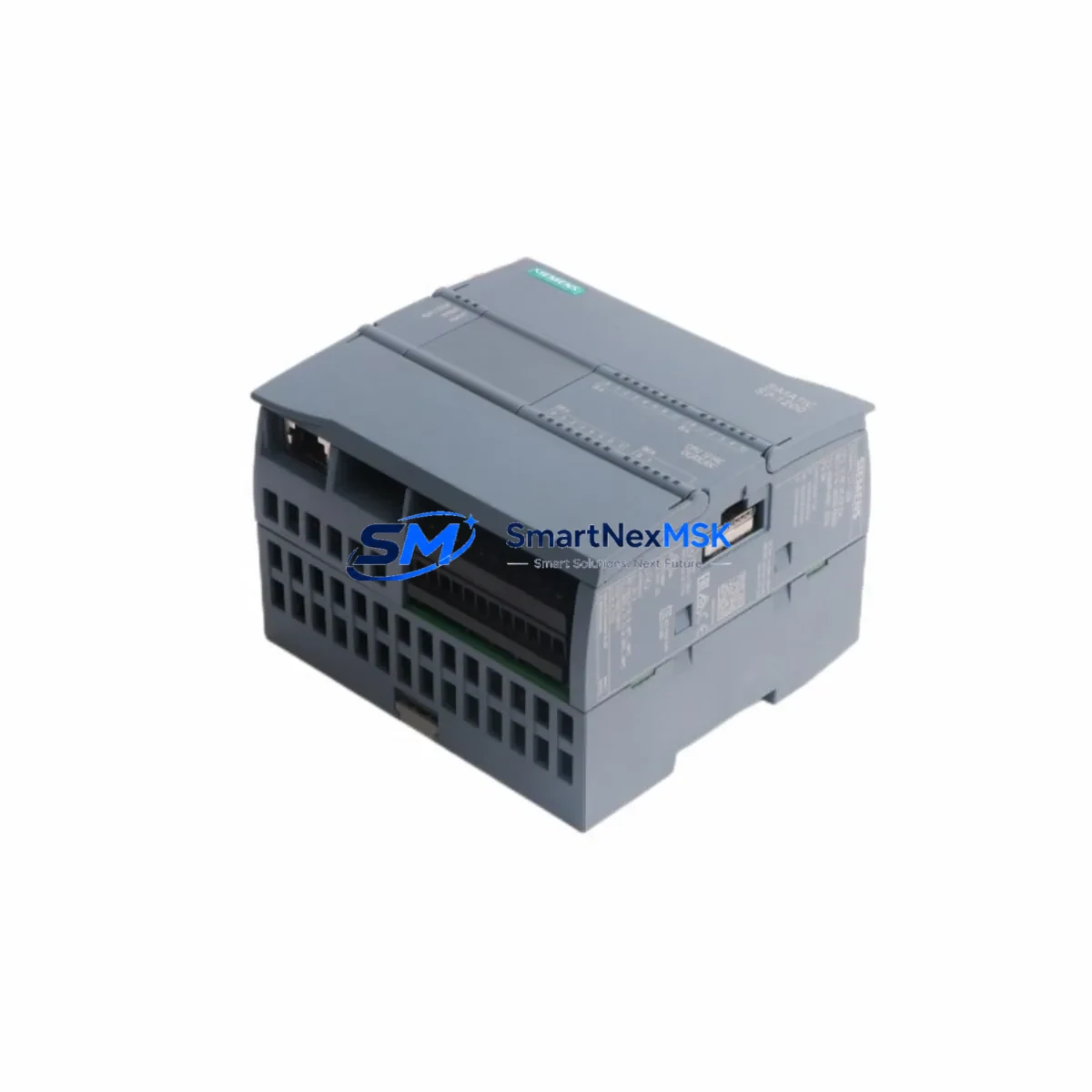

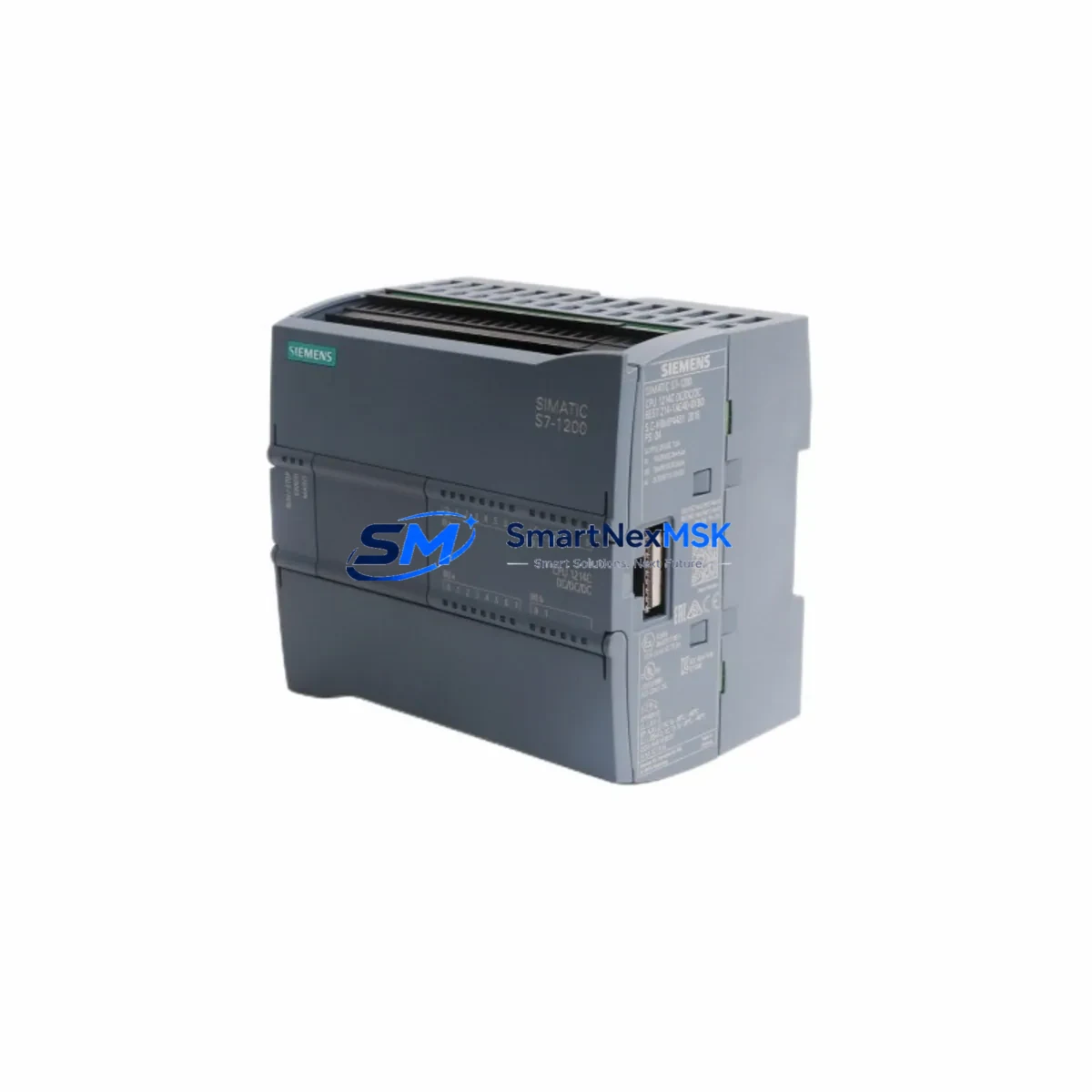

The Siemens 6ES7214-1AG40-0XB0 is the CPU 1214C DC/DC/DC module for the SIMATIC S7-1200 series — one of the most widely deployed compact PLC platforms in global industrial automation. For maintenance engineers managing aging control systems, production lines, or utility infrastructure, this CPU module represents a critical spare that must be available on-site or sourced rapidly to minimize unplanned downtime. Whether you are executing a scheduled overhaul, responding to a fault alarm, or building a strategic spare parts inventory for a multi-line facility, the 6ES7214-1AG40-0XB0 delivers the processing power, I/O density, and communication capability required to restore system operation without re-engineering the control architecture.

The CPU 1214C integrates 14 digital inputs (24 V DC), 10 digital outputs (24 V DC transistor), and 2 analog inputs directly on-board, reducing the number of discrete I/O modules required in compact panel designs. Its onboard PROFINET port enables seamless integration with HMI panels such as the Siemens KTP700 Basic or KTP1200 Basic, as well as distributed I/O via ET 200SP or ET 200MP remote stations. When replacing this CPU in the field, maintenance teams should simultaneously inspect the 24 V DC power supply module — typically a SITOP PSU100S or equivalent — to confirm output voltage stability and ripple within specification, as a degraded power supply is a common root cause of CPU faults that are misdiagnosed as CPU failure.

During fault isolation and replacement planning, engineers should also verify the integrity of the SM 1221 digital input expansion modules and SM 1222 digital output modules connected to the CPU’s local bus. Corrupted firmware or failed I/O modules can cause the replacement CPU to report configuration errors on first boot. Confirm that the TIA Portal project file version matches the firmware version of the replacement 6ES7214-1AG40-0XB0 to avoid compatibility mismatches. If the site runs STEP 7 V5.x legacy projects, note that migration to TIA Portal V16 or later may be required for full compatibility with this CPU variant.

For facilities operating mixed Siemens control cabinets, the replacement workflow should include a visual inspection of the CM 1241 RS485/RS232 communication module if serial fieldbus devices such as MODBUS RTU drives or barcode readers are connected. Signal isolation barriers — particularly for analog loops connected to the AI 2 inputs — should be tested for drift before the new CPU is commissioned. Loose terminal connections on the TB1007 terminal block or corroded DIN rail mounting points are frequently overlooked during emergency replacements and can cause intermittent faults post-commissioning.

Procurement engineers sourcing the 6ES7214-1AG40-0XB0 as a strategic spare should consider stocking companion components including the SM 1231 analog input module, the SM 1232 analog output module, and the CP 1242-7 GPRS communication processor for remote monitoring applications. For battery-backed memory retention, confirm whether the optional SIMATIC Memory Card (6ES7954-8LF03-0AA0) is installed in the existing CPU and procure a replacement card alongside the CPU module to avoid data loss during the swap. All units supplied by SMARTNEXMSK are tested prior to dispatch and covered by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A robust maintenance plan for any S7-1200-based control system extends well beyond the CPU itself. When scheduling a planned replacement of the 6ES7214-1AG40-0XB0, maintenance engineers should use the opportunity to inspect and, where necessary, replace the following components within the same control cabinet:

• SITOP PSU100S 24 V DC Power Supply — Verify output voltage under load; replace if capacitor aging is suspected after 5+ years of continuous operation.
• SM 1221 Digital Input Module (6ES7221-1BF32-0XB0) — Check for stuck inputs or input filter drift caused by contact wear on field devices.
• SM 1222 Digital Output Module (6ES7222-1HF32-0XB0) — Inspect transistor outputs for leakage current that may cause false activation of downstream relays.
• SM 1231 Analog Input Module — Calibrate or replace if analog signal drift exceeds ±0.5% of full scale, particularly in temperature-sensitive process loops.
• CM 1241 RS485 Communication Module — Test serial communication integrity with connected MODBUS RTU devices; replace if CRC error rates are elevated.
• SIMATIC Memory Card (6ES7954-8LF03-0AA0) — Back up and replace as a precaution during any CPU swap to prevent program loss.
• Terminal Blocks and Wiring Ferrules — Inspect all 24 V DC input/output wiring terminations for corrosion, loose crimps, or insulation degradation.
• KTP700 Basic HMI Panel — Confirm HMI firmware compatibility with the replacement CPU firmware version before commissioning.
• Signal Isolation Barriers (e.g., Phoenix Contact MACX series) — Test isolation resistance on analog loops; replace units showing reduced isolation voltage.
• DIN Rail Fuse Holders and 24 V DC Fuses — Replace any fuses showing signs of thermal stress or discoloration in the fuse body.

Site Replacement Workflow

Replacing the 6ES7214-1AG40-0XB0 in a live industrial environment requires a structured approach to minimize downtime and avoid configuration errors. Begin by exporting the current PLC program from TIA Portal and saving it to a secure backup location before powering down the cabinet. If a SIMATIC Memory Card is installed, remove it from the faulty CPU and retain it for transfer to the replacement unit — this preserves the program and retain data without requiring a full download from the engineering station.

After installing the replacement CPU on the DIN rail and reconnecting all signal and power wiring, insert the Memory Card and power up the system. The CPU will automatically load the program from the card. Verify the CPU transitions to RUN mode and confirm all I/O modules are recognized in the hardware configuration. If the CPU reports a configuration mismatch, compare the installed firmware version against the TIA Portal project hardware catalog entry and update firmware via the TIA Portal online functions if required.

For sites migrating from an older 6ES7214-1AE30-0XB0 (CPU 1214C V3.0) to the 6ES7214-1AG40-0XB0 (V4.x), the hardware replacement is mechanically and electrically compatible — the same DIN rail footprint, wiring terminals, and expansion bus connector are used. However, a TIA Portal project migration step is required to update the hardware catalog entry before downloading to the new CPU. This process typically takes 15–30 minutes and can be completed without modifying the control logic.

Spare Parts Support FAQ

Q1: Is the 6ES7214-1AG40-0XB0 a direct replacement for the 6ES7214-1AE30-0XB0?
Yes. The 6ES7214-1AG40-0XB0 (CPU 1214C V4.x) is the current production successor to the V3.0 variant. It is mechanically and electrically compatible. A TIA Portal hardware catalog update is required before downloading the project to the new CPU, but no logic changes are needed in most applications.

Q2: What testing is performed before shipment?
All units supplied by SMARTNEXMSK undergo power-on functional verification and visual inspection prior to dispatch. Each unit is shipped with original packaging where available. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage spare inventory for S7-1200 CPUs in a multi-line facility?
For facilities with 5 or more S7-1200 controllers, we recommend maintaining a minimum of one CPU spare per 5 installed units, alongside at least one spare SIMATIC Memory Card pre-loaded with the latest program backup. Companion spares for SM 1221/1222 I/O modules and the 24 V DC power supply should be included in the same spare parts kit to enable a complete cabinet restoration without waiting for additional parts.

Q4: Can compatibility be verified before purchase?
Yes. Contact our technical team with your existing CPU part number, TIA Portal version, and firmware version. We will confirm compatibility and advise on any firmware update requirements before the order is placed. For urgent replacement needs, same-day dispatch is available for in-stock units.
