Siemens 6ES7231-0HC22-0XA8 Safety Analog Input S7-200 SMART

Siemens 6ES7231-0HC22-0XA8 Safety Analog Input S7-200 SMART: Reliable Control in Harsh Industrial Sites

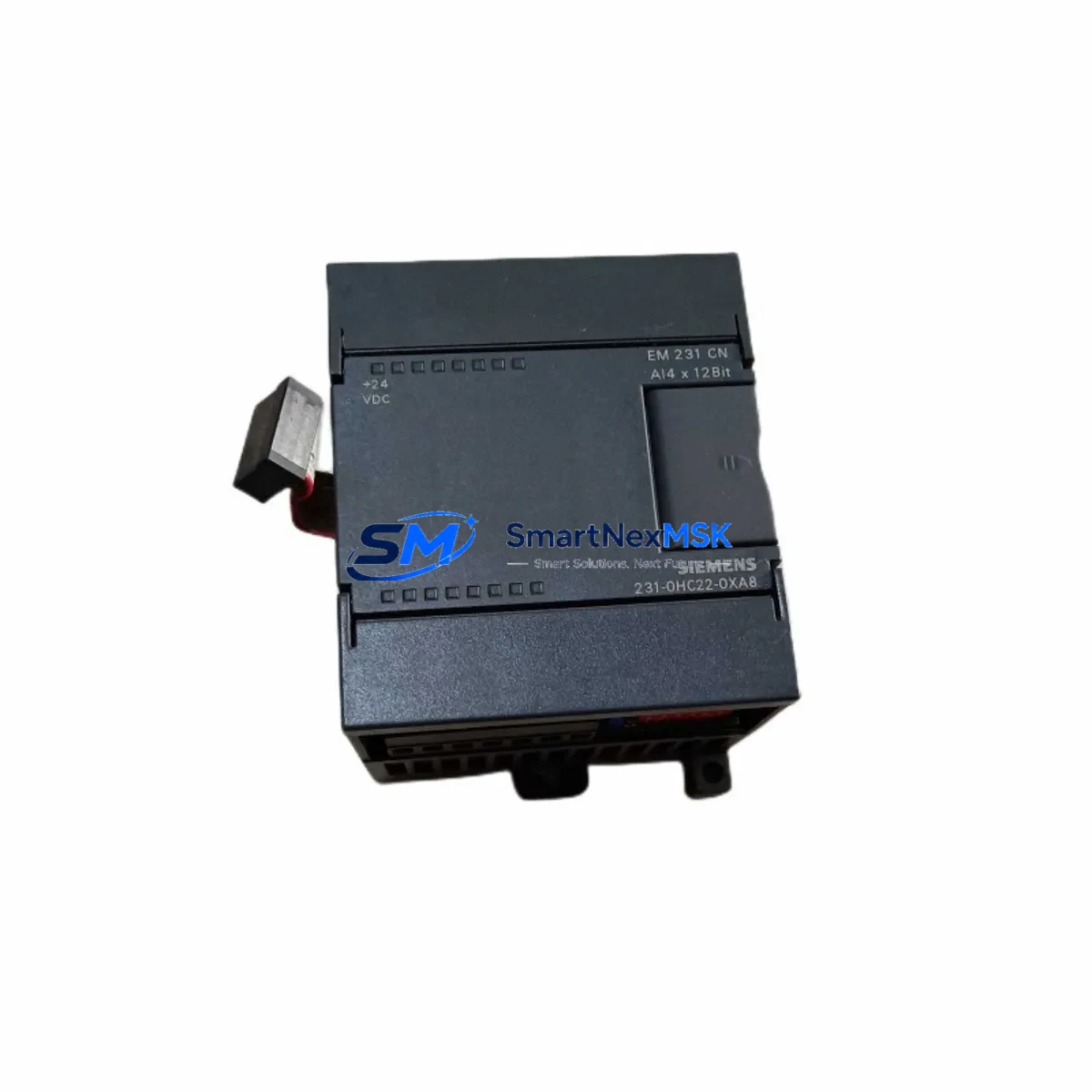

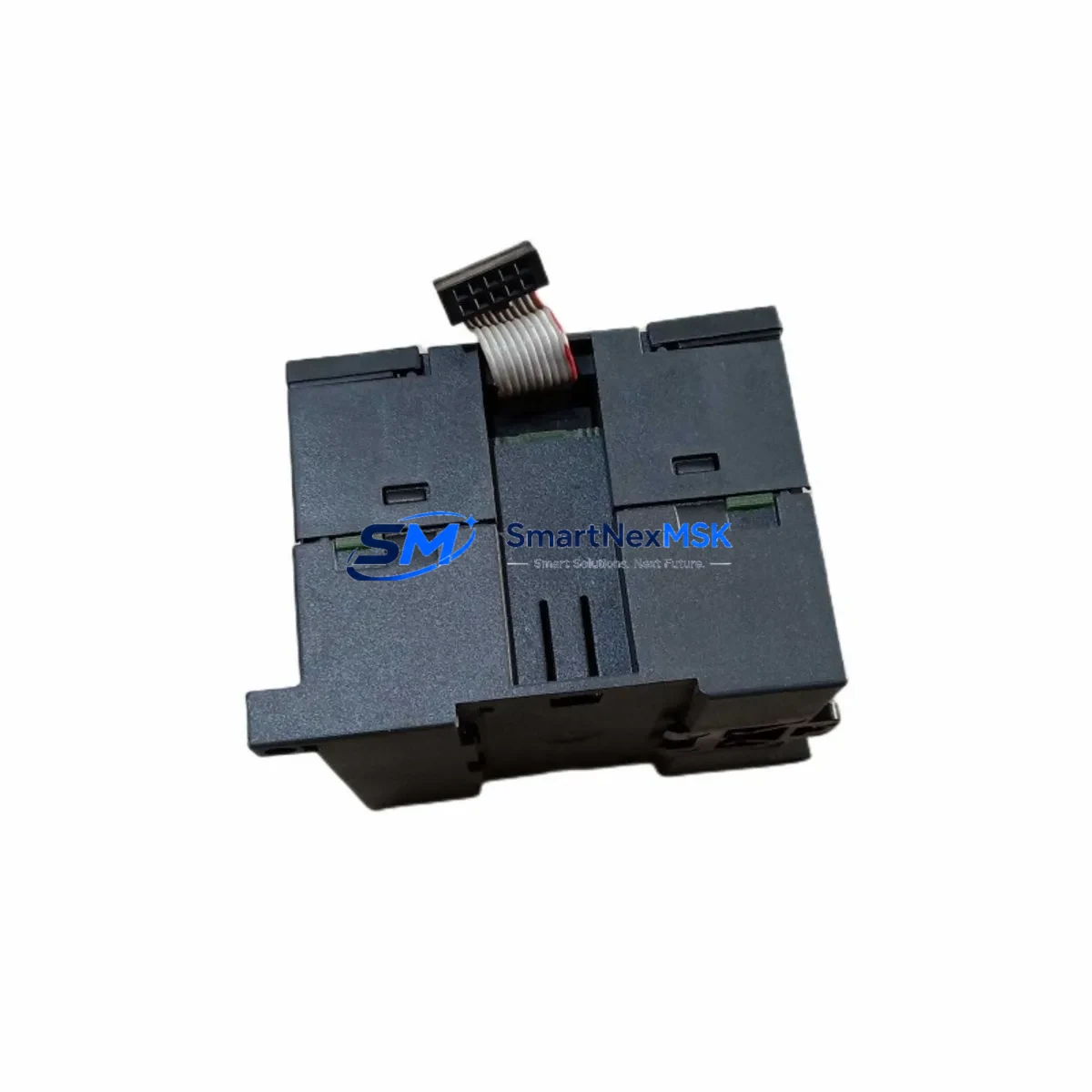

The Siemens 6ES7231-0HC22-0XA8 is a 4-channel analog input module engineered for the SIMATIC S7-200 SMART PLC platform, purpose-built to deliver uninterrupted signal acquisition in high-load, high-interference, and safety-critical industrial environments. In continuous production facilities — from petrochemical plants and power generation stations to metallurgical smelters, water treatment networks, and heavy-port logistics systems — analog signal integrity is the foundation of every control decision. A single instance of signal drift, surge-induced misread, or module dropout can cascade into process shutdowns, equipment damage, or personnel hazards. The 6ES7231-0HC22-0XA8 is designed to eliminate those failure modes.

With a compact IP20-rated housing and robust EMI shielding, this module maintains measurement accuracy across voltage and current input ranges even when installed inside densely packed control cabinets alongside variable-frequency drives, contactors, and high-current bus bars. Its differential input architecture suppresses common-mode noise, preventing the signal drift that plagues lesser modules in electrically noisy environments. The module integrates directly into the S7-200 SMART expansion bus, enabling deterministic scan-cycle communication without the latency or packet-loss risks associated with external fieldbus adapters.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7231-0HC22-0XA8 as part of a layered control cabinet architecture significantly reduces the risk of process interruption. In a typical S7-200 SMART control panel, this analog input module works in concert with the Siemens 6ES7288-1ST40-0AA0 CPU module as the central processing unit, receiving conditioned analog signals and executing PID or threshold-based logic at deterministic scan rates. Digital output expansion modules such as the Siemens 6ES7288-2DR08-0AA0 relay output module act on the analog measurements to drive actuators, solenoid valves, and motor starters within the same safety interlock loop.

Power supply stability is equally critical. A dedicated Siemens LOGO! Power 24 V / 2.5 A or equivalent DIN-rail power supply with active power factor correction ensures the S7-200 SMART bus voltage remains within tolerance during load transients — preventing the undervoltage resets that can cause the analog module to lose its calibration state. Upstream surge protection devices, such as a Phoenix Contact TRABTECH PT 2X2-24DC-ST or equivalent 24 V DC surge arrester, should be installed on all field wiring entering the cabinet to protect the 6ES7231-0HC22-0XA8 input terminals from lightning-induced or switching transients.

For communication-intensive installations, the Siemens 6ES7288-3AE04-0AA0 analog output module can be paired with this input module to close local control loops without burdening the CPU scan cycle. In safety interlock applications, a Siemens 3SK1111-1AB30 safety relay module can be wired in series with the analog threshold output to provide hardwired de-energize-to-trip functionality independent of PLC software execution. Shielded twisted-pair signal cables terminated with Weidmüller KLBR 2.5 or equivalent spring-clamp terminal blocks further reduce capacitive coupling and ground loop interference at the module’s input terminals. For installations requiring remote I/O expansion, the Siemens 6ES7288-5CF00-0XA0 PROFINET adapter enables distributed analog acquisition while maintaining the same S7-200 SMART programming environment.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7231-0HC22-0XA8 is deployed to monitor pressure transmitters, temperature sensors, and flow meters in hazardous process loops. Its fast conversion time (≤ 625 µs per channel) ensures that abnormal process values — such as a pressure spike in a reactor feed line — are detected and acted upon within the PLC scan cycle, enabling timely activation of emergency shutdown sequences before pressure relief devices are required to operate.

In power generation and substation control applications, the module acquires 4–20 mA signals from current transformers and voltage transducers, feeding protection relay logic that guards against generator overload and transformer thermal runaway. Its optical isolation between field and logic circuits prevents ground potential differences — common in high-voltage substations — from corrupting measurement data or damaging the CPU backplane.

In mining and mineral processing plants, where conveyor drives, crushers, and ball mills generate severe electrical noise, the module’s differential input architecture and IEC 61000-4 compliance ensure that vibration-induced cable noise and VFD switching harmonics do not produce false analog readings that could trigger nuisance shutdowns or, worse, mask genuine fault conditions.

In water and wastewater treatment facilities operating 24/7, the module’s wide operating temperature range and proven MTBF characteristics support continuous unattended operation in outdoor pump station control panels, where ambient temperature swings and humidity cycles would degrade less robust hardware. In metallurgical and port logistics applications, the module’s compact form factor allows integration into space-constrained retrofit panels, replacing legacy analog input cards while maintaining full compatibility with existing S7-200 SMART programs — eliminating the need for costly software re-engineering during equipment upgrades.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7231-0HC22-0XA8?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the Siemens datasheet. If the module fails to perform its rated analog input function within the warranty period, we provide a replacement unit or full refund. Warranty claims are processed within 5 business days upon receipt of the returned item.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7231-0HC22-0XA8 unit undergoes functional verification prior to dispatch, including power-on self-test, channel-by-channel analog input accuracy check across the full 0–20 mA and ±10 V ranges, and visual inspection for connector integrity and housing damage. Units that do not meet Siemens factory specifications are quarantined and not shipped.

Q3: Is this module compatible with all S7-200 SMART CPU variants, and can it replace older EM AM06 modules?
The 6ES7231-0HC22-0XA8 is compatible with all current S7-200 SMART CPU models (ST/SR series, 20 to 60 I/O variants) and is the direct successor to the earlier EM AM06 analog expansion module. Existing STEP 7-Micro/WIN SMART programs do not require modification when replacing an EM AM06 with this module, as the I/O addressing and data word format are identical.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare-parts programs?
Yes. We maintain dedicated safety stock of the 6ES7231-0HC22-0XA8 to support planned maintenance schedules, emergency replacements, and multi-unit project orders. Lead times for standard orders are typically 1–3 business days for in-stock units. For customers requiring guaranteed availability under a service-level agreement, we offer reserved inventory arrangements — contact our sales team to discuss your annual consumption requirements.
