Siemens 6ES7234-4HE32-0XB0 Safety-Enhanced Analog I/O Module

Siemens 6ES7234-4HE32-0XB0: Safety-Enhanced Analog I/O for Harsh Industrial Control

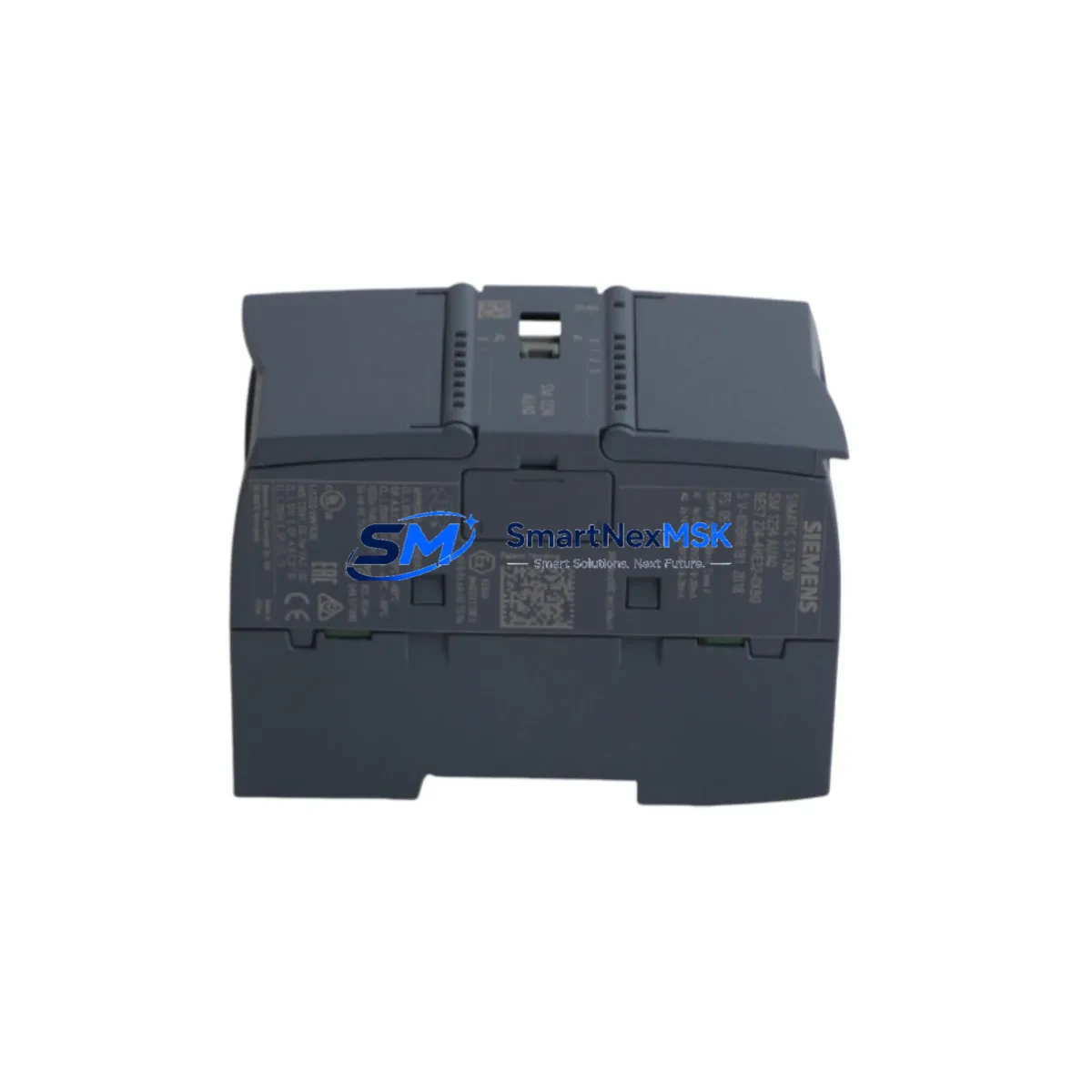

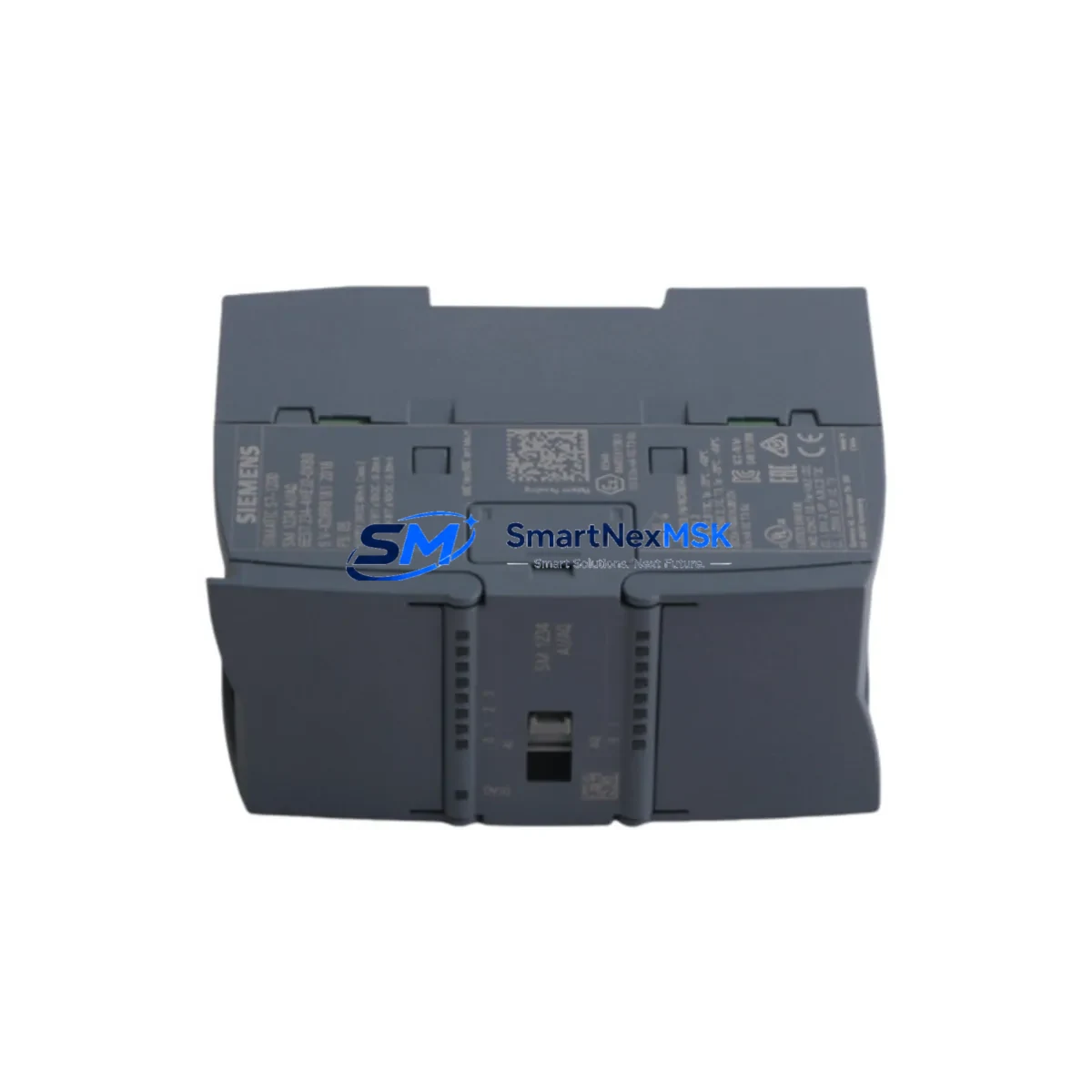

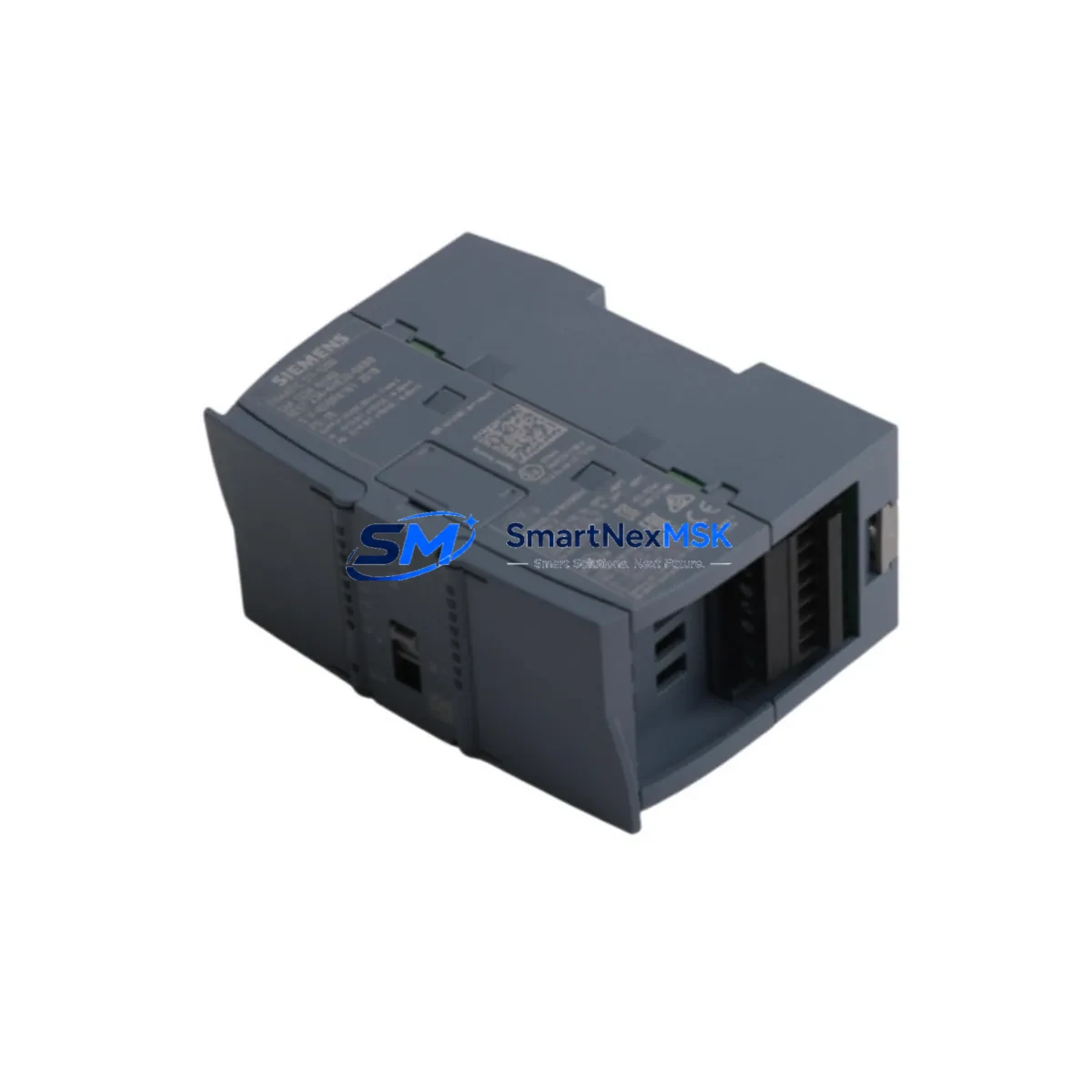

The Siemens 6ES7234-4HE32-0XB0 is a high-performance SM 1234 Analog Input/Output Module engineered for the SIMATIC S7-1200 controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this module delivers the signal integrity and operational stability that safety-critical control loops demand.

In high-load production environments where control interruption is not an option, the 6ES7234-4HE32-0XB0 provides four analog input channels and two analog output channels with 13-bit resolution, enabling precise measurement and actuation across a wide range of process variables. Its robust EMI shielding and surge protection circuitry guard against the signal drift and module misfires that commonly occur in environments with heavy motor drives, arc furnaces, high-frequency inverters, and large transformer banks. Whether integrated into a safety interlock loop, a PID control cabinet, or a distributed field instrumentation network, this module maintains measurement accuracy and output fidelity even under sustained electrical interference.

When paired with the Siemens SIMATIC S7-1200 CPU 1214C (6ES7214-1AG40-0XB0) as the host controller, the 6ES7234-4HE32-0XB0 forms the backbone of a compact yet powerful control architecture. The module connects via the S7-1200’s integrated I/O bus, eliminating the need for additional communication hardware and reducing potential failure points in the control cabinet. For applications requiring expanded digital I/O alongside analog measurement, the SM 1221 Digital Input Module (6ES7221-1BF32-0XB0) and SM 1222 Digital Output Module (6ES7222-1BF32-0XB0) integrate seamlessly within the same S7-1200 rack, enabling a unified, safety-oriented control strategy.

Power supply stability is a foundational requirement for reliable analog signal processing. Voltage fluctuations and transient surges at the 24 VDC supply rail can introduce measurement offsets and trigger spurious output changes that compromise process safety. The Siemens SITOP PSU100S 24V/5A Power Supply (6EP1333-2BA20) is the recommended companion power source, providing regulated, filtered DC power with built-in overload and short-circuit protection. For installations in cabinets with high inrush loads, supplementing with a Siemens SITOP UPS1600 (6EP4134-3AB00-2AY0) uninterruptible power supply ensures that the S7-1200 system — including the 6ES7234-4HE32-0XB0 — continues operating through momentary grid disturbances without triggering a safety shutdown.

Communication reliability is equally critical in safety-oriented architectures. The Siemens SIMATIC S7-1200 CM 1241 RS485 Communication Module (6ES7241-1CH32-0XB0) extends the S7-1200 platform with PROFIBUS or Modbus RTU connectivity, enabling the analog module’s process data to be transmitted to supervisory SCADA systems or DCS platforms without communication anomalies. In Ethernet-based architectures, the Siemens SCALANCE X005 Industrial Ethernet Switch (6GK5005-0BA00-1AB2) provides managed network connectivity with diagnostic capabilities, ensuring that analog measurement data reaches the control room with minimal latency and without packet loss — a requirement in time-sensitive interlock applications.

For installations in hazardous areas or zones with explosive atmospheres, the 6ES7234-4HE32-0XB0 is typically deployed within a certified control enclosure alongside Siemens SIRIUS 3RV2 Motor Protection Circuit Breakers and 3RT2 Contactors, which provide upstream protection for field devices connected to the analog outputs. This combination ensures that any downstream fault — whether an actuator overload or a wiring short — is isolated before it can propagate back into the S7-1200 system and compromise the integrity of the analog measurement loop.

Long-term operational reliability is supported by SMARTNEXMSK’s commitment to genuine, factory-tested components. Every 6ES7234-4HE32-0XB0 unit shipped undergoes pre-delivery functional verification, including channel-by-channel analog accuracy testing and communication bus integrity checks. With a 12-month warranty covering manufacturing defects and functional failures, and a maintained inventory buffer for rapid spare-part fulfillment, procurement teams can plan maintenance cycles and emergency replacements with confidence.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust S7-1200 control cabinet built around the 6ES7234-4HE32-0XB0 requires a layered protection strategy that addresses power quality, signal integrity, communication reliability, and physical protection simultaneously. At the power layer, the Siemens SITOP PSU100S 6EP1333-2BA20 delivers clean 24 VDC with active filtering, while the SITOP UPS1600 6EP4134-3AB00-2AY0 provides bridging power during grid interruptions, preventing the analog module from experiencing supply-induced measurement errors or unexpected output changes during voltage dips.

At the signal layer, proper cable segregation and shielded twisted-pair wiring for all analog field connections are essential to prevent cross-talk from adjacent power cables or variable-frequency drives. The Siemens SIMATIC S7-1200 SB 1232 Analog Output Signal Board (6ES7232-4HA30-0XB0) can supplement the 6ES7234-4HE32-0XB0’s output capacity for applications requiring additional analog control channels without expanding the module rack footprint. For digital interlock signals, the SM 1221 6ES7221-1BF32-0XB0 digital input module captures emergency stop, limit switch, and safety relay feedback signals, feeding them directly into the S7-1200 CPU’s safety logic.

At the communication layer, the CM 1241 RS485 6ES7241-1CH32-0XB0 enables Modbus RTU communication with field instruments such as temperature transmitters, pressure transducers, and flow meters, consolidating process data within the S7-1200 for unified alarm management. The SCALANCE X005 6GK5005-0BA00-1AB2 Ethernet switch ensures deterministic network performance for PROFINET-based supervisory communication. Upstream circuit protection is provided by Siemens SIRIUS 3RV2011 Motor Protection Circuit Breakers, which isolate field device faults before they can affect the analog module’s measurement accuracy or the CPU’s operational state.

Critical Industrial Safety Applications

The Siemens 6ES7234-4HE32-0XB0 is deployed across a broad spectrum of safety-critical industrial applications where measurement accuracy and control continuity are non-negotiable.

In petrochemical and refinery operations, the module monitors pressure, temperature, and flow variables in reactor feed and product separation loops. Its surge-protected analog inputs maintain signal integrity even in environments with frequent static discharge events and high-voltage switching transients from large pump motors and compressor drives. The module’s analog outputs drive control valves and variable-speed pump controllers, maintaining precise flow ratios that are essential for process safety and product quality.

In power generation facilities — including thermal, hydroelectric, and wind farms — the 6ES7234-4HE32-0XB0 is used in turbine governor control, generator excitation monitoring, and cooling system regulation. Its wide operating temperature range and vibration resistance make it suitable for installation in generator control panels located in mechanically demanding environments.

In mining and mineral processing, the module controls conveyor belt speed references, crusher load monitoring, and flotation cell reagent dosing. The ability to handle both voltage and current analog signals on the same module simplifies wiring in remote field panels where space and cable routing are constrained.

In water and wastewater treatment, the 6ES7234-4HE32-0XB0 manages dosing pump control, pH and turbidity measurement, and pump station level regulation. Its compatibility with 4–20 mA transmitters — the industry standard for process instrumentation — ensures seamless integration with existing field devices without signal conditioning adapters.

In metallurgical and steel production environments, the module operates within rolling mill control cabinets, managing tension references, temperature profiles, and hydraulic pressure setpoints. Its EMI resistance is particularly valuable in these environments, where large electric arc furnaces and high-current bus bars generate intense electromagnetic fields that can corrupt unprotected analog signals.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7234-4HE32-0XB0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform within its published specifications during the warranty period, SMARTNEXMSK will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery. Contact sales@smartnexmsk.com to initiate a warranty claim.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7234-4HE32-0XB0 undergoes a pre-delivery functional verification protocol that includes channel-by-channel analog input accuracy testing across the full measurement range, analog output linearity verification, 24 VDC supply rail integrity check, and S7-1200 I/O bus communication handshake confirmation. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 6ES7234-4HE32-0XB0 compatible with all S7-1200 CPU variants?
Yes. The SM 1234 signal module is compatible with all SIMATIC S7-1200 CPU variants, including the CPU 1211C, 1212C, 1214C, 1215C, and 1217C, across all firmware versions from V2.0 onwards. It is configured and parameterized directly within the TIA Portal engineering environment without requiring additional drivers or configuration files.

Q4: Can long-term supply continuity be guaranteed for spare-part planning?
SMARTNEXMSK maintains a dedicated inventory buffer of the 6ES7234-4HE32-0XB0 to support planned maintenance cycles and emergency replacement requirements. For customers with critical infrastructure dependencies, we offer reserved stock arrangements and priority fulfillment agreements. Contact our sales team at sales@smartnexmsk.com or +86 18259474341 to discuss long-term supply planning.
