Siemens 6ES7235-0KD22-0XA8 Safety-Enhanced Analog I/O Module

Siemens 6ES7235-0KD22-0XA8 Safety-Enhanced Analog I/O Module: Reliable Control in Harsh Industrial Sites

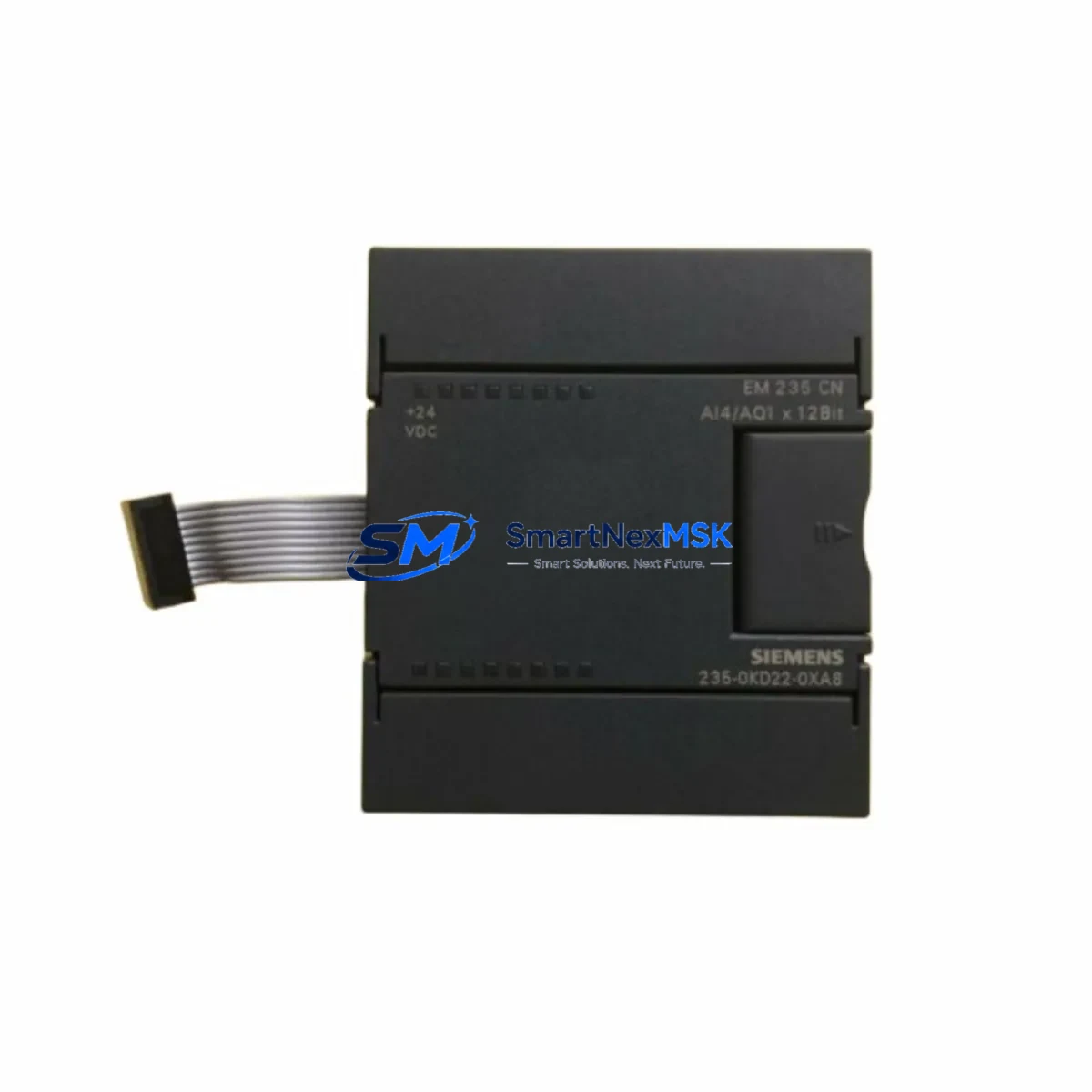

The Siemens 6ES7235-0KD22-0XA8 is a high-performance EM 235 Analog Input/Output Expansion Module designed for the SIMATIC S7-200 programmable logic controller platform. Built to operate reliably in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processes, port logistics, and continuous manufacturing lines — this module delivers the signal integrity and operational stability that safety-critical control loops demand.

In high-load, high-interference production environments, analog signal accuracy is not a convenience — it is a safety requirement. The 6ES7235-0KD22-0XA8 provides four analog inputs and one analog output, supporting voltage and current signal ranges configurable via DIP switch, making it adaptable to a wide range of field transmitters, pressure sensors, flow meters, and temperature transducers. Its EMC-hardened design suppresses electromagnetic interference from variable frequency drives, high-power contactors, and bus-coupled motor starters that are common in heavy industrial control cabinets.

Signal drift is one of the leading causes of unplanned shutdowns in process industries. The 6ES7235-0KD22-0XA8 addresses this through its stable 12-bit analog-to-digital conversion architecture, which maintains measurement accuracy across the full operating temperature range of 0°C to 55°C. When paired with the Siemens 6ES7221-1BF22-0XA0 EM 221 Digital Input Module and the 6ES7222-1HF22-0XA0 EM 222 Digital Output Module, it forms a complete I/O expansion strategy for S7-200-based safety interlock systems, ensuring that both discrete and analog signals remain synchronized under continuous production loads.

Power quality is a persistent threat in industrial environments. Voltage surges, brownouts, and transient spikes from heavy machinery can corrupt analog readings or cause module resets that interrupt critical control sequences. The 6ES7235-0KD22-0XA8 is designed to operate from the S7-200 system bus power supply, and when the system is protected by a Siemens SITOP PSU100S 24V DC power supply with integrated surge buffering, the risk of power-related module malfunction is substantially reduced. For installations in areas with significant ground noise or potential equalization currents, pairing this module with proper shielded cable termination and a Siemens 6ES7290-6AA20-0XA0 bus connector ensures signal path integrity from field device to CPU.

In safety interlock and emergency shutdown (ESD) architectures, the analog module must not introduce latency or signal ambiguity. The 6ES7235-0KD22-0XA8 communicates directly over the S7-200 expansion bus, with a cycle time that keeps pace with the Siemens 6ES7214-1BD23-0XB0 CPU 224 XP scan cycle, ensuring that process variables such as tank pressure, flow rate, or motor current are reflected in the control program without delay. This is particularly important in petrochemical and refinery applications where a delayed analog reading can mean the difference between a controlled shutdown and a safety incident.

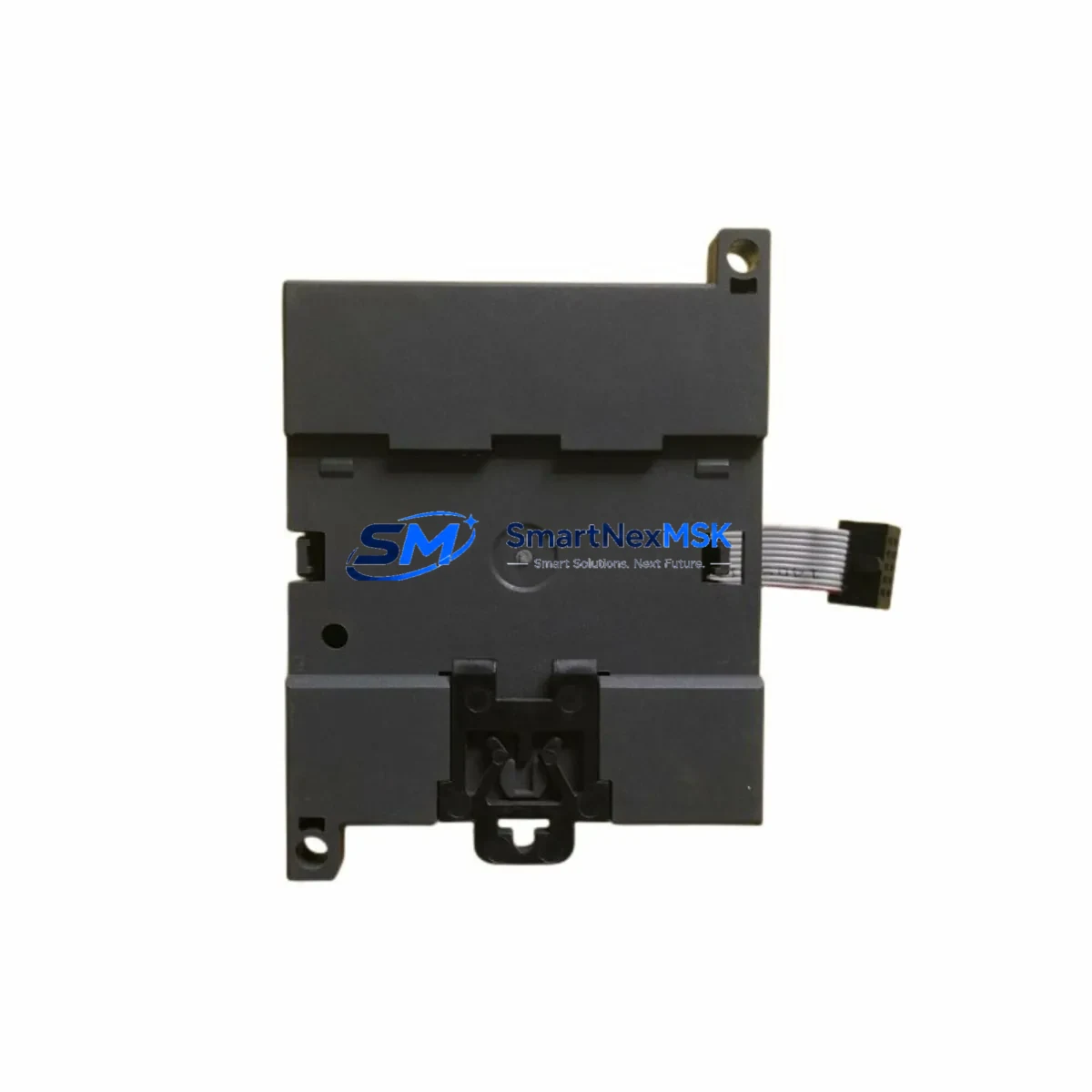

For installations in mining and metallurgical environments, where vibration, dust ingress, and wide temperature swings are routine, the module’s compact DIN-rail mounting form factor and robust housing provide mechanical stability. When installed alongside a Siemens 6ES7231-0HC22-0XA0 EM 231 Thermocouple Module for temperature monitoring and a 6ES7232-0HB22-0XA0 EM 232 Analog Output Module for actuator control, the 6ES7235-0KD22-0XA8 becomes part of a layered analog I/O strategy that covers sensing, control, and output across the full process loop.

Communication reliability is equally critical. In distributed control architectures where the S7-200 CPU communicates via Siemens 6ES7277-0AA22-0XA0 EM 277 PROFIBUS-DP Module to a supervisory SCADA or DCS system, the analog data collected by the 6ES7235-0KD22-0XA8 must be transmitted without corruption. Proper bus termination, cable shielding, and module seating are all verified during our pre-shipment functional test protocol, which simulates real-world bus communication under load before the unit leaves our facility.

Every 6ES7235-0KD22-0XA8 unit supplied by SMARTNEXMSK undergoes a comprehensive pre-shipment inspection that includes power-on verification, analog channel calibration check, bus communication test, and visual inspection for connector integrity and housing condition. Units are shipped in anti-static packaging with protective end caps to prevent connector damage in transit. Our inventory is maintained to support both planned maintenance schedules and emergency replacement requirements, with same-day dispatch available for in-stock units.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the S7-200 platform requires more than a single module — it demands a coordinated protection strategy across power, I/O, communication, and safety layers. The 6ES7235-0KD22-0XA8 sits at the center of the analog signal chain, but its reliability depends on the integrity of the surrounding system architecture.

At the power layer, a Siemens SITOP PSU100S 24V/10A power supply with built-in surge buffering protects the entire S7-200 rack from voltage transients generated by large motor starters and solenoid valves switching on the same distribution panel. Upstream, a Siemens 3RV2 motor protection circuit breaker provides short-circuit and overload protection for the control cabinet power feed, preventing a downstream fault from propagating to the PLC rack.

At the CPU layer, the Siemens 6ES7214-1BD23-0XB0 CPU 224 XP — which includes two onboard analog I/O channels — works in tandem with the EM 235 to handle both local and expanded analog measurement tasks. The CPU’s real-time clock and interrupt-driven program execution ensure that analog readings from the 6ES7235-0KD22-0XA8 are processed within the required scan cycle, even under high program load.

For digital I/O expansion alongside the analog module, the 6ES7221-1BF22-0XA0 EM 221 8-point Digital Input Module handles discrete field signals from limit switches, proximity sensors, and safety door interlocks, while the 6ES7222-1HF22-0XA0 EM 222 8-point Digital Output Module drives relay coils, indicator lamps, and solenoid valve actuators. Together with the EM 235, these modules form a complete I/O expansion set that covers the full range of field signals in a typical process control cabinet.

For temperature-intensive applications such as furnace control or heat exchanger monitoring, the 6ES7231-0HC22-0XA0 EM 231 Thermocouple Input Module complements the EM 235 by handling thermocouple signals that fall outside the standard voltage/current input range. Communication to the plant DCS or SCADA is handled via the 6ES7277-0AA22-0XA0 EM 277 PROFIBUS-DP Module, which connects the S7-200 system to the plant-wide fieldbus network with deterministic cycle times suitable for safety-relevant data exchange.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where pressure, flow, and level signals must be monitored without interruption, the 6ES7235-0KD22-0XA8 provides the analog input accuracy required for safe process control. Its 4–20mA input capability is directly compatible with HART-enabled field transmitters used in hazardous area installations, and its stable signal conversion prevents false readings that could trigger unnecessary ESD activations or, more critically, mask a genuine process deviation.

Power Generation and Substation Control: In power plant auxiliary systems — including boiler feedwater control, turbine lube oil monitoring, and generator cooling systems — the EM 235 module provides reliable analog measurement in environments with high levels of electromagnetic interference from high-voltage switching equipment. Its EMC-hardened design ensures that 50/60Hz noise and high-frequency transients do not corrupt the analog signal chain.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to vibration, dust, and wide ambient temperature swings. The 6ES7235-0KD22-0XA8’s compact, DIN-rail-mounted form factor and robust connector design maintain reliable operation in these conditions, supporting applications such as conveyor belt load monitoring, pump pressure control, and ventilation fan speed feedback.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, turbidity, and flow rate. The EM 235 module’s multi-range input configuration allows a single module to interface with diverse sensor types across a treatment plant, reducing cabinet complexity and simplifying spare parts management.

Metallurgical and Steel Production: In electric arc furnace control, rolling mill automation, and continuous casting lines, the 6ES7235-0KD22-0XA8 handles analog feedback from current transformers, load cells, and position transducers. Its ability to operate at ambient temperatures up to 55°C makes it suitable for installation in control rooms adjacent to high-heat process areas.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the 6ES7235-0KD22-0XA8?
A: The 12-month warranty covers functional failure of the module under normal operating conditions, including analog channel malfunction, bus communication failure, and power interface defects. It does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical impact. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q: What pre-shipment testing is performed on each unit?
A: Every 6ES7235-0KD22-0XA8 unit undergoes a structured pre-shipment test that includes: power-on verification via S7-200 bus simulation, analog input channel accuracy check across at least two signal ranges, analog output channel verification, visual inspection of the expansion bus connector and housing, and anti-static packaging before dispatch. Test records are retained and available upon request for quality-critical procurement.

Q: Is the 6ES7235-0KD22-0XA8 compatible with all S7-200 CPU models?
A: The EM 235 is compatible with all S7-200 CPU models that support analog expansion modules, including the CPU 221, CPU 222, CPU 224, CPU 224 XP, and CPU 226. It connects via the standard S7-200 expansion bus and is configured through the STEP 7-Micro/WIN programming software. Maximum expansion module count per CPU must be observed per Siemens system configuration guidelines.

Q: Can you support long-term and emergency spare parts supply for this module?
A: Yes. SMARTNEXMSK maintains standing inventory of the 6ES7235-0KD22-0XA8 to support both scheduled maintenance programs and unplanned emergency replacements. Same-day dispatch is available for in-stock units. For customers with critical production lines, we recommend discussing a consignment or reserved stock arrangement to guarantee availability during peak demand or supply chain disruptions.
