Siemens 6ES7288-3AQ02-0AA0 Safety-Enhanced Analog Output

Siemens 6ES7288-3AQ02-0AA0 Safety-Enhanced Analog Output: Reliable Control in Harsh Industrial Sites

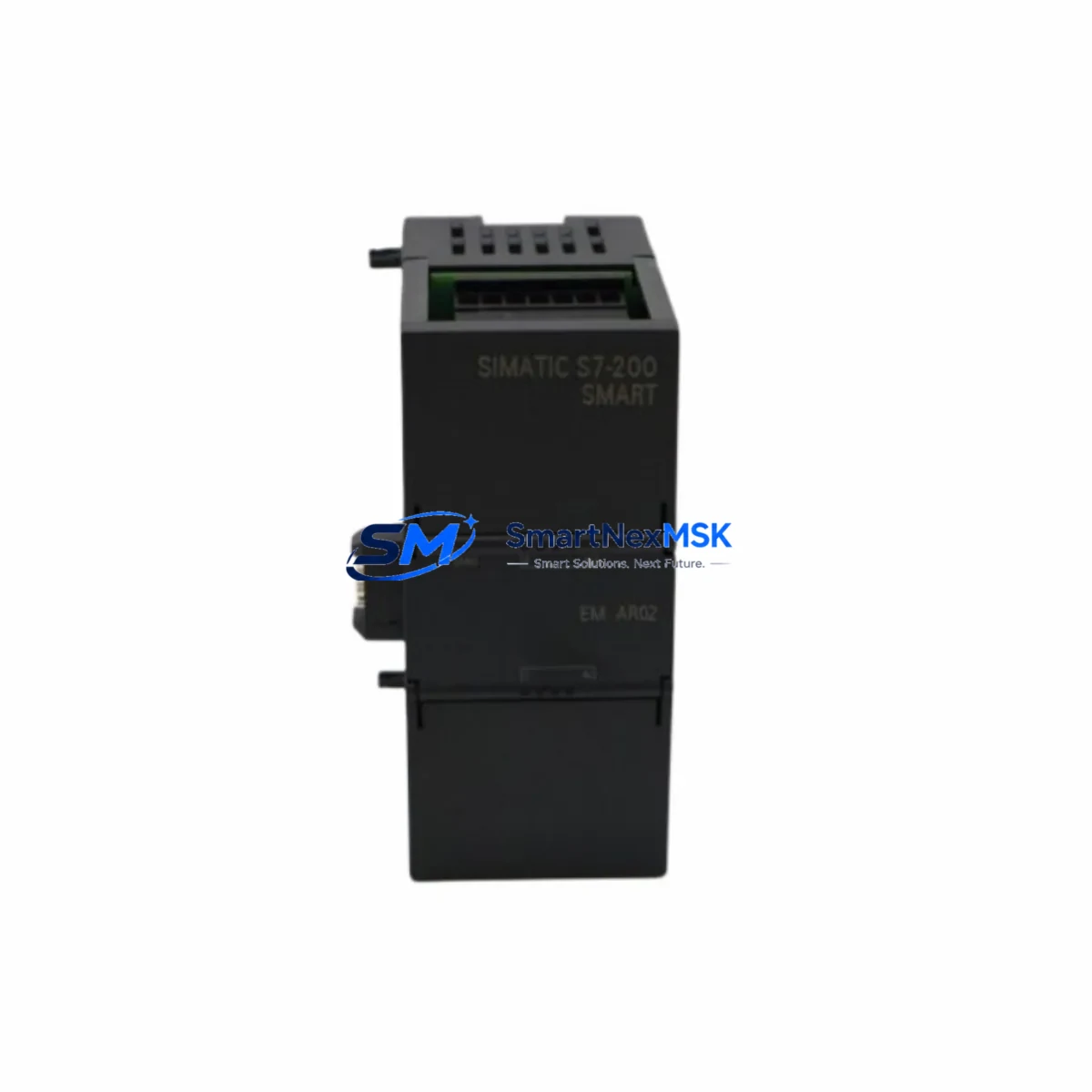

The Siemens 6ES7288-3AQ02-0AA0 is a 2-channel analog output module engineered for the S7-200 SMART PLC platform, purpose-built to deliver stable, interference-resistant signal output in the most demanding industrial environments. Whether deployed in high-load petrochemical control cabinets, continuous steel-rolling lines, mine ventilation interlocks, or water treatment dosing loops, this module is designed to maintain signal integrity where control interruptions carry real safety consequences.

In modern industrial automation, analog output accuracy is not merely a performance metric — it is a safety parameter. Signal drift in a 4–20 mA current loop controlling a valve actuator or variable-frequency drive can cascade into process upsets, equipment damage, or personnel hazards. The 6ES7288-3AQ02-0AA0 addresses this risk through its robust hardware design, tight output resolution, and proven compatibility with the S7-200 SMART CPU modules — including the CPU SR20, CPU ST30, and CPU CR40 — ensuring deterministic output behavior even under fluctuating bus loads.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7288-3AQ02-0AA0 within a well-engineered control cabinet architecture is essential to realizing its full safety potential. In high-interference environments — such as those adjacent to large motor drives, welding stations, or high-frequency induction heaters — the module should be paired with a Siemens 6EP1333-3BA10 SITOP PSU100S 24 V DC power supply to ensure clean, regulated bus voltage free from ripple-induced output errors. Power quality directly affects analog output stability; even a 200 mV transient on the 24 V rail can introduce measurable current loop deviation.

For surge and transient protection at the cabinet entry point, installing a Siemens 5SD7484-1 surge protection device on the incoming AC feed is strongly recommended. This prevents lightning-induced or switching-transient energy from propagating into the PLC backplane and corrupting analog output states. Within the same cabinet, the Siemens 6ES7288-1SR20-0AA0 CPU SR20 or 6ES7288-1ST30-0AA0 CPU ST30 serves as the host controller, executing the PID or sequencing logic that drives the 6ES7288-3AQ02-0AA0 outputs.

Signal wiring from the analog output terminals to field actuators — such as electro-pneumatic positioners, proportional valves, or VFD analog inputs — should be routed using shielded twisted-pair cable, with the shield grounded at a single point to the cabinet PE rail. For applications requiring analog input feedback to close the control loop, the companion Siemens 6ES7288-3AE04-0AA0 4-channel analog input module provides matched resolution and compatible bus timing, enabling tight closed-loop control without inter-module latency mismatch.

In safety interlock architectures where the analog output drives a critical final control element, it is advisable to monitor the output channel health via the S7-200 SMART diagnostic buffer and configure watchdog logic within the CPU program. The Siemens 6ES7288-5BA01-0AA0 SMART LINE expansion cable ensures reliable physical bus connection between the CPU and expansion modules, preventing intermittent communication faults that could cause spurious output changes. For remote I/O extensions in distributed cabinet layouts, the Siemens 6ES7288-1CR40-0AA0 CPU CR40 supports additional expansion slots while maintaining the same analog module compatibility.

Where communication transparency to a SCADA or DCS layer is required, the Siemens 6ES7288-6EC01-0AA0 Ethernet module enables Modbus TCP or S7 protocol connectivity, allowing supervisory systems to monitor analog output setpoints and actual values in real time — a critical capability for process safety management systems operating under IEC 61511 functional safety frameworks.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as crude distillation columns, reactor feed systems, and flare gas recovery loops, the 6ES7288-3AQ02-0AA0 provides the stable 4–20 mA output required to position control valves with the precision demanded by process safety instrumented systems. Signal drift or module failure in these applications can trigger emergency shutdowns or, in worst cases, uncontrolled releases. The module’s 12-bit resolution and fast conversion time support tight PID control of temperature, pressure, and flow — the three primary process variables in refinery safety loops.

Electric Power Generation and Substation Automation: In coal-fired, gas turbine, or hydroelectric generation facilities, analog output modules control excitation systems, governor actuators, and cooling water flow regulators. The 6ES7288-3AQ02-0AA0’s isolation barrier (500 V AC) protects the PLC backplane from ground potential differences common in high-voltage switchgear environments, reducing the risk of common-mode interference corrupting output signals to turbine control actuators.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The S7-200 SMART platform’s compact form factor and the 6ES7288-3AQ02-0AA0’s robust construction make it well-suited for conveyor speed control, crusher feed rate regulation, and ventilation fan modulation in these harsh conditions. Reliable analog output is critical in mine ventilation interlocks, where fan speed must be maintained within defined limits to ensure safe atmospheric conditions.

Water and Wastewater Treatment: Dosing pump control, aeration blower modulation, and sludge dewatering press regulation all depend on accurate, drift-free analog output. In water treatment facilities operating under continuous 24/7 schedules, module reliability directly impacts regulatory compliance and public health outcomes. The 6ES7288-3AQ02-0AA0’s proven compatibility with the S7-200 SMART platform — widely deployed in municipal water infrastructure — makes it a trusted replacement and upgrade component.

Metallurgy and Steel Production: Rolling mill tension control, furnace temperature regulation, and ladle crane positioning require analog outputs that maintain accuracy under severe electromagnetic interference from large induction furnaces and DC drive systems. The module’s EMC compliance and shielded backplane bus architecture provide the noise immunity necessary for reliable operation in these environments.

Port and Material Handling Automation: Ship-to-shore crane drives, automated stacking cranes, and conveyor sorting systems use analog outputs to command variable-speed drives. In these high-cycle, high-availability applications, the ability to source a tested, warranted replacement module quickly — with guaranteed compatibility — is as important as the module’s operational specifications.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 6ES7288-3AQ02-0AA0?
Every unit is covered by a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within this period, we provide a replacement or full refund. Warranty claims are processed within 3 business days of receiving the returned unit.

Q2: How is each module tested before shipment?
All units undergo a full functional test prior to dispatch, including output channel accuracy verification across the full 4–20 mA and ±10 V ranges, backplane communication integrity check, and visual inspection for physical damage. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all S7-200 SMART CPU variants?
Yes. The 6ES7288-3AQ02-0AA0 is compatible with the full S7-200 SMART CPU range, including SR20, SR30, SR40, SR60, ST20, ST30, ST40, ST60, CR40, and CR60 variants. It connects via the standard S7-200 SMART expansion bus and is recognized automatically by STEP 7-Micro/WIN SMART software without additional configuration.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
We maintain dedicated stock of the 6ES7288-3AQ02-0AA0 to support industrial spare parts programs and planned maintenance schedules. For facilities requiring guaranteed availability — such as those operating under IEC 61511 safety lifecycle management — we offer reserved stock arrangements and priority fulfillment agreements. Contact our team to discuss your site’s specific spare parts strategy.
